Istio

Overview

Istio is a full featured, customisable, and extensible service mesh.

Architecture

Istio provides a data plane that is composed of Envoy-based sidecars. These intelligent proxies control all network traffic in and out of your meshed apps and workloads.

The control plane manages the configuration, policy, and telemetry via the following components:

  • Mixer - Enforces access control and usage policies. Collects telemetry from the proxies that is pushed into Prometheus.

  • Pilot - Provides service discovery and traffic management policy/configuration for the proxies.

  • Citadel - Provides identity and security capabilities that allow for mTLS between services.

  • Galley - Abstracts and provides configuration to components.

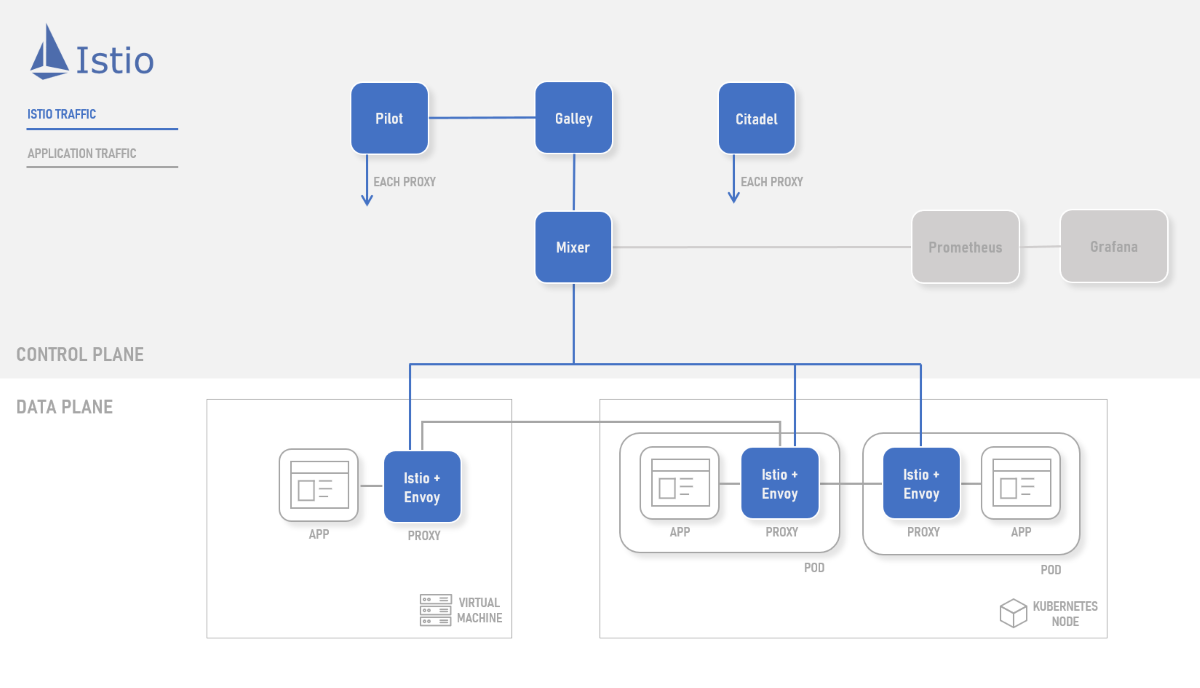

The following architecture diagram demonstrates how the various components within the data plane and control plane interact.

Overview of Istio components and architecture.

Selection criteria

It's important to understand and consider the following areas when evaluating Istio for your workloads:

Design goals

The following design goals guide the Istio project:

  • Maximize Transparency - Allow adoption with the minimum amount of work to get real value from the system.

  • Extensibility - Must be able to grow and adapt with changing needs.

  • Portability - Run easily in different kinds of environments - cloud, on-premises.

  • Policy Uniformity - Consistency in policy definition across variety of resources.

Capabilities

Istio provides the following set of capabilities:

  • Mesh - gateways (multi-cluster), virtual machines (mesh expansion)

  • Traffic Management - routing, splitting, timeouts, circuit breakers, retries, ingress, egress

  • Policy - access control, rate limit, quota, custom policy adapters

  • Security - authentication (jwt), authorisation, encryption (mTLS), external CA (HashiCorp Vault)

  • Observability - golden metrics, mirror, tracing, custom adapters, prometheus, grafana

Scenarios

Istio is well suited to and suggested for the following scenarios:

  • Require extensibility and rich set of capabilities

  • Mesh expansion to include VM based workloads

  • Multi-cluster service mesh

Next steps

The following documentation describes how you can install Istio on Azure Kubernetes Service (AKS):

Install Istio in Azure Kubernetes Service (AKS)

You can also further explore Istio concepts and additional deployment models:
