Use source control integration

Source control integration in Azure Automation supports single-direction synchronization from your source control repository. Source control allows you to keep your runbooks in your Automation account up to date with scripts in your GitHub or Azure DevOps source control repository. This feature makes it easy to promote code that has been tested in your development environment to your production Automation account.

Source control integration lets you easily collaborate with your team, track changes, and roll back to earlier versions of your runbooks. For example, source control allows you to synchronize different branches in source control with your development, test, and production Automation accounts.

Source control types

Azure Automation supports three types of source control:

• GitHub
• Azure DevOps (Git)
• Azure DevOps (TFVC)

Prerequisites

• A source control repository (GitHub or Azure DevOps)
• The Automation account requires either a system-assigned or user assigned managed identity. If you haven't configured a managed identity with your Automation account, see Enable system-assigned managed identity or enable user-assigned managed identity to create it.
• Assign the user assigned or system-assigned managed identity to the Contributor role in the Automation account.

Configure source control

This section tells how to configure source control for your Automation account. You can use either the Azure portal or PowerShell.

Assign managed identity to Contributor role

This example uses Azure PowerShell to show how to assign the Contributor role in the subscription to the Azure Automation account resource.

1. Open a PowerShell console with elevated privileges.

2. Sign in to Azure by running the command Connect-AzAccount -Environment AzureChinaCloud.

3. To assign the managed identity to the Contributor role, run the following command.

   New-AzRoleAssignment `
       -ObjectId <automation-Identity-Object(Principal)-Id> `
       -Scope "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Automation/automationAccounts/{automationAccountName}" `
       -RoleDefinitionName "Contributor"


Configure source control in Azure portal

Use this procedure to configure source control using the Azure portal.

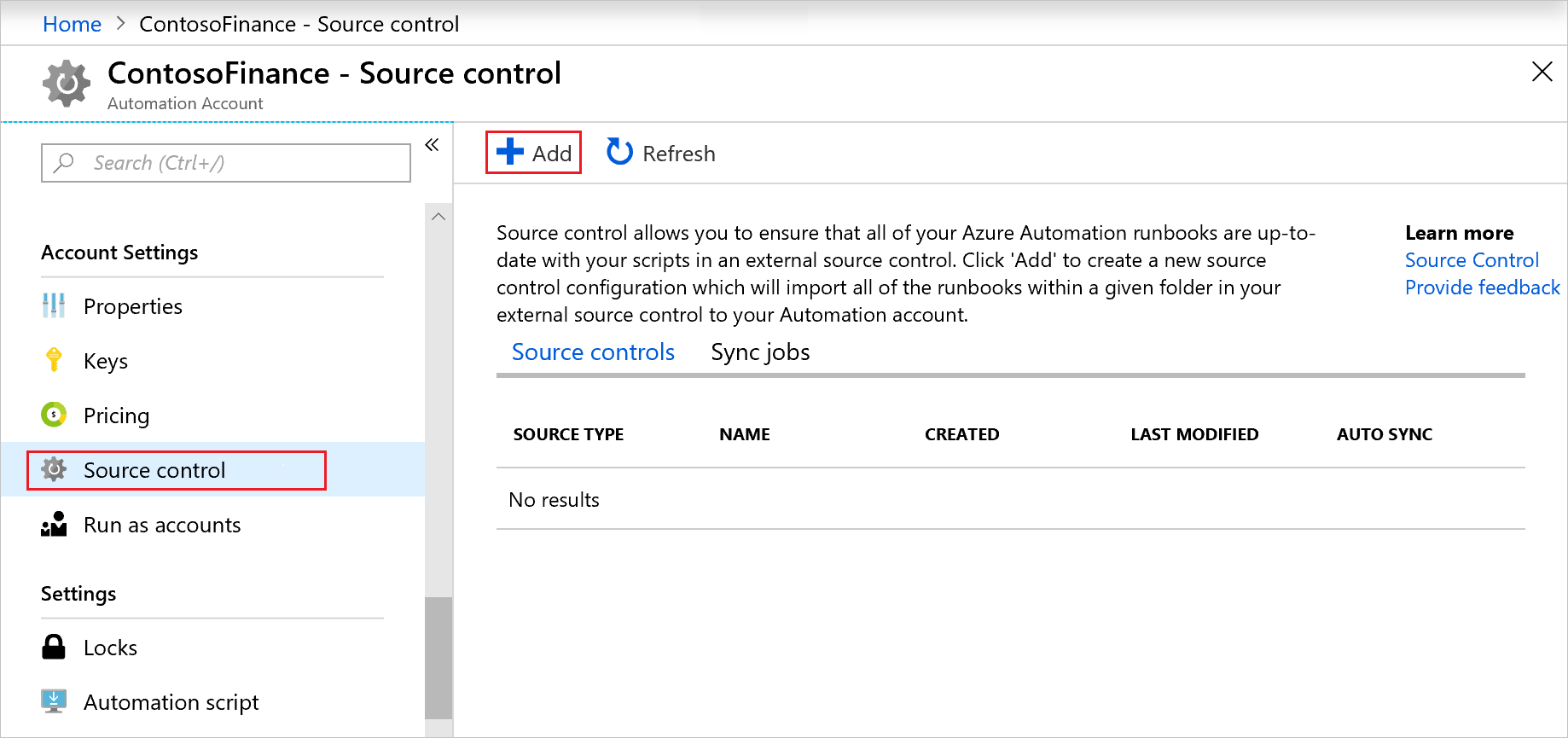

1. In your Automation account, select Source Control and click Add.



2. Choose Source Control type, then click Authenticate.

3. A browser window opens and prompts you to sign in. Follow the prompts to complete authentication.

4. On the Source Control Summary page, use the fields to fill in the source control properties defined below. Click Save when finished.

   Property	Description
   Source control name	A friendly name for the source control. This name must contain only letters and numbers.
   Source control type	Type of source control mechanism. Available options are: * GitHub * Azure DevOps (Git) * Azure DevOps (TFVC)
   Repository	Name of the repository or project. The first 200 repositories are retrieved. To search for a repository, type the name in the field and click Search on GitHub.
   Branch	Branch from which to pull the source files. Branch targeting isn't available for the TFVC source control type.
   Folder path	Folder that contains the runbooks to synchronize, for example, /Runbooks. Only runbooks in the specified folder are synchronized. Recursion isn't supported.
   Auto Sync1	Setting that turns on or off automatic synchronization when a commit is made in the source control repository or GitHub repo.
   Publish Runbook	Setting of On if runbooks are automatically published after synchronization from source control, and Off otherwise.
   Description	Text specifying additional details about the source control.

   ^{1 To enable Auto Sync when configuring the source control integration with Azure DevOps, you must be the Project Administrator or the GitHub repo owner. Collaborators can only configure Source Control without Auto Sync.}
   Auto Sync does not work with Automation Private Link. If you enable the Private Link, the source control webhook invocations will fail as it is outside the network.



Configure source control in PowerShell

You can also use PowerShell to configure source control in Azure Automation. To use the PowerShell cmdlets for this operation, you need a personal access token (PAT). Use the New-AzAutomationSourceControl cmdlet to create the source control connection. This cmdlet requires a secure string for the PAT. To learn how to create a secure string, see ConvertTo-SecureString.

The following subsections illustrate PowerShell creation of the source control connection for GitHub, Azure DevOps (Git), and Azure DevOps (TFVC).

Create source control connection for GitHub

New-AzAutomationSourceControl -Name SCGitHub -RepoUrl https://github.com/<accountname>/<reponame>.git -SourceType GitHub -FolderPath "/MyRunbooks" -Branch main -AccessToken <secureStringofPAT> -ResourceGroupName <ResourceGroupName> -AutomationAccountName <AutomationAccountName>

Create source control connection for Azure DevOps (Git)

New-AzAutomationSourceControl -Name SCReposGit -RepoUrl https://dev.azure.com/<accountname>/<adoprojectname>/_git/<repositoryname> -SourceType VsoGit -AccessToken <secureStringofPAT> -Branch main -ResourceGroupName <ResourceGroupName> -AutomationAccountName <AutomationAccountName> -FolderPath "/Runbooks"

Create source control connection for Azure DevOps (TFVC)

New-AzAutomationSourceControl -Name SCReposTFVC -RepoUrl https://dev.azure.com/<accountname>/<adoprojectname>/_git/<repositoryname> -SourceType VsoTfvc -AccessToken <secureStringofPAT> -ResourceGroupName <ResourceGroupName> -AutomationAccountName <AutomationAccountName> -FolderPath "/Runbooks"

Personal access token (PAT) permissions

Source control requires some minimum permissions for PATs. The following subsections contain the minimum permissions required for GitHub and Azure DevOps.

Minimum PAT permissions for GitHub

The following table defines the minimum PAT permissions required for GitHub. For more information about creating a PAT in GitHub, see Creating a personal access token for the command line.

Scope	Description
repo
repo:status	Access commit status
repo_deployment	Access deployment status
public_repo	Access public repositories
repo:invite	Access repository invitations
security_events	Read and write security events
admin:repo_hook
write:repo_hook	Write repository hooks
read:repo_hook	Read repository hooks

Minimum PAT permissions for Azure DevOps

The following list defines the minimum PAT permissions required for Azure DevOps. For more information about creating a PAT in Azure DevOps, see Authenticate access with personal access tokens.

Scope	Access Type
Code	Read
Project and team	Read
Identity	Read
User profile	Read
Work items	Read
Service connections	Read, query, manage1

¹ The Service connections permission is only required if you have enabled autosync.

Synchronize with source control

Follow these steps to synchronize with source control.

1. Select the source from the table on the Source control page.

2. Click Start Sync to start the sync process.

3. View the status of the current sync job or previous ones by clicking the Sync jobs tab.

4. On the Source Control dropdown menu, select a source control mechanism.



5. Clicking on a job allows you to view the job output. The following example is the output from a source control sync job.

   ===================================================================

   Azure Automation Source Control.
   Supported runbooks to sync: PowerShell Workflow, PowerShell Scripts, DSC Configurations, Graphical, and Python 2.

   Setting AzEnvironment.

   Getting AzureRunAsConnection.

   Logging in to Azure...

   Source control information for syncing:

   [Url = https://ContosoExample.visualstudio.com/ContosoFinanceTFVCExample/_versionControl] [FolderPath = /Runbooks]

   Verifying url: https://ContosoExample.visualstudio.com/ContosoFinanceTFVCExample/_versionControl

   Connecting to VSTS...

   Source Control Sync Summary:

   2 files synced:
    - ExampleRunbook1.ps1
    - ExampleRunbook2.ps1

   ==================================================================



6. Additional logging is available by selecting All Logs on the Source Control Sync Job Summary page. These additional log entries can help you troubleshoot issues that might arise when using source control.

Disconnect source control

To disconnect from a source control repository:

1. Open Source control under Account Settings in your Automation account.

2. Select the source control mechanism to remove.

3. On the Source Control Summary page, click Delete.

Handle encoding issues

If multiple people are editing runbooks in your source control repository using different editors, encoding issues can occur. To learn more about this situation, see Common causes of encoding issues.

Update the PAT

Currently, you can't use the Azure portal to update the PAT in source control. When your PAT is expired or revoked, you can update source control with a new access token in one of these ways:

• Use the REST API.
• Use the Update-AzAutomationSourceControl cmdlet.
