Create server configured with user-assigned managed identity and customer-managed TDE

Article
08/12/2024

This how-to guide outlines the steps to create a logical server in Azure configured with transparent data encryption (TDE) with customer-managed keys (CMK) using a user-assigned managed identity to access Azure Key Vault.

Note

Microsoft Entra ID was previously known as Azure Active Directory (Azure AD).

Prerequisites

This how-to guide assumes that you've already created an Azure Key Vault and imported a key into it to use as the TDE protector for Azure SQL Database. For more information, see transparent data encryption with BYOK support.
Soft-delete and Purge protection must be enabled on the key vault
You must have created a user-assigned managed identity and provided it the required TDE permissions (Get, Wrap Key, Unwrap Key) on the above key vault. For creating a user-assigned managed identity, see Create a user-assigned managed identity.
You must have Azure PowerShell installed and running.

Create server configured with TDE with customer-managed key (CMK)

The following steps outline the process of creating a new Azure SQL Database logical server and a new database with a user-assigned managed identity assigned. The user-assigned managed identity is required for configuring a customer-managed key for TDE at server creation time.

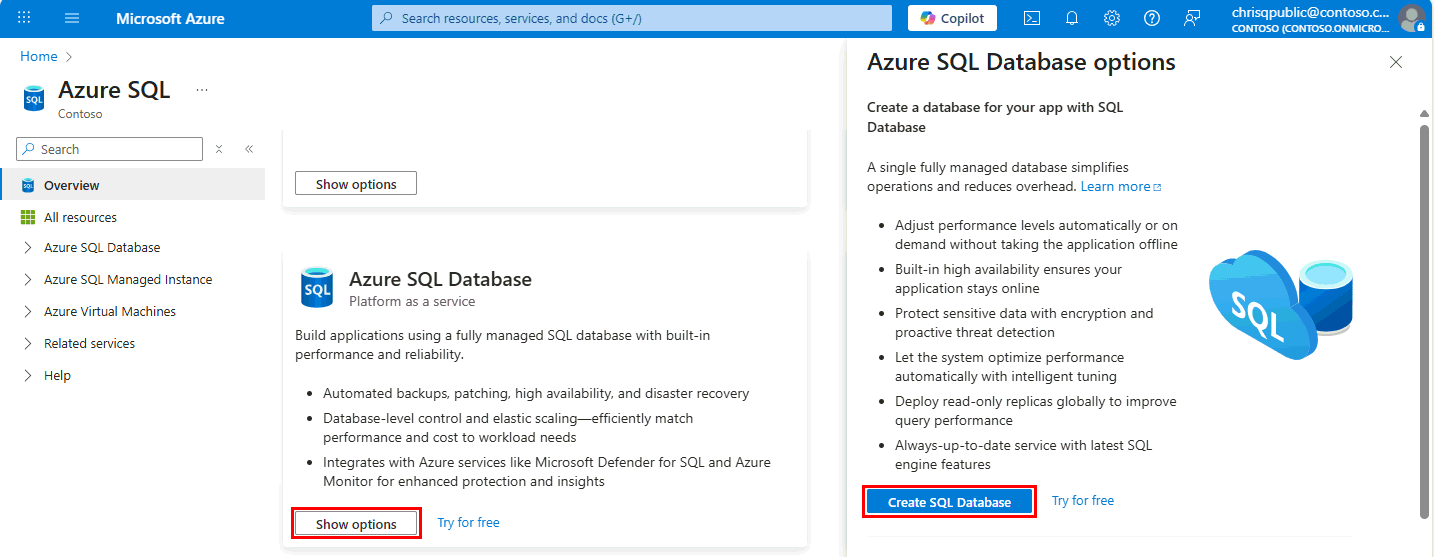

Browse to the Select SQL deployment option page in the Azure portal.
If you aren't already signed in to Azure portal, sign in when prompted.
Under SQL databases, leave Resource type set to Single database, and select Create.
On the Basics tab of the Create SQL Database form, under Project details, select the desired Azure Subscription.
For Resource group, select Create new, enter a name for your resource group, and select OK.
For Database name enter ContosoHR.
For Server, select Create new, and fill out the New server form with the following values:
- Server name: Enter a unique server name. Server names must be globally unique for all servers in Azure, not just unique within a subscription. Enter something like mysqlserver135, and the Azure portal will let you know if it's available or not.
- Server admin login: Enter an admin login name, for example: azureuser.
- Password: Enter a password that meets the password requirements, and enter it again in the Confirm password field.
- Location: Select a location from the dropdown list
Select Next: Networking at the bottom of the page.
On the Networking tab, for Connectivity method, select Public endpoint.
For Firewall rules, set Add current client IP address to Yes. Leave Allow Azure services and resources to access this server set to No.
Select Next: Security at the bottom of the page.
On the Security tab, under Server Identity, select Configure Identities.
On the Identity pane, select Off for System assigned managed identity and then select Add under User assigned managed identity. Select the desired Subscription and then under User assigned managed identities, select the desired user-assigned managed identity from the selected subscription. Then select the Add button.
Under Primary identity, select the same user-assigned managed identity selected in the previous step.
Select Apply
On the Security tab, under Transparent Data Encryption Key Management, you have the option to configure transparent data encryption for the server or database.
- For Server level key: Select Configure transparent data encryption. Select Customer-Managed Key, and an option to select Select a key will appear. Select Change key. Select the desired Subscription, Key vault, Key, and Version for the customer-managed key to be used for TDE. Select the Select button.
- For Database level key: Select Configure transparent data encryption. Select Database level Customer-Managed Key, and an option to configure the Database Identity and Customer-Managed Key will appear. Select Configure to configure a User-Assigned Managed Identity for the database, similar to step 13. Select Change key to configure a Customer-Managed Key. Select the desired Subscription, Key vault, Key, and Version for the customer-managed key to be used for TDE. You also have the option to enable Auto-rotate key in the Transparent Data Encryption menu. Select the Select button.
Select Apply
Select Review + create at the bottom of the page
On the Review + create page, after reviewing, select Create.

For information on installing the current release of Azure CLI, see Install the Azure CLI article.

Create a server configured with user-assigned managed identity and customer-managed TDE using the az sql server create command.

az sql server create \
    --name $serverName \
    --resource-group $resourceGroupName \
    --location $location  \
    --admin-user $adminlogin \
    --admin-password $password \
    --assign-identity \
    --identity-type $identitytype \
    --user-assigned-identity-id $identityid \
    --primary-user-assigned-identity-id $primaryidentityid \
    --key-id $keyid

Create a database with the az sql db create command.

az sql db create \
    --resource-group $resourceGroupName \
    --server $serverName \
    --name mySampleDatabase \
    --sample-name AdventureWorksLT \
    --edition GeneralPurpose \
    --compute-model Serverless \
    --family Gen5 \
    --capacity 2

Create a server configured with user-assigned managed identity and customer-managed TDE using PowerShell.

For Az PowerShell module installation instructions, see Install Azure PowerShell. For specific cmdlets, see AzureRM.Sql.

Use the New-AzSqlServer cmdlet.

Replace the following values in the example:

<ResourceGroupName>: Name of the resource group for your Azure SQL logical server
<Location>: Location of the server, such as China East 2, or China North 2
<ServerName>: Use a unique Azure SQL logical server name
<ServerAdminName>: The SQL Administrator login
<ServerAdminPassword>: The SQL Administrator password
<IdentityType>: Type of identity to be assigned to the server. Possible values are SystemAssigned, UserAssigned, SystemAssigned,UserAssigned and None
<UserAssignedIdentityId>: The list of user-assigned managed identities to be assigned to the server (can be one or multiple)
<PrimaryUserAssignedIdentityId>: The user-assigned managed identity that should be used as the primary or default on this server
<CustomerManagedKeyId>: Key Identifier and can be retrieved from the key in Key Vault

To get your user-assigned managed identity Resource ID, search for Managed Identities in the Azure portal. Find your managed identity, and go to Properties. An example of your UMI Resource ID looks like /subscriptions/<subscriptionId>/resourceGroups/<ResourceGroupName>/providers/Microsoft.ManagedIdentity/userAssignedIdentities/<managedIdentity>

# create a server with user-assigned managed identity and customer-managed TDE
$params = @{
    ResourceGroupName = "<ResourceGroupName>"
    Location = "<Location>"
    ServerName = "<ServerName>"
    ServerVersion = "12.0"
    SqlAdministratorCredentials = (Get-Credential)
    SqlAdministratorLogin = "<ServerAdminName>"
    SqlAdministratorPassword = "<ServerAdminPassword>"
    AssignIdentity = $true
    IdentityType = "<IdentityType>"
    UserAssignedIdentityId = "<UserAssignedIdentityId>"
    PrimaryUserAssignedIdentityId = "<PrimaryUserAssignedIdentityId>"
    KeyId = "<CustomerManagedKeyId>"
}

New-AzSqlServer @params

Here's an example of an ARM template that creates a logical server in Azure with a user-assigned managed identity and customer-managed TDE. The template also adds a Microsoft Entra admin set for the server and enables Microsoft Entra-only authentication, but this can be removed from the template example.

For more information and ARM templates, see Azure Resource Manager templates for Azure SQL Database & SQL Managed Instance.

Use a Custom deployment in the Azure portal, and Build your own template in the editor. Next, Save the configuration once you pasted in the example.

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.1",
    "parameters": {
        "server": {
            "type": "String"
        },
        "location": {
            "type": "String"
        },
        "aad_admin_name": {
            "type": "String",
            "metadata": {
                "description": "The name of the Azure AD admin for the SQL server."
            }
        },
        "aad_admin_objectid": {
            "type": "String",
            "metadata": {
                "description": "The Object ID of the Azure AD admin."
            }
        },
        "aad_admin_tenantid": {
            "type": "String",
            "defaultValue": "[subscription().tenantId]",
            "metadata": {
                "description": "The Tenant ID of the Azure Active Directory"
            }
        },
        "aad_admin_type": {
            "defaultValue": "User",
            "allowedValues": [
                "User",
                "Group",
                "Application"
            ],
            "type": "String"
        },
        "aad_only_auth": {
            "defaultValue": true,
            "type": "Bool"
        },
        "user_identity_resource_id": {
            "defaultValue": "",
            "type": "String",
            "metadata": {
                "description": "The Resource ID of the user-assigned managed identity."
            }
        },
        "keyvault_url": {
            "defaultValue": "",
            "type": "String",
            "metadata": {
                "description": "The key vault URI."
            }
        },
        "AdminLogin": {
            "minLength": 1,
            "type": "String"
        },
        "AdminLoginPassword": {
            "type": "SecureString"
        }
    },
    "resources": [
        {
            "type": "Microsoft.Sql/servers",
            "apiVersion": "2020-11-01-preview",
            "name": "[parameters('server')]",
            "location": "[parameters('location')]",
            "identity": {
                "type": "UserAssigned",
                "UserAssignedIdentities": {
                    "[parameters('user_identity_resource_id')]": {}
                }
            },
            "properties": {
                "administratorLogin": "[parameters('AdminLogin')]",
                "administratorLoginPassword": "[parameters('AdminLoginPassword')]",
                "PrimaryUserAssignedIdentityId": "[parameters('user_identity_resource_id')]",
                "KeyId": "[parameters('keyvault_url')]",
                "administrators": {
                    "login": "[parameters('aad_admin_name')]",
                    "sid": "[parameters('aad_admin_objectid')]",
                    "tenantId": "[parameters('aad_admin_tenantid')]",
                    "principalType": "[parameters('aad_admin_type')]",
                    "azureADOnlyAuthentication": "[parameters('aad_only_auth')]"
                }
            }
        }
    ]
}

Next steps

Get started with Azure Key Vault integration and Bring Your Own Key support for TDE: Turn on TDE using your own key from Key Vault.
