Quickstart: Vector search with Node.js in Azure Cosmos DB for MongoDB (vCore)

  • Applies to: ✅ MongoDB (vCore)

Use vector search in Azure Cosmos DB for MongoDB (vCore) with the Node.js client library. Store and query vector data efficiently.

This quickstart uses a sample hotel dataset in a JSON file with vectors from the text-embedding-ada-002 model. The dataset includes hotel names, locations, descriptions, and vector embeddings.

Find the sample code on GitHub.

Prerequisites

  • An Azure subscription

    • If you don't have an Azure subscription, create a Trial before you begin.

Create a Node.js project

  1. Create a new directory for your project and open it in Visual Studio Code:

    mkdir vector-search-quickstart
code vector-search-quickstart

  2. In the terminal, initialize a Node.js project:

    npm init -y
npm pkg set type="module"

  3. Install the required packages:

    npm install mongodb @azure/identity openai @types/node
    • mongodb: MongoDB Node.js driver
    • @azure/identity: Azure Identity library for passwordless authentication
    • openai: OpenAI client library to create vectors
    • @types/node: Type definitions for Node.js

  4. Create a .env file in your project root for environment variables:

    # Azure OpenAI Embedding Settings
AZURE_OPENAI_EMBEDDING_MODEL=text-embedding-ada-002
AZURE_OPENAI_EMBEDDING_API_VERSION=2023-05-15
AZURE_OPENAI_EMBEDDING_ENDPOINT=
EMBEDDING_SIZE_BATCH=16

# MongoDB configuration
MONGO_CLUSTER_NAME=

# Data file
DATA_FILE_WITH_VECTORS=HotelsData_toCosmosDB_Vector.json
EMBEDDED_FIELD=text_embedding_ada_002
EMBEDDING_DIMENSIONS=1536
LOAD_SIZE_BATCH=100

    Replace the placeholder values in the .env file with your own information:

    • AZURE_OPENAI_EMBEDDING_ENDPOINT: Your Azure OpenAI resource endpoint URL
    • MONGO_CLUSTER_NAME: Your MongoDB vCore resource name

  5. Add a tsconfig.json file to configure TypeScript:

{
    "compilerOptions": {
        "target": "ES2020",
        "module": "NodeNext",
        "moduleResolution": "nodenext",
        "declaration": true,
        "outDir": "./dist",
        "strict": true,
        "esModuleInterop": true,
        "skipLibCheck": true,
        "noImplicitAny": false,
        "forceConsistentCasingInFileNames": true,
        "sourceMap": true,
        "resolveJsonModule": true,
    },
    "include": [
        "src/**/*"
    ],
    "exclude": [
        "node_modules",
        "dist"
    ]
}
  1. Copy the HotelsData_toCosmosDB_Vector.json raw data file with vectors to your project root.

Create npm scripts

Edit the package.json file and add these scripts:

Use these scripts to compile TypeScript files and run the DiskANN index implementation.

"scripts": {
    "build": "tsc",
    "start:diskann": "node --env-file .env dist/diskann.js"
}

Create a src directory for your TypeScript files. Add two files: diskann.ts and utils.ts for the DiskANN index implementation:

mkdir src
touch src/diskann.ts
touch src/utils.ts

Paste the following code into the diskann.ts file.

import path from 'path';
import { readFileReturnJson, getClientsPasswordless, insertData, printSearchResults } from './utils.js';

// ESM specific features - create __dirname equivalent
import { fileURLToPath } from "node:url";
import { dirname } from "node:path";
const __filename = fileURLToPath(import.meta.url);
const __dirname = dirname(__filename);

const config = {
    query: "quintessential lodging near running trails, eateries, retail",
    dbName: "Hotels",
    collectionName: "hotels_diskann",
    indexName: "vectorIndex_diskann",
    dataFile: process.env.DATA_FILE_WITH_VECTORS!,
    batchSize: parseInt(process.env.LOAD_SIZE_BATCH! || '100', 10),
    embeddedField: process.env.EMBEDDED_FIELD!,
    embeddingDimensions: parseInt(process.env.EMBEDDING_DIMENSIONS!, 10),
    deployment: process.env.AZURE_OPENAI_EMBEDDING_MODEL!,
};

async function main() {

    const { aiClient, dbClient } = getClientsPasswordless();

    try {

        if (!aiClient) {
            throw new Error('AI client is not configured. Please check your environment variables.');
        }
        if (!dbClient) {
            throw new Error('Database client is not configured. Please check your environment variables.');
        }

        await dbClient.connect();
        const db = dbClient.db(config.dbName);
        const collection = await db.createCollection(config.collectionName);
        console.log('Created collection:', config.collectionName);
        const data = await readFileReturnJson(path.join(__dirname, "..", config.dataFile));
        const insertSummary = await insertData(config, collection, data);
        console.log('Created vector index:', config.indexName);

        // Create the vector index
        const indexOptions = {
            createIndexes: config.collectionName,
            indexes: [
                {
                    name: config.indexName,
                    key: {
                        [config.embeddedField]: 'cosmosSearch'
                    },
                    cosmosSearchOptions: {
                        kind: 'vector-diskann',
                        dimensions: config.embeddingDimensions,
                        similarity: 'COS', // 'COS', 'L2', 'IP'
                        maxDegree: 20, // 20 - 2048,  edges per node
                        lBuild: 10 // 10 - 500, candidate neighbors evaluated
                    }
                }
            ]
        };
        const vectorIndexSummary = await db.command(indexOptions);

        // Create embedding for the query
        const createEmbeddedForQueryResponse = await aiClient.embeddings.create({
            model: config.deployment,
            input: [config.query]
        });

        // Perform the vector similarity search
        const searchResults = await collection.aggregate([
            {
                $search: {
                    cosmosSearch: {
                        vector: createEmbeddedForQueryResponse.data[0].embedding,
                        path: config.embeddedField,
                        k: 5
                    }
                }
            },
            {
                $project: {
                    score: {
                        $meta: "searchScore"
                    },
                    document: "$$ROOT"
                }
            }
        ]).toArray();

        // Print the results
        printSearchResults(insertSummary, vectorIndexSummary, searchResults);

    } catch (error) {
        console.error('App failed:', error);
        process.exitCode = 1;
    } finally {
        console.log('Closing database connection...');
        if (dbClient) await dbClient.close();
        console.log('Database connection closed');
    }
}

// Execute the main function
main().catch(error => {
    console.error('Unhandled error:', error);
    process.exitCode = 1;
});

This main module provides these features:

  • Includes utility functions
  • Creates a configuration object for environment variables
  • Creates clients for Azure OpenAI and Azure Cosmos DB for MongoDB vCore
  • Connects to MongoDB, creates a database and collection, inserts data, and creates standard indexes
  • Creates a vector index using IVF, HNSW, or DiskANN
  • Creates an embedding for a sample query text using the OpenAI client. You can change the query at the top of the file
  • Runs a vector search using the embedding and prints the results

Create utility functions

Paste the following code into utils.ts:

import { MongoClient, OIDCResponse, OIDCCallbackParams } from 'mongodb';
import { AzureOpenAI } from 'openai/index.js';
import { promises as fs } from "fs";
import { AccessToken, DefaultAzureCredential, TokenCredential, getBearerTokenProvider } from '@azure/identity';

// Define a type for JSON data
export type JsonData = Record<string, any>;

export const AzureIdentityTokenCallback = async (params: OIDCCallbackParams, credential: TokenCredential): Promise<OIDCResponse> => {
    const tokenResponse: AccessToken | null = await credential.getToken(['https://ossrdbms-aad.database.windows.net/.default']);
    return {
        accessToken: tokenResponse?.token || '',
        expiresInSeconds: (tokenResponse?.expiresOnTimestamp || 0) - Math.floor(Date.now() / 1000)
    };
};
export function getClients(): { aiClient: AzureOpenAI; dbClient: MongoClient } {
    const apiKey = process.env.AZURE_OPENAI_EMBEDDING_KEY!;
    const apiVersion = process.env.AZURE_OPENAI_EMBEDDING_API_VERSION!;
    const endpoint = process.env.AZURE_OPENAI_EMBEDDING_ENDPOINT!;
    const deployment = process.env.AZURE_OPENAI_EMBEDDING_MODEL!;
    const aiClient = new AzureOpenAI({
        apiKey,
        apiVersion,
        endpoint,
        deployment
    });
    const dbClient = new MongoClient(process.env.MONGO_CONNECTION_STRING!, {
        // Performance optimizations
        maxPoolSize: 10,         // Limit concurrent connections
        minPoolSize: 1,          // Maintain at least one connection
        maxIdleTimeMS: 30000,    // Close idle connections after 30 seconds
        connectTimeoutMS: 30000, // Connection timeout
        socketTimeoutMS: 360000, // Socket timeout (for long-running operations)
        writeConcern: {          // Optimize write concern for bulk operations
            w: 1,                // Acknowledge writes after primary has written
            j: false             // Don't wait for journal commit
        }
    });

    return { aiClient, dbClient };
}

export function getClientsPasswordless(): { aiClient: AzureOpenAI | null; dbClient: MongoClient | null } {
    let aiClient: AzureOpenAI | null = null;
    let dbClient: MongoClient | null = null;

    // For Azure OpenAI with DefaultAzureCredential
    const apiVersion = process.env.AZURE_OPENAI_EMBEDDING_API_VERSION!;
    const endpoint = process.env.AZURE_OPENAI_EMBEDDING_ENDPOINT!;
    const deployment = process.env.AZURE_OPENAI_EMBEDDING_MODEL!;

    if (apiVersion && endpoint && deployment) {
        const credential = new DefaultAzureCredential();
        const scope = "https://cognitiveservices.azure.com/.default";
        const azureADTokenProvider = getBearerTokenProvider(credential, scope);
        aiClient = new AzureOpenAI({
            apiVersion,
            endpoint,
            deployment,
            azureADTokenProvider
        });
    }

    // For Cosmos DB with DefaultAzureCredential
    const clusterName = process.env.MONGO_CLUSTER_NAME!;

    if (clusterName) {
        const credential = new DefaultAzureCredential();

        dbClient = new MongoClient(
            `mongodb+srv://${clusterName}.global.mongocluster.cosmos.azure.com/`, {
            connectTimeoutMS: 30000,
            tls: true,
            retryWrites: true,
            authMechanism: 'MONGODB-OIDC',
            authMechanismProperties: {
                OIDC_CALLBACK: (params: OIDCCallbackParams) => AzureIdentityTokenCallback(params, credential),
                ALLOWED_HOSTS: ['*.azure.com']
            }
        }
        );
    }

    return { aiClient, dbClient };
}

export async function readFileReturnJson(filePath: string): Promise<JsonData[]> {

    console.log(`Reading JSON file from ${filePath}`);

    const fileAsString = await fs.readFile(filePath, "utf-8");
    return JSON.parse(fileAsString);
}
export async function writeFileJson(filePath: string, jsonData: JsonData): Promise<void> {
    const jsonString = JSON.stringify(jsonData, null, 2);
    await fs.writeFile(filePath, jsonString, "utf-8");

    console.log(`Wrote JSON file to ${filePath}`);
}
export async function insertData(config, collection, data) {
    console.log(`Processing in batches of ${config.batchSize}...`);
    const totalBatches = Math.ceil(data.length / config.batchSize);

    let inserted = 0;
    let updated = 0;
    let skipped = 0;
    let failed = 0;

    for (let i = 0; i < totalBatches; i++) {
        const start = i * config.batchSize;
        const end = Math.min(start + config.batchSize, data.length);
        const batch = data.slice(start, end);

        try {
            const result = await collection.insertMany(batch, { ordered: false });
            inserted += result.insertedCount || 0;
            console.log(`Batch ${i + 1} complete: ${result.insertedCount} inserted`);
        } catch (error: any) {
            if (error?.writeErrors) {
                // Some documents may have been inserted despite errors
                console.error(`Error in batch ${i + 1}: ${error?.writeErrors.length} failures`);
                failed += error?.writeErrors.length;
                inserted += batch.length - error?.writeErrors.length;
            } else {
                console.error(`Error in batch ${i + 1}:`, error);
                failed += batch.length;
            }
        }

        // Small pause between batches to reduce resource contention
        if (i < totalBatches - 1) {
            await new Promise(resolve => setTimeout(resolve, 100));
        }
    }
    const indexColumns = [
        "HotelId",
        "Category",
        "Description",
        "Description_fr"
    ];
    for (const col of indexColumns) {
        const indexSpec = {};
        indexSpec[col] = 1; // Ascending index
        await collection.createIndex(indexSpec);
    }

    return { total: data.length, inserted, updated, skipped, failed };
}

export function printSearchResults(insertSummary, indexSummary, searchResults) {


    if (!searchResults || searchResults.length === 0) {
        console.log('No search results found.');
        return;
    }

    searchResults.map((result, index) => {

        const { document, score } = result as any;

        console.log(`${index + 1}. HotelName: ${document.HotelName}, Score: ${score.toFixed(4)}`);
        //console.log(`   Description: ${document.Description}`);
    });

}

This utility module provides these features:

  • JsonData: Interface for the data structure
  • scoreProperty: Location of the score in query results based on vector search method
  • getClients: Creates and returns clients for Azure OpenAI and Azure Cosmos DB for MongoDB vCore
  • getClientsPasswordless: Creates and returns clients for Azure OpenAI and Azure Cosmos DB for MongoDB vCore using passwordless authentication. Enable RBAC on both resources and sign in to Azure CLI
  • readFileReturnJson: Reads a JSON file and returns its contents as an array of JsonData objects
  • writeFileJson: Writes an array of JsonData objects to a JSON file
  • insertData: Inserts data in batches into a MongoDB collection and creates standard indexes on specified fields
  • printSearchResults: Prints the results of a vector search, including the score and hotel name

Authenticate with Azure CLI

Sign in to Azure CLI before you run the application so it can access Azure resources securely.

az login

Build and run the application

Build the TypeScript files, then run the application:

npm run build
npm run start:diskann

You see the top five hotels that match the vector search query and their similarity scores.

View and manage data in Visual Studio Code

  1. Select the DocumentDB extension in Visual Studio Code to connect to your Azure Cosmos DB account.

  2. View the data and indexes in the Hotels database.

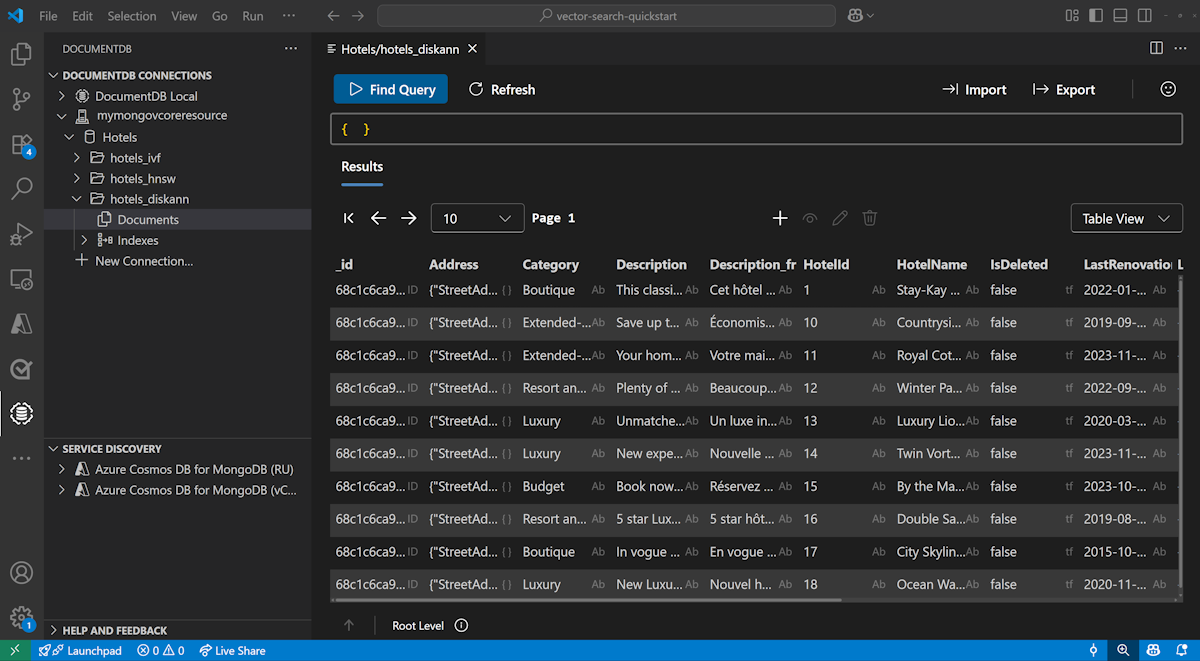

    Screenshot of DocumentDB extension showing the Cosmos DB Mongo (vCore) collection.

Clean up resources

Delete the resource group, MongoDB vCore account, and Azure OpenAI resource when you don't need them to avoid extra costs.

Related content
