Restrict outbound access from your Azure Data Explorer cluster

Article
09/09/2024

Restricting outbound access of your cluster is important to mitigate risks like data exfiltration. A malicious actor could potentially create an external table to a storage account and extract large amounts of data. You can control outbound access at the cluster level by defining callout policies. Managing callout policies enables you to allow outbound access to specified SQL, storage, or other endpoints.

In this article, you'll learn how about an extension to callout policies that enables you to further restrict call outs from your cluster.

Types of callout policies

Callout policies can be divided, as follows:

Immutable callout policies: These are the standard policies of a cluster. They're preconfigured and can't be modified.
Cluster callout policies: These are policies that you can modify using callout policy commands.

Prerequisites

An Azure subscription. Create a Azure account.
An Azure Data Explorer cluster and database. Create a cluster and database.

Run callout policy commands

Sign in to the Azure Data Explorer web UI.
On the left menu, select Query, and then connect to your cluster.
In the query window, run the following query to inspect the list of immutable callout policies on your cluster:
```
.show cluster policy callout
```

The following shows an example of immutable callout policies. Notice that in the list there are a few default rules that allow making calls out to other services, such as external data.

[
   {
      "CalloutType":"kusto",
      "CalloutUriRegex":"[a-z0-9]{3,22}\\.(\\w+\\.)?kusto(mfa)?\\.chinacloudapi\\.cn/?$",
      "CanCall":true
   },
   {
      "CalloutType":"kusto",
      "CalloutUriRegex":"//[a-z0-9]{3,22}\\.[a-z0-9-]{1,50}\\.(kusto\\.azuresynapse|kustodev\\.azuresynapse-dogfood)\\.net/?$",
      "CanCall":true
   },
   {
      "CalloutType":"kusto",
      "CalloutUriRegex":"^https://([A-Za-z0-9]+\\.)?(ade|adx)\\.(int\\.)?(applicationinsights|loganalytics|monitor)\\.(io|azure(\\.com|\\.us|\\.cn))/",
      "CanCall":true
   },
   {
      "CalloutType":"sql",
      "CalloutUriRegex":"[a-z0-9][a-z0-9\\-]{0,61}[a-z0-9]?\\.database\\.chinacloudapi\\.cn/?$",
      "CanCall":true
   },
   {
      "CalloutType":"sql",
      "CalloutUriRegex":"[a-z0-9-]{0,61}?(-ondemand)?\\.sql\\.azuresynapse(-dogfood)?\\.net/?$",
      "CanCall":true
   },
   {
      "CalloutType":"external_data",
      "CalloutUriRegex":".*",
      "CanCall":true
   },
   {
      "CalloutType":"azure_digital_twins",
      "CalloutUriRegex":"[A-Za-z0-9\\-]{3,63}\\.api\\.[A-Za-z0-9]+\\.digitaltwins\\.azure\\.net/?$",
      "CanCall":true
   }
]

Empty the list of immutable callout policies

To restrict outbound access to from your cluster, you must empty the list of immutable callout policies. You can do this by running the following command using the Azure CLI or any other tools by calling the Azure Data Explorer APIs.

Trigger an ARM deployment using the Azure CLI with an updated ARM template:

Example ARM template file named "template.json" with the property restrictOutboundNetworkAccess set to Enabled:

{
  "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  ...
  "resources": [
      {
          "type": "Microsoft.Kusto/Clusters",
          "apiVersion": "2021-02-01",
          ...
          "properties": {
              ...
              "restrictOutboundNetworkAccess": "Enabled",
              ...
          }
      }
      ...
  ]
}

Example call using the Azure CLI referring to the template above.

# Replace the <...> placeholders with the correct values
az deployment group create   --name RestrictOutboundAccess   --resource-group <resource group>   --template-file ./template.json

Updating the restrictOutboundNetworkAccess cluster property removes all the immutable policies on your cluster. This prevents initiating call outs to other services as shown in the following example.

Screenshot of the restricted query page, showing an immutable callout policies error.

Run the following command again and verify that it returns an empty list:

.show cluster policy callout
| where EntityType == "Cluster immutable policy"

Screenshot of the restricted query page, showing no immutable callout policies.

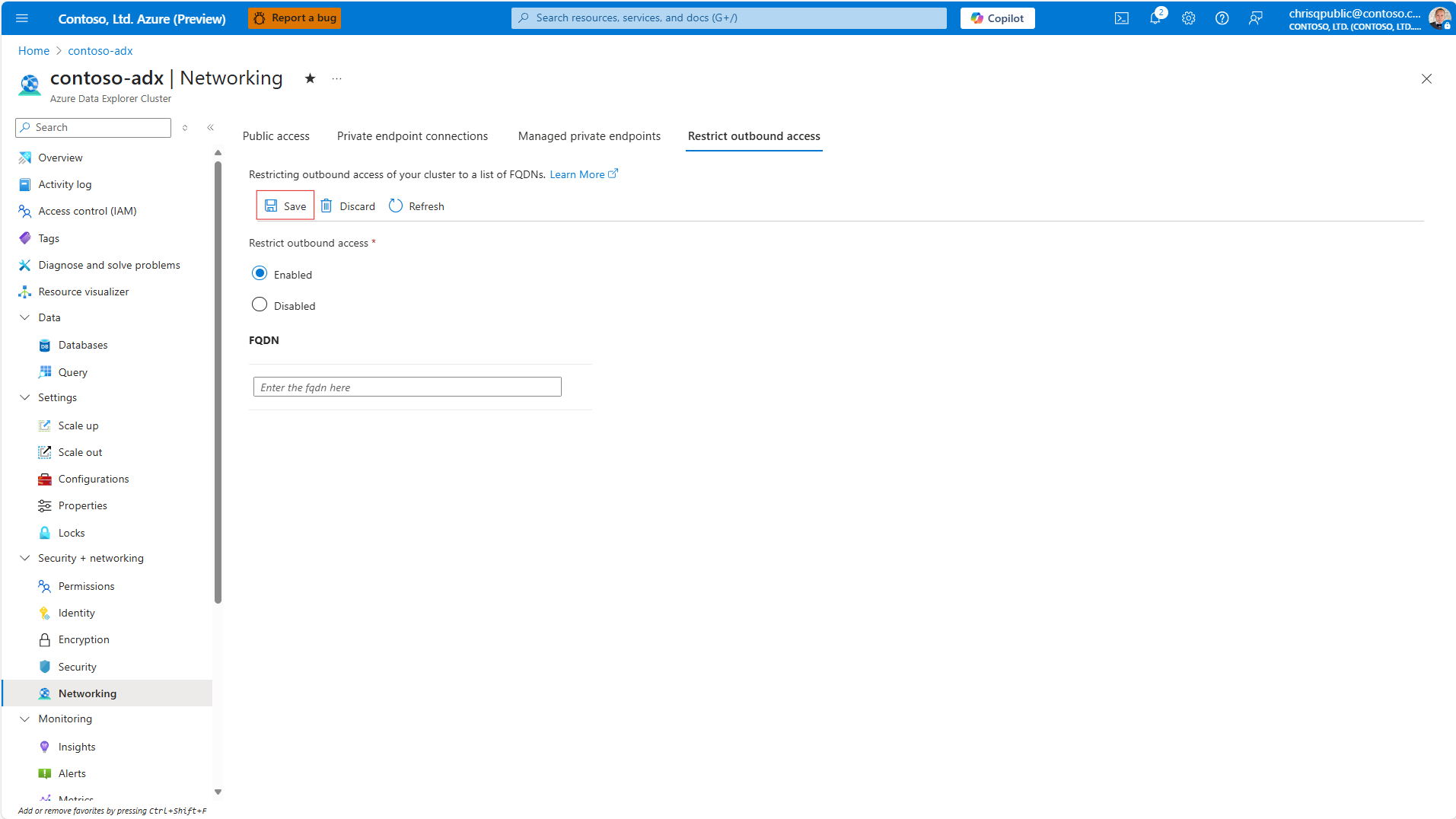

Add FQDNs to the callouts under restricted conditions

If you want to allow outbound access to a specific FQDN, you can add it to the allowedFqdnList list for your cluster. You can do this by running by making changes to the ARM template of the Azure Data Explorer cluster.
