Application configuration options

  • Article

To authenticate and acquire tokens, you initialize a new public or confidential client application in your code. You can set several configuration options when you initialize the client app in the Microsoft Authentication Library (MSAL). These options fall into two groups:

Authority

The authority is a URL that indicates a directory that MSAL can request tokens from.

Common authorities are:

Common authority URLs When to use
https://login.partner.microsoftonline.cn/<tenant>/ Sign in users of a specific organization only. The <tenant> in the URL is the tenant ID of the Microsoft Entra tenant (a GUID), or its tenant domain.
https://login.partner.microsoftonline.cn/common/ Sign in users with work and school accounts.
https://login.partner.microsoftonline.cn/organizations/ Sign in users with work and school accounts.

The authority you specify in your code needs to be consistent with the Supported account types you specified for the app in App registrations in the Azure portal.

The authority can be:

  • A Microsoft Entra cloud authority.
  • An Azure AD B2C authority. See B2C specifics.
  • An Active Directory Federation Services (AD FS) authority. See AD FS support.

Microsoft Entra cloud authorities have two parts:

  • The identity provider instance
  • The sign-in audience for the app

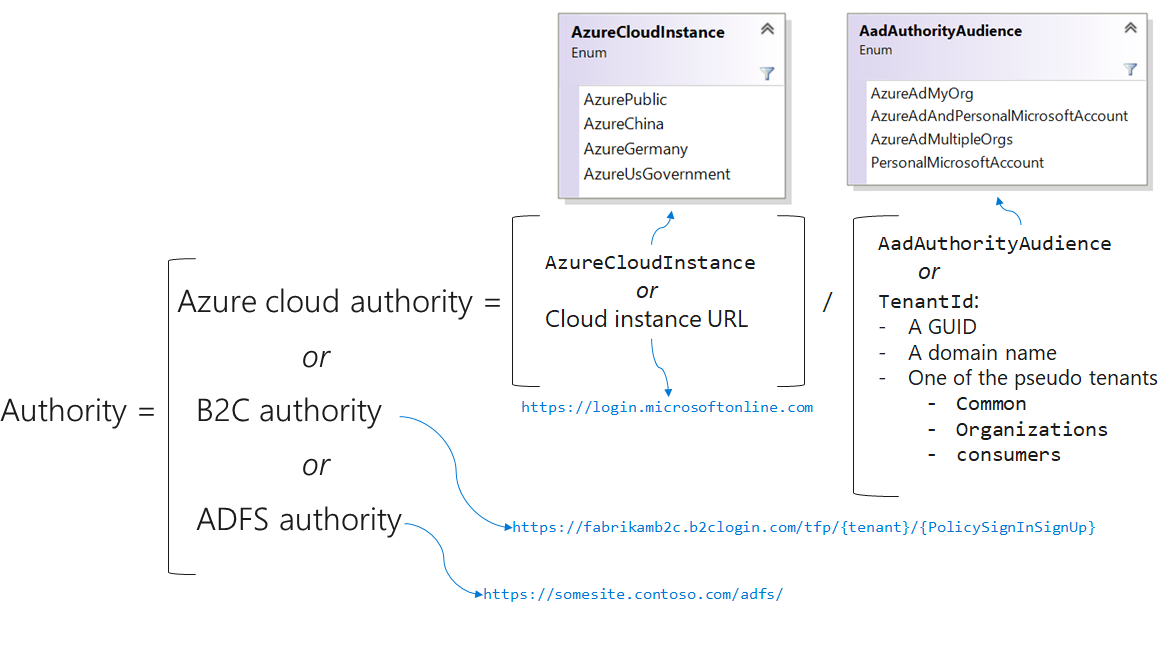

The instance and audience can be concatenated and provided as the authority URL. This diagram shows how the authority URL is composed:

How the authority URL is composed

Cloud instance

The instance is used to specify if your app is signing users from the Azure public cloud or from national clouds. Using MSAL in your code, you can set the Azure cloud instance by using an enumeration or by passing the URL to the national cloud instance as the Instance member.

MSAL.NET will throw an explicit exception if both Instance and AzureCloudInstance are specified.

If you don't specify an instance, your app will target the Azure public cloud instance.

Application audience

The sign-in audience depends on the business needs for your app:

  • If you're a line of business (LOB) developer, you'll probably produce a single-tenant application that will be used only in your organization. In that case, specify the organization by its tenant ID (the ID of your Microsoft Entra instance) or by a domain name associated with the Microsoft Entra instance.
  • If you're an ISV, you might want to sign in users with their work and school accounts in any organization or in some organizations (multitenant app).

How to specify the audience in your code/configuration

Using MSAL in your code, you specify the audience by using one of the following values:

  • The Microsoft Entra authority audience enumeration
  • The tenant ID, which can be:
    • A GUID (the ID of your Microsoft Entra instance), for single-tenant applications
    • A domain name associated with your Microsoft Entra instance (also for single-tenant applications)
  • One of these placeholders as a tenant ID in place of the Microsoft Entra authority audience enumeration:
    • organizations for a multitenant application
    • common to sign in users with their work and school accounts MSAL will throw a meaningful exception if you specify both the Microsoft Entra authority audience and the tenant ID.

It is recommended to specify an audience, as many tenants, and the applications deployed in them will have guest users. If your application will have external users, the endpoints of common and organization are best avoided. If you don't specify an audience, your app will target Microsoft Entra ID as an audience and will behave as though common were specified.

Effective audience

The effective audience for your application will be the minimum (if there's an intersection) of the audience you set in your app and the audience that's specified in the app registration. In fact, the App registrations experience lets you specify the audience (the supported account types) for the app. For more information, see Quickstart: Register an application with the Microsoft identity platform.

Client ID

The client ID is the unique Application (client) ID assigned to your app by Microsoft Entra ID when the app was registered. You can find the Application (Client) ID on the Overview page for the application in Identity > Applications > Enterprise applications.

Redirect URI

The redirect URI is the URI the identity provider will send the security tokens back to.

Redirect URI for public client apps

If you're a public client app developer who's using MSAL:

  • You'd want to use .WithDefaultRedirectUri() in desktop or Universal Windows Platform (UWP) applications (MSAL.NET 4.1+). The .WithDefaultRedirectUri() method will set the public client application's redirect URI property to the default recommended redirect URI for public client applications.

    Platform Redirect URI
    Desktop app (.NET Framework) https://login.partner.microsoftonline.cn/common/oauth2/nativeclient
    UWP value of WebAuthenticationBroker.GetCurrentApplicationCallbackUri(). This enables single sign-on (SSO) with the browser by setting the value to the result of WebAuthenticationBroker.GetCurrentApplicationCallbackUri(), which you need to register
    .NET https://localhost enables the user to use the system browser for interactive authentication since .NET doesn't have a UI for the embedded web view at the moment.

You can override the redirect URI by using the RedirectUri property (for example, if you use brokers). Here are some examples of redirect URIs for that scenario:

  • RedirectUriOnAndroid = "msauth-5a434691-ccb2-4fd1-b97b-b64bcfbc03fc://com.microsoft.identity.client.sample";

  • RedirectUriOnIos = $"msauth.{Bundle.ID}://auth";

  • When building an app using MSAL Android, you can configure the redirect_uri during the initial App registration step or add it afterward.

    • The format of the redirect URI is: msauth://<yourpackagename>/<base64urlencodedsignature>
    • Example: redirect_uri = msauth://com.azuresamples.myapp/6/aB1cD2eF3gH4iJ5kL6-mN7oP8qR=

  • To find more details on the MSAL Android app configuration, refer to MSAL Android configuration.

  • Configure the redirect URI in App registrations:

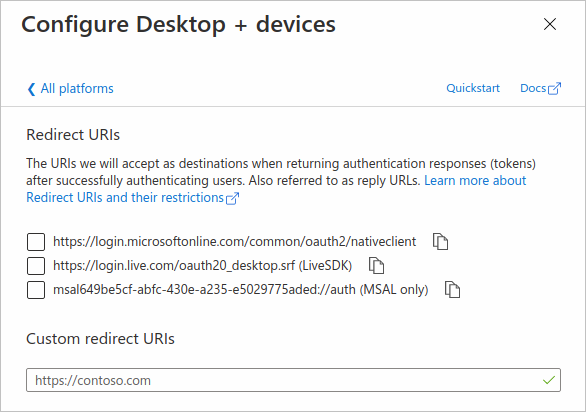

    Screenshot showing the Redirect URI pane and options on the App registrations page.

Redirect URI for confidential client apps

For web apps, the redirect URI (or reply URL) is the URI that Microsoft Entra ID will use to send the token back to the application. The URI can be the URL of the web app/web API if the confidential app is one of them. The redirect URI needs to be registered in app registration. The registration is especially important when you deploy an app that you've initially tested locally. You then need to add the reply URL of the deployed app in the application registration portal.

For daemon apps, you don't need to specify a redirect URI.

Client secret

This option specifies the client secret for the confidential client app. The client secret (app password) is provided by the application registration portal or provided to Microsoft Entra ID during app registration with PowerShell Microsoft Entra ID, PowerShell AzureRM, or Azure CLI.

Logging

To help in debugging and authentication failure troubleshooting scenarios, the MSAL provides built-in logging support. Logging in each library is covered in the following articles:

Next steps

Learn about instantiating client applications by using MSAL.NET and instantiating client applications by using MSAL.js.
