Quickstart: Sign in users in a single-page app (SPA) and call the Microsoft Graph API

In this quickstart, you use a sample single-page app (SPA) to show you how to sign in users by using the authorization code flow with Proof Key for Code Exchange (PKCE) and call the Microsoft Graph API. The sample uses the Microsoft Authentication Library to handle authentication.

Prerequisites

  • An Azure account with an active subscription. If you don't already have one, Create an account.
  • This Azure account must have permissions to manage applications. Any of the following Microsoft Entra roles include the required permissions:
    • Application Administrator
    • Application Developer
  • A workforce tenant. You can use your Default Directory or set up a new tenant.
  • Visual Studio Code or another code editor.

Clone or download the sample application

To obtain the sample application, you can either clone it from GitHub or download it as a .zip file.

  • To clone the sample, open a command prompt and navigate to where you wish to create the project, and enter the following command:

    git clone https://github.com/Azure-Samples/ms-identity-docs-code-javascript.git

  • Download the .zip file. Extract it to a file path where the length of the name is fewer than 260 characters.

Configure the project

  1. In your IDE, open the project folder, ms-identity-docs-code-javascript, containing the sample.

  2. Open vanillajs-spa/App/public/authConfig.js and update the following values with the information recorded in the admin center.

    /**
* Configuration object to be passed to MSAL instance on creation.
* For a full list of MSAL.js configuration parameters, visit:
* https://github.com/AzureAD/microsoft-authentication-library-for-js/blob/dev/lib/msal-browser/docs/configuration.md
*/
const msalConfig = {
    auth: {

        // WORKFORCE TENANT
        authority: "https://login.partner.microsoftonline.cn/Enter_the_Tenant_Info_Here", //  Replace the placeholder with your tenant info
        redirectUri: '/', // You must register this URI on App Registration. Defaults to window.location.href e.g. http://localhost:3000/
        navigateToLoginRequestUrl: true, // If "true", will navigate back to the original request location before processing the auth code response.
    },
    cache: {
        cacheLocation: 'sessionStorage', // Configures cache location. "sessionStorage" is more secure, but "localStorage" gives you SSO.
        storeAuthStateInCookie: false, // set this to true if you have to support IE
    },
    system: {
        loggerOptions: {
            loggerCallback: (level, message, containsPii) => {
                if (containsPii) {
                    return;
                }
                switch (level) {
                    case msal.LogLevel.Error:
                        console.error(message);
                        return;
                    case msal.LogLevel.Info:
                        console.info(message);
                        return;
                    case msal.LogLevel.Verbose:
                        console.debug(message);
                        return;
                    case msal.LogLevel.Warning:
                        console.warn(message);
                        return;
                }
            },
        },
    },
};

/**
* Scopes you add here will be prompted for user consent during sign-in.
* By default, MSAL.js will add OIDC scopes (openid, profile, email) to any login request.
* For more information about OIDC scopes, visit:
* https://docs.azure.cn/entra/identity-platform/permissions-consent-overview#openid-connect-scopes
*/
const loginRequest = {
    scopes: ["https://microsoftgraph.chinacloudapi.cn/user.read"],
};

/**
* An optional silentRequest object can be used to achieve silent SSO
* between applications by providing a "login_hint" property.
*/

// const silentRequest = {
//   scopes: ["openid", "profile"],
//   loginHint: "example@domain.net"
// };

// exporting config object for jest
if (typeof exports !== 'undefined') {
    module.exports = {
        msalConfig: msalConfig,
        loginRequest: loginRequest,
    };
}
    • clientId - The identifier of the application, also referred to as the client. Replace the text in quotes with the Application (client) ID value that was recorded earlier.
    • authority - The authority is a URL that indicates a directory that MSAL can request tokens from. Replace Enter_the_Tenant_Info_Here with the Directory (tenant) ID value that was recorded earlier.
    • redirectUri - The Redirect URI of the application. If necessary, replace the text in quotes with the redirect URI that was recorded earlier.

Run the application and sign in and sign out

Run the project with a web server by using Node.js:

  1. To start the server, run the following commands from within the project directory:

    cd vanillajs-spa/App
npm install
npm start

  2. Copy the https URL that appears in the terminal, for example, https://localhost:3000, and paste it into a browser. We recommend using a private or incognito browser session.

  3. Follow the steps and enter the necessary details to sign in with your Microsoft account. You'll be requested an email address so a one time passcode can be sent to you. Enter the code when prompted.

  4. The application will request permission to maintain access to data you have given it access to, and to sign you in and read your profile. Select Accept. The following screenshot appears, indicating that you have signed in to the application and have accessed your profile details from the Microsoft Graph API.

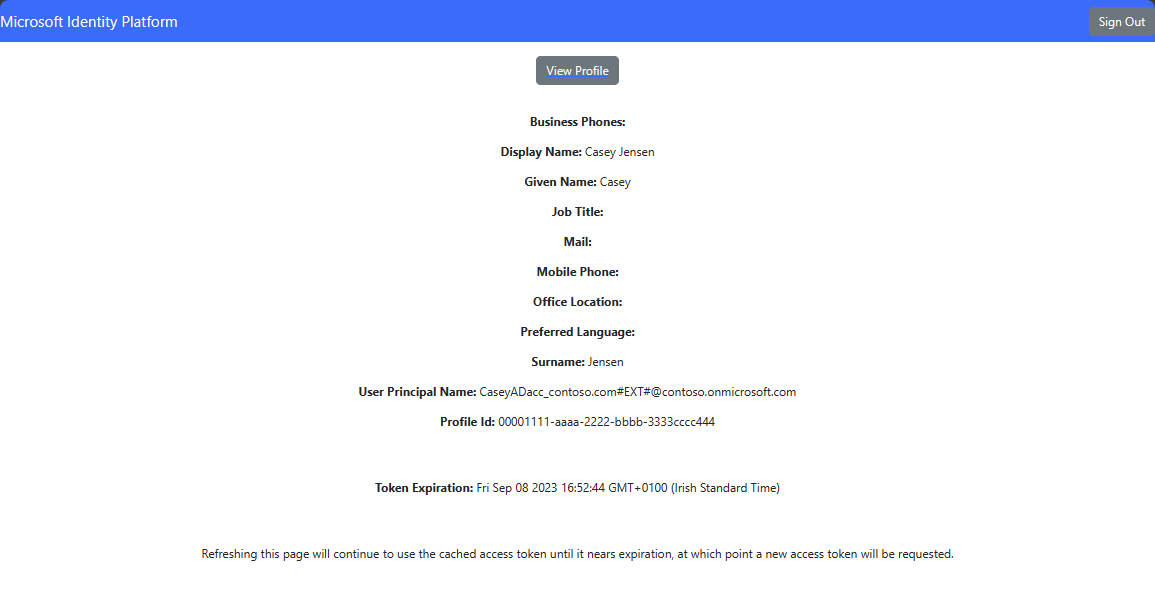

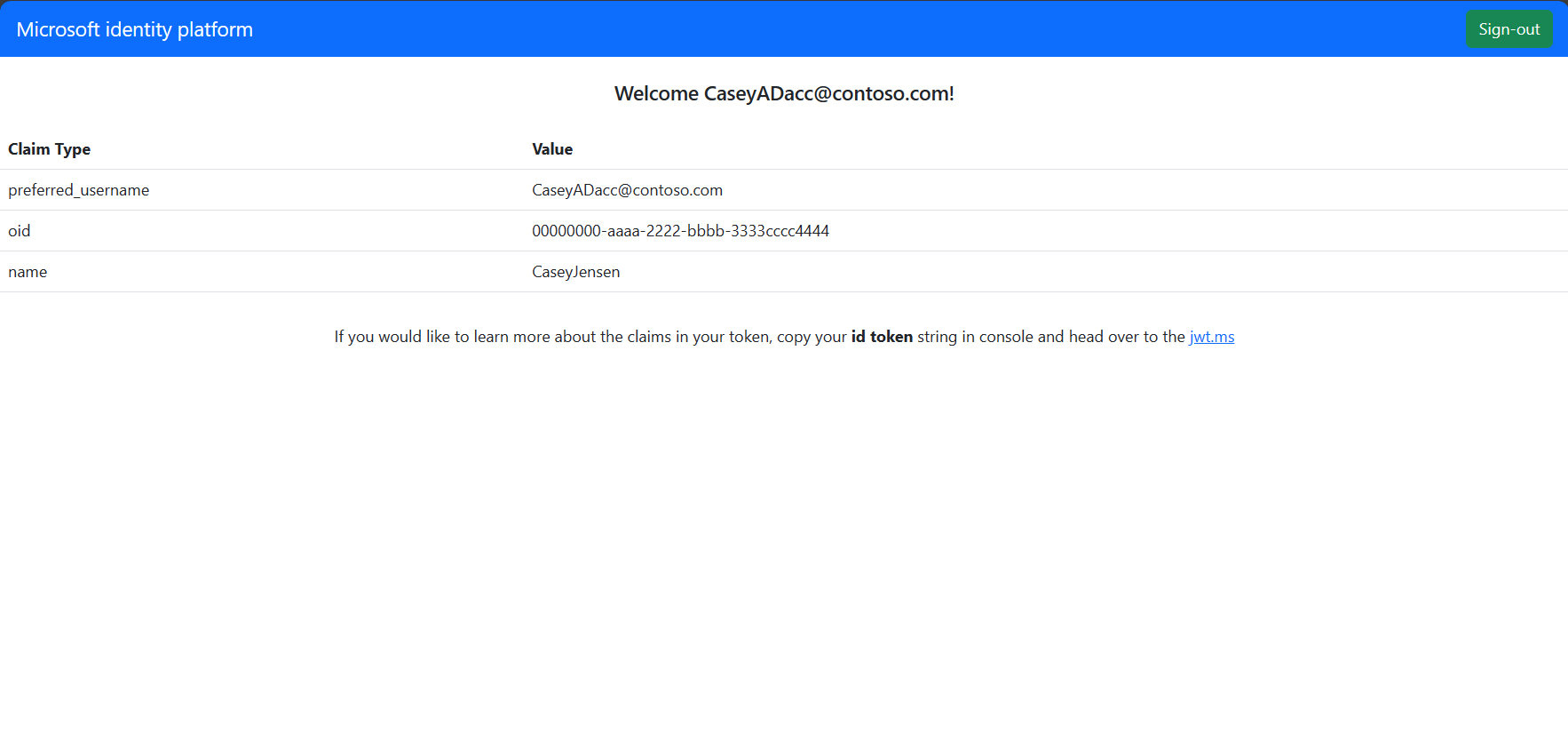

    Screenshot of JavaScript App depicting the results of the API call.
