Known issues and resolutions with SCIM 2.0 protocol compliance of the Microsoft Entra user provisioning service

Microsoft Entra ID can automatically provision users and groups to any application or system fronted by a web service with the interface defined in the System for Cross-Domain Identity Management (SCIM) 2.0 protocol specification.

Microsoft Entra support for the SCIM 2.0 protocol is described in Using System for Cross-Domain Identity Management (SCIM) to automatically provision users and groups from Microsoft Entra ID to applications, which lists the specific parts of the protocol that it implements in order to automatically provision users and groups from Microsoft Entra ID to applications that support SCIM 2.0.

This article describes current and past issues with the Microsoft Entra user provisioning service's adherence to the SCIM 2.0 protocol, and how to work around these issues.

Understanding the provisioning job

The provisioning service uses the concept of a job to operate against an application. The jobID can be found in the progress bar. All new provisioning applications are created with a jobID starting with scim. The scim job represents the current state of the service. Older jobs have the ID customappsso. This job represents the state of the service in 2018.

If you're using an application in the gallery, the job generally contains the name of the app (such as zoom snowFlake or dataBricks). You can skip this documentation when using a gallery application. This primarily applies for non-gallery applications with jobID SCIM or customAppSSO.

SCIM 2.0 compliance issues and status

In the, any item marked as fixed means that the proper behavior can be found on the SCIM job. We have worked to ensure backwards compatibility for the changes we have made. We recommend using the new behavior for any new implementations and updating existing implementations. The customappSSO behavior that was the default prior to December 2018 isn't supported anymore.

Flags to alter the SCIM behavior

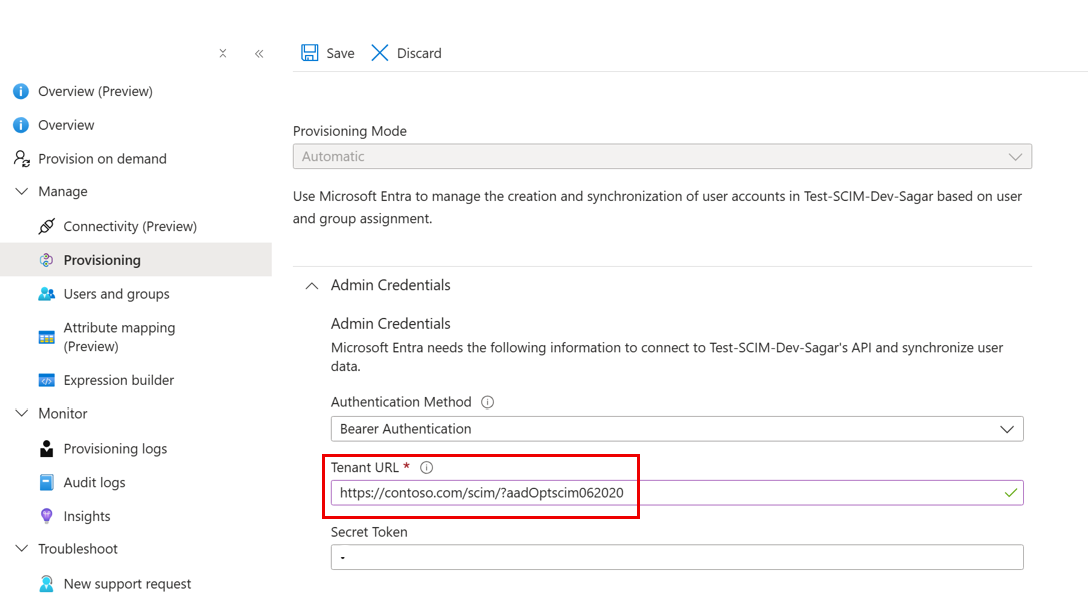

Use the flags in the tenant URL of your application in order to change the default SCIM client behavior.

Use the following URL to update PATCH behavior and ensure SCIM compliance. The flag alters the following behaviors:

• Requests made to disable users
• Requests to add a single-value string attribute
• Requests to replace multiple attributes
• Requests to remove a group member

This behavior is currently only available when using the flag, but will become the default behavior over the next few months. Note this feature flag currently doesn't work with on-demand provisioning.

• URL (SCIM Compliant): aadOptscim062020
• SCIM RFC references:
  • https://tools.ietf.org/html/rfc7644#section-3.5.2

Sample requests to help outline what the sync engine currently sends versus the requests that are sent once the feature flag is enabled.

Requests made to disable users:

Without feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
      {
          "op": "Replace",
          "path": "active",
          "value": "False"
      }
  ]
}

With feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
      {
          "op": "replace",
          "path": "active",
          "value": false
      }
  ]
}

Requests made to add a single-value string attribute:

Without feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
    {
      "op": "Add",
      "path": "nickName",
      "value": "Babs"
    }
  ]
}

With feature flag

{
  "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
  "Operations": [
    {
      "op": "add",
      "path": "nickName",
      "value": "Babs"
    }
  ]
}

Requests to replace multiple attributes:

Without feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
      {
          "op": "Replace",
          "path": "displayName",
          "value": "Pvlo"
      },
      {
          "op": "Replace",
          "path": "emails[type eq \"work\"].value",
          "value": "TestBcwqnm@test.microsoft.com"
      },
      {
          "op": "Replace",
          "path": "name.givenName",
          "value": "Gtfd"
      },
      {
          "op": "Replace",
          "path": "name.familyName",
          "value": "Pkqf"
      },
      {
          "op": "Replace",
          "path": "externalId",
          "value": "Eqpj"
      },
      {
          "op": "Replace",
          "path": "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:employeeNumber",
          "value": "Eqpj"
      }
  ]
}

With feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
      {
          "op": "replace",
          "path": "emails[type eq \"work\"].value",
          "value": "TestMhvaes@test.microsoft.com"
      },
      {
          "op": "replace",
          "value": {
              "displayName": "Bjfe",
              "name.givenName": "Kkom",
              "name.familyName": "Unua",
              "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:employeeNumber": "Aklq"
          }
      }
  ]
}

Requests made to remove a group member:

Without feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
      {
          "op": "Remove",
          "path": "members",
          "value": [
              {
                  "value": "u1091"
              }
          ]
      }
  ]
}

With feature flag

{
  "schemas": [
      "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
      {
          "op": "remove",
          "path": "members[value eq \"7f4bc1a3-285e-48ae-8202-5accb43efb0e\"]"
      }
  ]
}

• Downgrade URL: Once the new SCIM compliant behavior becomes the default on the non-gallery application, you can use the following URL to roll back to the old, non SCIM compliant behavior: AzureAdScimPatch2017

Next steps

Learn more about provisioning and deprovisioning to SaaS applications
