Run Apache Hive queries using the HDInsight .NET SDK

The HDInsight .NET SDK provides a programmatic way to interact with Apache Hive on Azure HDInsight clusters. Using the SDK, you can authenticate, submit Hive queries, monitor their execution, and retrieve results directly from your .NET applications.

This approach enables developers to integrate big data processing into existing .NET solutions, automate analytics workflows, and build custom applications that apply the power of Hive on HDInsight. With Microsoft Entra ID-enabled clusters, you also gain secure identity-based access and centralized control.

Prerequisites

Before you begin this article, you must have the following items:

• An Apache Hadoop cluster in HDInsight. See Get started using Linux-based Hadoop in HDInsight.

• Visual Studio 2013 and beyond. At least, workload .NET desktop development should be installed.

Run a Hive Query

The HDInsight .NET SDK provides .NET client libraries, which makes it easier to work with HDInsight clusters from .NET.

1. Create a C# console application in Visual Studio.

2. From the NuGet Package Manager Console, run the command:

   Install-Package Microsoft.Azure.HDInsight.Job -Version 3.0.0-preview.3



3. Edit the code to initialize the values for variables: ExistingClusterName, TenantId, ClientId,ClientSecret, ExistingClusterPassword,DefaultStorageAccountName,DefaultStorageAccountKey,DefaultStorageContainerName. Then use the revised code as the entire contents of Program.cs in Visual Studio.


    								using System;
      						using System.Collections.Generic;
      						using System.IO;
      						using System.Text;
      						using System.Threading;
      						using System.Threading.Tasks;
      						using Microsoft.Azure.HDInsight.Job;
      						using Microsoft.Azure.HDInsight.Job.Models;
      						using Microsoft.Rest;
      						using Azure.Identity;
      						using Azure.Core;

      						namespace SubmitHDInsightJobDotNet
      						{
      						    class Program
      						    {
      						        private static HDInsightJobClient _hdiJobManagementClient;

      						        // HDInsight Cluster Configuration
      						        private const string ExistingClusterName = "<cluster_name>";
      						        private const string ExistingClusterUri = ExistingClusterName + ".azurehdinsight.cn";

      						        // Service Principal Configuration
      						        private const string TenantId = "<tenant_ID>";
      						        private const string ClientId = "<client_ID>";
      						        private const string ClientSecret = "<secret>";

      						        // Storage Account Configuration linked to HDI Cluster
      						        private const string DefaultStorageAccountName = "<storage_acc_name>";
      						        private const string DefaultStorageAccountKey = "<storage_acc_key>";
      						        private const string DefaultStorageContainerName = "<container_name>";

      						        static async Task Main(string[] args)
      						        {
      						            System.Console.WriteLine("The application is running ...");

      						            try
      						            {
      						                await InitializeHDInsightClientAsync();

      						                // Submit Hive job
      						                SubmitHiveJob();
      						            }
      						            catch (Exception ex)
      						            {
      						                System.Console.WriteLine($"Error: {ex.Message}");
      						                System.Console.WriteLine($"Stack Trace: {ex.StackTrace}");
      						            }

      						            System.Console.WriteLine("Press ENTER to continue ...");
      						            System.Console.ReadLine();
      						        }

      						        private static async Task InitializeHDInsightClientAsync()
      						        {
      						            try
      						            {
      						               var credential = new ClientSecretCredential(TenantId, ClientId, ClientSecret);
      						                var tokenRequestContext = new TokenRequestContext(new[] { "https://" + ExistingClusterName + ".clusteraccess.azurehdinsight.cn/.default" });
      						                var tokenResponse = await credential.GetTokenAsync(tokenRequestContext);

      						                var tokenCredentials = new TokenCredentials(tokenResponse.Token);

      						                var retryPolicy = HDInsightJobClient.HDInsightRetryPolicy;
      						                _hdiJobManagementClient = new HDInsightJobClient(ExistingClusterUri, tokenCredentials, retryPolicy);

      						                _hdiJobManagementClient.Username = "admin";

      						                System.Console.WriteLine("HDInsight client initialized successfully with Service Principal authentication.");
      						            }
      						            catch (Exception ex)
      						            {
      						                System.Console.WriteLine($"Failed to initialize HDInsight client: {ex.Message}");
      						                throw;
      						            }
      						        }

      						        private static void SubmitHiveJob()
      						        {
      						            try
      						            {
      						                Dictionary<string, string> defines = new Dictionary<string, string>
      						                {
      						                    { "hive.execution.engine", "tez" },
      						                    { "hive.exec.reducers.max", "1" }
      						                };

      						                List<string> args = new List<string> { "argA", "argB" };

      						                var parameters = new HiveJobSubmissionParameters
      						                {
      						                    Query = "SHOW TABLES",
      						                    Defines = defines,
      						                    Arguments = args
      						                };

      						                System.Console.WriteLine("Submitting the Hive job to the cluster...");

      						                var jobResponse = _hdiJobManagementClient.Job.SubmitHiveJob(parameters);
      						                var jobId = jobResponse.Id;

      						                System.Console.WriteLine("JobId is " + jobId);
      						                System.Console.WriteLine("Waiting for the job completion ...");

      						                WaitForJobCompletion(jobId);

      						                // Get job output
      						                GetJobOutput(jobId);
      						            }
      						            catch (Exception ex)
      						            {
      						                System.Console.WriteLine($"Error submitting Hive job: {ex.Message}");
      						                throw;
      						            }
      						        }

      						        private static void WaitForJobCompletion(string jobId)
      						        {
      						            try
      						            {
      						                var jobResponse = _hdiJobManagementClient.Job.GetWithHttpMessagesAsync(jobId).Result;
      						                var jobDetail = jobResponse.Body;
      						                int attempts = 0;
      						                int backoffSeconds = 1;
      						                const int maxAttempts = 300; // Maximum wait time

      						                while (jobDetail.Status.JobComplete != true && attempts < maxAttempts)
      						                {
      						                    Thread.Sleep(TimeSpan.FromSeconds(backoffSeconds));

      						                    try
      						                    {
      						                        jobResponse = _hdiJobManagementClient.Job.GetWithHttpMessagesAsync(jobId).Result;
      						                        jobDetail = jobResponse.Body;
      						                    }
      						                    catch (Exception ex)
      						                    {
      						                        System.Console.WriteLine($"Error checking job status: {ex.Message}");
      						                        backoffSeconds = Math.Min(backoffSeconds * 2, 30);
      						                        attempts++;
      						                        continue;
      						                    }

      						                    attempts++;

      						                    if (attempts % 30 == 0)
      						                    {
      						                        System.Console.WriteLine($"Job still running... Status: {jobDetail.Status.State}, Attempt: {attempts}");
      						                    }

      						                    backoffSeconds = Math.Max(1, backoffSeconds / 2);
      						                }

      						                if (attempts >= maxAttempts)
      						                {
      						                    throw new TimeoutException("Job did not complete within the expected time frame.");
      						                }

      						                System.Console.WriteLine($"Job completed with status: {jobDetail.Status.State}");
      						                System.Console.WriteLine($"Job exit value: {jobDetail.ExitValue}");
      						            }
      						            catch (Exception ex)
      						            {
      						                System.Console.WriteLine($"Error waiting for job completion: {ex.Message}");
      						                throw;
      						            }
      						        }

      						        private static void GetJobOutput(string jobId)
      						        {
      						            try
      						            {
      						                var jobResponse = _hdiJobManagementClient.Job.GetWithHttpMessagesAsync(jobId).Result;
      						                var jobDetail = jobResponse.Body;
      						                var storageAccess = new AzureStorageAccess(DefaultStorageAccountName, DefaultStorageAccountKey,
      						                    DefaultStorageContainerName);

      						                Stream output;
      						                if (jobDetail.ExitValue == 0)
      						                {
      						                    System.Console.WriteLine("Job completed successfully. Fetching output...");
      						                    output = _hdiJobManagementClient.Job.GetJobOutput(jobId, storageAccess);
      						                }
      						                else
      						                {
      						                    System.Console.WriteLine($"Job failed with exit code: {jobDetail.ExitValue}. Fetching error logs...");
      						                    output = _hdiJobManagementClient.Job.GetJobErrorLogs(jobId, storageAccess);
      						                }

      						                System.Console.WriteLine("Job output/logs:");
      						                System.Console.WriteLine(new string('=', 50));

      						                using (var reader = new StreamReader(output, Encoding.UTF8))
      						                {
      						                    string content = reader.ReadToEnd();
      						                    System.Console.WriteLine(content);
      						                }

      						                System.Console.WriteLine(new string('=', 50));
      						            }
      						            catch (Exception ex)
      						            {
      						                System.Console.WriteLine($"Error retrieving job output: {ex.Message}");
      						                throw;
      						            }
      						        }
      						    }
      						}



4. Press F5 to run the application.

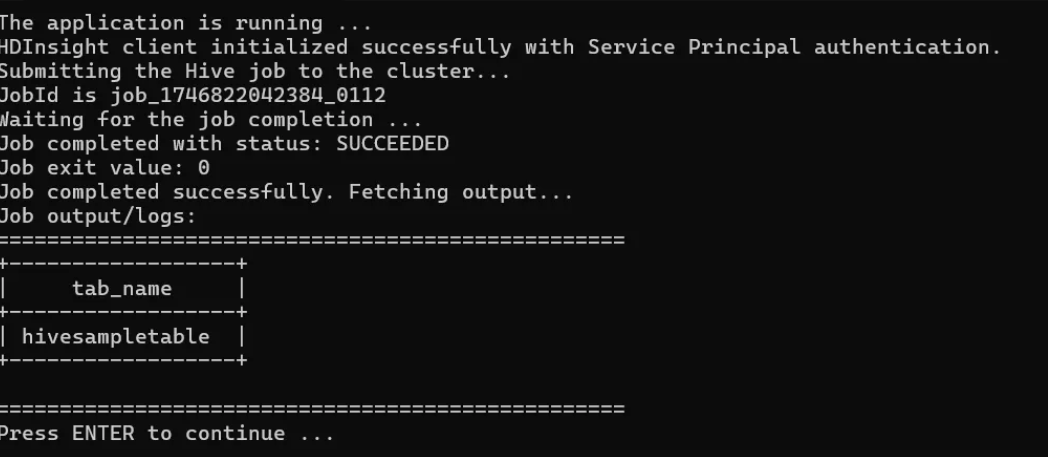

The output of the application should be similar to:
