Quickstart: Propagate resources from an Azure Kubernetes Fleet Manager (Fleet) hub cluster to member clusters

Article
08/30/2024

In this quickstart, you learn how to propagate resources from an Azure Kubernetes Fleet Manager (Fleet) hub cluster to member clusters.

Prerequisites

If you don't have an Azure trail subscription, create a trial subscription before you begin.

Read the resource propagation conceptual overview to understand the concepts and terminology used in this quickstart.
An Azure account with an active subscription. Create an account.
You need a Fleet resource with a hub cluster and member clusters. If you don't have one, see Create an Azure Kubernetes Fleet Manager resource and join member clusters using Azure CLI.
Member clusters must be labeled appropriately in the hub cluster to match the desired selection criteria. Example labels include region, environment, team, availability zones, node availability, or anything else desired.
You need access to the Kubernetes API of the hub cluster. If you don't have access, see Access the Kubernetes API of the Fleet resource with Azure Kubernetes Fleet Manager.

Use the `ClusterResourcePlacement` API to propagate resources to member clusters

The ClusterResourcePlacement API object is used to propagate resources from a hub cluster to member clusters. The ClusterResourcePlacement API object specifies the resources to propagate and the placement policy to use when selecting member clusters. The ClusterResourcePlacement API object is created in the hub cluster and is used to propagate resources to member clusters. This example demonstrates how to propagate a namespace to member clusters using the ClusterResourcePlacement API object with a PickAll placement policy.

For more information, see Kubernetes resource propagation from hub cluster to member clusters (Preview) and the upstream Fleet documentation.

Azure CLI
Portal

Create a namespace to place onto the member clusters using the kubectl create namespace command. The following example creates a namespace named my-namespace:
```
kubectl create namespace my-namespace
```
Create a ClusterResourcePlacement API object in the hub cluster to propagate the namespace to the member clusters and deploy it using the kubectl apply -f command. The following example ClusterResourcePlacement creates an object named crp and uses the my-namespace namespace with a PickAll placement policy to propagate the namespace to all member clusters:
```
kubectl apply -f - <<EOF
apiVersion: placement.kubernetes-fleet.io/v1beta1
kind: ClusterResourcePlacement
metadata:
  name: crp
spec:
  resourceSelectors:
    - group: ""
      kind: Namespace
      version: v1
      name: my-namespace
  policy:
    placementType: PickAll
EOF
```
Check the progress of the resource propagation using the kubectl get clusterresourceplacement command. The following example checks the status of the ClusterResourcePlacement object named crp:
```
kubectl get clusterresourceplacement crp
```
Your output should look similar to the following example output:
```
NAME   GEN   SCHEDULED   SCHEDULEDGEN   APPLIED   APPLIEDGEN   AGE
crp    2     True        2              True      2            10s
```

View the details of the crp object using the kubectl describe crp command. The following example describes the ClusterResourcePlacement object named crp:

kubectl describe clusterresourceplacement crp

Your output should look similar to the following example output:

Name:         crp
Namespace:
Labels:       <none>
Annotations:  <none>
API Version:  placement.kubernetes-fleet.io/v1beta1
Kind:         ClusterResourcePlacement
Metadata:
  Creation Timestamp:  2024-04-01T18:55:31Z
  Finalizers:
    kubernetes-fleet.io/crp-cleanup
    kubernetes-fleet.io/scheduler-cleanup
  Generation:        2
  Resource Version:  6949
  UID:               815b1d81-61ae-4fb1-a2b1-06794be3f986
Spec:
  Policy:
    Placement Type:  PickAll
  Resource Selectors:
    Group:
    Kind:                  Namespace
    Name:                  my-namespace
    Version:               v1
  Revision History Limit:  10
  Strategy:
    Type:  RollingUpdate
Status:
  Conditions:
    Last Transition Time:   2024-04-01T18:55:31Z
    Message:                found all the clusters needed as specified by the scheduling policy
    Observed Generation:    2
    Reason:                 SchedulingPolicyFulfilled
    Status:                 True
    Type:                   ClusterResourcePlacementScheduled
    Last Transition Time:   2024-04-01T18:55:36Z
    Message:                All 3 cluster(s) are synchronized to the latest resources on the hub cluster
    Observed Generation:    2
    Reason:                 SynchronizeSucceeded
    Status:                 True
    Type:                   ClusterResourcePlacementSynchronized
    Last Transition Time:   2024-04-01T18:55:36Z
    Message:                Successfully applied resources to 3 member clusters
    Observed Generation:    2
    Reason:                 ApplySucceeded
    Status:                 True
    Type:                   ClusterResourcePlacementApplied
  Observed Resource Index:  0
  Placement Statuses:
    Cluster Name:  membercluster1
    Conditions:
      Last Transition Time:  2024-04-01T18:55:31Z
      Message:               Successfully scheduled resources for placement in membercluster1 (affinity score: 0, topology spread score: 0): picked by scheduling policy
      Observed Generation:   2
      Reason:                ScheduleSucceeded
      Status:                True
      Type:                  ResourceScheduled
      Last Transition Time:  2024-04-01T18:55:36Z
      Message:               Successfully Synchronized work(s) for placement
      Observed Generation:   2
      Reason:                WorkSynchronizeSucceeded
      Status:                True
      Type:                  WorkSynchronized
      Last Transition Time:  2024-04-01T18:55:36Z
      Message:               Successfully applied resources
      Observed Generation:   2
      Reason:                ApplySucceeded
      Status:                True
      Type:                  ResourceApplied
    Cluster Name:            membercluster2
    Conditions:
      Last Transition Time:  2024-04-01T18:55:31Z
      Message:               Successfully scheduled resources for placement in membercluster2 (affinity score: 0, topology spread score: 0): picked by scheduling policy
      Observed Generation:   2
      Reason:                ScheduleSucceeded
      Status:                True
      Type:                  ResourceScheduled
      Last Transition Time:  2024-04-01T18:55:36Z
      Message:               Successfully Synchronized work(s) for placement
      Observed Generation:   2
      Reason:                WorkSynchronizeSucceeded
      Status:                True
      Type:                  WorkSynchronized
      Last Transition Time:  2024-04-01T18:55:36Z
      Message:               Successfully applied resources
      Observed Generation:   2
      Reason:                ApplySucceeded
      Status:                True
      Type:                  ResourceApplied
    Cluster Name:            membercluster3
    Conditions:
      Last Transition Time:  2024-04-01T18:55:31Z
      Message:               Successfully scheduled resources for placement in membercluster3 (affinity score: 0, topology spread score: 0): picked by scheduling policy
      Observed Generation:   2
      Reason:                ScheduleSucceeded
      Status:                True
      Type:                  ResourceScheduled
      Last Transition Time:  2024-04-01T18:55:36Z
      Message:               Successfully Synchronized work(s) for placement
      Observed Generation:   2
      Reason:                WorkSynchronizeSucceeded
      Status:                True
      Type:                  WorkSynchronized
      Last Transition Time:  2024-04-01T18:55:36Z
      Message:               Successfully applied resources
      Observed Generation:   2
      Reason:                ApplySucceeded
      Status:                True
      Type:                  ResourceApplied
  Selected Resources:
    Kind:     Namespace
    Name:     my-namespace
    Version:  v1
Events:
  Type    Reason                     Age   From                                   Message
  ----    ------                     ----  ----                                   -------
  Normal  PlacementScheduleSuccess   108s  cluster-resource-placement-controller  Successfully scheduled the placement
  Normal  PlacementSyncSuccess       103s  cluster-resource-placement-controller  Successfully synchronized the placement
  Normal  PlacementRolloutCompleted  103s  cluster-resource-placement-controller  Resources have been applied to the selected clusters

Sign in to the Azure portal.
On the Azure portal overview page for your Fleet resource, in the Fleet Resources section, select Resource placements.
Select Create.

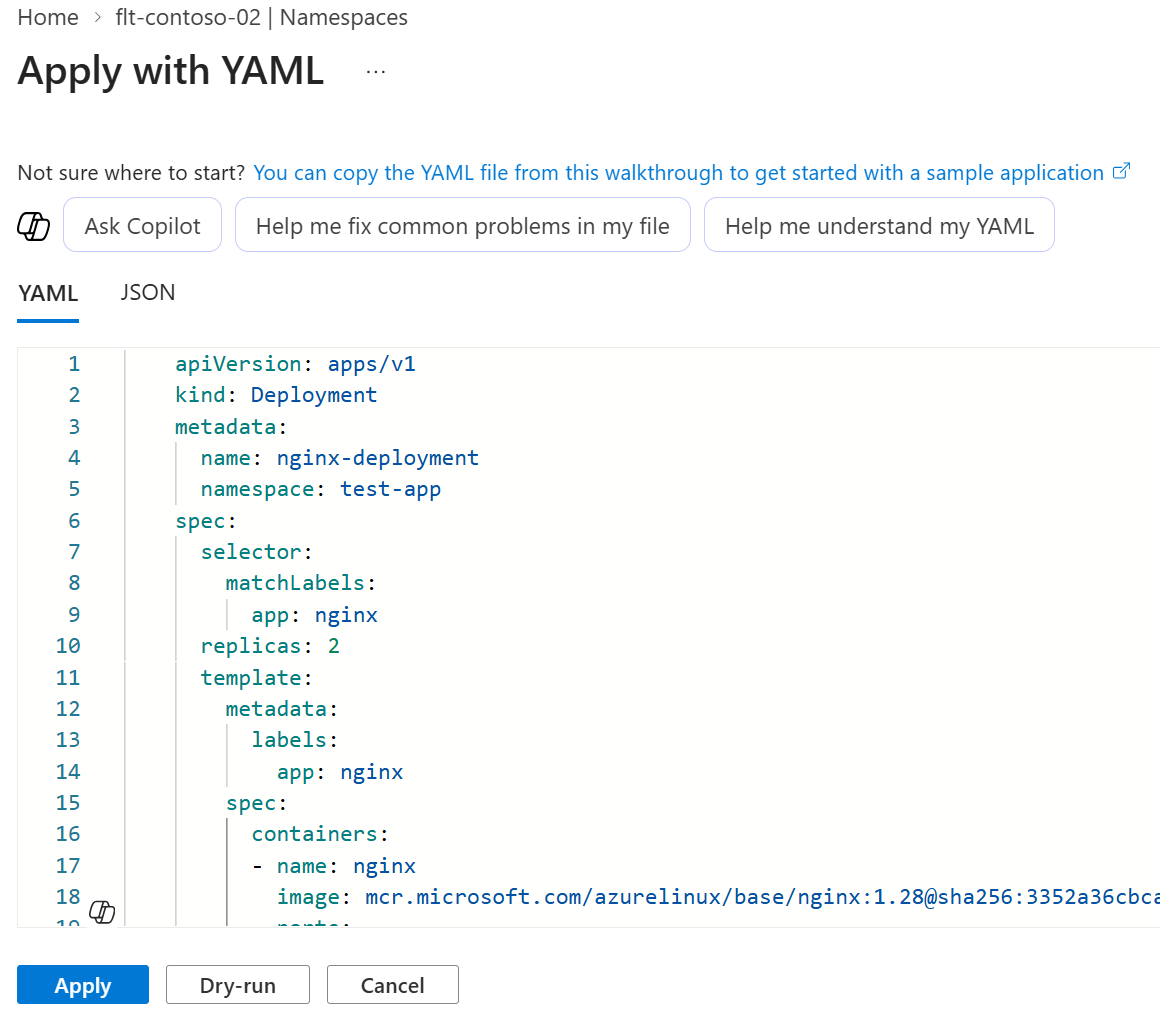

Replace the placeholder values with the following YAML, and select Add.

apiVersion: placement.kubernetes-fleet.io/v1beta1
kind: ClusterResourcePlacement
metadata:
  name: crp
spec:
  resourceSelectors:
    - group: ""
      kind: Namespace
      version: v1
      name: my-namespace
  policy:
    placementType: PickAll

Verify that the cluster resource placement is created successfully.
To see more details on an individual cluster resource placement, select it from the list.
You can view additional details on the cluster resource placement's snapshots, bindings, works, and scheduling policy snapshots using the individual tabs. For example, select the Cluster Resources Snapshots tab.

If you no longer wish to use the ClusterResourcePlacement object, you can delete it using the kubectl delete command. The following example deletes the ClusterResourcePlacement object named crp:

kubectl delete clusterresourceplacement crp
