Generate schemas for SAP artifacts in Azure Logic Apps

  • Article

Applies to: Azure Logic Apps (Consumption + Standard)

This how-to guide shows how to create an example logic app workflow that generates schemas for SAP artifacts. The workflow starts with a Request trigger that can receive HTTP POST requests from your SAP server. The workflow then generates schemas for the specified IDoc and BAPI by using the SAP action named Generate schemas that sends a request to your SAP server. To send this request, you can use either the generic SAP managed connector action named Send message to SAP, or you can use the specific SAP managed or built-in action named [BAPI] Call method in SAP. This SAP action returns an XML schema, not the contents or data of the XML document itself. Schemas returned in the response are uploaded to an integration account by using the Azure Resource Manager connector. Schemas contain the following parts:

Component Description
Request message structure Use this information to form your BAPI get list.
Response message structure Use this information to parse the response.

Both Standard and Consumption logic app workflows offer the SAP managed connector that's hosted and run in multitenant Azure. Standard workflows also offer the preview SAP built-in connector that's hosted and run in single-tenant Azure Logic Apps, but this connector is currently in preview and subject to the Supplemental Terms of Use for Azure Previews. If you create and host a Consumption workflow in an integration service environment (ISE), you can also use the SAP connector's ISE-native version. For more information, see Connector technical reference.

Prerequisites

Generate schemas for an SAP artifact

The following example logic app workflow triggers when the workflow's SAP trigger receives a request from an SAP server. The workflow then runs an SAP action that generates schemas for the specified SAP artifact.

Add the Request trigger

To have your workflow receive requests from your SAP server over HTTP, you can use the Request built-in trigger. This trigger creates an endpoint with a URL where your SAP server can send HTTP POST requests to your workflow. When your workflow receives these requests, the trigger fires and runs the next step in your workflow.

Based on whether you have a Consumption workflow in multitenant Azure Logic Apps or a Standard workflow in single-tenant Azure Logic Apps, follow the corresponding steps:

  1. In the Azure portal, create a Consumption logic app resource and blank workflow, which opens in the designer.

  2. In the designer, follow these general steps to find and add the Request built-in trigger named When a HTTP request is received.

    Screenshot shows the Request trigger for a Consumption workflow.

  3. Save your workflow. On the designer toolbar, select Save.

    This step generates an endpoint URL where your trigger can receive requests from your SAP server, for example:

    Screenshot shows the Request trigger's generated endpoint URL for receiving requests in a Consumption workflow.

Add an SAP action to generate schemas

Based on whether you have a Consumption workflow in multitenant Azure Logic Apps or a Standard workflow in single-tenant Azure Logic Apps, follow the corresponding steps:

  1. In the workflow designer, under the Request trigger, select New step.

  2. In the designer, follow these general steps to find and add the SAP managed action named Generate schemas.

    For more information about this SAP managed action, see Generate schemas.

  3. If prompted, provide the connection information for your on-premises SAP server. When you're done, select Create. Otherwise, continue with the next step to set up the SAP action.

    By default, when you create a connection for an SAP managed operation, strong typing is used to check for invalid values by performing XML validation against the schema. This behavior can help you detect issues earlier. Learn more about the Safe Typing setting. For other optional available connection parameters, see Default connection information.

    After Azure Logic Apps sets up and tests your connection, the action information box appears. For more information about any connection problems that might happen, see Troubleshoot connections.

    Screenshot shows Consumption workflow and SAP managed action named Generate schemas.

  4. In the Generate schemas action, provide a path to the artifact for which you want to generate the schema by selecting an available SAP action on your SAP server.

    1. In the Body ActionUri parameter's edit box, select the folder icon. From the list that opens, select BAPI, IDOC, RFC, or TRFC. This example selects IDOC. If you select a different type, the available SAP actions change based on your selection.

      Note

      If you get a Bad Gateway (500) error or Bad request (400) error, see 500 Bad Gateway or 400 Bad Request error.

      Screenshot shows Consumption workflow, Generate schemas action, and selecting IDOC.

    2. Browse the SAP action types folders using the arrows to find and select the SAP action that you want to use.

      This example selects ORDERS > ORDERS05 > 720 > Send.

      Screenshot shows Consumption workflow, Generate schemas action, and finding an Orders action.

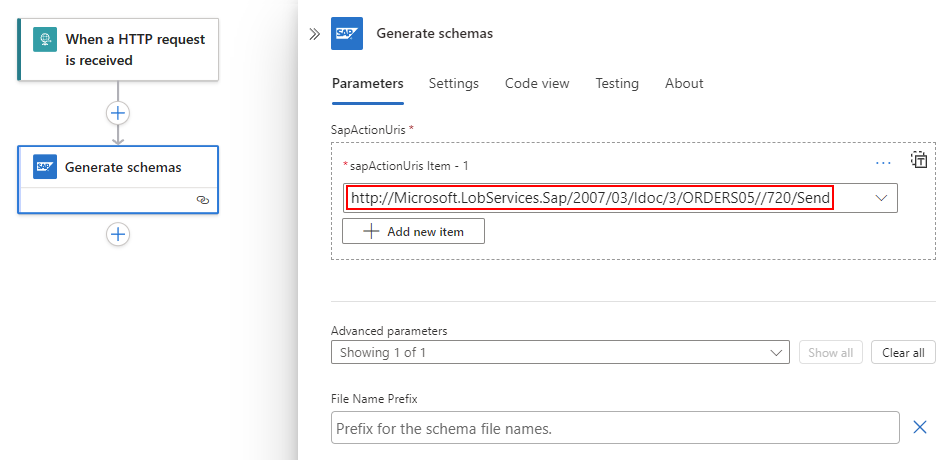

      If you can't find the action you want, you can manually enter a path, for example:

      Screenshot shows Consumption workflow and manually entering a path to an SAP action.

      Tip

      For the Body ActionUri parameter, you can use the expression editor to provide the parameter value. That way, you can use the same SAP action for different message types.

      For more information about this SAP action, see Message schemas for IDoc operations.

    3. To generate schemas for more than one artifact, in the Body ActionUri section, select Add new item.

      Screenshot shows selecting the option to add a new item.

    4. For each artifact, provide the SAP action that you want to use for schema generation, for example:

      Screenshot shows multiple SAP actions to use for generating multiple schemas.

  5. Save your workflow. On the designer toolbar, select Save.

Test your workflow for schema generation

Based on whether you have a Consumption workflow in multitenant Azure Logic Apps or a Standard workflow in single-tenant Azure Logic Apps, follow the corresponding steps:

  1. If your Consumption logic app resource isn't already enabled, on your logic app menu, select Overview. On the toolbar, select Enable.

  2. On the designer toolbar, select Run > Run to manually start your workflow.

  3. To simulate a webhook trigger payload and trigger the workflow, send an HTTP request to the endpoint URL created by your workflow's Request trigger, including the method that the Request trigger expects, by using your HTTP request tool and its instructions. Make sure to include your message content with your request.

    This example uses the POST method and the endpoint URL to send an IDoc file, which must be in XML format and include the namespace for the SAP action that you selected, for example:

    <?xml version="1.0" encoding="UTF-8" ?>
<Send xmlns="http://Microsoft.LobServices.Sap/2007/03/Idoc/2/ORDERS05//720/Send">
  <idocData>
    <...>
  </idocData>
</Send>

  4. After you send your HTTP request, wait for the response from your workflow.

    Note

    Your workflow might time out if all the steps required for the response don't finish within the request timeout limit. If this condition happens, requests might get blocked. To help you diagnose problems, learn how you can check and monitor your logic app workflows.

  5. On your logic app's Overview pane, under Runs history, find and open the workflow run.

  6. Find the Generate schemas action, and review the action's outputs.

    The outputs show the generated schemas for the specified messages.

For more information about reviewing workflow run history, see Monitor logic app workflows.

Upload schemas to an integration account

Optionally, you can download or store the generated schemas in repositories, such as an integration account or Azure storage account, for example, in a blob container. Integration accounts provide a first-class experience with XML actions for workflows in Azure Logic Apps. You have the option to upload generated schemas to an existing integration account within the same workflow that generates those schemas by using the Azure Resource Manager action named Create or update a resource.

Note

Schemas use base64-encoded format. To upload schemas to an integration account, you must decode them first by using the base64ToString() function. The following example shows the code for the properties element:

"properties": {
   "Content": "@base64ToString(items('For_each')?['Content'])",
   "ContentType": "application/xml",
   "SchemaType": "Xml"
}

For this task, you'll need an integration account, if you don't already have one. Based on whether you have a Consumption workflow in multitenant Azure Logic Apps or a Standard workflow in single-tenant Azure Logic Apps, follow the corresponding steps to upload schemas to an integration account from your workflow after schema generation.

  1. In the workflow designer, under the SAP managed action named Generate schemas, select New step.

  2. Follow these general steps to find and add the Azure Resource Manager managed action named Create or update a resource. If you're prompted to sign in with your credentials, go ahead and continue.

    After Azure Logic Apps sets up and tests your connection, the action information box appears.

    Screenshot shows Consumption workflow and an Azure Resource Manager action named Create or update a resource.

  3. In the Create or update a resource action, provide the required information.

    1. To include any outputs from previous steps in the workflow, select inside the parameter where you want to include the output, open the dynamic content list, and select the output to include.

    2. From the Add new parameter list, select the Location and Properties parameters.

    3. Provide the values for these added parameters, for example:

      Screenshot shows Consumption workflow and Azure Resource Manager action with added parameters named Location and Properties.

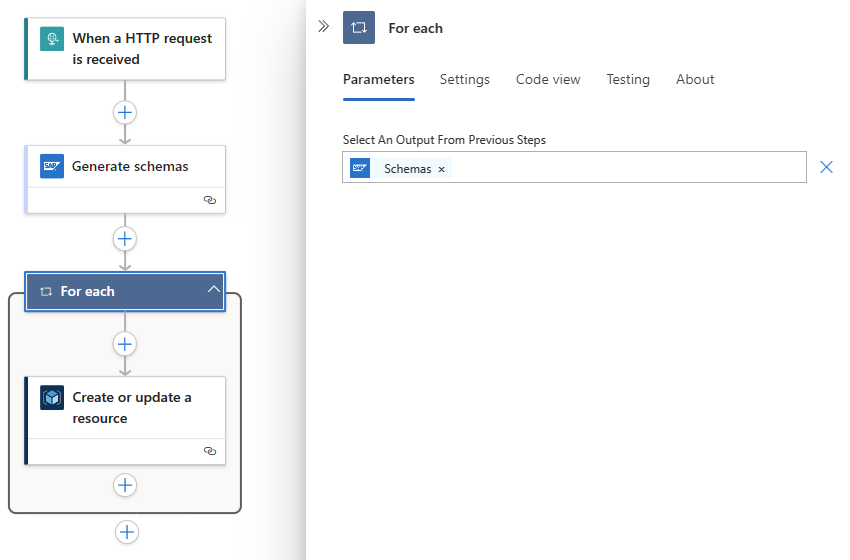

    The Generate schemas action generates schemas as a collection, so the designer automatically adds a For each loop around the Azure Resource Manager action, for example:

    Screenshot shows Consumption workflow and for each loop with included Azure Resource Manager action.

  4. Save your workflow. On the designer toolbar, select Save.

Test your workflow

  1. Based on whether you have a Consumption or Standard logic app workflow, follow the general steps to manually test and run your workflow.

  2. After a successful run, go to the integration account, and check that the generated schemas exist.

Sample XML schemas

If you're learning how to generate an XML schema for use in creating a sample document, review the following samples. These examples show how you can work with many types of payloads, including:

You can begin your XML schema with an optional XML prolog. The SAP connector works with or without the XML prolog.

<?xml version="1.0" encoding="utf-8">

XML samples for RFC requests

The following example shows a basic RFC call where the RFC name is STFC_CONNECTION. This request uses the default namespace named xmlns=. However, you can assign and use namespace aliases such as xmmlns:exampleAlias=. The namespace value is the namespace for all the RFCs in SAP for Microsoft services. The request has a simple input parameter named <REQUTEXT>.

<STFC_CONNECTION xmlns="http://Microsoft.LobServices.Sap/2007/03/Rfc/">
   <REQUTEXT>exampleInput</REQUTEXT>
</STFC_CONNECTION>

The following example shows an RFC call with a table parameter. This example call and group of test RFCs are available in all SAP systems. The table parameter is named TCPICDAT. The table line type is ABAPTEXT, and this element repeats for each row in the table. This example contains a single line, which is named LINE. Requests with a table parameter can contain any number of fields, where the number is a positive integer (n).

<STFC_WRITE_TO_TCPIC xmlns="http://Microsoft.LobServices.Sap/2007/03/Rfc/">
   <RESTART_QNAME>exampleQName</RESTART_QNAME>
   <TCPICDAT>
      <ABAPTEXT xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc/">
         <LINE>exampleFieldInput1</LINE>
      </ABAPTEXT>
      <ABAPTEXT xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc/">
         <LINE>exampleFieldInput2</LINE>
      </ABAPTEXT>
      <ABAPTEXT xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc/">
         <LINE>exampleFieldInput3</LINE>
      </ABAPTEXT>
   </TCPICDAT>
</STFC_WRITE_TO_TCPIC>

Tip

To review the result from RFC STFC_WRITE_TO_TCPIC, use the SAP Logon's Data Browser (T-Code SE16) and the table named TCPIC.

The following example shows an RFC call with a table parameter that has an anonymous field, which is a field without an assigned name. Complex types are declared under a separate namespace where the declaration sets a new default for the current node and all its child elements. The example uses the hex code x002F as an escape character for the symbol / because this symbol is reserved in the SAP field name.

<RFC_XML_TEST_1 xmlns="http://Microsoft.LobServices.Sap/2007/03/Rfc/">
   <IM_XML_TABLE>
      <RFC_XMLCNT xmlns="http://Microsoft.LobServices.Sap/2007/03/Rfc/">
         <_x002F_AnonymousField>AQIDBAU=</_x002F_AnonymousField>
      </RFC_XMLCNT>
   </IM_XML_TABLE>
</RFC_XML_TEST_1>

The previous example also shows how to encode binary arrays for the SAP data types byte and XString. The binary arrays are base64 encoded in XML (XSD binary data type xs:base64Binary). In the example, the sample base64 string value AQIDBAU= decodes as the binary array [01][02][03][04]. This encoding differs and is more space-efficient than the hex encoding of the underlying SAP .NET Connector. With hex encoding, the same value is encoded as the string 01020304.

Note

Use caution when using binary array encoding because hex encoding uses a subset of the base64 range and appears as valid base64 values. For example, the string value 01020304 also decodes as a valid base64 encoded value, but results in a different binary array [d3][5d][36][d3][7d][38], not binary array [01][02][03][04].

The following example includes prefixes for the namespaces. You can declare all prefixes at once, or you can declare any number of prefixes as attributes of a node. The RFC namespace alias named ns0 is used as the root and parameters for the basic type.

Note

Complex types are declared under a different namespace for RFC types with the alias ns3 instead of the regular RFC namespace with the alias ns0.

<ns0:BBP_RFC_READ_TABLE xmlns:ns0="http://Microsoft.LobServices.Sap/2007/03/Rfc/" xmlns:ns3="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc/">
   <ns0:DELIMITER>0</ns0:DELIMITER>
   <ns0:QUERY_TABLE>KNA1</ns0:QUERY_TABLE>
   <ns0:ROWCOUNT>250</ns0:ROWCOUNT>
   <ns0:ROWSKIPS>0</ns0:ROWSKIPS>
   <ns0:FIELDS>
      <ns3:RFC_DB_FLD>
         <ns3:FIELDNAME>KUNNR</ns3:FIELDNAME>
      </ns3:RFC_DB_FLD>
   </ns0:FIELDS>
</ns0:BBP_RFC_READ_TABLE>

XML samples for BAPI requests

The following XML samples are example requests to call the BAPI method.

Note

SAP makes business objects available to external systems by describing them in response to RFC RPY_BOR_TREE_INIT, which Azure Logic Apps issues without an input filter. Azure Logic Apps inspects the output table BOR_TREE. The SHORT_TEXT field is used for names of business objects. Business objects not returned by SAP in the output table aren't accessible to Azure Logic Apps.

If you use custom business objects, make sure to publish and release these business objects in SAP. Otherwise, SAP doesn't list your custom business objects in the output table BOR_TREE. You can't access your custom business objects in Azure Logic Apps until you expose the business objects from SAP.

The following example gets a list of banks using the BAPI method GETLIST. This sample contains the business object for a bank named BUS1011.

<GETLIST xmlns="http://Microsoft.LobServices.Sap/2007/03/Bapi/BUS1011">
   <BANK_CTRY>US</BANK_CTRY>
   <MAX_ROWS>10</MAX_ROWS>
</GETLIST>

The following example creates a bank object using the CREATE method. This example uses the same business object named BUS1011, as the previous example. When you use the CREATE method to create a bank, make sure to commit your changes because this method isn't committed by default.

Tip

Make sure that your XML document follows any validation rules configured in your SAP system. For example, for this sample document, in the USA, the bank key (<BANK_KEY>) must be a bank routing number, also known as an ABA number.

<CREATE xmlns="http://Microsoft.LobServices.Sap/2007/03/Bapi/BUS1011">
   <BANK_ADDRESS>
      <BANK_NAME xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc">ExampleBankName</BANK_NAME>
      <REGION xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc">ExampleRegionName</REGION>
      <STREET xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc">ExampleStreetAddress</STREET>
      <CITY xmlns="http://Microsoft.LobServices.Sap/2007/03/Types/Rfc">Redmond</CITY>
   </BANK_ADDRESS>
   <BANK_CTRY>US</BANK_CTRY>
   <BANK_KEY>123456789</BANK_KEY>
</CREATE>

The following example gets details for a bank using the bank routing number, which is the value for <BANK_KEY>.

<GETDETAIL xmlns="http://Microsoft.LobServices.Sap/2007/03/Bapi/BUS1011">
   <BANKCOUNTRY>US</BANKCOUNTRY>
   <BANKKEY>123456789</BANKKEY>
</GETDETAIL>

XML samples for IDoc requests

To generate a plain SAP IDoc XML schema, use the SAP Logon application and the WE60 T-Code. Access the SAP documentation through the user interface, and generate XML schemas in XSD format for your IDoc types and extensions. For more information about generic SAP formats and payloads, and their built-in dialogs, review the SAP documentation.

This example declares the root node and namespaces. The URI in the sample code, http://Microsoft.LobServices.Sap/2007/03/Idoc/3/ORDERS05//700/Send, declares the following configuration:

  • /IDoc is the root node for all IDocs.

  • /3 is the record types version for common segment definitions.

  • /ORDERS05 is the IDoc type.

  • // is an empty segment because there's no IDoc extension.

  • /700 is the SAP version.

  • /Send is the action to send the information to SAP.

<ns0:Send xmlns:ns0="http://Microsoft.LobServices.Sap/2007/03/Idoc/3/ORDERS05//700/Send" xmlns:ns3="http://schemas.microsoft.com/2003/10/Serialization" xmlns:ns1="http://Microsoft.LobServices.Sap/2007/03/Types/Idoc/Common/" xmlns:ns2="http://Microsoft.LobServices.Sap/2007/03/Idoc/3/ORDERS05//700">
   <ns0:idocData>

You can repeat the idocData node to send a batch of IDocs in a single call. In the following example, there's one control record named EDI_DC40, and multiple data records.

<...>
   <ns0:idocData>
      <ns2:EDI_DC40>
         <ns1:TABNAM>EDI_DC40</ns1:TABNAM>
         <...>
         <ns1:ARCKEY>Cor1908207-5</ns1:ARCKEY>
      </ns2:EDI_DC40>
      <ns2:E2EDK01005>
         <ns2:DATAHEADERCOLUMN_SEGNAM>E23DK01005</ns2:DATAHEADERCOLUMN_SEGNAM>
         <ns2:CURCY>USD</ns2:CURCY>
      </ns2:E2EDK01005>
      <ns2:E2EDK03>
      <...>
   </ns0:idocData>

The following example shows a sample IDoc control record, which uses a prefix named EDI_DC. You must update the values to match your SAP installation and IDoc type. For example, your IDoc client code might not be 800. Contact your SAP team to make sure you're using the correct values for your SAP installation.

<ns2:EDI_DC40>
   <ns:TABNAM>EDI_DC40</ns1:TABNAM>
   <ns:MANDT>800</ns1:MANDT>
   <ns:DIRECT>2</ns1:DIRECT>
   <ns:IDOCTYP>ORDERS05</ns1:IDOCTYP>
   <ns:CIMTYP></ns1:CIMTYP>
   <ns:MESTYP>ORDERS</ns1:MESTYP>
   <ns:STD>X</ns1:STD>
   <ns:STDVRS>004010</ns1:STDVRS>
   <ns:STDMES></ns1:STDMES>
   <ns:SNDPOR>SAPENI</ns1:SNDPOR>
   <ns:SNDPRT>LS</ns1:SNDPRT>
   <ns:SNDPFC>AG</ns1:SNDPFC>
   <ns:SNDPRN>ABAP1PXP1</ns1:SNDPRN>
   <ns:SNDLAD></ns1:SNDLAD>
   <ns:RCVPOR>BTSFILE</ns1:RCVPOR>
   <ns:RCVPRT>LI</ns1:RCVPRT>

The following example shows a sample data record with plain segments. This example uses the SAP date format. Strong-typed documents can use native XML date formats, such as 2020-12-31 23:59:59.

<ns2:E2EDK01005>
   <ns2:DATAHEADERCOLUMN_SEGNAM>E2EDK01005</ns2:DATAHEADERCOLUMN_SEGNAM>
      <ns2:CURCY>USD</ns2:CURCY>
      <ns2:BSART>OR</ns2:BSART>
      <ns2:BELNR>1908207-5</ns2:BELNR>
      <ns2:ABLAD>CC</ns2:ABLAD>
   </ns2>
   <ns2:E2EDK03>
      <ns2:DATAHEADERCOLUMN_SEGNAM>E2EDK03</ns2:DATAHEADERCOLUMN_SEGNAM>
      <ns2:IDDAT>002</ns2:IDDAT>
      <ns2:DATUM>20160611</ns2:DATUM>
   </ns2:E2EDK03>

The following example shows a data record with grouped segments. The record includes a group parent node named E2EDKT1002GRP, and multiple child nodes, including E2EDKT1002 and E2EDKT2001.

<ns2:E2EDKT1002GRP>
   <ns2:E2EDKT1002>
      <ns2:DATAHEADERCOLUMN_SEGNAM>E2EDKT1002</ns2:DATAHEADERCOLUMN_SEGNAM>
         <ns2:TDID>ZONE</ns2:TDID>
   </ns2:E2EDKT1002>
   <ns2:E2EDKT2001>
      <ns2:DATAHEADERCOLUMN_SEGNAM>E2EDKT2001</ns2:DATAHEADERCOLUMN_SEGNAM>
         <ns2:TDLINE>CRSD</ns2:TDLINE>
   </ns2:E2EDKT2001>
</ns2:E2EDKT1002GRP>

The recommended method is to create an IDoc identifier for use with tRFC. You can set this transaction identifier named tid using the Send IDoc operation in the SAP managed connector.

The following example shows an alternative method to set the transaction identifier, or tid. In this example, the last data record segment node and the IDoc data node are closed. Then, the GUID, guid, is used as the tRFC identifier to detect duplicates.

     </E2STZUM002GRP>
  </idocData>
  <guid>8820ea40-5825-4b2f-ac3c-b83adc34321c</guid>
</Send>
