Prepare Azure accounts for Azure Migrate using built-in roles

Azure Migrate is a unified migration platform that lets customers discover, assess, and migrate various workloads including servers, databases, and web apps. A typical customer's migration journey includes three phases: the Decide phase to discover the workloads, plan phase to assess the Azure readiness of workloads, right size the Azure targets and execute phase to migrate and modernize the workloads. The article explains how to implement Azure Role-based access control to grant least privileged Azure access in Azure Migrate using built-in roles. The built-in roles are purposefully mapped to the Decide, Plan, and Execute phases, so users have only the permissions needed for that phase of the migration journey.

Using built-in roles enables you to enforce the principle of least privilege, grant granular access, and ensure compliance with regulatory requirements. Assigning built-in roles is recommended over granting broad Owner or Contributor access to users at the subscription or resource group level.

Azure Migrate built-in roles

S.no. Built-in role Description ID Scope
1 Azure Migrate Owner Grants full access to create and manage Azure Migrate projects, including appliance or import based discovery, creation of business case, assessment and execution of migrations; Also grants the ability to assign Azure Migrate specific roles in Azure Role-Based Access Control (or RBAC). fd8ea4d5-6509-4db0-bada-356ab233b4fa Scope is Resource Group or subscription where Azure Migrate Project is created.
2 Azure Migrate Decide and Plan Expert Grants restricted access on an Azure Migrate project to only perform planning operations including appliance or import-based discovery, managing inventory, identifying server dependencies, creation of business case, applications & assessment reports. 7859c0b0-0bb9-4994-bd12-cd529af7d646 Scope is Resource Group or subscription where Azure Migrate Project is created.
3 Azure Migrate Execute Expert Grants restricted access on an Azure Migrate project to only perform migration related operations, including replication, execution of test migrations, tracking and monitoring of migration progress, and initiation of agentless and agent-based migrations. 1cfa4eac-9a23-481c-a793-bfb6958e836b Source Resource Group or subscription where Azure Migrate Project is created; Target Resource Group or subscription where servers and workloads are migrated to.

Azure Migrate Owner

The Azure Migrate Owner role provides a superset of permissions to perform end-to-end operations across all migration phases (Decide, Plan, and Execute). A user must be part of Azure Migrate Owner or a higher privileged role to create an Azure Migrate project.

Scope

The resource group or subscription where the Azure Migrate project is created.

Role assignment

Users with the Azure Migrate Owner role can assign or remove the Azure Migrate Decide and Plan Expert and Azure Migrate Execute Expert roles for other users or groups. The role doesn't grant permissions to assign or remove non-Azure Migrate built-in roles.

Azure Migrate Decide and Plan Expert

The Azure Migrate Decide and Plan Expert role provides limited permissions to perform scoped operations in the Decide and Plan phases. The role includes permissions to discover IT estate using an appliance or inventory import, manage & review discovered inventory, identify server dependencies, create business case, waves, and assessment reports. The role doesn't grant permissions to create Migrate project or perform role assignments.

Scope

The resource group or subscription where the Azure Migrate project is created.

Azure Migrate Execute Expert

The Azure Migrate Execute Expert role provides limited permissions to only perform scoped operations in the Execute phase of migration journey. The role includes permissions to perform migration related operations including replication, execute waves, execute test migrations, execute agentless and agent-based migrations and track and monitor the progress of migrations.The role doesn't grant permissions to create Migrate project or perform role assignments.

Scope

The source resource group or subscription where the Azure Migrate project is set up. If the migration target is in a different resource group or subscription, assign the role in the target resource group or subscription where the servers and workloads are migrated to.

Operations allowed per user role

Operations Azure Migrate Owner Azure Migrate Decide and Plan Expert Azure Migrate Execute Expert
Create, manage, and delete a Migrate project Yes No No
Generate project key Yes Yes No
Deploy VMware, Hyper-V, physical, or Azure Site Recovery appliance for discovery Yes Yes No
Register Migrate appliance* Yes Yes No
Use Inventory import for discovery Yes Yes No
Explore inventory Yes Yes Yes
View, add & import tags Yes Yes Yes
View and export server dependencies Yes Yes Yes
View security insights Yes Yes No
Create business case Yes Yes No
View and export business case Yes Yes Yes
Create assessment reports Yes Yes No
View and export assessment reports Yes Yes Yes
Create waves Yes Yes Yes
View and manage waves Yes Yes Yes
Execute waves Yes No Yes
Execute replications Yes No Yes
Test migrations Yes No Yes
Perform agentless and agent-based migrations Yes No Yes
Create support incidents Yes Yes Yes

Note

To register an Azure Migrate appliance or an ASR replication appliance users must have additional Application Developer role at Microsoft Entra ID level.

Role assignment and access management

In this section, you learn how to grant access to users by assigning Azure Migrate built-in roles. A subscription or resource group Owner can assign the Azure Migrate Owner role to the user who creates and manages the Azure Migrate project. Users with the Azure Migrate Owner role can then assign the Azure Migrate Decide and Plan Expert and Azure Migrate Execute Expert roles to other users or user groups.

Assigning Azure Migrate Owner

  1. Select the resource group where the Migrate project is created.

  2. In the navigation menu, select Access control (IAM)

  3. Select Add > Add role assignment

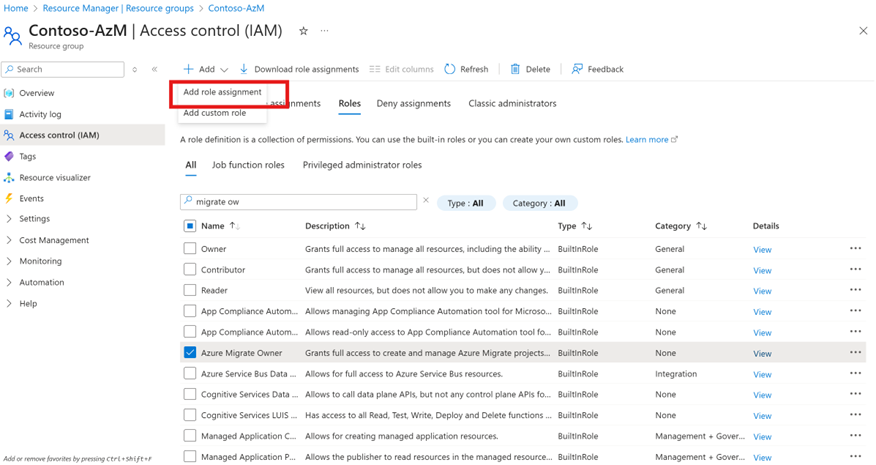

    Azure portal Access control IAM page showing the Add role assignment button highlighted in red rectangle, with navigation breadcrumb showing Home > Resource Manager > Resource groups > MigrateProjectName.

  4. On the privileged administrator roles tab, select Azure Migrate Owner role.

  5. On the members tab, select the user or group.

  6. Select the preferred assignment type and duration. The recommended approach is to choose eligible type and time-bound assignment duration.

  7. Select next and review + assign to complete the role assignment.

Assigning Decide and Plan Expert and Execute Expert role

An Azure Migrate Owner can assign the roles Azure Migrate Decide and Plan Expert and Azure Migrate Execute Expert to a user.

  1. Select the resource group where the Migrate project is set up.

  2. In the navigation menu, select Access control (IAM)

  3. Select Add > Add role assignment

  4. Select the role you want to assign. The Azure Migrate Decide and Plan Expert role and Azure Migrate Execute Expert role appear under Job function roles.

    Azure portal Add role assignment page displaying Job function roles tab with Azure Migrate Decide and Plan Expert role highlighted in red rectangle.Text indicates this role grants restricted access on Azure Migrate project to only perform planning operations including appliance or import-based discovery, managing inventory, identifying server dependencies, creation of business case and assessment reports. Azure portal Add role assignment page displaying Job function roles tab with Azure Migrate Execute Expert role highlighted in red rectangle. Text indicates this role grants restricted access on Azure Migrate project to only perform migration related operations including replication, execution of test migrations, tracking and monitoring of migration progress, and initiation of agentless and agent-based migrations.

  5. After selecting the role, on the members tab, select the user or group.

  6. Select the preferred assignment type and duration. The recommended approach is to choose eligible type and time-bound assignment duration.

  7. Select next and review + assign to complete the role assignment.

Check access and verify Role assignment

Follow these steps to check your access

  1. From the resource group/subscription, select Access control (IAM) and view my access.

  2. Verify if the role assignment is successful.

    Azure portal Access control IAM interface showing the Check access section on the left side with a blue View my access button highlighted.

  3. To check access for a user or group, select check access. Enter the user or group details and verify role assignment.

Remove access

  1. Azure Migrate owner can only remove Azure Migrate Decide and Plan Expert and Azure Migrate Execute Expert role assignments. Subscription or resource group owners can remove the Azure Migrate owner role assignment.

  2. Open Access control (IAM) at scope subscription or resource group.

  3. Select role assignments

  4. Select the role assignment that you would like to remove

    Azure portal Access control IAM page showing role assignments table with a selected user row highlighted in blue and a red Delete button prominently displayed in the top toolbar, demonstrating the process to remove role assignments from users in the resource management interface.

  5. Select Delete to remove the role assignment.

Guidance for role assignments at the resource group scope

We recommend performing role assignments at resource group to operate in a least privilege access model. Note the following scenarios when role assignments are done at the resource group scope.

1. Register the Resource providers in advance

To enable all Azure Migrate capabilities, you must register the required resource providers at the subscription where the Azure Migrate project is created. The Azure Migrate Owner and Azure Migrate Decide and Plan Expert roles have permissions to automatically register resource providers if the role assignment is done at the subscription scope. However, if these roles are assigned at the resource group level, project key generation could fail if the resource provider isn't already registered on the subscription. In such cases, the subscription owner should manually register the listed resource providers as a prerequisite.

Required Resource Providers

Resource Provider
Microsoft.OffAzure
Microsoft.Migrate
Microsoft.MySQLDiscovery
Microsoft.DependencyMap
Microsoft.ApplicationMigration
Microsoft.Insights
Microsoft.KeyVault
Microsoft.HybridCompute
Microsoft.Storage
Microsoft.Network
Microsoft.GuestConfiguration
Microsoft.Compute
Microsoft.HybridConnectivity
Microsoft.RecoveryServices
Microsoft.DataReplication
Microsoft.AzureArcData

For more information, see register resource provider.

2. Support requests

If the role assignment is done at resource group scope, users can't create support requests.

3. Registration of Azure Site Recovery Replication appliance

If you assign the role at the resource group scope, users can't register the Azure Site Recovery replication appliance. To register the appliance, you must assign the Azure Migrate Decide and Plan Expert role at the subscription scope. This restriction applies only to the Azure Site Recovery appliance, not to the VMware, Hyper-V, or physical stacks of the Azure Migrate appliance.

Next steps

After setting up Azure accounts and role assignments, create an Azure Migrate project
