Advanced Fault Tolerance for Cross-Availability-Zone Rings (On-Demand Auxiliary Replicas)

This article describes an advanced fault tolerance capability for full-service applications in two availability zones (AZs) by utilizing a third AZ.

Important

This feature requires a three-zone cluster layout:

  • Two large zones for regular service workload.
  • One small zone for seed-node quorum support.

On-demand auxiliary replicas help protect write availability during planned maintenance in two-zone application deployments by temporarily preserving safer replica distribution.

Overview

In 2-AZ deployments, planned operations such as application upgrades, cluster upgrades, and node deactivations can temporarily remove one replica from a partition.

If a zone outage happens during that window, the partition can drop below write quorum and enter quorum loss.

The availability zone ring feature reduces this risk by creating a temporary auxiliary replica during planned maintenance and removing it after the original replica returns.

What is an auxiliary replica?

Auxiliary replicas are specialized replicas intended for advanced replicator-level scenarios that are outside the normal roles of Primary, IdleSecondary, and ActiveSecondary.

Key behavior:

  • Auxiliary replicas are not granted read or write access.
  • Service Fabric does not consider auxiliary replicas as primary-election targets during balancing or failover.
  • They can observe replication for scenarios such as auditing, monitoring, or transient replication-side processing.

This capability is intended for advanced workloads and can require corresponding application replicator changes.

Why use auxiliary replicas?

Without this feature, a planned replica-down event plus a zone failure can force a partition into quorum loss.

With this feature enabled, Service Fabric creates a temporary auxiliary replica in the same availability zone as the replica that's planned to be down before the replica-down event. This auxiliary replica can preserve quorum in that same failure window.

Benefits:

  • Improves availability during planned maintenance in 2-AZ application deployments.
  • Helps maintain safer cross-zone write quorum distribution.
  • Enables a more capacity-optimized three-zone topology for customers who do not want full workload capacity in all zones.
  • Adds no steady-state replica overhead because auxiliary replicas are temporary.

Example failure scenario

Scenario: Availability Zone 1 becomes unavailable while a planned replica-down event is in progress in Availability Zone 2.

Without on-demand auxiliary replicas:

  • One regular replica is already offline for maintenance.
  • A zone outage removes additional replicas.
  • The partition can enter quorum loss.

With on-demand auxiliary replicas:

  • Service Fabric creates an auxiliary replica before the planned replica-down event.
  • If the zone outage occurs in the same window, an additional replica remains available.
  • The partition is more likely to preserve write quorum and recover automatically.

Important

Protection is expected only when replicas are healthy before the outage window. If a replica is already unexpectedly down before a zone failure, quorum loss can still occur.

Prerequisites

  • Your application code must support auxiliary replicas (custom IReplicator scenarios).

  • Service Fabric 11.5 or later.

  • Service Fabric classic (SFRP) cluster topology across three zones:

    • Two large zones (for example, Zone 1 and Zone 2) host regular service replicas and seed nodes.
    • One small zone (for example, Zone 3) hosts seed nodes only.

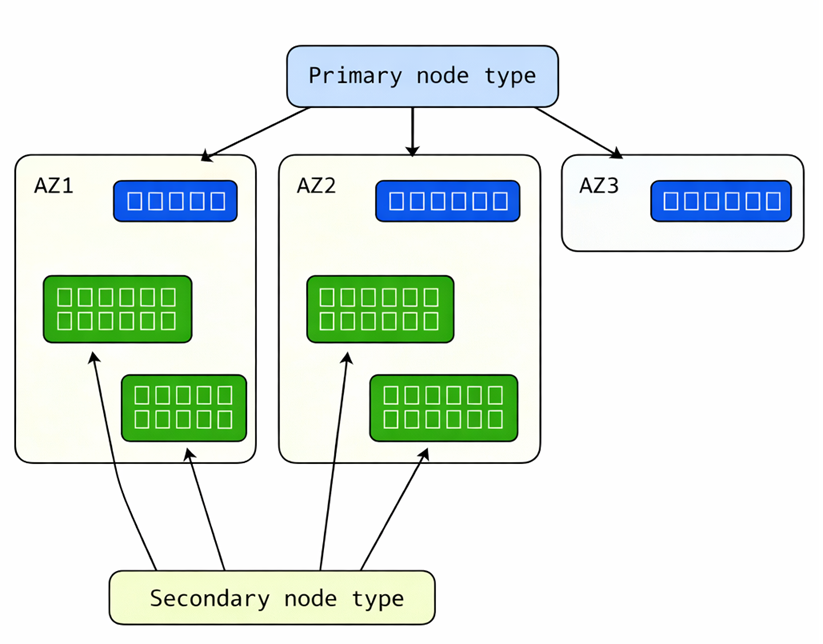

    Diagram of the cluster topology required to utilize the advanced fault tolerance on-demand auxiliary replicas feature.

Configure on-demand auxiliary replicas

Step 1: Enable cluster-level fabric settings

Add these settings to the cluster fabric configuration:

Section Parameter Value
Common EnableAuxiliaryReplicas true
PlacementAndLoadBalancing OnDemandReplicaConstraintPriority 0

Example snippet:

"fabricSettings": [
  {
    "name": "Common",
    "parameters": [
      {
        "name": "EnableAuxiliaryReplicas",
        "value": "true"
      }
    ]
  },
  {
    "name": "PlacementAndLoadBalancing",
    "parameters": [
      {
        "name": "OnDemandReplicaConstraintPriority",
        "value": "0"
      }
    ]
  }
]

Step 2: Configure each target stateful service

Use the following service settings:

Setting Value
Target replica set size Minimum 4
Minimum replica set size 3
Enable on-demand auxiliary replica true
Has persisted state true

To keep user services off the seed-only zone, use a placement constraint such as NodeTypeName != ntSeed.

Step 3: Verify runtime behavior

After deployment:

  1. Start a rolling upgrade or node deactivation.
  2. Observe partition replica set changes.
  3. Confirm an auxiliary replica appears before the planned replica-down event.
  4. Confirm the auxiliary replica is removed after maintenance completes.
