Azure Resource Graph tables overview

Azure Resource Graph (ARG) provides a way for you to query Azure resources across your subscriptions using Kusto Query Language (KQL). This article gives a detailed breakdown of the fields commonly found in ARG tables, especially the fields that are relevant to Azure Service Health and governance scenarios.

Use the Service Health table to query:

  • Service Health Event properties (microsoft.resourcehealth/events)
  • Service Health Impacted Resources properties (microsoft.resourcehealth/events/impactedresources)

Use the Resource Health table to query:

  • Resource Health properties (microsoft.resourcehealth/availabilitystatuses and microsoft.resourcehealth/resourceannotations)
Query Tables Value type Information
Service Health Event
Service Health Impacted Resources		 ServiceHealthResources
ServiceHealthResources		 microsoft.resourcehealth/events
microsoft.resourcehealth/events/impactedresources		 Service Health events such as outages, planned maintenance, or other incidents.
The specific Azure resources affected by those events.
Resource Health (only virtual machines) HealthResources microsoft.resourcehealth/availabilitystatuses, microsoft.resourcehealth/resourceannotations VM health monitoring, diagnostics

This table shows the core fields in the ARG table for the Service Health, Impacted Resources, and Resource Health queries that represent the metadata about Azure resources.

Field Name Description
id Full Azure resource ID (for example, /subscriptions/<subscription-id>/providers/Microsoft.ResourceHealth/events/<tracking-id>)
name Name of the resource
type Resource type (for example, Microsoft.Compute/virtualMachines)
tenantId ID of tenant the resource belongs to
location Azure region where the resource is deployed (default is Global)
subscriptionId ID of the subscription the resource belongs to
resourceGroup Name of the resource group
tags Key-value pairs assigned to the resource
properties JSON objects containing resource-specific properties
sku SKU details (tier, name) for applicable resources
kind Resource kind (used in App Services, for example, functionapp, or webapp)
managedBy Indicates if another Azure service manages the resource
identity Identity configuration (for example, system-assigned or user-assigned)
plan Marketplace plan details
zones Availability zones the resource is deployed in
extendedLocation Extended location details (for example, custom locations)

Service Health

The ServiceHealthResources queries returns data about resources within your subscriptions that are affected by service health events.

These notifications are a subclass of activity log events and can also be found in the Azure activity log.

Depending on the event classification, EventType and EventSubtype service health notifications could be either informational or actionable.

Service Health Event properties (microsoft.resourcehealth/events)

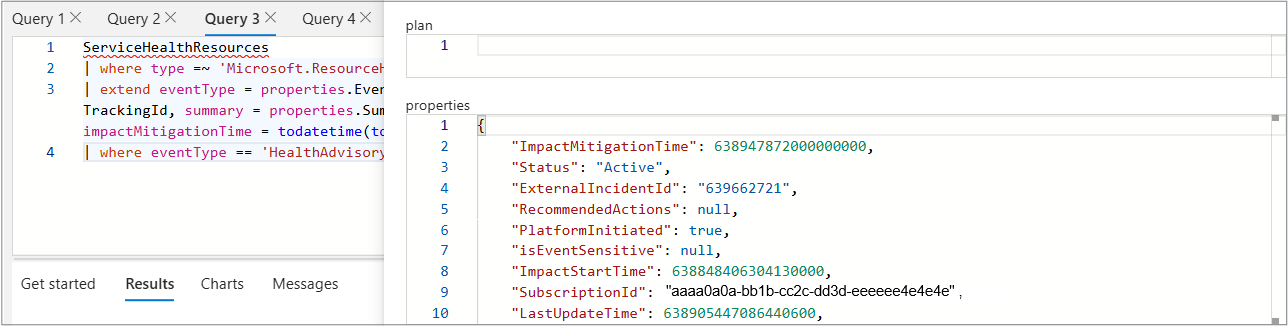

Screenshot of the fields shown in the Service Health properties column.

The values in the properties field are used for querying Azure Service Health events.

There are some common properties that exist across all the different event types, but everything under properties should be considered dynamic based on the event type.

These fields are used together to track, filter, and analyze service health events across your Azure environment.
For example, you can query for all Critical ServiceIssue events in a specific location that are still Active.

This table lists all the properties you can use in your Service Health and Impacted Resources queries.

Property Description
EventType High-level classification: ServiceIssue, PlannedMaintenance, HealthAdvisory, Billing, SecurityAdvisory, EmergingIssues, and Post Incident Review (PIR)
EventSubType Specific subtype: Retirement, TaxChanges, PriceChanges, MeterIDChanges, ForeignExchangeRateChange, UnauthorizedPartyAbuse, Underbilling, and Overbilling
Status Current status of the event: Active or Resolved
EventLevel Severity: Informational, Warning, Critical, Error
Level Often mirrors EventLevel and is used for UI rendering
EventSource Indicates the source system that generated the event as ServiceHealthResources or HealthResources
TrackingId Unique identifier for the event
Title Title of the event
Summary Description of the event
Priority Priority level assigned to the event
ImpactStartTime When the event causing the impact began
ImpactMitigationTime When mitigation is expected or completed
Impact Description of the impact on services
Region Which regions and services are impacted
RecommendedActions Suggested actions for users and/or admins
ExternalIncidentId Incident ID used externally (for example in ServiceNow)
PlatformInitiated Indicates if the Azure platform triggers the event (for example, an automated mitigation or system-triggered maintenance)
SubscriptionId The unique identifier of the Azure subscription affected by the event
LastUpdateTime Timestamp of the most recent update to the event
CurrencyType The currency used in billing-related events (for example, USD, EUR)
impactType The nature of the impact (for example, SubscriptionList, ServicesForSubTenants)
BillingId Identifier used to associate the event with a billing account or transaction
EventTags Metadata tags used to categorize or filter events (for example, Security, Maintenance, Outage)
duration Descriptive label or title for the event

Note

The "properties" structure is dynamic and varies by EventType and EventSubType. Not all fields are present in every event.
Fields like isEventSensitive might be empty or omitted unless the event is security-related.
The EventSubType is often empty unless the event is a billing or retirement advisory.
For more information, see Service Health event tags and Filter notifications using Event Level.

Access control systems ensure that only authorized individuals with a valid need can view sensitive information. For more information, see View and access Security advisories.

How These Fields Work Together

  • Governance & Monitoring: Combine EventType, Severity, and Status that monitors ongoing issues and assess their impact.
  • Filtering & Alerting: Use SubscriptionId, and Impact that filters events relevant to specific teams or workloads.
  • Historical Analysis: Use ImpactStartTime and ImpactMitigationTime to understand event timelines and Service Level Agreement (SLA) implications.
  • REST API Integration: These fields are exposed through the Azure Service Health REST API, allowing programmatic access and automation.
  • Filter and Scope Events: SubscriptionId, Impact, TrackingId, and PlatformInitiated help narrow down which resources are affected and how.
  • Track and Analyze: LastUpdateTime, Header, and EventTags support monitoring and historical analysis.
  • Support Financial and Compliance Workflows: BillingId and CurrencyType are essential for billing-related events and audits.

Impacted Resources

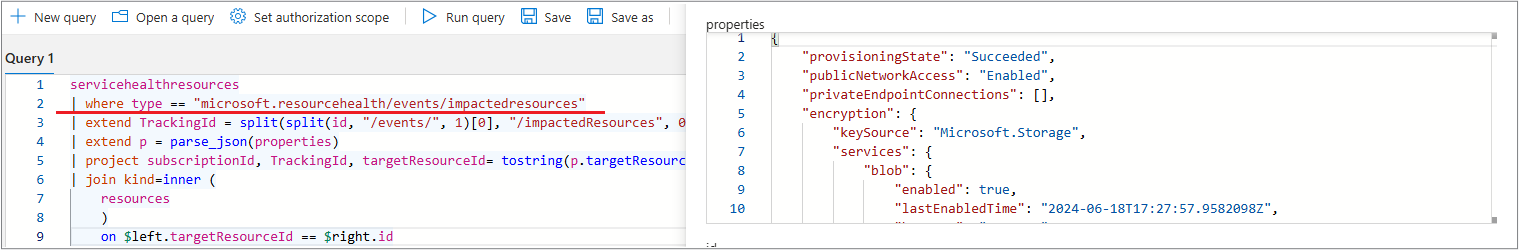

Screenshot of the fields shown in the Impacted Resources properties column.

Set the type column in the ServiceHealthResources table to microsoft.resourcehealth/events/impactedresources so it opens the query to search for information about the impacted resources by Service Health events such as outages, planned maintenance, or security advisories.

Impacted Resources properties

Field name Description
resourceName Name of the impacted resource
resourceGroupName Name of Resource Group
targetResourceType Type of the impacted resource
targetResourceId Full resource ID
targetRegion Region of the impacted resource
systemData Metadata about who created or modified the entry
maintenanceStartTime When the event causing the impact began
maintenanceEndTime When the event causing the impact ended
targetResourceType Type of the impacted resource (for example, Microsoft.Compute/virtualMachines)
targetResourceId Full resource ID of the impacted resource
resourceGroup Name of the Resource Group
targetRegion Region of the impacted resource
staus Current status of the event
info

Resource Health

There are two types of tables in the HealthResources Azure Resource Graph (ARG) that provide detailed information about the health status of your Azure resources, especially virtual machines.

microsoft.resourcehealth/availabilitystatuses
This table provides the latest availability status of Azure resources—primarily virtual machines (VMs)—based on health checks performed by the Azure platform.

You can use this query to:

  • Track VM Health across your environment: Get a consolidated view of the health status of virtual machines across all subscriptions or resource groups.
  • Diagnose issues quickly: Identify which VMs are marked as Unavailable or Degraded, and investigate the underlying causes.
  • Audit downtime sources: Determine whether service interruptions result from platform-initiated events (like maintenance) or customer actions.
  • Create operational dashboards: Visualize real-time health data to monitor service-level agreements (SLAs) and maintain operational awareness.
  • Add context with annotations: Combine this table with resourceannotations to understand the reasons behind availability changes, such as restarts or outages.

microsoft.resourcehealth/resourceannotations
This table provides detailed annotations about changes in the availability of Azure resources—especially virtual machines (VMs). It adds context such as failure attribution, downtime analysis, and impact metadata. These fields help you understand why a VM's availability changed, whether it was due to platform maintenance, customer actions, or unexpected failures.

You can use this query to:

  • Investigate VM downtime: Understand the root cause of availability changes.
  • Correlate health events: Join with availabilitystatuses to get both status and context.
  • Audit platform actions: Identify whether Azure initiated a restart or shutdown.
  • Improve SLA tracking: Attribute failures to specific causes for business impact analysis.
  • Build dashboards: Visualize health annotations alongside other resource metadata.

HealthResources properties

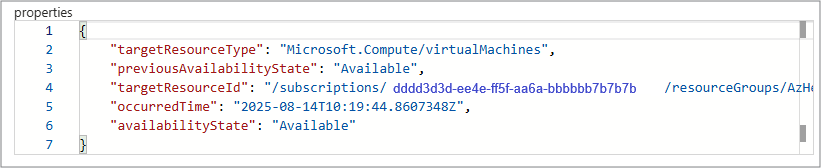

Screenshot of the fields shown in the Resource Health properties column.

These property fields provide the actual health information:

Property Description
availabilityState Current health status: Available, Unavailable, or Degraded
previousAvailabilityState Previous health status before the current state
reasonType Reason for the current health state (for instance, PlatformInitiated, UserInitiated)
reasonChronicityType Indicates whether the issue is Persistent or Transient
annotationName Descriptive label for the health event (for example, VirtualMachineRestarted)
title Title of the Health event
summary Summary of the health event
impactStartTime Timestamp when the event began
impactMitigationTime Timestamp when mitigation is expected or completed
recommendedActions Suggested actions for the user

How These Fields Work Together

  • Monitoring & Alerting: availabilityState, reasonType, and impactStartTime help identify and respond to outages or degradations.
  • Root Cause Analysis: reasonChronicityType, annotationName, and summary provide context for troubleshooting.
  • Governance & Reporting: location, subscriptionId, and resourceGroup allow filtering and aggregation across environments.
  • Automation: recommendedActions can be used to trigger automated remediation workflows.

Troubleshooting

Question
Why are the maintenanceStartTime, maintenanceEndTime, and info showing as null in my ARG query results?
Answer
These fields can appear null in ARG queries for microsoft.resourcehealth events due to several factors. Understanding the fields can help you interpret the data more accurately.

  • Event type dependency:
    Only Planned Maintenance events include maintenance timing details. Other event types like Service Issue or Security Advisory don't use those fields, so they're null.
  • Event lifecycle and access control:
    • Newly created or early-stage events might not have the full details to populate the fields or confirmed maintenance windows.
    • Some sensitive events require elevated permissions to view complete data. Without the right access, the fields appear blank.
  • Event history and recommendations:
    • Filter for PlannedMaintenance events.
    • Confirm your role and access permissions.
    • Check the event status.
    • Report any consistent data gaps through the appropriate support channels.

If the maintenanceStartTime, maintenanceEndTime, or info are showing null in the ARG query results, you should check the Planned maintenance pane. Screenshot of the Planned maintenance pane.

For more information about queries, see:
