Tutorial: Calculate container statistics by using Databricks

This tutorial shows you how to gather statistics about your containers by using Azure Blob Storage inventory along with Azure Databricks.

In this tutorial, you learn how to:

Prerequisites

• An Azure subscription - create an account for trial

• An Azure storage account - create a storage account

  Make sure that your user identity has the Storage Blob Data Contributor role assigned to it.

Generate an inventory report

Enable blob inventory reports for your storage account. See Enable Azure Storage blob inventory reports.

Use the following configuration settings:

You might have to wait up to 24 hours after enabling inventory reports for your first report to be generated.

Configure Azure Databricks

In this section, you create an Azure Databricks workspace, cluster, and notebook. Later in this tutorial, you paste code snippets into notebook cells, and then run them to gather container statistics.

1. Create an Azure Databricks workspace. See Create an Azure Databricks workspace.

2. Create a cluster. See Create a cluster.

3. Create a notebook and choose Python as the default language of the notebook. See Create a notebook.

Read the blob inventory file

1. Copy and paste the following code block into the first cell, but don't run this code yet.

   from pyspark.sql.types import StructType, StructField, IntegerType, StringType
   import pyspark.sql.functions as F
      storage_account_name = "<storage-account-name>"
      storage_account_key = "<storage-account-key>"
      container = "<container-name>"
      blob_inventory_file = "<blob-inventory-file-name>"
      hierarchial_namespace_enabled = False

   if hierarchial_namespace_enabled == False:
     spark.conf.set("fs.azure.account.key.{0}.blob.core.chinacloudapi.cn".format(storage_account_name), storage_account_key)
     df = spark.read.csv("wasbs://{0}@{1}.blob.core.chinacloudapi.cn/{2}".format(container, storage_account_name, blob_inventory_file), header='true', inferSchema='true')

    else:
     spark.conf.set("fs.azure.account.key.{0}.dfs.core.chinacloudapi.cn".format(storage_account_name), storage_account_key)
     df = spark.read.csv("abfss://{0}@{1}.dfs.core.chinacloudapi.cn/{2}".format(container, storage_account_name, blob_inventory_file), header='true', inferSchema='true')


2. In this code block, replace the following values:

   • Replace the <storage-account-name> placeholder value with the name of your storage account.

   • Replace the <storage-account-key> placeholder value with the account key of your storage account.

   • Replace the <container-name> placeholder value with the container that holds the inventory reports.

   • Replace the <blob-inventory-file-name> placeholder with the fully qualified name of the inventory file (For example: 2023/02/02/02-16-17/blobinventory/blobinventory_1000000_0.csv).

   • If your account has a hierarchical namespace, set the hierarchical_namespace_enabled variable to True.

3. Press the SHIFT + ENTER keys to run the code in this block.

Get blob count and size

1. In a new cell, paste the following code:

   print("Number of blobs in the container:", df.count())
   print("Number of bytes occupied by blobs in the container:", df.agg({'Content-Length': 'sum'}).first()['sum(Content-Length)'])


2. Press SHIFT + ENTER to run the cell.

   The notebook displays the number of blobs in a container and the number of bytes occupied by blobs in the container.



Get snapshot count and size

1. In a new cell, paste the following code:

   from pyspark.sql.functions import *

   print("Number of snapshots in the container:", df.where(~(col("Snapshot")).like("Null")).count())
   dfT = df.where(~(col("Snapshot")).like("Null"))
   print("Number of bytes occupied by snapshots in the container:", dfT.agg({'Content-Length': 'sum'}).first()['sum(Content-Length)'])


2. Press SHIFT + ENTER to run the cell.

   The notebook displays the number of snapshots and total number of bytes occupied by blob snapshots.



Get version count and size

1. In a new cell, paste the following code:

   from pyspark.sql.functions import *

   print("Number of versions in the container:", df.where(~(col("VersionId")).like("Null")).count())
   dfT = df.where(~(col("VersionId")).like("Null"))
   print("Number of bytes occupied by versions in the container:", dfT.agg({'Content-Length': 'sum'}).first()['sum(Content-Length)'])


2. Press SHIFT + ENTER to run the cell.

   The notebook displays the number of blob versions and total number of bytes occupied by blob versions.



Get blob count by blob type

1. In a new cell, paste the following code:

   display(df.groupBy('BlobType').count().withColumnRenamed("count", "Total number of blobs in the container by BlobType"))


2. Press SHIFT + ENTER to run the cell.

   The notebook displays the number of blob types by type.

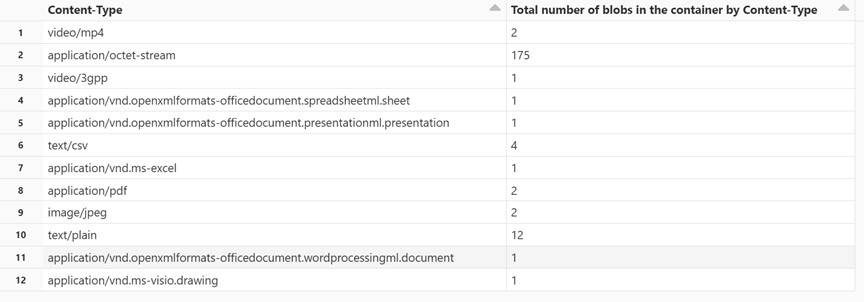

Get blob count by content type

1. In a new cell, paste the following code:

   display(df.groupBy('Content-Type').count().withColumnRenamed("count", "Total number of blobs in the container by Content-Type"))


2. Press SHIFT + ENTER to run the cell.

   The notebook displays the number of blobs associated with each content type.



Terminate the cluster

To avoid unnecessary billing, make sure to terminate the cluster. See Terminate a cluster.

Next steps

• Learn how to use Azure Synapse to calculate the blob count and total size of blobs per container. See Calculate blob count and total size per container using Azure Storage inventory

• Learn how to generate and visualize statistics that describes containers and blobs. See Tutorial: Analyze blob inventory reports

• Learn about ways to optimize your costs based on the analysis of your blobs and containers. See: Optimize costs by automatically managing the data lifecycle
