Stream data from confluent cloud Kafka with Azure Stream Analytics

This article describes how to connect your Azure Stream Analytics job directly to confluent cloud kafka as an input.

Prerequisites

• You have a confluent cloud kafka cluster.
• You have an API Key file for your kafka cluster that contains the API key to use as a username, API Secret to use as a password and the Bootstrap server address.
• You have an Azure Stream Analytics job. You can create an Azure Stream Analytics job by following the documentation: Quickstart: Create a Stream Analytics job by using the Azure portal
• Your confluent cloud kafka cluster must be publicly accessible and not behind a firewall or secured in a virtual network.
• The timestamp type of the topic of your confluent cloud kafka cluster should be LogAppendTime. The default for confluent cloud kafka topic is CreateTime.
• You should have an existing key vault. You can create a key vault resource by following the documentation Quickstart: Create a key vault using the Azure portal

Configure Azure Stream Analytics to use managed identity

Azure Stream Analytics requires you to configure managed identity to access key vault. You can configure your stream analytics job to use managed identity by navigating to the Managed Identity tab on the left side under Configure.

1. Click on the managed identity tab under configure.
2. Select on Switch Identity and select the identity to use with the job: system-assigned identity or user-assigned identity.
3. For user-assigned identity, select the subscription where your user-assigned identity is located and select the name of your identity.
4. Review and save.

Download certificate from LetsEncrypt

Azure stream analytics is a librdkafka-based client, and to connect to confluent cloud, you need TLS certificates that confluent cloud uses for server authentication. Confluent cloud uses TLS certificates from Let’s Encrypt, an open certificate authority (CA).

Download the ISRG Root X1 certificate in PEM format on the site of LetsEncrypt.

Configure Key vault with Permissions

Azure Stream Analytics integrates seamlessly with Azure Key vault to access stored secrets needed for authentication and encryption. Your Azure Stream Analytics job connects to your Azure Key vault using managed identity to ensure a secure connection and avoid the exfiltration of secrets. To use the certificate you downloaded, you must upload it to key vault first.

To upload certificates, you must have "Key Vault Administrator" access to your Key vault. Follow the following to grant admin access:

1. In your key vault, select Access control (IAM).

2. Select Add > Add role assignment to open the Add role assignment page.

3. Assign the role using the following configuration:

Setting	Value
Role	Key Vault Administrator
Assign access to	User, group, or service principal
Members	<Your account information or email>

Upload certificate to Key vault as a secret via Azure CLI

Make sure you have Azure CLI configured and installed locally with PowerShell. You can visit this page to get guidance on setting up Azure CLI: Get started with Azure CLI

Login to Azure CLI:

az cloud set -n AzureChinaCloud
az login

Connect to your subscription containing your key vault:

az account set --subscription <subscription name>

For example:

az account set --subscription mymicrosoftsubscription

The following command can upload the certificate as a secret to your key vault:

The <your key vault> is the name of the key vault you want to upload the certificate to. <name of the secret> is any name you want to give to your secret and how it shows up in the key vault. <file path to certificate> is the path to where the certificate your certificate is located. You can right-click and copy the path to the certificate.

az keyvault secret set --vault-name <your key vault> --name <name of the secret> --file <file path to certificate>

For example:

az keyvault secret set --vault-name mykeyvault --name confluentsecret --file C:\Users\Downloads\isrgrootx1.pem

Grant the Stream Analytics job permissions to access the certificate in the key vault

For your Azure Stream Analytics job to read the secret in your key vault, the job must have permission to access the key vault. Use the following steps to grant special permissions to your stream analytics job:

1. In your key vault, select Access control (IAM).

2. Select Add > Add role assignment to open the Add role assignment page.

3. Assign the role using the following configuration:

Setting	Value
Role	Key vault secrets user
Managed identity	Stream Analytics job for System-assigned managed identity or User-assigned managed identity
Members	<Name of your Stream Analytics job> or <name of user-assigned identity>

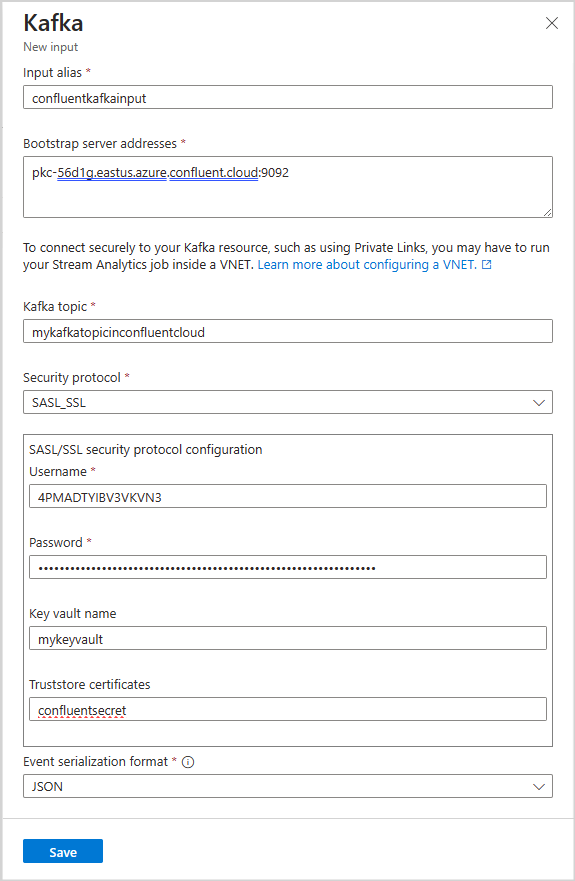

Configure kafka input in your stream analytics job

1. In your stream analytics job, select Inputs under Job Topology

2. Select Add input > Kafka to open the Kafka New input configuration blade.

3. Use the following configuration:

Property name	Description
Input Alias	A friendly name used in queries to reference your input
Bootstrap server addresses	A list of host/port pairs to establish the connection to your confluent cloud kafka cluster. Example: pkc-56d1g.chinanorth3.azure.confluent.cloud:9092
Kafka topic	The name of your kafka topic in your confluent cloud kafka cluster.
Security Protocol	Select SASL_SSL. The mechanism supported is PLAIN.
Consumer Group Id	The name of the Kafka consumer group that the input should be a part of. It will be automatically assigned if not provided.
Event Serialization format	The serialization format (JSON, CSV, Avro, Parquet, Protobuf) of the incoming data stream.

Use the following configuration:

Setting	Value
Username	confluent cloud API key
Password	confluent cloud API secret
Key vault name	name of Azure Key vault with uploaded certificate
Truststore certificates	name of the Key Vault Secret that holds the ISRG Root X1 certificate

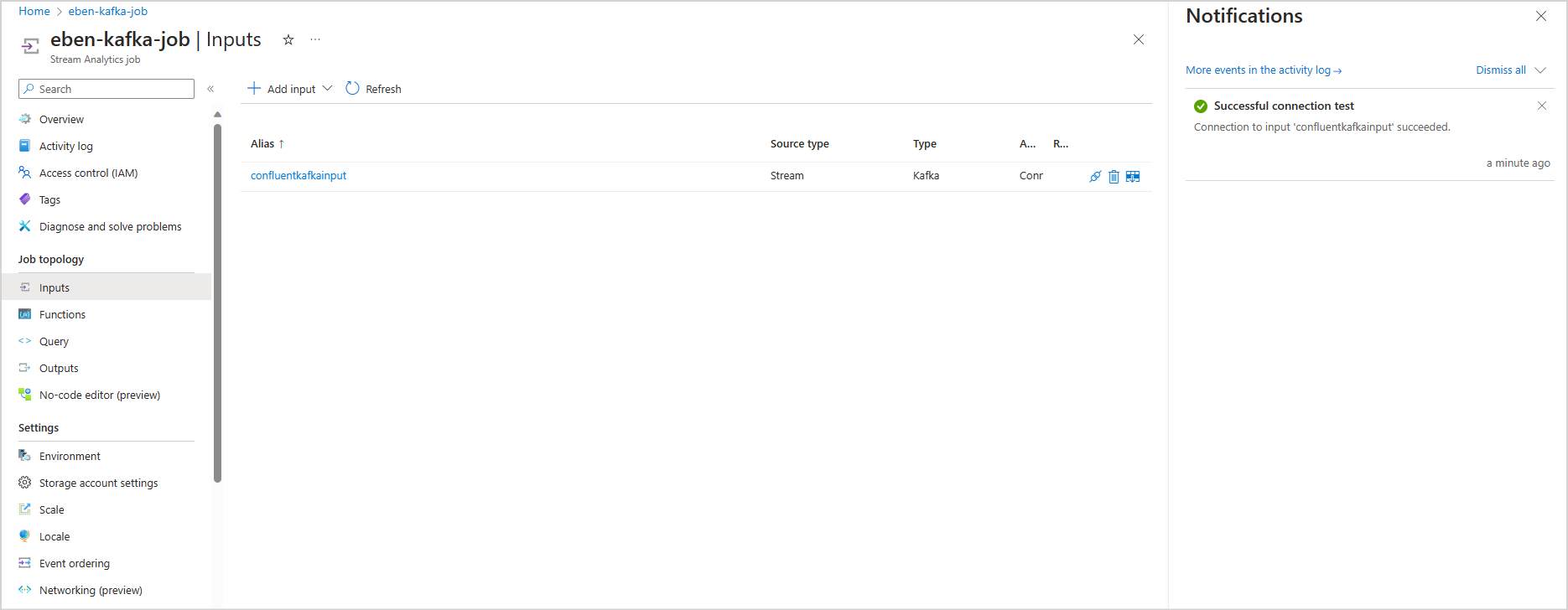

Save configuration and test connection

Save your configuration. Your Azure Stream Analytics job validates using the configuration provided. A successful connection shows in the portal if your stream analytics can connect to your kafka cluster.

Limitations

• The certificate uploaded to key vault must be PEM format.
• The minimum version of kafka must be version 0.10.
• Azure Stream Analytics doesn't support authentication to confluent cloud using OAuth or SAML single sign-on (SSO). You must use API Key via the SASL_SSL protocol.
• You must use Azure CLI to upload the certificate as a secret to key vault. You can't upload certificates with multiline secrets to key vault using the Azure portal.
