Azure Stream Analytics on IoT Edge

  • Article

Azure Stream Analytics on IoT Edge empowers developers to deploy near-real-time analytical intelligence closer to IoT devices so that they can unlock the full value of device-generated data. Azure Stream Analytics is designed for low latency, resiliency, efficient use of bandwidth, and compliance. Enterprises can deploy control logic close to the industrial operations and complement Big Data analytics done in the cloud.

Azure Stream Analytics on IoT Edge runs within the Azure IoT Edge framework. Once the job is created in Stream Analytics, you can deploy and manage it using IoT Hub.

Common scenarios

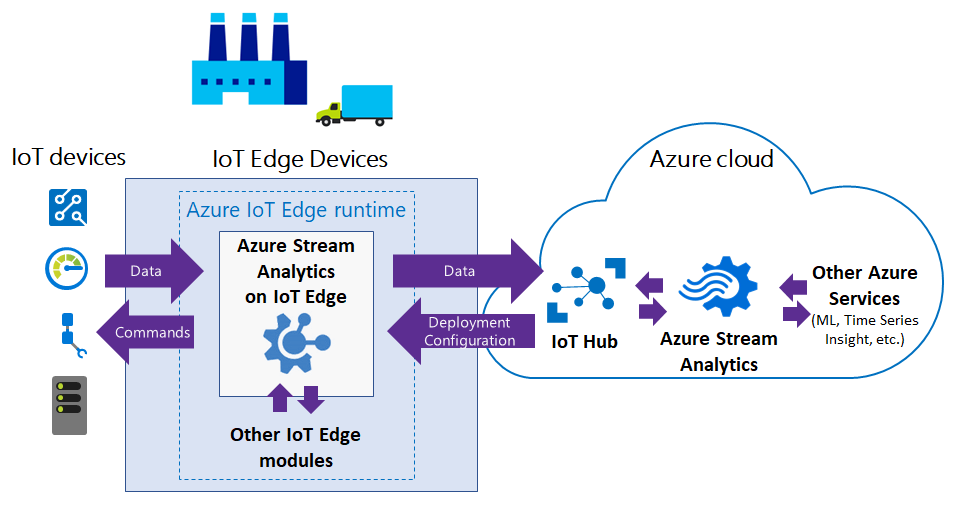

This section describes the common scenarios for Stream Analytics on IoT Edge. The following diagram shows the flow of data between IoT devices and the Azure cloud.

High level diagram of IoT Edge

Low-latency command and control

Manufacturing safety systems must respond to operational data with ultra-low latency. With Stream Analytics on IoT Edge, you can analyze sensor data in near real-time, and issue commands when you detect anomalies to stop a machine or trigger alerts.

Limited connectivity to the cloud

Mission critical systems, such as remote mining equipment, connected vessels, or offshore drilling, need to analyze and react to data even when cloud connectivity is intermittent. With Stream Analytics, your streaming logic runs independently of the network connectivity and you can choose what you send to the cloud for further processing or storage.

Limited bandwidth

The volume of data produced by jet engines or connected cars can be so large that data must be filtered or pre-processed before sending it to the cloud. Using Stream Analytics, you can filter or aggregate the data that needs to be sent to the cloud.

Compliance

Regulatory compliance may require some data to be locally anonymized or aggregated before being sent to the cloud.

Edge jobs in Azure Stream Analytics

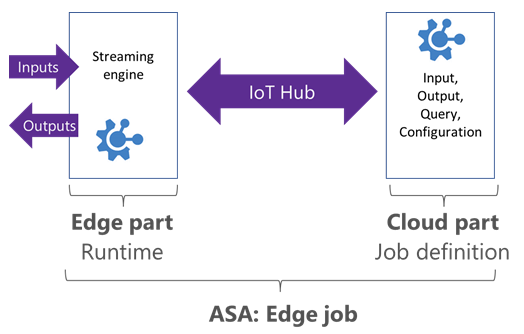

Stream Analytics Edge jobs run in containers deployed to Azure IoT Edge devices. Edge jobs are composed of two parts:

  • A cloud part that is responsible for the job definition: users define inputs, output, query, and other settings, such as out of order events, in the cloud.

  • A module running on your IoT devices. The module contains the Stream Analytics engine and receives the job definition from the cloud.

Stream Analytics uses IoT Hub to deploy edge jobs to device(s). For more information, see IoT Edge deployment.

Azure Stream Analytics Edge job

Edge job limitations

The goal is to have parity between IoT Edge jobs and cloud jobs. Most SQL query language features are supported for both edge and cloud. However, the following features are not supported for edge jobs:

  • User-defined functions (UDF) in JavaScript.
  • User-defined aggregates (UDA).
  • Azure ML functions.
  • AVRO format for input/output. At this time, only CSV and JSON are supported.
  • The following SQL operators:
    • PARTITION BY
    • GetMetadataPropertyValue
  • Late arrival policy

Runtime and hardware requirements

To run Stream Analytics on IoT Edge, you need devices that can run Azure IoT Edge.

Stream Analytics and Azure IoT Edge use Docker containers to provide a portable solution that runs on multiple host operating systems (Windows, Linux).

Stream Analytics on IoT Edge is made available as Windows and Linux images, running on both x86-64 or ARM (Advanced RISC Machines) architectures.

Input and output

Stream Analytics Edge jobs can get inputs and outputs from other modules running on IoT Edge devices. To connect from and to specific modules, you can set the routing configuration at deployment time. More information is described on the IoT Edge module composition documentation.

For both inputs and outputs, CSV and JSON formats are supported.

For each input and output stream you create in your Stream Analytics job, a corresponding endpoint is created on your deployed module. These endpoints can be used in the routes of your deployment.

Supported stream input types are:

  • Event Hub.
  • IoT Hub.

Supported stream output types are:

  • SQL Database
  • Event Hub
  • Blob Storage/ADLS Gen2

Reference input supports reference file type. Other outputs can be reached using a cloud job downstream.

License and third-party notices

Azure Stream Analytics module image information

This version information was last updated on 2020-09-21:

  • Image: mcr.microsoft.com/azure-stream-analytics/azureiotedge:1.0.9-linux-amd64

    • base image: mcr.microsoft.com/dotnet/core/runtime:2.1.13-alpine
    • platform:
      • architecture: amd64
      • os: linux

  • Image: mcr.microsoft.com/azure-stream-analytics/azureiotedge:1.0.9-linux-arm32v7

    • base image: mcr.microsoft.com/dotnet/core/runtime:2.1.13-bionic-arm32v7
    • platform:
      • architecture: arm
      • os: linux

  • Image: mcr.microsoft.com/azure-stream-analytics/azureiotedge:1.0.9-linux-arm64

    • base image: mcr.microsoft.com/dotnet/core/runtime:3.0-bionic-arm64v8
    • platform:
      • architecture: arm64
      • os: linux
