示例警报有效负载

  • Artículo

常见的警报架构会在 Azure 中标准化警报通知的使用体验。 过去，活动日志、指标和日志搜索警报都有自己的电子邮件模板和 Webhook 架构。 通用警报架构为所有警报通知提供一个标准化架构。

标准化架构有助于最大限度地减少集成数，从而简化管理和维护集成的过程。

通用架构在以下部分中包含有关受影响资源和警报原因的信息：

  • 概要：标准化字段，由描述受警报影响的资源和常见警报元数据（如严重性或说明）的所有警报类型使用。

    如果要基于资源组等条件将警报实例路由到特定团队，可使用“概要”部分中的字段为所有警报类型提供路由逻辑。 然后，接收警报通知的团队可使用上下文字段进行调查。

  • 警报上下文：根据警报类型而变化的字段。 警报上下文字段描述警报的原因。 例如，指标警报将在警报上下文中包含指标名称和指标值等字段。 活动日志警报将包含有关生成警报的事件的信息。

  • 自定义属性：如果已为指标警报规则配置了操作组，则可以通过添加自定义属性向警报有效负载中添加更多信息。

    注意

    自定义属性目前仅受指标警报支持。 对于所有其他警报类型，“自定义属性”字段为 null。

示例警报有效负载

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/<subscription ID>/providers/Microsoft.AlertsManagement/alerts/b9569717-bc32-442f-add5-83a997729330",
      "alertRule": "WCUS-R2-Gen2",
      "severity": "Sev3",
      "signalType": "Metric",
      "monitorCondition": "Resolved",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/<subscription ID>/resourcegroups/pipelinealertrg/providers/microsoft.compute/virtualmachines/wcus-r2-gen2"
      ],
      "configurationItems": [
        "wcus-r2-gen2"
      ],
      "originAlertId": "3f2d4487-b0fc-4125-8bd5-7ad17384221e_PipeLineAlertRG_microsoft.insights_metricAlerts_WCUS-R2-Gen2_-117781227",
      "firedDateTime": "2019-03-22T13:58:24.3713213Z",
      "resolvedDateTime": "2019-03-22T14:03:16.2246313Z",
      "description": "",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
              }
            ],
            "metricValue": 7.727
          }
        ]
      }
    }
  }
}

指标警报示例

以下是指标警报有效负载示例。

具有静态阈值且 monitoringService = Platform 的指标警报

{
  "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
              }
            ],
            "metricValue": 31.1105
          }
        ],
        "windowStartTime": "2019-03-22T13:40:03.064Z",
        "windowEndTime": "2019-03-22T13:45:03.064Z"
      }
    }
}

具有动态阈值且 monitoringService = Platform 的指标警报

{
  "alertContext": {
      "properties": null,
      "conditionType": "DynamicThresholdCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "alertSensitivity": "High",
            "failingPeriods": {
              "numberOfEvaluationPeriods": 1,
              "minFailingPeriodsToAlert": 1
            },
            "ignoreDataBefore": null,
            "metricName": "Egress",
            "metricNamespace": "microsoft.storage/storageaccounts",
            "operator": "GreaterThan",
            "threshold": "47658",
            "timeAggregation": "Total",
            "dimensions": [],
            "metricValue": 50101
          }
        ],
        "windowStartTime": "2021-07-20T05:07:26.363Z",
        "windowEndTime": "2021-07-20T05:12:26.363Z"
      }
    }
}

可用性测试的指标警报，并且 monitoringService = Platform

{
  "alertContext": {
      "properties": null,
      "conditionType": "WebtestLocationAvailabilityCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Failed Location",
            "metricNamespace": null,
            "operator": "GreaterThan",
            "threshold": "2",
            "timeAggregation": "Sum",
            "dimensions": [],
            "metricValue": 5,
            "webTestName": "myAvailabilityTest-myApplication"
          }
        ],
        "windowStartTime": "2019-03-22T13:40:03.064Z",
        "windowEndTime": "2019-03-22T13:45:03.064Z"
      }
    }
}

示例日志搜索警报

注意

启用通用架构时，有效负载中的字段将重置为通用架构字段。 因此，日志搜索警报在通用架构方面具有以下限制：

  • 对于使用具有自定义电子邮件主题和/或 JSON 有效负载的 WebHook 的日志搜索警报，通用架构不受支持，因为通用架构会覆盖自定义配置。
  • 对于使用通用架构的警报，每个警报的大小上限为 256KB。 如果日志搜索警报有效负载包含导致警报超过大小上限的搜索结果，则搜索结果不会嵌入到日志搜索警报有效负载中。 可检查有效负载是否包含带 IncludedSearchResults 标志的搜索结果。 如果不包含该搜索结果，请使用 LinkToFilteredSearchResultsAPI 或 LinkToSearchResultsAPI 通过 Log Analytics API 访问查询结果。

monitoringService = Platform 的日志搜索警报

{
  "alertContext": {
    "SearchQuery": "Perf | where ObjectName == \"Processor\" and CounterName == \"% Processor Time\" | summarize AggregatedValue = avg(CounterValue) by bin(TimeGenerated, 5m), Computer",
    "SearchIntervalStartTimeUtc": "3/22/2019 1:36:31 PM",
    "SearchIntervalEndtimeUtc": "3/22/2019 1:51:31 PM",
    "ResultCount": 2,
    "LinkToSearchResults": "https://portal.azure.cn/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToFilteredSearchResultsUI": "https://portal.azure.cn/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat&timespan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
    "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat&timespan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
    "SeverityDescription": "Warning",
    "WorkspaceId": "12345a-1234b-123c-123d-12345678e",
    "SearchIntervalDurationMin": "15",
    "AffectedConfigurationItems": [
      "INC-Gen2Alert"
    ],
    "SearchIntervalInMinutes": "15",
    "Threshold": 10000,
    "Operator": "Less Than",
    "Dimensions": [
      {
        "name": "Computer",
        "value": "INC-Gen2Alert"
      }
    ],
    "SearchResults": {
      "tables": [
        {
          "name": "PrimaryResult",
          "columns": [
            {
              "name": "$table",
              "type": "string"
            },
            {
              "name": "Computer",
              "type": "string"
            },
            {
              "name": "TimeGenerated",
              "type": "datetime"
            }
          ],
          "rows": [
            [
              "Fabrikam",
              "33446677a",
              "2018-02-02T15:03:12.18Z"
            ],
            [
              "Contoso",
              "33445566b",
              "2018-02-02T15:16:53.932Z"
            ]
          ]
        }
      ],
      "dataSources": [
        {
          "resourceId": "/subscriptions/a5ea55e2-7482-49ba-90b3-60e7496dd873/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
          "tables": [
            "Heartbeat"
          ]
        }
      ]
    },
    "IncludedSearchResults": "True",
    "AlertType": "Metric measurement"
  }
}

monitoringService = Application Insights 的日志搜索警报

{
  "alertContext": {
    "SearchQuery": "requests | where resultCode == \"500\" | summarize AggregatedValue = Count by bin(Timestamp, 5m), IP",
    "SearchIntervalStartTimeUtc": "3/22/2019 1:36:33 PM",
    "SearchIntervalEndtimeUtc": "3/22/2019 1:51:33 PM",
    "ResultCount": 2,
    "LinkToSearchResults": "https://portal.azure.cn/AnalyticsBlade/subscriptions/12345a-1234b-123c-123d-12345678e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToFilteredSearchResultsUI": "https://portal.azure.cn/AnalyticsBlade/subscriptions/12345a-1234b-123c-123d-12345678e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
    "LinkToFilteredSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
    "SearchIntervalDurationMin": "15",
    "SearchIntervalInMinutes": "15",
    "Threshold": 10000.0,
    "Operator": "Less Than",
    "ApplicationId": "8e20151d-75b2-4d66-b965-153fb69d65a6",
    "Dimensions": [
      {
        "name": "IP",
        "value": "1.1.1.1"
      }
    ],
    "SearchResults": {
      "tables": [
        {
          "name": "PrimaryResult",
          "columns": [
            {
              "name": "$table",
              "type": "string"
            },
            {
              "name": "Id",
              "type": "string"
            },
            {
              "name": "Timestamp",
              "type": "datetime"
            }
          ],
          "rows": [
            [
              "Fabrikam",
              "33446677a",
              "2018-02-02T15:03:12.18Z"
            ],
            [
              "Contoso",
              "33445566b",
              "2018-02-02T15:16:53.932Z"
            ]
          ]
        }
      ],
      "dataSources": [
        {
          "resourceId": "/subscriptions/a5ea27e2-7482-49ba-90b3-52e7496dd873/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
          "tables": [
            "Heartbeat"
          ]
        }
      ]
    },
    "IncludedSearchResults": "True",
    "AlertType": "Metric measurement"
  }
}

monitoringService = Log Alerts V2 的日志搜索警报

注意

API 版本 2020-05-01 中的日志搜索警报规则使用此有效负载类型，该类型仅支持通用架构。 使用此版本时，搜索结果不会嵌入到日志搜索警报有效负载中。 使用维度来提供已触发警报的上下文。 还可以使用 LinkToFilteredSearchResultsAPI 或 LinkToSearchResultsAPI 通过 Log Analytics API 访问查询结果。 如果必须嵌入结果，请使用包含所提供链接的逻辑应用，以生成自定义有效负载。

{
  "alertContext": {
    "properties": {
      "name1": "value1",
      "name2": "value2"
    },
    "conditionType": "LogQueryCriteria",
    "condition": {
      "windowSize": "PT10M",
      "allOf": [
        {
          "searchQuery": "Heartbeat",
          "metricMeasureColumn": "CounterValue",
          "targetResourceTypes": "['Microsoft.Compute/virtualMachines']",
          "operator": "LowerThan",
          "threshold": "1",
          "timeAggregation": "Count",
          "dimensions": [
            {
              "name": "Computer",
              "value": "TestComputer"
            }
          ],
          "metricValue": 0.0,
          "failingPeriods": {
            "numberOfEvaluationPeriods": 1,
            "minFailingPeriodsToAlert": 1
          },
          "linkToSearchResultsUI": "https://portal.azure.cn#@12345a-1234b-123c-123d-12345678e/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%212345a-1234b-123c-123d-12345678e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToFilteredSearchResultsUI": "https://portal.azure.cn#@12345a-1234b-123c-123d-12345678e/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%212345a-1234b-123c-123d-12345678e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/12345a-1234b-123c-123d-12345678e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29&timespan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/12345a-1234b-123c-123d-12345678e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29&timespan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z"
        }
      ],
      "windowStartTime": "2020-07-07T13:54:34Z",
      "windowEndTime": "2020-07-09T13:54:34Z"
    }
  }
}

示例活动日志警报

具有 monitoringService = Activity Log - Administrative 的活动日志警报

{
  "alertContext": {
      "authorization": {
        "action": "Microsoft.Compute/virtualMachines/restart/action",
        "scope": "/subscriptions/<subscription ID>/resourceGroups/PipeLineAlertRG/providers/Microsoft.Compute/virtualMachines/WCUS-R2-ActLog"
      },
      "channels": "Operation",
      "claims": "{\"aud\":\"https://management.core.chinacloudapi.cn/\",\"iss\":\"https://sts.chinacloudapi.cn/12345a-1234b-123c-123d-12345678e/\",\"iat\":\"1553260826\",\"nbf\":\"1553260826\",\"exp\":\"1553264726\",\"aio\":\"42JgYNjdt+rr+3j/dx68v018XhuFAwA=\",\"appid\":\"e9a02282-074f-45cf-93b0-50568e0e7e50\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.chinacloudapi.cn/12345a-1234b-123c-123d-12345678e/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"9778283b-b94c-4ac6-8a41-d5b493d03aa3\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"9778283b-b94c-4ac6-8a41-d5b493d03aa3\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"12345a-1234b-123c-123d-12345678e\",\"uti\":\"v5wYC9t9ekuA2rkZSVZbAA\",\"ver\":\"1.0\"}",
      "caller": "9778283b-b94c-4ac6-8a41-d5b493d03aa3",
      "correlationId": "8ee9c32a-92a1-4a8f-989c-b0ba09292a91",
      "eventSource": "Administrative",
      "eventTimestamp": "2019-03-22T13:56:31.2917159+00:00",
      "eventDataId": "161fda7e-1cb4-4bc5-9c90-857c55a8f57b",
      "level": "Informational",
      "operationName": "Microsoft.Compute/virtualMachines/restart/action",
      "operationId": "310db69b-690f-436b-b740-6103ab6b0cba",
      "status": "Succeeded",
      "subStatus": "",
      "submissionTimestamp": "2019-03-22T13:56:54.067593+00:00"
    }
}

具有 monitoringService = Activity Log - Policy 的活动日志警报

{
  "alertContext": {
    "authorization": {
      "action": "Microsoft.Resources/checkPolicyCompliance/read",
      "scope": "/subscriptions/<GUID>"
    },
    "channels": "Operation",
    "claims": "{\"aud\":\"https://management.chinacloudapi.cn/\",\"iss\":\"https://sts.chinacloudapi.cn/<GUID>/\",\"iat\":\"1566711059\",\"nbf\":\"1566711059\",\"exp\":\"1566740159\",\"aio\":\"42FgYOhynHNw0scy3T/bL71+xLyqEwA=\",\"appid\":\"<GUID>\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.chinacloudapi.cn/<GUID>/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"<GUID>\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"<GUID>\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"<GUID>\",\"uti\":\"Miy1GzoAG0Scu_l3m1aIAA\",\"ver\":\"1.0\"}",
    "caller": "<GUID>",
    "correlationId": "<GUID>",
    "eventSource": "Policy",
    "eventTimestamp": "2019-08-25T11:11:34.2269098+00:00",
    "eventDataId": "<GUID>",
    "level": "Warning",
    "operationName": "Microsoft.Authorization/policies/audit/action",
    "operationId": "<GUID>",
    "properties": {
      "isComplianceCheck": "True",
      "resourceLocation": "chinanorth2",
      "ancestors": "<GUID>",
      "policies": "[{\"policyDefinitionId\":\"/providers/Microsoft.Authorization/policyDefinitions/<GUID>/\",\"policySetDefinitionId\":\"/providers/Microsoft.Authorization/policySetDefinitions/<GUID>/\",\"policyDefinitionReferenceId\":\"vulnerabilityAssessmentMonitoring\",\"policySetDefinitionName\":\"<GUID>\",\"policyDefinitionName\":\"<GUID>\",\"policyDefinitionEffect\":\"AuditIfNotExists\",\"policyAssignmentId\":\"/subscriptions/<GUID>/providers/Microsoft.Authorization/policyAssignments/SecurityCenterBuiltIn/\",\"policyAssignmentName\":\"SecurityCenterBuiltIn\",\"policyAssignmentScope\":\"/subscriptions/<GUID>\",\"policyAssignmentSku\":{\"name\":\"A1\",\"tier\":\"Standard\"},\"policyAssignmentParameters\":{}}]"
    },
    "status": "Succeeded",
    "subStatus": "",
    "submissionTimestamp": "2019-08-25T11:12:46.1557298+00:00"
  }
}

具有 monitoringService = Activity Log - Autoscale 的活动日志警报

{
  "alertContext": {
    "channels": "Admin, Operation",
    "claims": "{\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/spn\":\"Microsoft.Insights/autoscaleSettings\"}",
    "caller": "Microsoft.Insights/autoscaleSettings",
    "correlationId": "<GUID>",
    "eventSource": "Autoscale",
    "eventTimestamp": "2019-08-21T16:17:47.1551167+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Insights/AutoscaleSettings/Scaleup/Action",
    "operationId": "<GUID>",
    "properties": {
      "description": "The autoscale engine attempting to scale resource '/subscriptions/d<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS' from 9 instances count to 10 instances count.",
      "resourceName": "/subscriptions/<GUID>/resourceGroups/voiceassistancedemo/providers/Microsoft.Compute/virtualMachineScaleSets/alexademo",
      "oldInstancesCount": "9",
      "newInstancesCount": "10",
      "activeAutoscaleProfile": "{\r\n  \"Name\": \"Auto created scale condition\",\r\n  \"Capacity\": {\r\n    \"Minimum\": \"1\",\r\n    \"Maximum\": \"10\",\r\n    \"Default\": \"1\"\r\n  },\r\n  \"Rules\": [\r\n    {\r\n      \"MetricTrigger\": {\r\n        \"Name\": \"Percentage CPU\",\r\n        \"Namespace\": \"microsoft.compute/virtualmachinescalesets\",\r\n        \"Resource\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n        \"ResourceLocation\": \"chinanorth\",\r\n        \"TimeGrain\": \"PT1M\",\r\n        \"Statistic\": \"Average\",\r\n        \"TimeWindow\": \"PT5M\",\r\n        \"TimeAggregation\": \"Average\",\r\n        \"Operator\": \"GreaterThan\",\r\n        \"Threshold\": 0.0,\r\n        \"Source\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n        \"MetricType\": \"MDM\",\r\n        \"Dimensions\": [],\r\n        \"DividePerInstance\": false\r\n      },\r\n      \"ScaleAction\": {\r\n        \"Direction\": \"Increase\",\r\n        \"Type\": \"ChangeCount\",\r\n        \"Value\": \"1\",\r\n        \"Cooldown\": \"PT1M\"\r\n      }\r\n    }\r\n  ]\r\n}",
      "lastScaleActionTime": "Wed, 21 Aug 2019 16:17:47 GMT"
    },
    "status": "Succeeded",
    "submissionTimestamp": "2019-08-21T16:17:47.2410185+00:00"
  }
}

具有 monitoringService = Activity Log - Security 的活动日志警报

{
  "alertContext": {
    "channels": "Operation",
    "correlationId": "<GUID>",
    "eventSource": "Security",
    "eventTimestamp": "2019-08-26T08:34:14+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Security/locations/alerts/activate/action",
    "operationId": "<GUID>",
    "properties": {
      "threatStatus": "Quarantined",
      "category": "Virus",
      "threatID": "2147519003",
      "filePath": "C:\\AlertGeneration\\test.eicar",
      "protectionType": "Windows Defender",
      "actionTaken": "Blocked",
      "resourceType": "Virtual Machine",
      "severity": "Low",
      "compromisedEntity": "testVM",
      "remediationSteps": "[\"No user action is necessary\"]",
      "attackedResourceType": "Virtual Machine"
    },
    "status": "Active",
    "submissionTimestamp": "2019-08-26T09:28:58.3019107+00:00"
  }
}

具有 monitoringService = ServiceHealth 的活动日志警报

{
  "alertContext": {
    "authorization": null,
    "channels": 1,
    "claims": null,
    "caller": null,
    "correlationId": "f3cf2430-1ee3-4158-8e35-7a1d615acfc7",
    "eventSource": 2,
    "eventTimestamp": "2019-06-24T11:31:19.0312699+00:00",
    "httpRequest": null,
    "eventDataId": "<GUID>",
    "level": 3,
    "operationName": "Microsoft.ServiceHealth/maintenance/action",
    "operationId": "<GUID>",
    "properties": {
      "title": "Azure Synapse Analytics Scheduled Maintenance Pending",
      "service": "Azure Synapse Analytics",
      "region": "China North",
      "communication": "<MESSAGE>",
      "incidentType": "Maintenance",
      "trackingId": "<GUID>",
      "impactStartTime": "2019-06-26T04:00:00Z",
      "impactMitigationTime": "2019-06-26T12:00:00Z",
      "impactedServices": "[{\"ImpactedRegions\":[{\"RegionName\":\"China North\"}],\"ServiceName\":\"Azure Synapse Analytics\"}]",
      "impactedServicesTableRows": "<tr>\r\n<td align='center' style='padding: 5px 10px; border-right:1px solid black; border-bottom:1px solid black'>Azure Synapse Analytics</td>\r\n<td align='center' style='padding: 5px 10px; border-bottom:1px solid black'>China North<br></td>\r\n</tr>\r\n",
      "defaultLanguageTitle": "Azure Synapse Analytics Scheduled Maintenance Pending",
      "defaultLanguageContent": "<MESSAGE>",
      "stage": "Planned",
      "communicationId": "<GUID>",
      "maintenanceId": "<GUID>",
      "isHIR": "false",
      "version": "0.1.1"
    },
    "status": "Active",
    "subStatus": null,
    "submissionTimestamp": "2019-06-24T11:31:31.7147357+00:00",
    "ResourceType": null
  }
}

具有 monitoringService = ResourceHealth 的活动日志警报

{
  "alertContext": {
    "channels": "Admin, Operation",
    "correlationId": "<GUID>",
    "eventSource": "ResourceHealth",
    "eventTimestamp": "2019-06-24T15:42:54.074+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Resourcehealth/healthevent/Activated/action",
    "operationId": "<GUID>",
    "properties": {
      "title": "This virtual machine is stopping and deallocating as requested by an authorized user or process",
      "details": null,
      "currentHealthStatus": "Unavailable",
      "previousHealthStatus": "Available",
      "type": "Downtime",
      "cause": "UserInitiated"
    },
    "status": "Active",
    "submissionTimestamp": "2019-06-24T15:45:20.4488186+00:00"
  }
}

示例 Prometheus 警报

{
  "alertContext": {
    "interval": "PT1M",
    "expression": "sql_up > 0",
    "expressionValue": "0",
    "for": "PT2M",
    "labels": {
      "Environment": "Prod",
      "cluster": "myCluster1"
    },
    "annotations": {
      "summary": "alert on SQL availability"
    },
    "ruleGroup": "/subscriptions/<subscription ID>/resourceGroups/myResourceGroup/providers/Microsoft.AlertsManagement/prometheusRuleGroups/myRuleGroup"
  }
}

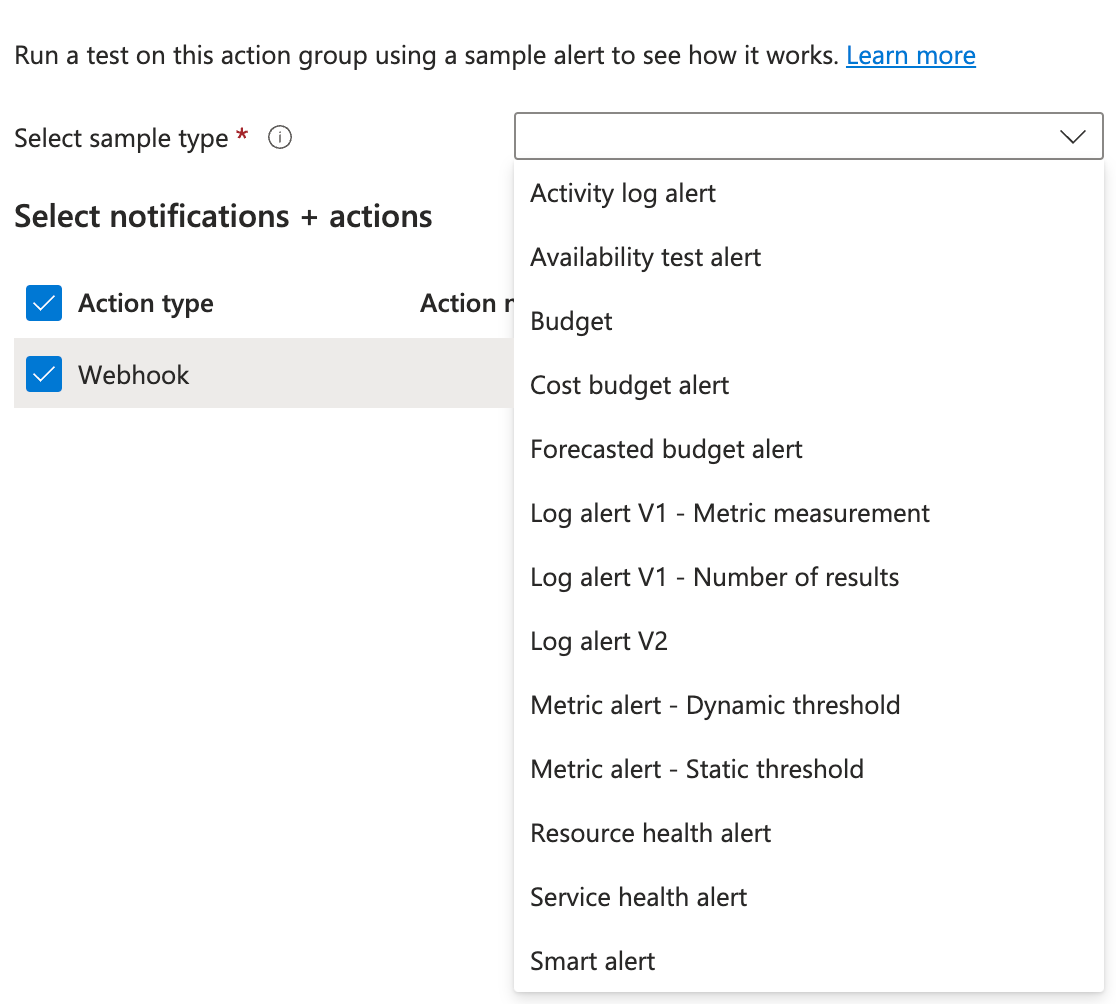

测试操作的示例有效负载

示例测试操作警报

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/<subscription ID>/providers/Microsoft.AlertsManagement/alerts/b9569717-bc32-442f-add5-83a997729330",
      "alertRule": "WCUS-R2-Gen2",
      "severity": "Sev3",
      "signalType": "Metric",
      "monitorCondition": "Resolved",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/<subscription ID>/resourcegroups/pipelinealertrg/providers/microsoft.compute/virtualmachines/wcus-r2-gen2"
      ],
      "configurationItems": [
        "wcus-r2-gen2"
      ],
      "originAlertId": "3f2d4487-b0fc-4125-8bd5-7ad17384221e_PipeLineAlertRG_microsoft.insights_metricAlerts_WCUS-R2-Gen2_-117781227",
      "firedDateTime": "2019-03-22T13:58:24.3713213Z",
      "resolvedDateTime": "2019-03-22T14:03:16.2246313Z",
      "description": "",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "3efad9dc-3d50-4eac-9c87-8b3fd6f97e4e"
              }
            ],
            "metricValue": 7.727
          }
        ]
      }
    }
  }
}

示例测试操作指标警报

具有静态阈值且 monitoringService = Platform 的测试操作指标警报

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-metricAlertRule",
         "severity":"Sev3",
         "signalType":"Metric",
         "monitorCondition":"Fired",
         "monitoringService":"Platform",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/Microsoft.Storage/storageAccounts/test-storageAccount"
         ],
         "configurationItems":[
            "test-storageAccount"
         ],
         "originAlertId":"11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
         "firedDateTime":"2021-11-15T09:35:24.3468506Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "properties":{
            "customKey1":"value1",
            "customKey2":"value2"
         },
         "conditionType":"DynamicThresholdCriteria",
         "condition":{
            "windowSize":"PT15M",
            "allOf":[
               {
                  "alertSensitivity":"Low",
                  "failingPeriods":{
                     "numberOfEvaluationPeriods":3,
                     "minFailingPeriodsToAlert":3
                  },
                  "ignoreDataBefore":null,
                  "metricName":"Transactions",
                  "metricNamespace":"Microsoft.Storage/storageAccounts",
                  "operator":"GreaterThan",
                  "threshold":"0.3",
                  "timeAggregation":"Average",
                  "dimensions":[

                  ],
                  "metricValue":78.09,
                  "webTestName":null
               }
            ],
            "windowStartTime":"2021-12-15T01:04:11.719Z",
            "windowEndTime":"2021-12-15T01:19:11.719Z"
         }
      },
      "customProperties":{
         "customKey1":"value1",
         "customKey2":"value2"
      }
   }
}

具有动态阈值且 monitoringService = Platform 的测试操作指标警报

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-metricAlertRule",
         "severity":"Sev3",
         "signalType":"Metric",
         "monitorCondition":"Fired",
         "monitoringService":"Platform",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/Microsoft.Storage/storageAccounts/test-storageAccount"
         ],
         "configurationItems":[
            "test-storageAccount"
         ],
         "originAlertId":"11111111-1111-1111-1111-111111111111_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
         "firedDateTime":"2021-11-15T09:35:24.3468506Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "properties":{
            "customKey1":"value1",
            "customKey2":"value2"
         },
         "conditionType":"DynamicThresholdCriteria",
         "condition":{
            "windowSize":"PT15M",
            "allOf":[
               {
                  "alertSensitivity":"Low",
                  "failingPeriods":{
                     "numberOfEvaluationPeriods":3,
                     "minFailingPeriodsToAlert":3
                  },
                  "ignoreDataBefore":null,
                  "metricName":"Transactions",
                  "metricNamespace":"Microsoft.Storage/storageAccounts",
                  "operator":"GreaterThan",
                  "threshold":"0.3",
                  "timeAggregation":"Average",
                  "dimensions":[

                  ],
                  "metricValue":78.09,
                  "webTestName":null
               }
            ],
            "windowStartTime":"2021-12-15T01:04:11.719Z",
            "windowEndTime":"2021-12-15T01:19:11.719Z"
         }
      },
      "customProperties":{
         "customKey1":"value1",
         "customKey2":"value2"
      }
   }
}

示例测试操作日志搜索警报

测试操作日志搜索警报 V1 - 指标

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-logAlertRule-v1-metricMeasurement",
         "severity":"Sev3",
         "signalType":"Log",
         "monitorCondition":"Fired",
         "monitoringService":"Log Analytics",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
         ],
         "configurationItems":[

         ],
         "originAlertId":"12345678-4444-4444-4444-1234567890ab",
         "firedDateTime":"2021-11-16T15:17:21.9232467Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.1"
      },
      "alertContext":{
         "SearchQuery":"Heartbeat | summarize AggregatedValue=count() by bin(TimeGenerated, 5m)",
         "SearchIntervalStartTimeUtc":"2021-11-15T15:16:49Z",
         "SearchIntervalEndtimeUtc":"2021-11-16T15:16:49Z",
         "ResultCount":2,
         "LinkToSearchResults":"https://portal.azure.cn#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2BWqUSguzc1NLMqsSlVwTE8vSk1PLElNCUvMKU21Tc4vzSvRaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHi/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
         "LinkToFilteredSearchResultsUI":"https://portal.azure.cn#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHidp%2BOPOhDKsHR%2FFeJXsTgzGJRmVui3KF3RpLyEJCX9A2iMl6jgxMn6jRevng3JmIHLdYtKP4DRI9mhc%3D/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
         "LinkToSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29&timespan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
         "LinkToFilteredSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29%7C%20where%20todouble%28AggregatedValue%29%20%3E%200&timespan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
         "SeverityDescription":"Informational",
         "WorkspaceId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
         "SearchIntervalDurationMin":"1440",
         "AffectedConfigurationItems":[

         ],
         "AlertType":"Metric measurement",
         "IncludeSearchResults":true,
         "Dimensions":[

         ],
         "SearchIntervalInMinutes":"1440",
         "SearchResults":{
            "tables":[
               {
                  "name":"PrimaryResult",
                  "columns":[
                     {
                        "name":"TimeGenerated",
                        "type":"datetime"
                     },
                     {
                        "name":"AggregatedValue",
                        "type":"long"
                     }
                  ],
                  "rows":[
                     [
                        "2021-11-16T10:56:49Z",
                        11
                     ],
                     [
                        "2021-11-16T11:56:49Z",
                        11
                     ]
                  ]
               }
            ],
            "dataSources":[
               {
                  "resourceId":"/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
                  "region":"chinanorth",
                  "tables":[
                     "Heartbeat"
                  ]
               }
            ]
         },
         "Threshold":0,
         "Operator":"Greater Than",
         "IncludedSearchResults":"True"
      }
   }
}

测试操作日志搜索警报 V1 - Numresults

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-logAlertRule-v1-numResults",
         "severity":"Sev3",
         "signalType":"Log",
         "monitorCondition":"Fired",
         "monitoringService":"Log Analytics",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
         ],
         "configurationItems":[
            "test-computer"
         ],
         "originAlertId":"22222222-2222-2222-2222-222222222222",
         "firedDateTime":"2021-11-16T15:15:58.3302205Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.1"
      },
      "alertContext":{
         "SearchQuery":"Heartbeat",
         "SearchIntervalStartTimeUtc":"2021-11-15T15:15:24Z",
         "SearchIntervalEndtimeUtc":"2021-11-16T15:15:24Z",
         "ResultCount":1,
         "LinkToSearchResults":"https://portal.azure.cn#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
         "LinkToFilteredSearchResultsUI":"https://portal.azure.cn#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
         "LinkToSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%0A&timespan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
         "LinkToFilteredSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%0A&timespan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
         "SeverityDescription":"Informational",
         "WorkspaceId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
         "SearchIntervalDurationMin":"1440",
         "AffectedConfigurationItems":[
            "test-computer"
         ],
         "AlertType":"Number of results",
         "IncludeSearchResults":true,
         "SearchIntervalInMinutes":"1440",
         "SearchResults":{
            "tables":[
               {
                  "name":"PrimaryResult",
                  "columns":[
                     {
                        "name":"TenantId",
                        "type":"string"
                     },
                     {
                        "name":"Computer",
                        "type":"string"
                     },
                     {
                        "name":"TimeGenerated",
                        "type":"datetime"
                     }
                  ],
                  "rows":[
                     [
                        "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
                        "test-computer",
                        "2021-11-16T12:00:00Z"
                     ]
                  ]
               }
            ],
            "dataSources":[
               {
                  "resourceId":"/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
                  "region":"chinanorth",
                  "tables":[
                     "Heartbeat"
                  ]
               }
            ]
         },
         "Threshold":0,
         "Operator":"Greater Than",
         "IncludedSearchResults":"True"
      }
   }
}

测试操作日志搜索警报 V2

注意

API 版本 2020-05-01 中的日志搜索警报规则使用此有效负载类型，该类型仅支持通用架构。 使用此版本时，搜索结果不会嵌入到日志搜索警报有效负载中。 使用维度来提供已触发警报的上下文。

还可以使用 LinkToFilteredSearchResultsAPI 或 LinkToSearchResultsAPI 通过 Log Analytics API 访问查询结果。 如果必须嵌入结果，请使用包含所提供链接的逻辑应用，以生成自定义有效负载。

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-logAlertRule-v2",
         "severity":"Sev3",
         "signalType":"Log",
         "monitorCondition":"Fired",
         "monitoringService":"Log Alerts V2",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
         ],
         "configurationItems":[
            "test-computer"
         ],
         "originAlertId":"22222222-2222-2222-2222-222222222222",
         "firedDateTime":"2021-11-16T11:47:41.4728231Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "properties":{
            "customKey1":"value1",
            "customKey2":"value2"
         },
         "conditionType":"LogQueryCriteria",
         "condition":{
            "windowSize":"PT1H",
            "allOf":[
               {
                  "searchQuery":"Heartbeat",
                  "metricMeasureColumn":null,
                  "targetResourceTypes":"['Microsoft.OperationalInsights/workspaces']",
                  "operator":"GreaterThan",
                  "threshold":"0",
                  "timeAggregation":"Count",
                  "dimensions":[
                     {
                        "name":"Computer",
                        "value":"test-computer"
                     }
                  ],
                  "metricValue":3.0,
                  "failingPeriods":{
                     "numberOfEvaluationPeriods":1,
                     "minFailingPeriodsToAlert":1
                  },
                  "linkToSearchResultsUI":"https://portal.azure.cn#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmN1234567890ZAZBZiaGBlaG5lbKlnAAFRmnp6WNUZoqvTBAA%3D/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
                  "linkToFilteredSearchResultsUI":"https://portal.azure.cn#@aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2F11111111-1111-1111-1111-111111111111%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmN%2Fl35oOTZoKioEOouaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN7HHgOCZTR0Ak%2FaBcDeFgHiJkLmN1234567890Ltcw%2FOqZS%2FuX0L5d%2Bx3iMHNzQiu3Y%2BzsjpFSWlOzgA87vAxeHW2MoAtQxe6OUvVrZR3XYZPXrd%2FIE/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
                  "linkToSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29&timespan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
                  "linkToFilteredSearchResultsAPI":"https://api.loganalytics.io/v1/workspaces/bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29%7C%20where%20tostring%28Computer%29%20%3D%3D%20%27test-computer%27&timespan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z"
               }
            ],
            "windowStartTime":"2021-11-16T10:17:39Z",
            "windowEndTime":"2021-11-16T11:17:39Z"
         }
      }
   }
}

示例测试操作活动日志警报

具有 monitoringService = Administrative 的测试操作活动日志警报

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-activityLogAlertRule",
         "severity":"Sev4",
         "signalType":"Activity Log",
         "monitorCondition":"Fired",
         "monitoringService":"Activity Log - Administrative",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
         ],
         "configurationItems":[
            "test-VM"
         ],
         "originAlertId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb_123456789012345678901234567890ab",
         "firedDateTime":"2021-11-16T08:29:01.2932462Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "authorization":{
            "action":"Microsoft.Compute/virtualMachines/restart/action",
            "scope":"/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM"
         },
         "channels":"Operation",
         "claims":"{}",
         "caller":"user-email@domain.com",
         "correlationId":"aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
         "eventSource":"Administrative",
         "eventTimestamp":"2021-11-16T08:27:36.1836909+00:00",
         "eventDataId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
         "level":"Informational",
         "operationName":"Microsoft.Compute/virtualMachines/restart/action",
         "operationId":"cccccccc-cccc-cccc-cccc-cccccccccccc",
         "properties":{
            "eventCategory":"Administrative",
            "entity":"/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM",
            "message":"Microsoft.Compute/virtualMachines/restart/action",
            "hierarchy":"22222222-2222-2222-2222-222222222222/CnAIOrchestrationServicePublicCorpprod/33333333-3333-3333-3333-3333333333333/44444444-4444-4444-4444-444444444444/55555555-5555-5555-5555-555555555555/11111111-1111-1111-1111-111111111111"
         },
         "status":"Succeeded",
         "subStatus":"",
         "submissionTimestamp":"2021-11-16T08:29:00.141807+00:00",
         "Activity Log Event Description":""
      }
   }
}

具有 monitoringService = ServiceHealth 的测试操作活动日志警报

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
         "alertRule":"test-ServiceHealthAlertRule",
         "severity":"Sev4",
         "signalType":"Activity Log",
         "monitorCondition":"Fired",
         "monitoringService":"ServiceHealth",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111"
         ],
         "originAlertId":"12345678-1234-1234-1234-1234567890ab",
         "firedDateTime":"2021-11-17T05:34:48.0623172Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "authorization":null,
         "channels":1,
         "claims":null,
         "caller":null,
         "correlationId":"12345678-abcd-efgh-ijkl-abcd12345678",
         "eventSource":2,
         "eventTimestamp":"2021-11-17T05:34:44.5778226+00:00",
         "httpRequest":null,
         "eventDataId":"12345678-1234-1234-1234-1234567890ab",
         "level":3,
         "operationName":"Microsoft.ServiceHealth/incident/action",
         "operationId":"12345678-abcd-efgh-ijkl-abcd12345678",
         "properties":{
            "title":"Test Action Group - Test Service Health Alert",
            "service":"Azure Service Name",
            "region":"Global",
            "communication":"<p><strong>Summary of impact</strong>:&nbsp;This is the impact summary.</p>\n<p><br></p>\n<p><strong>Preliminary Root Cause</strong>: This is the preliminary root cause.</p>\n<p><br></p>\n<p><strong>Mitigation</strong>:&nbsp;Mitigation description.</p>\n<p><br></p>\n<p><strong>Next steps</strong>: These are the next steps.&nbsp;</p>\n<p><br></p>\n<p>Stay informed about Azure service issues by creating custom service health alerts: <a href=\"https://aka.ms/ash-videos\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-videos</a> for video tutorials and <a href=\"https://aka.ms/ash-alerts%20for%20how-to%20documentation\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-alerts for how-to documentation</a>.</p>\n<p><br></p>",
            "incidentType":"Incident",
            "trackingId":"ABC1-DEF",
            "impactStartTime":"2021-11-16T20:00:00Z",
            "impactMitigationTime":"2021-11-17T01:00:00Z",
            "impactedServices":"[{\"ImpactedRegions\":[{\"RegionName\":\"Global\"}],\"ServiceName\":\"Azure Service Name\"}]",
            "impactedServicesTableRows":"<tr>\r\n<td align='center' style='padding: 5px 10px; border-right:1px solid black; border-bottom:1px solid black'>Azure Service Name</td>\r\n<td align='center' style='padding: 5px 10px; border-bottom:1px solid black'>Global<br></td>\r\n</tr>\r\n",
            "defaultLanguageTitle":"Test Action Group - Test Service Health Alert",
            "defaultLanguageContent":"<p><strong>Summary of impact</strong>:&nbsp;This is the impact summary.</p>\n<p><br></p>\n<p><strong>Preliminary Root Cause</strong>: This is the preliminary root cause.</p>\n<p><br></p>\n<p><strong>Mitigation</strong>:&nbsp;Mitigation description.</p>\n<p><br></p>\n<p><strong>Next steps</strong>: These are the next steps.&nbsp;</p>\n<p><br></p>\n<p>Stay informed about Azure service issues by creating custom service health alerts: <a href=\"https://aka.ms/ash-videos\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-videos</a> for video tutorials and <a href=\"https://aka.ms/ash-alerts%20for%20how-to%20documentation\" rel=\"noopener noreferrer\" target=\"_blank\">https://aka.ms/ash-alerts for how-to documentation</a>.</p>\n<p><br></p>",
            "stage":"Resolved",
            "communicationId":"11223344556677",
            "isHIR":"false",
            "IsSynthetic":"True",
            "impactType":"SubscriptionList",
            "version":"0.1.1"
         },
         "status":"Resolved",
         "subStatus":null,
         "submissionTimestamp":"2021-11-17T01:23:45.0623172+00:00",
         "ResourceType":null
      }
   }
}

具有 monitoringService = Resource Health 的测试操作活动日志警报

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"test-ResourceHealthAlertRule",
         "severity":"Sev4",
         "signalType":"Activity Log",
         "monitorCondition":"Fired",
         "monitoringService":"Resource Health",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
         ],
         "configurationItems":[
            "test-VM"
         ],
         "originAlertId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb_123456789012345678901234567890ab",
         "firedDateTime":"2021-11-16T09:54:08.9938123Z",
         "description":"Alert rule description",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "channels":"Admin, Operation",
         "correlationId":"aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
         "eventSource":"ResourceHealth",
         "eventTimestamp":"2021-11-16T09:50:20.406+00:00",
         "eventDataId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
         "level":"Informational",
         "operationName":"Microsoft.Resourcehealth/healthevent/Activated/action",
         "operationId":"bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbb",
         "properties":{
            "title":"Rebooted by user",
            "details":null,
            "currentHealthStatus":"Unavailable",
            "previousHealthStatus":"Available",
            "type":"Downtime",
            "cause":"UserInitiated"
         },
         "status":"Active",
         "submissionTimestamp":"2021-11-16T09:54:08.5303319+00:00",
         "Activity Log Event Description":null
      }
   }
}

具有 monitoringService = Budget 的测试操作活动日志警报

{
   "schemaId":"AIP Budget Notification",
   "data":{
      "SubscriptionName":"test-subscription",
      "SubscriptionId":"11111111-1111-1111-1111-111111111111",
      "EnrollmentNumber":"",
      "DepartmentName":"test-budgetDepartmentName",
      "AccountName":"test-budgetAccountName",
      "BillingAccountId":"",
      "BillingProfileId":"",
      "InvoiceSectionId":"",
      "ResourceGroup":"test-RG",
      "SpendingAmount":"1111.32",
      "BudgetStartDate":"11/17/2021 5:40:29 PM -08:00",
      "Budget":"10000",
      "Unit":"USD",
      "BudgetCreator":"email@domain.com",
      "BudgetName":"test-budgetName",
      "BudgetType":"Cost",
      "NotificationThresholdAmount":"8000.0"
   }
}

具有 monitoringService = Actual Cost Budget 的测试操作活动日志警报

{
   "schemaId": "azureMonitorCommonAlertSchema",
   "data": {
      "essentials": {
         "monitoringService": "CostAlerts",
         "firedDateTime": "2022-12-07T21:13:20.645Z",
         "description": "Your spend for budget Test_actual_cost_budget is now $11,111.00 exceeding your specified threshold $25.00.",
         "essentialsVersion": "1.0",
         "alertContextVersion": "1.0",
         "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.CostManagement/alerts/Test_Alert",
         "alertRule": null,
         "severity": null,
         "signalType": null,
         "monitorCondition": null,
         "alertTargetIDs": null,
         "configurationItems": [
            "budgets"
         ],
         "originAlertId": null
      },
      "alertContext": {
         "AlertCategory": "budgets",
         "AlertData": {
            "Scope": "/subscriptions/11111111-1111-1111-1111-111111111111/",
            "ThresholdType": "Actual",
            "BudgetType": "Cost",
            "BudgetThreshold": "$50.00",
            "NotificationThresholdAmount": "$25.00",
            "BudgetName": "Test_actual_cost_budget",
            "BudgetId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Consumption/budgets/Test_actual_cost_budget",
            "BudgetStartDate": "2022-11-01",
            "BudgetCreator": "test@sample.test",
            "Unit": "USD",
            "SpentAmount": "$11,111.00"
         }
      }
   }
}

具有 monitoringService = Forecasted Budget 的测试操作活动日志警报

{
   "schemaId": "azureMonitorCommonAlertSchema",
   "data": {
      "essentials": {
         "monitoringService": "CostAlerts",
         "firedDateTime": "2022-12-07T21:13:29.576Z",
         "description": "The total spend for your budget, Test_forcasted_budget, is forecasted to reach $1111.11 before the end of the period. This amount exceeds your specified budget threshold of $50.00.",
         "essentialsVersion": "1.0",
         "alertContextVersion": "1.0",
         "alertId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.CostManagement/alerts/Test_Alert",
         "alertRule": null,
         "severity": null,
         "signalType": null,
         "monitorCondition": null,
         "alertTargetIDs": null,
         "configurationItems": [
            "budgets"
         ],
         "originAlertId": null
      },
      "alertContext": {
         "AlertCategory": "budgets",
         "AlertData": {
            "Scope": "/subscriptions/11111111-1111-1111-1111-111111111111/",
            "ThresholdType": "Forecasted",
            "BudgetType": "Cost",
            "BudgetThreshold": "$50.00",
            "NotificationThresholdAmount": "$50.00",
            "BudgetName": "Test_forcasted_budget",
            "BudgetId": "/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.Consumption/budgets/Test_forcasted_budget",
            "BudgetStartDate": "2022-11-01",
            "BudgetCreator": "test@sample.test",
            "Unit": "USD",
            "SpentAmount": "$999.99",
            "ForecastedTotalForPeriod": "$1111.11"
         }
      }
   }
}

具有 monitoringService = Smart Alert 的测试操作活动日志警报

{
   "schemaId":"azureMonitorCommonAlertSchema",
   "data":{
      "essentials":{
         "alertId":"/subscriptions/11111111-1111-1111-1111-111111111111/providers/Microsoft.AlertsManagement/alerts/12345678-1234-1234-1234-1234567890ab",
         "alertRule":"Dependency Latency Degradation - test-applicationInsights",
         "severity":"Sev3",
         "signalType":"Log",
         "monitorCondition":"Fired",
         "monitoringService":"SmartDetector",
         "alertTargetIDs":[
            "/subscriptions/11111111-1111-1111-1111-111111111111/resourcegroups/test-RG/providers/microsoft.insights/components/test-applicationInsights"
         ],
         "configurationItems":[
            "test-applicationInsights"
         ],
         "originAlertId":"1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
         "firedDateTime":"2021-10-28T19:09:09.1115084Z",
         "description":"Dependency Latency Degradation notifies you of an unusual increase in response by a dependency your app is calling (e.g. REST API or database)",
         "essentialsVersion":"1.0",
         "alertContextVersion":"1.0"
      },
      "alertContext":{
         "DetectionSummary":"A degradation in the dependency duration over the last 24 hours",
         "FormattedOccurrenceTime":"2021-10-27T23:59:59Z",
         "DetectedValue":"0.45 sec",
         "NormalValue":"0.27 sec (over the last 7 days)",
         "PresentationInsightEventRequest":"/subscriptions/11111111-1111-1111-1111-111111111111/resourceGroups/test-RG/providers/microsoft.insights/components/test-applicationInsights/query?query=systemEvents%0d%0a++++++++++++++++%7c+where+timestamp+%3e%3d+datetime(%272021-10-27T23%3a29%3a59.0000000Z%27)+%0d%0a++++++++++++++++%7c+where+itemType+%3d%3d+%27systemEvent%27+and+name+%3d%3d+%27ProactiveDetectionInsight%27+%0d%0a++++++++++++++++%7c+where+dimensions.InsightType+%3d%3d+3+%0d%0a++++++++++++++++%7c+where+dimensions.InsightVersion+%3d%3d+%27SmartAlert%27%0d%0a++++++++++++++++%7c+where+dimensions.InsightDocumentId+%3d%3d+%2712345678-abcd-1234-5678-abcd12345678%27+%0d%0a++++++++++++++++%7c+project+dimensions.InsightPropertiesTable%2cdimensions.InsightDegradationChart%2cdimensions.InsightCountChart%2cdimensions.InsightLinksTable%0d%0a++++++++++++++++&api-version=2018-04-20",
         "SmartDetectorId":"DependencyPerformanceDegradationDetector",
         "SmartDetectorName":"Dependency Performance Degradation Detector",
         "AnalysisTimestamp":"2021-10-28T19:09:09.1115084Z"
      }
   }
}
