用于 Apache Spark 的 Azure Synapse 专用 SQL 池连接器

synapsesql(tableName:String="") => org.apache.spark.sql.DataFrame

synapsesql(table_name: str="") -> org.apache.spark.sql.DataFrame

//Use case is to read data from an internal table in Synapse Dedicated SQL Pool DB
//Azure Active Directory based authentication approach is preferred here.
import org.apache.spark.sql.DataFrame
import com.microsoft.spark.sqlanalytics.utils.Constants
import org.apache.spark.sql.SqlAnalyticsConnector._

//Read from existing internal table
val dfToReadFromTable:DataFrame = spark.read.
    //If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
    //to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
    option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn").
    //Defaults to storage path defined in the runtime configurations
    option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>").
    //Three-part table name from where data will be read.
    synapsesql("<database_name>.<schema_name>.<table_name>").
    //Column-pruning i.e., query select column values.
    select("<some_column_1>", "<some_column_5>", "<some_column_n>").
    //Push-down filter criteria that gets translated to SQL Push-down Predicates.
    filter(col("Title").startsWith("E")).
    //Fetch a sample of 10 records
    limit(10)

//Show contents of the dataframe
dfToReadFromTable.show()

# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants
from pyspark.sql.functions import col

# Read from existing internal table
dfToReadFromTable = (spark.read
                     # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
                     # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
                     .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
                     # Defaults to storage path defined in the runtime configurations
                     .option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
                     # Three-part table name from where data will be read.
                     .synapsesql("<database_name>.<schema_name>.<table_name>")
                     # Column-pruning i.e., query select column values.
                     .select("<some_column_1>", "<some_column_5>", "<some_column_n>")
                     # Push-down filter criteria that gets translated to SQL Push-down Predicates.
                     .filter(col("Title").contains("E"))
                     # Fetch a sample of 10 records
                     .limit(10))

# Show contents of the dataframe
dfToReadFromTable.show()

//Use case is to read data from an internal table in Synapse Dedicated SQL Pool DB
//Azure Active Directory based authentication approach is preferred here.
import org.apache.spark.sql.DataFrame
import com.microsoft.spark.sqlanalytics.utils.Constants
import org.apache.spark.sql.SqlAnalyticsConnector._


// Read from a query
// Query can be provided either as an argument to synapsesql or as a Constant - Constants.QUERY
val dfToReadFromQueryAsOption:DataFrame = spark.read.
    // Name of the SQL Dedicated Pool or database where to run the query
    // Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
     option(Constants.DATABASE, "<database_name>").
    //If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
    //to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
    option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn").
    //Defaults to storage path defined in the runtime configurations
    option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
    //query from which data will be read
    .option(Constants.QUERY, "select <column_name>, count(*) as cnt from <schema_name>.<table_name> group by <column_name>")
    synapsesql()

val dfToReadFromQueryAsArgument:DataFrame = spark.read.
     // Name of the SQL Dedicated Pool or database where to run the query
     // Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
     option(Constants.DATABASE, "<database_name>")
    //If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
    //to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
    option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn").
    //Defaults to storage path defined in the runtime configurations
    option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
    //query from which data will be read
    .synapsesql("select <column_name>, count(*) as counts from <schema_name>.<table_name> group by <column_name>")


//Show contents of the dataframe
dfToReadFromQueryAsOption.show()
dfToReadFromQueryAsArgument.show()

# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants
from pyspark.sql.functions import col

# Name of the SQL Dedicated Pool or database where to run the query
# Database can be specified as a Spark Config or as a Constant - Constants.DATABASE
spark.conf.set("spark.sqlanalyticsconnector.dw.database", "<database_name>")

# Read from a query
# Query can be provided either as an argument to synapsesql or as a Constant - Constants.QUERY
dfToReadFromQueryAsOption = (spark.read
                     # Name of the SQL Dedicated Pool or database where to run the query
                     # Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
                     .option(Constants.DATABASE, "<database_name>")
                     # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
                     # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
                     .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
                     # Defaults to storage path defined in the runtime configurations
                     .option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
                     # query from which data will be read
                     .option(Constants.QUERY, "select <column_name>, count(*) as cnt from <schema_name>.<table_name> group by <column_name>")
                     .synapsesql()
)

dfToReadFromQueryAsArgument = (spark.read
                     # Name of the SQL Dedicated Pool or database where to run the query
                     # Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
                     .option(Constants.DATABASE, "<database_name>")
                     # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
                     # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
                     .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
                     # Defaults to storage path defined in the runtime configurations
                     .option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
                     # query from which data will be read
                     .synapsesql("select <column_name>, count(*) as counts from <schema_name>.<table_name> group by <column_name>")
)

# Show contents of the dataframe
dfToReadFromQueryAsOption.show()
dfToReadFromQueryAsArgument.show()

//Use case is to read data from an internal table in Synapse Dedicated SQL Pool DB
//Azure Active Directory based authentication approach is preferred here.
import org.apache.spark.sql.DataFrame
import com.microsoft.spark.sqlanalytics.utils.Constants
import org.apache.spark.sql.SqlAnalyticsConnector._

//Read from existing internal table
val dfToReadFromTable:DataFrame = spark.read.
    //If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
    //to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
    option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn").
    //Set database user name
    option(Constants.USER, "<user_name>").
    //Set user's password to the database
    option(Constants.PASSWORD, "<user_password>").
    //Set name of the data source definition that is defined with database scoped credentials.
    //Data extracted from the table will be staged to the storage path defined on the data source's location setting.
    option(Constants.DATA_SOURCE, "<data_source_name>").
    //Three-part table name from where data will be read.
    synapsesql("<database_name>.<schema_name>.<table_name>").
    //Column-pruning i.e., query select column values.
    select("<some_column_1>", "<some_column_5>", "<some_column_n>").
    //Push-down filter criteria that gets translated to SQL Push-down Predicates.
    filter(col("Title").startsWith("E")).
    //Fetch a sample of 10 records
    limit(10)


//Show contents of the dataframe
dfToReadFromTable.show()

# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants
from pyspark.sql.functions import col

# Read from existing internal table
dfToReadFromTable = (spark.read
                     # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
                     # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
                     .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
                     # Set database user name
                     .option(Constants.USER, "<user_name>")
                     # Set user's password to the database
                     .option(Constants.PASSWORD, "<user_password>")
                     # Set name of the data source definition that is defined with database scoped credentials.
                     # https://learn.microsoft.com/sql/t-sql/statements/create-external-data-source-transact-sql?view=sql-server-ver15&tabs=dedicated#h-create-external-data-source-to-access-data-in-azure-storage-using-the-abfs-interface
                     # Data extracted from the table will be staged to the storage path defined on the data source's location setting.
                     .option(Constants.DATA_SOURCE, "<data_source_name>")
                     # Three-part table name from where data will be read.
                     .synapsesql("<database_name>.<schema_name>.<table_name>")
                     # Column-pruning i.e., query select column values.
                     .select("<some_column_1>", "<some_column_5>", "<some_column_n>")
                     # Push-down filter criteria that gets translated to SQL Push-down Predicates.
                     .filter(col("Title").contains("E"))
                     # Fetch a sample of 10 records
                     .limit(10)
                    )

# Show contents of the dataframe
dfToReadFromTable.show()

//Use case is to read data from an internal table in Synapse Dedicated SQL Pool DB
//Azure Active Directory based authentication approach is preferred here.
import org.apache.spark.sql.DataFrame
import com.microsoft.spark.sqlanalytics.utils.Constants
import org.apache.spark.sql.SqlAnalyticsConnector._

// Name of the SQL Dedicated Pool or database where to run the query
// Database can be specified as a Spark Config or as a Constant - Constants.DATABASE
spark.conf.set("spark.sqlanalyticsconnector.dw.database", "<database_name>")

// Read from a query
// Query can be provided either as an argument to synapsesql or as a Constant - Constants.QUERY
val dfToReadFromQueryAsOption:DataFrame = spark.read.
     //Name of the SQL Dedicated Pool or database where to run the query
     //Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
      option(Constants.DATABASE, "<database_name>").
    //If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
    //to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
    option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn").
    //Set database user name
    option(Constants.USER, "<user_name>").
    //Set user's password to the database
    option(Constants.PASSWORD, "<user_password>").
    //Set name of the data source definition that is defined with database scoped credentials.
    //Data extracted from the SQL query will be staged to the storage path defined on the data source's location setting.
    option(Constants.DATA_SOURCE, "<data_source_name>").
    //Query where data will be read.
    option(Constants.QUERY, "select <column_name>, count(*) as counts from <schema_name>.<table_name> group by <column_name>" ).
    synapsesql()

val dfToReadFromQueryAsArgument:DataFrame = spark.read.
     //Name of the SQL Dedicated Pool or database where to run the query
     //Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
      option(Constants.DATABASE, "<database_name>").
    //If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
    //to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
    option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn").
    //Set database user name
    option(Constants.USER, "<user_name>").
    //Set user's password to the database
    option(Constants.PASSWORD, "<user_password>").
    //Set name of the data source definition that is defined with database scoped credentials.
    //Data extracted from the SQL query will be staged to the storage path defined on the data source's location setting.
    option(Constants.DATA_SOURCE, "<data_source_name>").
    //Query where data will be read.
    synapsesql("select <column_name>, count(*) as counts from <schema_name>.<table_name> group by <column_name>")


//Show contents of the dataframe
dfToReadFromQueryAsOption.show()
dfToReadFromQueryAsArgument.show()

# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants
from pyspark.sql.functions import col

# Name of the SQL Dedicated Pool or database where to run the query
# Database can be specified as a Spark Config or as a Constant - Constants.DATABASE
spark.conf.set("spark.sqlanalyticsconnector.dw.database", "<database_name>")

# Read from a query
# Query can be provided either as an argument to synapsesql or as a Constant - Constants.QUERY
dfToReadFromQueryAsOption = (spark.read
                     # Name of the SQL Dedicated Pool or database where to run the query
                     # Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
                     .option(Constants.DATABASE, "<database_name>")
                     # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
                     # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
                     .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
                     # Set database user name
                     .option(Constants.USER, "<user_name>")
                     # Set user's password to the database
                     .option(Constants.PASSWORD, "<user_password>")
                     # Set name of the data source definition that is defined with database scoped credentials.
                     # https://learn.microsoft.com/sql/t-sql/statements/create-external-data-source-transact-sql?view=sql-server-ver15&tabs=dedicated#h-create-external-data-source-to-access-data-in-azure-storage-using-the-abfs-interface
                     # Data extracted from the SQL query will be staged to the storage path defined on the data source's location setting.
                     .option(Constants.DATA_SOURCE, "<data_source_name>")
                     # Query from where data will be read.
                     .option(Constants.QUERY, "select <column_name>, count(*) as counts from <schema_name>.<table_name> group by <column_name>")
                     .synapsesql()
                    )

dfToReadFromQueryAsArgument = (spark.read
                     # Name of the SQL Dedicated Pool or database where to run the query
                     # Database can be specified as a Spark Config - spark.sqlanalyticsconnector.dw.database or as a Constant - Constants.DATABASE
                     .option(Constants.DATABASE, "<database_name>")
                     # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
                     # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
                     .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
                     # Set database user name
                     .option(Constants.USER, "<user_name>")
                     # Set user's password to the database
                     .option(Constants.PASSWORD, "<user_password>")
                     # Set name of the data source definition that is defined with database scoped credentials.
                     # https://learn.microsoft.com/sql/t-sql/statements/create-external-data-source-transact-sql?view=sql-server-ver15&tabs=dedicated#h-create-external-data-source-to-access-data-in-azure-storage-using-the-abfs-interface
                     # Data extracted from the SQL query will be staged to the storage path defined on the data source's location setting.
                     .option(Constants.DATA_SOURCE, "<data_source_name>")
                     .synapsesql("select <column_name>, count(*) as counts from <schema_name>.<table_name> group by <column_name>")
                    )

# Show contents of the dataframe
dfToReadFromQueryAsOption.show()
dfToReadFromQueryAsArgument.show()

synapsesql(tableName:String,
           tableType:String = Constants.INTERNAL,
           location:Option[String] = None,
           callBackHandle=Option[(Map[String, Any], Option[Throwable])=>Unit]):Unit

synapsesql(table_name: str, table_type: str = Constants.INTERNAL, location: str = None) -> None

//Add required imports
import org.apache.spark.sql.DataFrame
import org.apache.spark.sql.SaveMode
import com.microsoft.spark.sqlanalytics.utils.Constants
import org.apache.spark.sql.SqlAnalyticsConnector._

//Define read options for example, if reading from CSV source, configure header and delimiter options.
val pathToInputSource="abfss://<storage_container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_folder>/<some_dataset>.csv"

//Define read configuration for the input CSV
val dfReadOptions:Map[String, String] = Map("header" -> "true", "delimiter" -> ",")

//Initialize DataFrame that reads CSV data from a given source
val readDF:DataFrame=spark.
            read.
            options(dfReadOptions).
            csv(pathToInputSource).
            limit(1000) //Reads first 1000 rows from the source CSV input.

//Setup and trigger the read DataFrame for write to Synapse Dedicated SQL Pool.
//Fully qualified SQL Server DNS name can be obtained using one of the following methods:
//    1. Synapse Workspace - Manage Pane - SQL Pools - <Properties view of the corresponding Dedicated SQL Pool>
//    2. From Azure portal, follow the bread-crumbs for <Portal_Home> -> <Resource_Group> -> <Dedicated SQL Pool> and then go to Connection Strings/JDBC tab.
//If `Constants.SERVER` is not provided, the value will be inferred by using the `database_name` in the three-part table name argument to the `synapsesql` method.
//Like-wise, if `Constants.TEMP_FOLDER` is not provided, the connector will use the runtime staging directory config (see section on Configuration Options for details).
val writeOptionsWithAADAuth:Map[String, String] = Map(Constants.SERVER -> "<dedicated-pool-sql-server-name>.sql.azuresynapse.azure.cn",
                                            Constants.TEMP_FOLDER -> "abfss://<storage_container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_temp_folder>")

//Setup optional callback/feedback function that can receive post write metrics of the job performed.
var errorDuringWrite:Option[Throwable] = None
val callBackFunctionToReceivePostWriteMetrics: (Map[String, Any], Option[Throwable]) => Unit =
    (feedback: Map[String, Any], errorState: Option[Throwable]) => {
    println(s"Feedback map - ${feedback.map{case(key, value) => s"$key -> $value"}.mkString("{",",\n","}")}")
    errorDuringWrite = errorState
}

//Configure and submit the request to write to Synapse Dedicated SQL Pool (note - default SaveMode is set to ErrorIfExists)
//Sample below is using AAD-based authentication approach; See further examples to leverage SQL Basic auth.
readDF.
    write.
    //Configure required configurations.
    options(writeOptionsWithAADAuth).
    //Choose a save mode that is apt for your use case.
    mode(SaveMode.Overwrite).
    synapsesql(tableName = "<database_name>.<schema_name>.<table_name>",
                //For external table type value is Constants.EXTERNAL
                tableType = Constants.INTERNAL,
                //Optional parameter that is used to specify external table's base folder; defaults to `database_name/schema_name/table_name`
                location = None,
                //Optional parameter to receive a callback.
                callBackHandle = Some(callBackFunctionToReceivePostWriteMetrics))

//If write request has failed, raise an error and fail the Cell's execution.
if(errorDuringWrite.isDefined) throw errorDuringWrite.get

# Write using AAD Auth to internal table
# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants

# Configure and submit the request to write to Synapse Dedicated SQL Pool
# Sample below is using AAD-based authentication approach; See further examples to leverage SQL Basic auth.
(df.write
 # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
 # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
 .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
 # Like-wise, if `Constants.TEMP_FOLDER` is not provided, the connector will use the runtime staging directory config (see section on Configuration Options for details).
 .option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
 # Choose a save mode that is apt for your use case.
 # Options for save modes are "error" or "errorifexists" (default), "overwrite", "append", "ignore".
 # refer to https://spark.apache.org/docs/latest/sql-data-sources-load-save-functions.html#save-modes
 .mode("overwrite")
 # Required parameter - Three-part table name to which data will be written
 .synapsesql("<database_name>.<schema_name>.<table_name>"))


# Write using AAD Auth to external table
# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants

# Setup and trigger the read DataFrame for write to Synapse Dedicated SQL Pool.
# Sample below is using AAD-based authentication approach; See further examples to leverage SQL Basic auth.
(df.write
 # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
 # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
 .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
 # Set name of the data source definition that is defined with database scoped credentials.
 # https://learn.microsoft.com/sql/t-sql/statements/create-external-data-source-transact-sql?view=sql-server-ver15&tabs=dedicated#h-create-external-data-source-to-access-data-in-azure-storage-using-the-abfs-interface
 .option(Constants.DATA_SOURCE, "<data_source_name>")
 # Choose a save mode that is apt for your use case.
 # Options for save modes are "error" or "errorifexists" (default), "overwrite", "append", "ignore".
 # refer to https://spark.apache.org/docs/latest/sql-data-sources-load-save-functions.html#save-modes
 .mode("overwrite")
 # Required parameter - Three-part table name to which data will be written
 .synapsesql("<database_name>.<schema_name>.<table_name>",
             # Optional Parameter which is used to specify table type. Default is internal i.e. Constants.INTERNAL.
             # For external table type, the value is Constants.EXTERNAL.
             Constants.EXTERNAL,
             # Optional parameter that is used to specify external table's base folder; defaults to `database_name/schema_name/table_name`
             "/path/to/external/table"))

//Define write options to use SQL basic authentication
val writeOptionsWithBasicAuth:Map[String, String] = Map(Constants.SERVER -> "<dedicated-pool-sql-server-name>.sql.azuresynapse.azure.cn",
                                           //Set database user name
                                           Constants.USER -> "<user_name>",
                                           //Set database user's password
                                           Constants.PASSWORD -> "<user_password>",
                                           //Required only when writing to an external table. For write to internal table, this can be used instead of TEMP_FOLDER option.
                                           Constants.DATA_SOURCE -> "<Name of the datasource as defined in the target database>"
                                           //To be used only when writing to internal tables. Storage path will be used for data staging.
                                           Constants.TEMP_FOLDER -> "abfss://<storage_container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_temp_folder>")

//Configure and submit the request to write to Synapse Dedicated SQL Pool.
readDF.
    write.
    options(writeOptionsWithBasicAuth).
    //Choose a save mode that is apt for your use case.
    mode(SaveMode.Overwrite).
    synapsesql(tableName = "<database_name>.<schema_name>.<table_name>",
                //For external table type value is Constants.EXTERNAL
                tableType = Constants.INTERNAL,
                //Not required for writing to an internal table
                location = None,
                //Optional parameter.
                callBackHandle = Some(callBackFunctionToReceivePostWriteMetrics))

# Write using Basic Auth to Internal table
# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants

# Setup and trigger the read DataFrame for write to Synapse Dedicated SQL Pool.

(df.write
 # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
 # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
 .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
  # Set database user name
  .option(Constants.USER, "<user_name>")
  # Set user's password to the database
  .option(Constants.PASSWORD, "<user_password>")
 # if `Constants.TEMP_FOLDER` is not provided, the connector will use the runtime staging directory config (see section on Configuration Options for details).
 .option(Constants.TEMP_FOLDER, "abfss://<container_name>@<storage_account_name>.dfs.core.chinacloudapi.cn/<some_base_path_for_temporary_staging_folders>")
 # For Basic Auth, need the storage account key for the storage account where the data will be staged
 # .option(Constants.STAGING_STORAGE_ACCOUNT_KEY, "<storage_account_key>")
 # Choose a save mode that is apt for your use case.
 # Options for save modes are "error" or "errorifexists" (default), "overwrite", "append", "ignore".
 # refer to https://spark.apache.org/docs/latest/sql-data-sources-load-save-functions.html#save-modes
 .mode("overwrite")
 # Required parameter - Three-part table name to which data will be written
 .synapsesql("<database_name>.<schema_name>.<table_name>"))

# Write using Basic Auth to External table
# Add required imports
import com.microsoft.spark.sqlanalytics
from com.microsoft.spark.sqlanalytics.Constants import Constants

# Setup and trigger the read DataFrame for write to Synapse Dedicated SQL Pool.
(df.write
 # If `Constants.SERVER` is not provided, the `<database_name>` from the three-part table name argument
 # to `synapsesql` method is used to infer the Synapse Dedicated SQL End Point.
 .option(Constants.SERVER, "<sql-server-name>.sql.azuresynapse.azure.cn")
 # Set database user name
 .option(Constants.USER, "<user_name>")
 # Set user's password to the database
 .option(Constants.PASSWORD, "<user_password>")
 # Set name of the data source with database scoped credentials for external table.
 # https://learn.microsoft.com/sql/t-sql/statements/create-external-data-source-transact-sql?view=sql-server-ver15&tabs=dedicated#h-create-external-data-source-to-access-data-in-azure-storage-using-the-abfs-interface
 .option(Constants.DATA_SOURCE, "<data_source_name>")
 # For Basic Auth, need the storage account key for the storage account where the data will be staged
 .option(Constants.STAGING_STORAGE_ACCOUNT_KEY,"<storage_account_key>")
 # Choose a save mode that is apt for your use case.
 # Options for save modes are "error" or "errorifexists" (default), "overwrite", "append", "ignore".
 # refer to https://spark.apache.org/docs/latest/sql-data-sources-load-save-functions.html#save-modes
 .mode("overwrite")
 # Required parameter - Three-part table name to which data will be written
 .synapsesql("<database_name>.<schema_name>.<table_name>",
             # Optional Parameter which is used to specify table type. Default is internal i.e. Constants.INTERNAL.

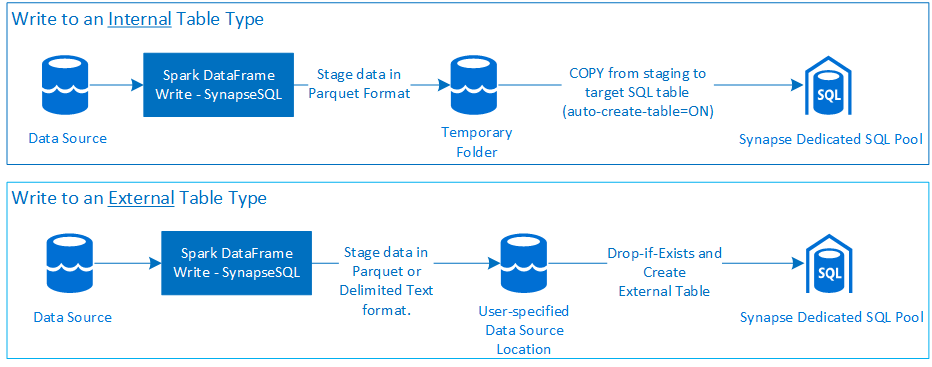

             # For external table type, the value is Constants.EXTERNAL.
             Constants.EXTERNAL,
             # Optional parameter that is used to specify external table's base folder; defaults to `database_name/schema_name/table_name`
             "/path/to/external/table"))
