预期建议和高级模式

2025-07-04

本文包含有关大规模实现预期的建议，以及预期支持的高级模式的示例。这些模式将多个数据集与预期结合使用，并要求用户了解具体化视图、流式处理表和期望的语法和语义。

有关预期行为和语法的基本概述，请参阅使用管道预期管理数据质量。

可移植和可重用的期望

Databricks 在实现提高可移植性并减少维护负担的预期时，建议遵循以下最佳做法：

建议	影响
将期望定义与管道逻辑分开存储。	轻松将期望应用于多个数据集或管道。在不修改管道源代码的情况下更新、审核和维护预期。
添加自定义标记以创建相关期望组。	根据标记筛选预期。
在类似的数据集中一致地应用预期。	跨多个数据集和管道使用相同的期望来评估相同的逻辑。

以下示例演示如何使用 Delta 表或字典创建中心预期存储库。然后，自定义 Python 函数将这些期望应用于示例管道中的数据集：

Delta 表

以下示例创建一个名为 rules 的表来维护规则：

CREATE OR REPLACE TABLE
  rules
AS SELECT
  col1 AS name,
  col2 AS constraint,
  col3 AS tag
FROM (
  VALUES
  ("website_not_null","Website IS NOT NULL","validity"),
  ("fresh_data","to_date(updateTime,'M/d/yyyy h:m:s a') > '2010-01-01'","maintained"),
  ("social_media_access","NOT(Facebook IS NULL AND Twitter IS NULL AND Youtube IS NULL)","maintained")
)

以下 Python 示例根据表中的规则 rules 定义数据质量预期。 get_rules() 函数从 rules 表读取规则并返回一个 Python 字典，其中包含与传递给该函数的 tag 参数匹配的规则。

在此示例中，使用 @dlt.expect_all_or_drop() 修饰器应用字典来强制实施数据质量约束。

例如，将从 validity 表中删除任何与使用 raw_farmers_market 标记的规则不符的记录：

import dlt
from pyspark.sql.functions import expr, col

def get_rules(tag):
  """
    loads data quality rules from a table
    :param tag: tag to match
    :return: dictionary of rules that matched the tag
  """
  df = spark.read.table("rules").filter(col("tag") == tag).collect()
  return {
      row['name']: row['constraint']
      for row in df
  }

@dlt.table
@dlt.expect_all_or_drop(get_rules('validity'))
def raw_farmers_market():
  return (
    spark.read.format('csv').option("header", "true")
      .load('/databricks-datasets/data.gov/farmers_markets_geographic_data/data-001/')
  )

@dlt.table
@dlt.expect_all_or_drop(get_rules('maintained'))
def organic_farmers_market():
  return (
    spark.read.table("raw_farmers_market")
      .filter(expr("Organic = 'Y'"))
  )

Python 模块

以下示例创建一个 Python 模块来维护规则。对于此示例，请将此代码存储在与用作管道源代码的笔记本相同的文件夹中的 rules_module.py 文件中：

def get_rules_as_list_of_dict():
  return [
    {
      "name": "website_not_null",
      "constraint": "Website IS NOT NULL",
      "tag": "validity"
    },
    {
      "name": "fresh_data",
      "constraint": "to_date(updateTime,'M/d/yyyy h:m:s a') > '2010-01-01'",
      "tag": "maintained"
    },
    {
      "name": "social_media_access",
      "constraint": "NOT(Facebook IS NULL AND Twitter IS NULL AND Youtube IS NULL)",
      "tag": "maintained"
    }
  ]

以下 Python 示例根据文件中定义的 rules_module.py 规则定义数据质量预期。该 get_rules() 函数返回一个 Python 字典，其中包含与传递给它的自变量匹配 tag 的规则。

在此示例中，使用 @dlt.expect_all_or_drop() 修饰器应用字典来强制实施数据质量约束。

例如，将从 validity 表中删除任何与使用 raw_farmers_market 标记的规则不符的记录：

import dlt
from rules_module import *
from pyspark.sql.functions import expr, col

def get_rules(tag):
  """
    loads data quality rules from a table
    :param tag: tag to match
    :return: dictionary of rules that matched the tag
  """
  return {
    row['name']: row['constraint']
    for row in get_rules_as_list_of_dict()
    if row['tag'] == tag
  }

@dlt.table
@dlt.expect_all_or_drop(get_rules('validity'))
def raw_farmers_market():
  return (
    spark.read.format('csv').option("header", "true")
      .load('/databricks-datasets/data.gov/farmers_markets_geographic_data/data-001/')
  )

@dlt.table
@dlt.expect_all_or_drop(get_rules('maintained'))
def organic_farmers_market():
  return (
    spark.read.table("raw_farmers_market")
      .filter(expr("Organic = 'Y'"))
  )

行计数验证

以下示例验证 table_a 和 table_b 之间行计数的相等性，以检查在转换期间是否有数据丢失。

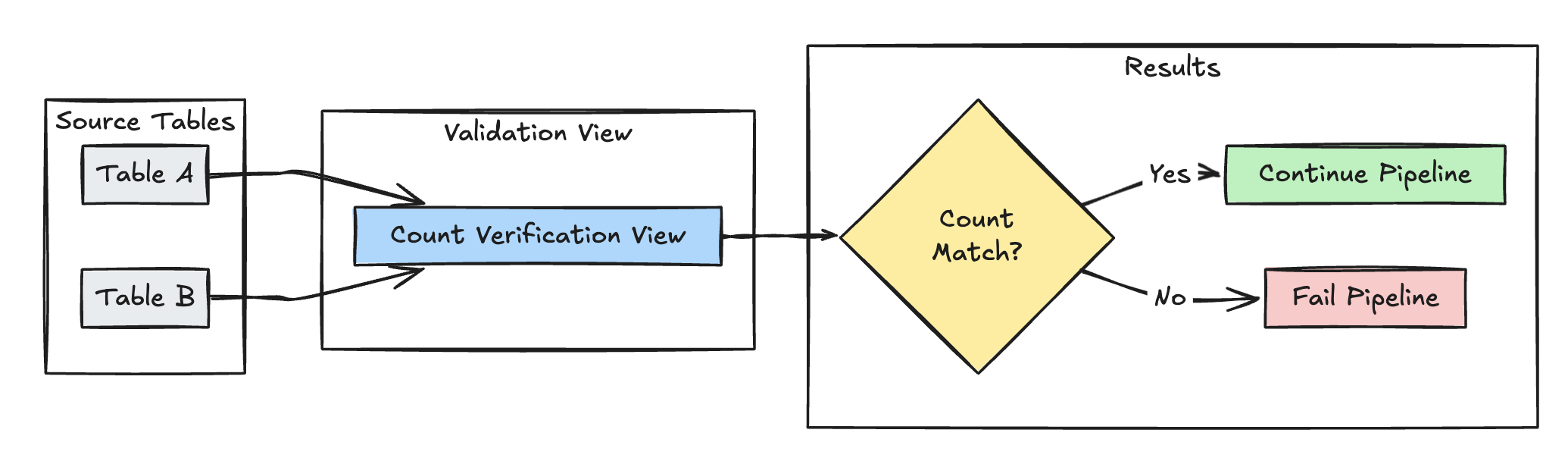

具有预期使用情况的 Lakeflow 声明性管道行计数验证图

Python

@dlt.view(
  name="count_verification",
  comment="Validates equal row counts between tables"
)
@dlt.expect_or_fail("no_rows_dropped", "a_count == b_count")
def validate_row_counts():
  return spark.sql("""
    SELECT * FROM
      (SELECT COUNT(*) AS a_count FROM table_a),
      (SELECT COUNT(*) AS b_count FROM table_b)""")

SQL

CREATE OR REFRESH MATERIALIZED VIEW count_verification(
  CONSTRAINT no_rows_dropped EXPECT (a_count == b_count)
) AS SELECT * FROM
  (SELECT COUNT(*) AS a_count FROM table_a),
  (SELECT COUNT(*) AS b_count FROM table_b)

缺少记录检测

以下示例验证 report 表中是否存在所有预期记录：

Lakeflow 声明性管道缺少具有预期使用情况的行检测图

Python

@dlt.view(
  name="report_compare_tests",
  comment="Validates no records are missing after joining"
)
@dlt.expect_or_fail("no_missing_records", "r_key IS NOT NULL")
def validate_report_completeness():
  return (
    spark.read.table("validation_copy").alias("v")
      .join(
        spark.read.table("report").alias("r"),
        on="key",
        how="left_outer"
      )
      .select(
        "v.*",
        "r.key as r_key"
      )
  )

SQL

CREATE OR REFRESH MATERIALIZED VIEW report_compare_tests(
  CONSTRAINT no_missing_records EXPECT (r_key IS NOT NULL)
)
AS SELECT v.*, r.key as r_key FROM validation_copy v
  LEFT OUTER JOIN report r ON v.key = r.key

主键唯一性

以下示例验证跨表的主键约束：

Lakeflow 声明性管道主键唯一性与期望使用情况的图表

Python

@dlt.view(
  name="report_pk_tests",
  comment="Validates primary key uniqueness"
)
@dlt.expect_or_fail("unique_pk", "num_entries = 1")
def validate_pk_uniqueness():
  return (
    spark.read.table("report")
      .groupBy("pk")
      .count()
      .withColumnRenamed("count", "num_entries")
  )

SQL

CREATE OR REFRESH MATERIALIZED VIEW report_pk_tests(
  CONSTRAINT unique_pk EXPECT (num_entries = 1)
)
AS SELECT pk, count(*) as num_entries
  FROM report
  GROUP BY pk

架构演变模式

以下示例演示如何处理其他列的架构演变。在迁移数据源或处理多个版本的上游数据时，请使用此模式，确保在强制实施数据质量时实现向后兼容性：

Lakeflow 声明性管道的架构演变验证与预期使用

Python

@dlt.table
@dlt.expect_all_or_fail({
  "required_columns": "col1 IS NOT NULL AND col2 IS NOT NULL",
  "valid_col3": "CASE WHEN col3 IS NOT NULL THEN col3 > 0 ELSE TRUE END"
})
def evolving_table():
  # Legacy data (V1 schema)
  legacy_data = spark.read.table("legacy_source")

  # New data (V2 schema)
  new_data = spark.read.table("new_source")

  # Combine both sources
  return legacy_data.unionByName(new_data, allowMissingColumns=True)

SQL

CREATE OR REFRESH MATERIALIZED VIEW evolving_table(
  -- Merging multiple constraints into one as expect_all is Python-specific API
  CONSTRAINT valid_migrated_data EXPECT (
    (col1 IS NOT NULL AND col2 IS NOT NULL) AND (CASE WHEN col3 IS NOT NULL THEN col3 > 0 ELSE TRUE END)
  ) ON VIOLATION FAIL UPDATE
) AS
  SELECT * FROM new_source
  UNION
  SELECT *, NULL as col3 FROM legacy_source;

基于范围的验证模式

以下示例演示如何根据历史统计范围验证新数据点，帮助识别数据流中的离群值和异常：

Lakeflow 声明性管道中基于范围的验证及其预期使用

Python

@dlt.view
def stats_validation_view():
  # Calculate statistical bounds from historical data
  bounds = spark.sql("""
    SELECT
      avg(amount) - 3 * stddev(amount) as lower_bound,
      avg(amount) + 3 * stddev(amount) as upper_bound
    FROM historical_stats
    WHERE
      date >= CURRENT_DATE() - INTERVAL 30 DAYS
  """)

  # Join with new data and apply bounds
  return spark.read.table("new_data").crossJoin(bounds)

@dlt.table
@dlt.expect_or_drop(
  "within_statistical_range",
  "amount BETWEEN lower_bound AND upper_bound"
)
def validated_amounts():
  return spark.read.table("stats_validation_view")

SQL

CREATE OR REFRESH MATERIALIZED VIEW stats_validation_view AS
  WITH bounds AS (
    SELECT
    avg(amount) - 3 * stddev(amount) as lower_bound,
    avg(amount) + 3 * stddev(amount) as upper_bound
    FROM historical_stats
    WHERE date >= CURRENT_DATE() - INTERVAL 30 DAYS
  )
  SELECT
    new_data.*,
    bounds.*
  FROM new_data
  CROSS JOIN bounds;

CREATE OR REFRESH MATERIALIZED VIEW validated_amounts (
  CONSTRAINT within_statistical_range EXPECT (amount BETWEEN lower_bound AND upper_bound)
)
AS SELECT * FROM stats_validation_view;

隔离无效记录

此模式将预期与临时表和视图相结合，以跟踪管道更新期间的数据质量指标，并为下游作中的有效和无效记录启用单独的处理路径。

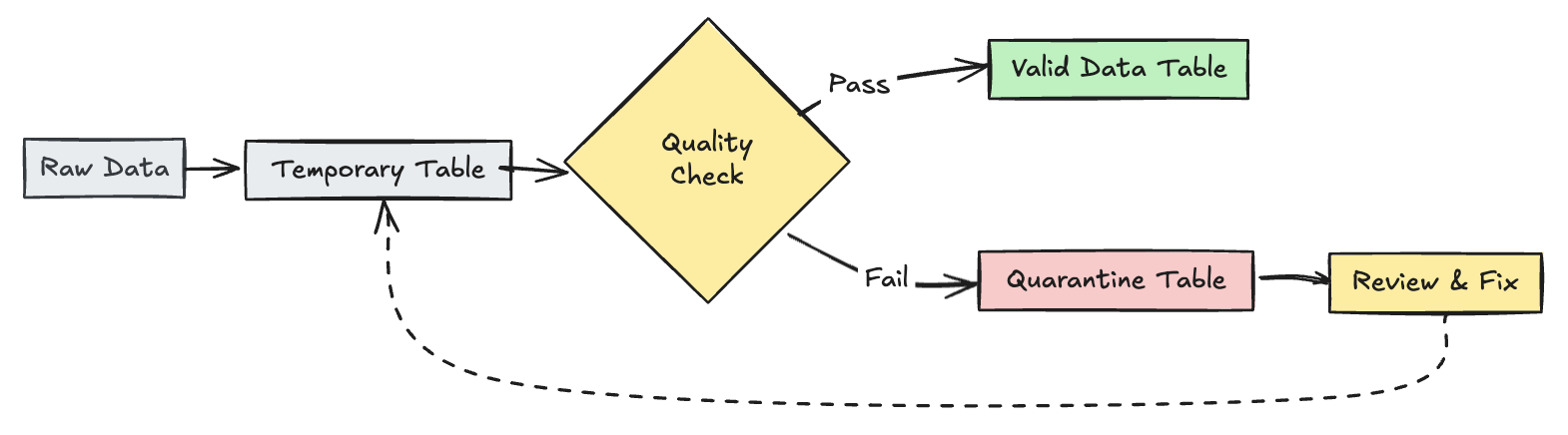

具有预期使用情况的 Lakeflow 声明性管道数据隔离模式

Python

import dlt
from pyspark.sql.functions import expr

rules = {
  "valid_pickup_zip": "(pickup_zip IS NOT NULL)",
  "valid_dropoff_zip": "(dropoff_zip IS NOT NULL)",
}
quarantine_rules = "NOT({0})".format(" AND ".join(rules.values()))

@dlt.view
def raw_trips_data():
  return spark.readStream.table("samples.nyctaxi.trips")

@dlt.table(
  temporary=True,
  partition_cols=["is_quarantined"],
)
@dlt.expect_all(rules)
def trips_data_quarantine():
  return (
    spark.readStream.table("raw_trips_data").withColumn("is_quarantined", expr(quarantine_rules))
  )

@dlt.view
def valid_trips_data():
  return spark.read.table("trips_data_quarantine").filter("is_quarantined=false")

@dlt.view
def invalid_trips_data():
  return spark.read.table("trips_data_quarantine").filter("is_quarantined=true")

SQL

CREATE TEMPORARY STREAMING LIVE VIEW raw_trips_data AS
  SELECT * FROM STREAM(samples.nyctaxi.trips);

CREATE OR REFRESH TEMPORARY STREAMING TABLE trips_data_quarantine(
  -- Option 1 - merge all expectations to have a single name in the pipeline event log
  CONSTRAINT quarantined_row EXPECT (pickup_zip IS NOT NULL OR dropoff_zip IS NOT NULL),
  -- Option 2 - Keep the expectations separate, resulting in multiple entries under different names
  CONSTRAINT invalid_pickup_zip EXPECT (pickup_zip IS NOT NULL),
  CONSTRAINT invalid_dropoff_zip EXPECT (dropoff_zip IS NOT NULL)
)
PARTITIONED BY (is_quarantined)
AS
  SELECT
    *,
    NOT ((pickup_zip IS NOT NULL) and (dropoff_zip IS NOT NULL)) as is_quarantined
  FROM STREAM(raw_trips_data);

CREATE TEMPORARY LIVE VIEW valid_trips_data AS
SELECT * FROM trips_data_quarantine WHERE is_quarantined=FALSE;

CREATE TEMPORARY LIVE VIEW invalid_trips_data AS
SELECT * FROM trips_data_quarantine WHERE is_quarantined=TRUE;
