标记架构

标记架构定义域专家在“审阅”应用中 标记现有跟踪 时回答的特定问题。 他们设计反馈收集过程，确保为评估您的 GenAI 应用程序提供一致且相关的信息。

标记架构的工作原理

创建标记会话时，将其与一个或多个标记架构相关联。 每个架构都代表一个 Feedback 或附加到 Expectation的 Assessment。

架构控制：

• 显示给审阅者的问题
• 输入法（下拉列表、文本框等）
• 验证规则和约束
• 可选说明和注释

常见用例的标签架构

MLflow 为使用期望值的 内置 LLM 法官 提供预定义的架构名称。 可以使用这些名称创建自定义架构，以确保与内置评估功能兼容。

• 与准则法官合作
  • GUIDELINES：收集 GenAI 应用在处理请求时应该遵循的理想指令
• 与正确性判断配合使用
  • EXPECTED_FACTS：收集为确保正确性而必须包括的事实陈述
  • EXPECTED_RESPONSE：收集完整的基本真实答案

为常见用例创建架构

import mlflow.genai.label_schemas as schemas
from mlflow.genai.label_schemas import LabelSchemaType, InputTextList, InputText

# Schema for collecting expected facts
expected_facts_schema = schemas.create_label_schema(
    name=schemas.EXPECTED_FACTS,
    type=LabelSchemaType.EXPECTATION,
    title="Expected facts",
    input=InputTextList(max_length_each=1000),
    instruction="Please provide a list of facts that you expect to see in a correct response.",
    overwrite=True
)

# Schema for collecting guidelines
guidelines_schema = schemas.create_label_schema(
    name=schemas.GUIDELINES,
    type=LabelSchemaType.EXPECTATION,
    title="Guidelines",
    input=InputTextList(max_length_each=500),
    instruction="Please provide guidelines that the model's output is expected to adhere to.",
    overwrite=True
)

# Schema for collecting expected response
expected_response_schema = schemas.create_label_schema(
    name=schemas.EXPECTED_RESPONSE,
    type=LabelSchemaType.EXPECTATION,
    title="Expected response",
    input=InputText(),
    instruction="Please provide a correct agent response.",
    overwrite=True
)

创建自定义标记架构

创建自定义架构以收集域的特定反馈。 可以通过 MLflow UI 或通过编程方式使用 SDK 创建架构。

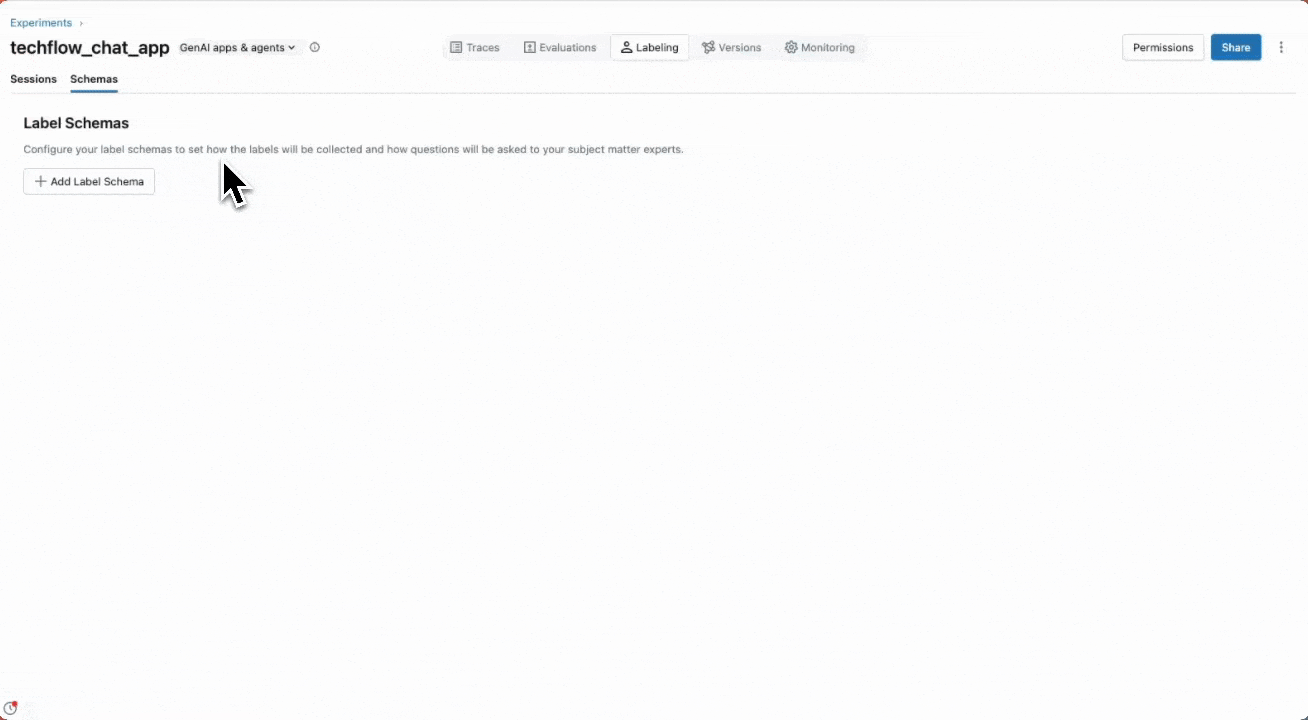

通过 UI 创建架构

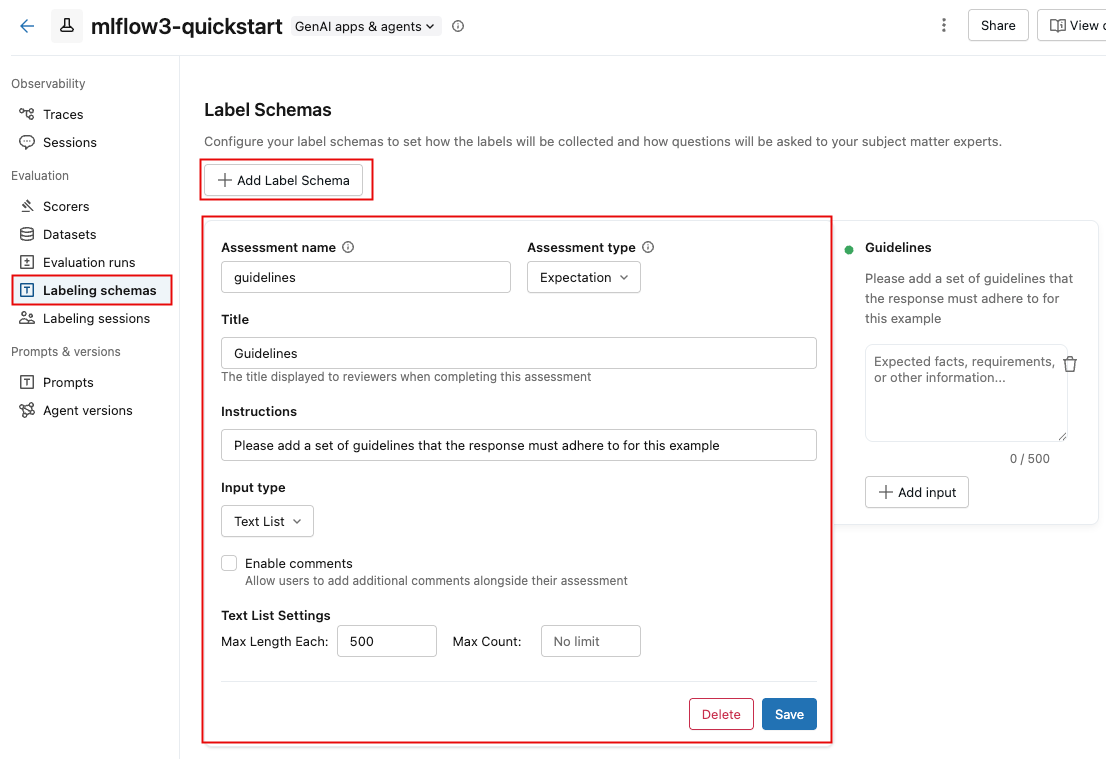

导航到 MLflow UI 中的“ 标记 ”选项卡以直观方式创建架构。 这提供了一个直观的界面，用于定义问题、输入类型和验证规则，而无需编写代码。

以编程方式创建架构

所有架构都需要名称、类型、标题和输入规范。

基本架构创建

import mlflow.genai.label_schemas as schemas
from mlflow.genai.label_schemas import InputCategorical, InputText

# Create a feedback schema for rating response quality
quality_schema = schemas.create_label_schema(
    name="response_quality",
    type="feedback",
    title="How would you rate the overall quality of this response?",
    input=InputCategorical(options=["Poor", "Fair", "Good", "Excellent"]),
    instruction="Consider accuracy, relevance, and helpfulness when rating."
)

架构类型

在两种架构类型之间进行选择：

• feedback：评分、偏好或意见等主观评估
• expectation：客观的真相，如正确的答案或预期行为

import mlflow.genai.label_schemas as schemas
from mlflow.genai.label_schemas import InputCategorical, InputTextList

# Feedback schema for subjective assessment
tone_schema = schemas.create_label_schema(
    name="response_tone",
    type="feedback",
    title="Is the response tone appropriate for the context?",
    input=InputCategorical(options=["Too formal", "Just right", "Too casual"]),
    enable_comment=True  # Allow additional comments
)

# Expectation schema for ground truth
facts_schema = schemas.create_label_schema(
    name="required_facts",
    type="expectation",
    title="What facts must be included in a correct response?",
    input=InputTextList(max_count=5, max_length_each=200),
    instruction="List key facts that any correct response must contain."
)

管理标记架构

使用 SDK 函数以编程方式管理架构：

检索架构

import mlflow.genai.label_schemas as schemas

# Get an existing schema
schema = schemas.get_label_schema("response_quality")
print(f"Schema: {schema.name}")
print(f"Type: {schema.type}")
print(f"Title: {schema.title}")

更新架构

import mlflow.genai.label_schemas as schemas
from mlflow.genai.label_schemas import InputCategorical

# Update by recreating with overwrite=True
updated_schema = schemas.create_label_schema(
    name="response_quality",
    type="feedback",
    title="Rate the response quality (updated question)",
    input=InputCategorical(options=["Excellent", "Good", "Fair", "Poor", "Very Poor"]),
    instruction="Updated: Focus on factual accuracy above all else.",
    overwrite=True  # Replace existing schema
)

删除架构

import mlflow.genai.label_schemas as schemas

# Remove a schema that's no longer needed
schemas.delete_label_schema("old_schema_name")

自定义架构的输入类型

MLflow 支持五种输入类型来收集不同类型的反馈：

单选下拉列表（InputCategorical）

用于互斥选项：

from mlflow.genai.label_schemas import InputCategorical

# Rating scale
rating_input = InputCategorical(
    options=["1 - Poor", "2 - Below Average", "3 - Average", "4 - Good", "5 - Excellent"]
)

# Binary choice
safety_input = InputCategorical(options=["Safe", "Unsafe"])

# Multiple categories
error_type_input = InputCategorical(
    options=["Factual Error", "Logical Error", "Formatting Error", "No Error"]
)

多选下拉列表 （InputCategoricalList）

选择多个选项时使用：

from mlflow.genai.label_schemas import InputCategoricalList

# Multiple error types can be present
errors_input = InputCategoricalList(
    options=[
        "Factual inaccuracy",
        "Missing context",
        "Inappropriate tone",
        "Formatting issues",
        "Off-topic content"
    ]
)

# Multiple content types
content_input = InputCategoricalList(
    options=["Technical details", "Examples", "References", "Code samples"]
)

自由格式文本（InputText）

用于开放式回答：

from mlflow.genai.label_schemas import InputText

# General feedback
feedback_input = InputText(max_length=500)

# Specific improvement suggestions
improvement_input = InputText(
    max_length=200  # Limit length for focused feedback
)

# Short answers
summary_input = InputText(max_length=100)

多个文本条目 （InputTextList）

用于收集文本项的列表：

from mlflow.genai.label_schemas import InputTextList

# List of factual errors
errors_input = InputTextList(
    max_count=10,        # Maximum 10 errors
    max_length_each=150  # Each error description limited to 150 chars
)

# Missing information
missing_input = InputTextList(
    max_count=5,
    max_length_each=200
)

# Improvement suggestions
suggestions_input = InputTextList(max_count=3)  # No length limit per item

数字输入 （InputNumeric）

用于表示数值分级或分数：

from mlflow.genai.label_schemas import InputNumeric

# Confidence score
confidence_input = InputNumeric(
    min_value=0.0,
    max_value=1.0
)

# Rating scale
rating_input = InputNumeric(
    min_value=1,
    max_value=10
)

# Cost estimate
cost_input = InputNumeric(min_value=0)  # No maximum limit

完整示例

客户服务评估

下面是用于评估客户服务响应的综合示例：

import mlflow.genai.label_schemas as schemas
from mlflow.genai.label_schemas import (
    InputCategorical,
    InputCategoricalList,
    InputText,
    InputTextList,
    InputNumeric
)

# Overall quality rating
quality_schema = schemas.create_label_schema(
    name="service_quality",
    type="feedback",
    title="Rate the overall quality of this customer service response",
    input=InputCategorical(options=["Excellent", "Good", "Average", "Poor", "Very Poor"]),
    instruction="Consider helpfulness, accuracy, and professionalism.",
    enable_comment=True
)

# Issues identification
issues_schema = schemas.create_label_schema(
    name="response_issues",
    type="feedback",
    title="What issues are present in this response? (Select all that apply)",
    input=InputCategoricalList(options=[
        "Factually incorrect information",
        "Unprofessional tone",
        "Doesn't address the question",
        "Too vague or generic",
        "Contains harmful content",
        "No issues identified"
    ]),
    instruction="Select all issues you identify. Choose 'No issues identified' if the response is problem-free."
)

# Expected resolution steps
resolution_schema = schemas.create_label_schema(
    name="expected_resolution",
    type="expectation",
    title="What steps should be included in the ideal resolution?",
    input=InputTextList(max_count=5, max_length_each=200),
    instruction="List the key steps a customer service rep should take to properly resolve this issue."
)

# Confidence in assessment
confidence_schema = schemas.create_label_schema(
    name="assessment_confidence",
    type="feedback",
    title="How confident are you in your assessment?",
    input=InputNumeric(min_value=1, max_value=10),
    instruction="Rate from 1 (not confident) to 10 (very confident)"
)

医疗信息评审

评估医疗信息响应的示例：

import mlflow.genai.label_schemas as schemas
from mlflow.genai.label_schemas import InputCategorical, InputTextList, InputNumeric

# Safety assessment
safety_schema = schemas.create_label_schema(
    name="medical_safety",
    type="feedback",
    title="Is this medical information safe and appropriate?",
    input=InputCategorical(options=[
        "Safe - appropriate general information",
        "Concerning - may mislead patients",
        "Dangerous - could cause harm if followed"
    ]),
    instruction="Assess whether the information could be safely consumed by patients."
)

# Required disclaimers
disclaimers_schema = schemas.create_label_schema(
    name="required_disclaimers",
    type="expectation",
    title="What medical disclaimers should be included?",
    input=InputTextList(max_count=3, max_length_each=300),
    instruction="List disclaimers that should be present (e.g., 'consult your doctor', 'not professional medical advice')."
)

# Accuracy of medical facts
accuracy_schema = schemas.create_label_schema(
    name="medical_accuracy",
    type="feedback",
    title="Rate the factual accuracy of the medical information",
    input=InputNumeric(min_value=0, max_value=100),
    instruction="Score from 0 (completely inaccurate) to 100 (completely accurate)"
)

与标记会话集成

创建架构后，可以在标记会话中使用它们。

import mlflow.genai.label_schemas as schemas

# Schemas are automatically available when creating labeling sessions
# The Review App will present questions based on your schema definitions

# Example: Using schemas in a session (conceptual - actual session creation
# happens through the Review App UI or other APIs)
session_schemas = [
    "service_quality",      # Your custom schema
    "response_issues",      # Your custom schema
    schemas.EXPECTED_FACTS  # Built-in schema
]

最佳做法

架构设计

• 明确标题：将问题写成清晰、具体的提示
• 有用的说明：提供指导审阅者的上下文
• 适当的约束：设置文本长度和列表计数的合理限制
• 逻辑选项：对于分类输入，请确保选项互斥且全面

架构管理

• 一致的命名：跨架构使用描述性、一致的名称
• 版本控制：更新架构时，请考虑对现有会话的影响
• 清理：删除未使用的架构以保持工作区井然有序

输入类型选择

• 使用 InputCategorical 进行标准化评级或分类
• 如果存在多个问题或功能时，使用InputCategoricalList
• 使用 InputText 进行详细说明或自定义反馈
• 使用 InputTextList 获取结构化的项目列表
• 使用 InputNumeric 进行精确评分或置信度评估

后续步骤

• 标记现有跟踪 - 应用架构以收集结构化反馈
• 创建标记会话 - 使用架构组织评审工作流
• 生成评估数据集 - 将标记的数据转换为测试数据集
