Durable Functions publishing to Azure Event Grid

Learn how to automatically publish orchestration lifecycle events (such as created, completed, and failed) to a custom Azure Event Grid topic. This feature is useful for DevOps scenarios (blue/green deployments), advanced monitoring, and tracking long-running background activities.

Prerequisites

• A running Durable Functions project deployed to Azure. If you don't have one, create one using the quickstart for your preferred language:
  • C# (isolated worker model)
  • JavaScript
  • Python
  • PowerShell
  • Java
• Your Durable Functions project must have:
  • The Durable Functions extension installed (version 2.7.0 or later for in-process, or 1.1.0 or later for isolated worker model).
  • Managed identity enabled and configured.
  • A running storage provider or the local Azurite storage emulator.
• Install Azure CLI
• An HTTP test tool that keeps your data secure.

In this guide, you'll set up end-to-end event publishing from a Durable Functions app to Azure Event Grid.

Verify the Durable Functions extension

Before proceeding, verify you have a compatible Durable Functions extension version installed in your project. The minimum required version is 2.7.0 for in-process model or 1.1.0 for isolated worker model.

The following examples show how to verify and update the extension for .NET projects. For other languages, check your package.json (JavaScript), requirements.txt (Python), pom.xml or build.gradle (Java), or requirements.psd1 (PowerShell) for the Durable Functions extension version.

<PackageReference Include="Microsoft.Azure.Functions.Worker.Extensions.DurableTask" Version="1.1.0" />

dotnet add package Microsoft.Azure.Functions.Worker.Extensions.DurableTask --version 1.1.0

<PackageReference Include="Microsoft.Azure.WebJobs.Extensions.DurableTask" Version="2.7.0" />

dotnet add package Microsoft.Azure.WebJobs.Extensions.DurableTask --version 2.7.0

Create a custom Event Grid topic

You can create an Event Grid topic for sending events from Durable Functions by using the Azure CLI, PowerShell, or the Azure portal.

This guide uses the Azure CLI.

Create a resource group

Create a resource group with the az group create command. Pick a location that supports Event Grid and matches where you want to deploy your resources.

az group create --name <resource-group-name> --location <location>

Enable the Event Grid resource provider

1. If this is the first time you're using Event Grid in your Azure subscription, you might need to register the Event Grid resource provider. Run the following command to register the provider:

   az provider register --namespace Microsoft.EventGrid


2. It might take a moment for the registration to finish. To check the status, run the following command:

   az provider show --namespace Microsoft.EventGrid --query "registrationState"


   When registrationState is Registered, you're ready to continue.

Create a custom topic

An Event Grid topic provides a user-defined endpoint that you post your event to. Replace <topic-name> in the following command with a unique name for your topic. The topic name must be unique because it becomes a DNS entry.

az eventgrid topic create --name <topic-name> --location <location> --resource-group <resource-group-name>

Get the topic endpoint

Get the endpoint of the topic. Replace <topic-name> in the following commands with the name you chose.

az eventgrid topic show --name <topic-name> --resource-group <resource-group-name> --query "endpoint" --output tsv

Save this endpoint for later.

Configure Event Grid publishing with Managed Identity (recommended)

Managed identities in Azure allow resources to authenticate to Azure services without storing credentials, simplifying security and identity management. Assign the managed identity associated with your Durable Function app to your Event Grid custom topic.

Configure the Durable Functions publisher app

Although your Durable Functions app automatically publishes orchestration lifecycle events to Event Grid, you need to configure the connection settings. Update your local host.json file with the following configuration to enable Event Grid publishing:

{
  "version": "2.0",
  "logging": {
    "logLevel": {
      "default": "Information"
    }
  },
  "extensions": {
    "durableTask": {
      "tracing": {
        "traceInputsAndOutputs": false
      },
      "eventGridTopicEndpoint": "%EventGrid__topicEndpoint%",
      "eventGridKeySettingName": "EventGrid__credential"
    }
  }
}

{
  "version": "1.0",
  "logging": {
    "logLevel": {
      "default": "Information"
    }
  },
  "extensions": {
    "durableTask": {
      "tracing": {
        "traceInputsAndOutputs": false
      },
      "eventGridTopicEndpoint": "%EventGrid__topicEndpoint%",
      "eventGridKeySettingName": "EventGrid__credential"
    }
  }
}

Assign EventGrid Data Sender role

Grant your managed identity permission to publish events to the Event Grid topic.

az role assignment create \
  --assignee <client-id-of-managed-identity> \
  --assignee-principal-type ServicePrincipal \
  --role "EventGrid Data Sender" \
  --scope /subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.EventGrid/topics/<topic-name>

az role assignment create \
  --assignee-object-id <object-id-of-function-app-identity> \
  --assignee-principal-type ServicePrincipal \
  --role "EventGrid Data Sender" \
  --scope /subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.EventGrid/topics/<topic-name>

az functionapp identity show \
  --name <function-app-name> \
  --resource-group <resource-group-name> \
  --query principalId --output tsv

Configure app settings

Once you've enabled managed identity for your function app and topic, configure the Event Grid app settings on your Durable Functions function app.

If using user-assigned managed identity (recommended)

Add the following app settings:

• EventGrid__topicEndpoint with the value as the Event Grid topic endpoint.
• EventGrid__credential with the value managedidentity.
• EventGrid__clientId with the value of the user assigned managed identity client ID.

az functionapp config appsettings set --name <function app name> --resource-group <resource group name> --settings EventGrid__topicEndpoint="<topic endpoint>" EventGrid__credential="managedidentity" EventGrid__clientId="<client id>"

If using system-assigned managed identity

Add an EventGrid__topicEndpoint app setting with the value as the Event Grid topic endpoint.

az functionapp config appsettings set --name <function app name> --resource-group <resource group name> --settings EventGrid__topicEndpoint="<topic endpoint>"

Create functions that listen for events

Create another function app to listen for events published by your Durable Functions app. The listener function app must be in the same region as the Event Grid topic.

Create the listener function app

1. Create a resource group for the listener function app.

   az group create --name <listener-resource-group-name> --location <location>


2. Create a storage account for the listener function app.

   az storage account create \
     --name <storage-account-name> \
     --resource-group <listener-resource-group-name> \
     --location <location> \
     --sku Standard_LRS \
     --allow-blob-public-access false


3. Create the function app.

   az functionapp create \
     --resource-group <listener-resource-group-name> \
     --consumption-plan-location <location> \
     --runtime <preferred-runtime> \
     --runtime-version <runtime-version> \
     --functions-version 4 \
     --name <listener-function-app-name> \
     --storage-account <storage-account-name>


Replace the placeholder values:

• <listener-resource-group-name>: The name for your listener resource group
• <location>: The Azure region (must match your Event Grid topic region)
• <storage-account-name>: A globally unique name for your storage account (3-24 characters, lowercase and numbers only)
• <listener-function-app-name>: A globally unique name for your listener function app
• <preferred-runtime>: The programming runtime of your project. For example, dotnet-isolated.
• <runtime-version>: The version of the runtime you're using. For example, for dotnet-isolated runtime, you could specify 8.0.

Create an Event Grid trigger function locally

1. Create a local directory for your listener function project:

   mkdir EventGridListenerFunction
   cd EventGridListenerFunction


2. Initialize a new Functions project using your preferred language. The following example uses dotnet-isolated, but you can use node, python, java, or powershell:

   func init --name EventGridListener --runtime dotnet-isolated

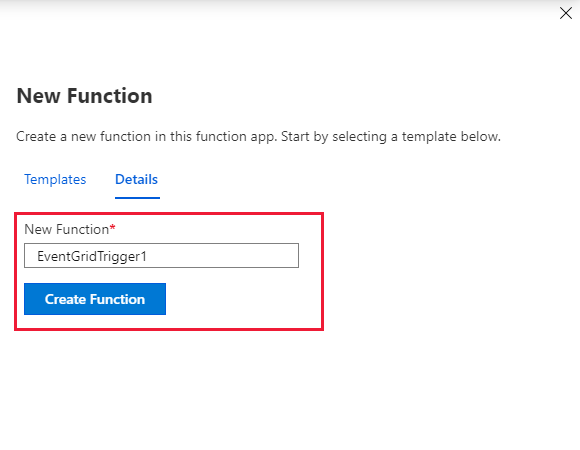

3. Create a new Event Grid trigger function:

   func new --template "Event Grid trigger" --name EventGridTrigger

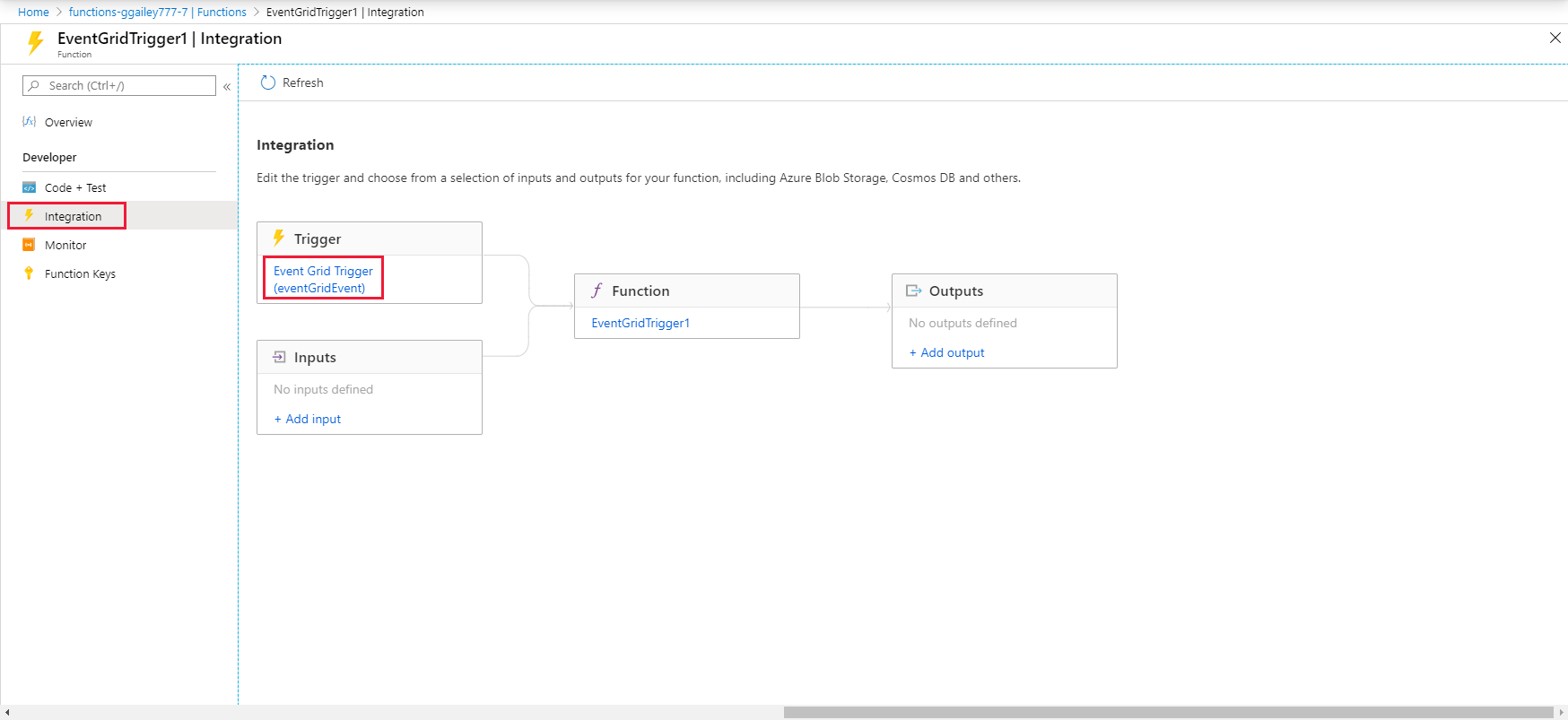

4. Open the generated Event Grid trigger file and review the code. The template provides a basic implementation that logs event information.

Publish the function to Azure

Publish your locally created function to the listener function app you created earlier:

func azure functionapp publish <listener-function-app-name>

Create an Event Grid subscription using CLI

You can now create an Event Grid subscription that connects the Event Grid topic to your listener function. For more information, see Concepts in Azure Event Grid.

Create the Event Grid subscription using the azurefunction endpoint type, which automatically handles the webhook handshake:

az eventgrid event-subscription create \
  --name <subscription-name> \
  --source-resource-id /subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.EventGrid/topics/<topic-name> \
  --endpoint /subscriptions/<subscription-id>/resourceGroups/<listener-resource-group-name>/providers/Microsoft.Web/sites/<listener-function-app-name>/functions/EventGridTrigger \
  --endpoint-type azurefunction

Replace the placeholder values:

• <subscription-name>: A name for your Event Grid subscription (for example, DurableFunctionsEventSub)
• <subscription-id>: Your Azure subscription ID
• <resource-group-name>: The resource group containing your Event Grid topic
• <topic-name>: The name of your Event Grid topic
• <listener-resource-group-name>: The resource group containing your listener function app
• <listener-function-app-name>: The name of your listener function app

Now you're ready to receive lifecycle events.

Deploy and verify the setup

Deploy the Durable Functions app

Before running the end-to-end flow, ensure your Durable Functions app is deployed to Azure:

1. In your Durable Functions project, publish the function code to Azure.
2. Verify deployment by navigating to your function app in the Azure portal and checking that it shows a "Running" status.

Verify Event Grid configuration

Before starting an orchestration, verify that Event Grid publishing is properly configured:

1. In the Azure portal, navigate to your Event Grid custom topic.
2. Select Metrics and check for Published Events or Dropped Events to verify the topic is accessible.
3. In your Durable Functions function app, verify the app settings appear under Settings > Environment variables:
   • EventGrid__topicEndpoint should be set
   • EventGrid__credential should be set to managedidentity (if using managed identity)

Run an orchestration and monitor events

With the setup verified, trigger an orchestration and monitor the event flow:

1. In the Azure portal, navigate to your Durable Functions function app.

2. Select Functions and locate your HTTP-triggered orchestration starter function (for example, HelloOrchestration_HttpStart).

3. Select Code + Test and select Get function URL.

4. Use an HTTP client (such as Postman or curl) to send a POST request to the function URL. For example:

   curl -X POST https://<function_app_name>.chinacloudsites.cn/api/HelloOrchestration_HttpStart


5. The orchestration starts, and the Durable Functions runtime publishes lifecycle events to Event Grid.

Verify events in the listener function

Check the listener function app to confirm it received events:

1. In the Azure portal, navigate to your listener function app (the one with the Event Grid trigger).
2. Select the Event Grid trigger function (for example, EventGridTrigger).
3. Select Monitor to view recent executions.
4. Select an execution to view the event details.

You should see output similar to the following when the listener function processes an orchestration lifecycle event:

2026-01-27T14:32:15.847 [Info] Event Grid trigger function processed an event.
2026-01-27T14:32:15.848 [Info] Event type: orchestratorEvent
2026-01-27T14:32:15.849 [Info] Event subject: durable/orchestrator/Running
2026-01-27T14:32:15.850 [Info] Event data: {"hubName":"DurableFunctionsHub","functionName":"HelloOrchestration","instanceId":"<your_instance_id>","reason":"","runtimeStatus":"Running"}
2026-01-27T14:32:32.114 [Info] Event Grid trigger function processed an event.
2026-01-27T14:32:32.115 [Info] Event type: orchestratorEvent
2026-01-27T14:32:32.116 [Info] Event subject: durable/orchestrator/Completed
2026-01-27T14:32:32.117 [Info] Event data: {"hubName":"DurableFunctionsHub","functionName":"HelloOrchestration","instanceId":"<your_instance_id>","reason":"","runtimeStatus":"Completed"}

Verify in Application Insights (optional)

For a more comprehensive view of events:

1. In the Azure portal, navigate to your Durable Functions function app.
2. Select Application Insights from the left menu.
3. Select Logs and run this KQL query to view all processed events:

   traces
   | where message contains "Event type" or message contains "Event subject"
   | project timestamp, message
   | order by timestamp desc


Event schema

When a Durable Functions orchestration state changes, Event Grid publishes an event with the following structure:

Understanding event flow

Events are published automatically by the Durable Functions runtime for each orchestration state transition. You don't need to add code to emit events—they're generated automatically. Event Grid ensures at-least-once delivery to all subscribers, so you may receive duplicate events in rare failure scenarios. Consider adding deduplication logic using the instanceId if needed.

Troubleshooting

Events are not being published to Event Grid

Problem: The listener function is not receiving events.

Solutions:

• Verify the Durable Functions function app has the correct app settings:
  • EventGrid__topicEndpoint must point to your custom topic endpoint
  • EventGrid__credential must be set to managedidentity
  • EventGrid__clientId must be set if using a user-assigned identity
• Verify the managed identity has the EventGrid Data Sender role assigned to the Event Grid custom topic.
• Check the Durable Functions function app logs in Application Insights for errors.
• Verify the Event Grid topic exists and is accessible in the same subscription.

Listener function is not being triggered

Problem: The listener function exists but isn't executing when events are published.

Solutions:

• Verify the Event Grid subscription was created and is enabled:
  • In the Azure portal, navigate to your Event Grid topic → Subscriptions
  • Confirm your listener function's subscription is listed with status Enabled
• Verify the Event Grid subscription is using the correct endpoint type:
  • For Azure Functions, use --endpoint-type azurefunction with the function's resource ID
  • If you used --endpoint-type webhook, ensure the webhook URL is in the correct format: https://<function-app>.chinacloudsites.cn/runtime/webhooks/eventgrid?functionName=<function-name>&code=<system-key>
• Check the listener function app logs for errors or delivery issues.
• In the Event Grid topic → Metrics, check for Dropped Events which may indicate delivery failures.

"Forbidden" or authentication errors in logs

Problem: Authentication errors when publishing to Event Grid.

Solutions:

• Verify the managed identity is properly configured and enabled on the Durable Functions function app:
  • In the Azure portal, navigate to your function app → Identity
  • Confirm "Status" shows On for either system-assigned or user-assigned identity
• Verify the role assignment is correct:
  • Navigate to your Event Grid topic → Access Control (IAM)
  • Confirm your managed identity has the EventGrid Data Sender role (note: no space between "Event" and "Grid")
  • The role assignment may take 5-10 minutes to propagate

"Connection refused" or "endpoint not found" errors

Problem: Connection errors to the Event Grid topic.

Solutions:

• Verify the Event Grid topic endpoint in your app settings is correct and includes the full URL (for example, https://my-topic.eventgrid.chinacloudapi.cn/api/events)
• Verify the Event Grid topic resource exists in the same subscription and region
• Check that your Durable Functions app has network access to the Event Grid endpoint

Test locally

To test locally, see Local testing with viewer web app. When testing locally with managed identity, use your developer credentials to authenticate against the Event Grid topic. See Configure Durable Functions with managed identity - Local development for details.

Clean up resources

If you're not going to continue to use the resources created in this tutorial, delete them to avoid incurring charges.

Delete the resource groups

Delete both resource groups and all their contained resources:

az group delete --name <resource-group-name> --yes
az group delete --name <listener-resource-group-name> --yes

Delete individual resources

If you want to keep some resources, you can delete them individually:

1. Delete the Event Grid subscription:

   az eventgrid event-subscription delete \
     --name <subscription-name> \
     --source-resource-id /subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.EventGrid/topics/<topic-name>


2. Delete the Event Grid topic:

   az eventgrid topic delete --name <topic-name> --resource-group <resource-group-name>


3. Delete the function apps:

   az functionapp delete --name <publisher-function-app-name> --resource-group <resource-group-name>
   az functionapp delete --name <listener-function-app-name> --resource-group <listener-resource-group-name>


4. Delete the storage accounts:

   az storage account delete --name <storage-account-name> --resource-group <resource-group-name> --yes
   az storage account delete --name <listener-storage-account-name> --resource-group <listener-resource-group-name> --yes


Next steps

Learn more about:

• Instance management
• Versioning in Durable Functions
