Connect to Azure SQL resource with Microsoft Entra authentication

Article
11/18/2024

Applies to: Azure SQL Database Azure SQL Managed Instance Azure Synapse Analytics

This article shows you how to use Microsoft Entra authentication to connect to Azure SQL Database, Azure SQL Managed Instance, and Azure Synapse Analytics.

Prerequisites

To connect to your Azure SQL resource, you need to have configured Microsoft Entra authentication for your resource.

To confirm the Microsoft Entra administrator is properly set up, connect to the master database using the Microsoft Entra administrator account. To create a Microsoft Entra-based contained database user, connect to the database with a Microsoft Entra identity with access to the database and at least the ALTER ANY USER permission.

Connect with SSMS or SSDT

The following procedures show you how to connect to SQL Database with a Microsoft Entra identity using SQL Server Management Studio (SSMS) or SQL Server Database Tools (SSDT).

Microsoft Entra Integrated

Use this method when you want to log in using your Windows credentials that are federated into Microsoft Entra ID.

Start SSMS or SSDT and in the Login tab of the Connect to Server (or Connect to Database Engine) dialog box:
1. Provide the Server name in the format <server-name>.database.chinacloudapi.cn.
2. For Authentication, select Microsoft Entra Integrated. No need to enter a password because your existing credentials are presented for the connection.
3. For Encryption, select Strict (SQL Server 2022 and Azure SQL), which should be used to connect to Azure SQL resources.
On the Connection properties tab, in the Connect to database field, type the name of the user database you want to connect to.

Microsoft Entra Password

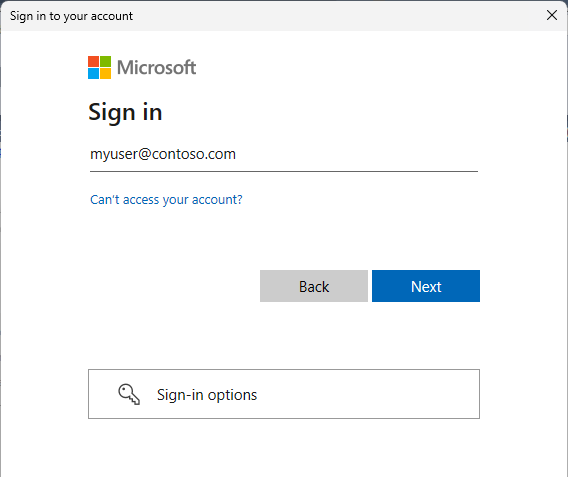

Use this method when connecting with a Microsoft Entra principal name using the Microsoft Entra managed domain. You can also use it for federated accounts without access to the domain when, for example, working remotely.

Use this method to authenticate to the database in SQL Database or SQL Managed Instance with Microsoft Entra cloud-only identity users, or those who use Microsoft Entra hybrid identities. This method supports users who want to use their Windows credential, but their local machine isn't joined with the domain (for example, using remote access). In this case, a Windows user can indicate their domain account and password, and can authenticate to the database in SQL Database, the SQL Managed Instance, or Azure Synapse.

Start SSMS or SSDT and on the Login tab of the Connect to Server (or Connect to Database Engine) dialog box:
1. Provide the Server name in the format <server-name>.database.chinacloudapi.cn.
2. For Authentication, select Microsoft Entra Password.
3. In the User name box, type your Microsoft Entra user name in the format username@domain.com. User names must be an account from Microsoft Entra ID or an account from a managed or federated domain with Microsoft Entra ID.
4. In the Password box, type your user password for the Microsoft Entra account or managed/federated domain account.
5. For Encryption, select Strict (SQL Server 2022 and Azure SQL), which should be used to connect to Azure SQL resources.
On the Connection properties tab, in the Connect to database field, type the name of the user database you want to connect to.

Microsoft Entra Service Principal

Use this method to authenticate to the database in SQL Database or SQL Managed Instance with Microsoft Entra service principals (Microsoft Entra applications). For more information, see Microsoft Entra service principal with Azure SQL.

Microsoft Entra Managed Identity

Use this method to authenticate to the database in SQL Database or SQL Managed Instance with Microsoft Entra managed identities. For more information, see Managed identities in Microsoft Entra for Azure SQL.

Microsoft Entra Default

The Default authentication option with Microsoft Entra ID enables authentication that's performed through password-less and non-interactive mechanisms including managed identities.

Connect from a client application

The following procedures show you how to connect to a SQL Database with a Microsoft Entra identity from a client application. This isn't a comprehensive list of authentication methods when using a Microsoft Entra identity. For more information, see Connect to Azure SQL with Microsoft Entra authentication and SqlClient.

Configure your client applications

Note

System.Data.SqlClient uses the Azure Active Directory Authentication Library (ADAL), which is deprecated. If you're using the System.Data.SqlClient namespace for Microsoft Entra authentication, migrate applications to Microsoft.Data.SqlClient and the Microsoft Authentication Library (MSAL). To understand the connection methods available in .NET, see Connect to Azure SQL with Microsoft Entra authentication and SqlClient.

If you must continue using ADAL.DLL in your applications, you can use the links in this section to install the latest ODBC or OLE DB driver, which contain the latest ADAL.DLL library.

On all client machines from which your applications or users connect to SQL Database or Azure Synapse Analytics using Microsoft Entra identities, you must install the following software:

.NET Framework 4.6 or later.
Microsoft Authentication Library (MSAL) or Microsoft Authentication Library for SQL Server (ADAL.DLL). Links to install the latest SSMS, ODBC, and OLE DB driver that contains the ADAL.DLL library are available here:

You can meet these requirements by:

Installing the latest version of SQL Server Management Studio or SQL Server Data Tools to meet the .NET Framework 4.6 requirement.
- SSMS installs the x86 version of ADAL.DLL.
- SSDT installs the amd64 version of ADAL.DLL.
- The latest Visual Studio from Visual Studio Downloads meets the .NET Framework 4.6 requirement but doesn't install the required amd64 version of ADAL.DLL.

Microsoft Entra integrated authentication

To use integrated Windows authentication, your domain's Active Directory must be federated with Microsoft Entra ID.

Your client application (or a service) connecting to the database must be running on a domain-joined machine under a user's domain credentials.

To connect to a database using integrated authentication and a Microsoft Entra identity, the Authentication keyword in the database connection string must be set to Active Directory Integrated. Replace <server_name> with your logical server name. The following C# code sample uses ADO .NET.

string ConnectionString = @"Data Source=<server-name>.database.chinacloudapi.cn; Authentication=Active Directory Integrated; Initial Catalog=testdb;";
SqlConnection conn = new SqlConnection(ConnectionString);
conn.Open();

The connection string keyword Integrated Security=True isn't supported for connecting to Azure SQL Database. When making an ODBC connection, you need to remove spaces and set authentication to ActiveDirectoryIntegrated.

Microsoft Entra password authentication

To connect to a database using Microsoft Entra cloud-only identity user accounts, or those who use Microsoft Entra hybrid identities, the Authentication keyword must be set to Active Directory Password. The connection string must contain User ID/UID and Password/PWD keywords and values. Replace <server_name>, <email_address>, and <password> with the appropriate values. The following C# code sample uses ADO .NET.

string ConnectionString =
@"Data Source=<server-name>.database.chinacloudapi.cn; Authentication=Active Directory Password; Initial Catalog=testdb; UID=<email_address>; PWD=<password>";
SqlConnection conn = new SqlConnection(ConnectionString);
conn.Open();

Learn more about Microsoft Entra authentication methods using the demo code samples available at Microsoft Entra authentication GitHub Demo.

sqlcmd

The following statements connect using version 13.1 of sqlcmd. Download Microsoft Command Line Utilities 14.0 for SQL Server.
