Create an Event Hubs data connection for Azure Data Explorer

• A Microsoft account or a Microsoft Entra user identity. An Azure subscription isn't required.
• An Azure Data Explorer cluster and database. Create a cluster and database.
• Streaming ingestion must be configured on your Azure Data Explorer cluster.

1. From the left menu, select Query.

2. Right-click on the database where you want to ingest the data. Select Get data.



In the Get data window, the Source tab is selected.

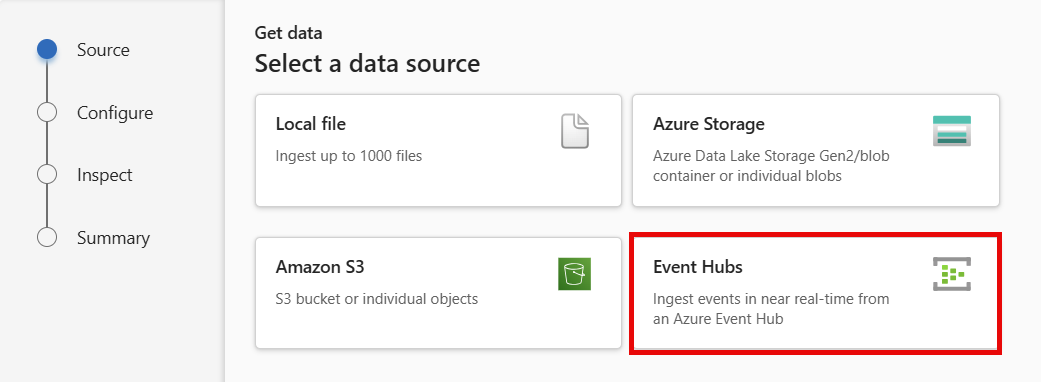

Select the data source from the available list. In this example, you're ingesting data from Event Hubs.

1. Select a target database and table. If you want to ingest data into a new table, select + New table and enter a table name.

   Note

   Table names can be up to 1024 characters including spaces, alphanumeric, hyphens, and underscores. Special characters aren't supported.



2. Fill in the following fields:

   Expand table

   Setting	Field description
   Subscription	The subscription ID where the event hub resource is located.
   Event hub namespace	The name that identifies your namespace.
   Event hub	The event hub you wish to
   Consumer group	The consumer group defined in your event
   Data connection name	The name that identifies your data connection.
   Advanced filters
   Compression	The compression type of the event hub messages payload.
   Event system properties	The event hub system properties. If there are multiple records per event message, the system properties are added to the first one. When adding system properties, create or update table schema and mapping to include the selected properties.
   Event retrieval start date	The data connection retrieves existing Event Hubs events created after the Event retrieval start date. Only events retained by Event Hubs's retention period can be retrieved. If the Event retrieval start date isn't specified, the default time is the time at which the data connection is created.

3. Select Next

The Inspect tab opens with a preview of the data.

To complete the ingestion process, select Finish.

Optionally:

• If the data you see in the preview window isn't complete, you might need more data to create a table with all necessary data fields. Use the following commands to fetch new data from your event hub:

  • Discard and fetch new data: Discards the data presented and searches for new events.

  • Fetch more data: Searches for more events in addition to the events already found.

    Note

    To see a preview of your data, your event hub must be sending events.

• Select Command viewer to view and copy the automatic commands generated from your inputs.

• Use the Schema definition file dropdown to change the file that the schema is inferred from.

• Change the automatically inferred data format by selecting the desired format from the dropdown. See Data formats supported by Azure Data Explorer for ingestion.

• Edit columns.

• Explore Advanced options based on data type.

The changes you can make in a table depend on the following parameters:

• Table type is new or existing
• Mapping type is new or existing

Some data format mappings (Parquet, JSON, and Avro) support simple ingest-time transformations. To apply mapping transformations, create or update a column in the Edit columns window.

Mapping transformations can be performed on a column of type string or datetime, with the source having data type int or long. Supported mapping transformations are:

• DateTimeFromUnixSeconds
• DateTimeFromUnixMilliseconds
• DateTimeFromUnixMicroseconds
• DateTimeFromUnixNanoseconds

Tabular (CSV, TSV, PSV):

• If you're ingesting tabular formats in an existing table, you can select Advanced > Keep current table schema. Tabular data doesn't necessarily include the column names that are used to map source data to the existing columns. When this option is checked, mapping is done by-order, and the table schema remains the same. If this option is unchecked, new columns are created for incoming data, regardless of data structure.

• To use the first row as column names, select Advanced > First row is column header.



JSON:

• To determine column division of JSON data, select Advanced > Nested levels, from 1 to 100.

• If you select Advanced > Ignore data format errors, the data is ingested in JSON format. If you leave this check box unselected, the data is ingested in multijson format.



In the Data preparation window, all three steps are marked with green check marks when data ingestion finishes successfully. You can view the commands that were used for each step, or select a card to query, visualize, or drop the ingested data.

• An Azure subscription. Create a Azure account.
• An Azure Data Explorer cluster and database. Create a cluster and database.
• A destination table. Create a table or use an existing table.
• An ingestion mapping for the table.
• An event hub with data for ingestion.

1. In the Azure portal, go to your cluster and select Databases. Then, select the database that contains your target table.



2. From the left menu, select Data ingestion. Then, in the top bar, select Add data connection.

3. Fill out the form with the following information, and then select Create.

   Expand table

   Setting	Suggested value	Field description
   Data connection name	test-hub-connection	The name of the connection you want to create in Azure Data Explorer.
   Subscription		The subscription ID where the event hub resource is located.
   Event hub namespace	A unique namespace name	The name you chose earlier that identifies your namespace.
   Event hub	test-hub	The event hub you created.
   Consumer group	test-group	The consumer group defined in the event hub you created.
   Event system properties	Select relevant properties	The event hub system properties. If there are multiple records per event message, the system properties are added to the first record. When adding system properties, create or update table schema and mapping to include the selected properties.
   Compression	None	The compression type of the event hub messages payload. Supported compression types: None, gzip.
   Managed Identity (recommended)	System-assigned	The managed identity used by the Data Explorer cluster for access to read from the event hub. We recommend using managed identities to control access to your event hub. Note: When the data connection is created: * System-assigned identities are automatically created if they don't exist * The managed identity is automatically assigned the Azure Event Hubs Data Receiver role and is added to your Data Explorer cluster. We recommend verifying that the role was assigned and that the identity was added to the cluster.

   Note

   If you have an existing data connection that is not using managed identities, we recommend updating it to use managed identities.

• An Azure subscription. Create a Azure account.
• An Azure Data Explorer cluster and database. Create a cluster and database.
• A destination table. Create a table or use an existing table.
• An ingestion mapping for the table.
• An event hub with data for ingestion.

1. In the Azure portal, browse to your Event Hubs Instance.

2. Under the Features side menu, select Analyze data with Kusto.

3. Select Start to open the ingestion wizard to Azure Data Explorer.



   Note

   • You must have at least Database User permissions.
   • To enable access between a cluster and a storage account without public access, see Create a Managed Private Endpoint.
   • The cluster and event hub should be associated with the same tenants. If not, use one of the SDK options, such as C# or Python.

4. The Ingest data side pane opens with the Destination tab selected. Select the Cluster and Database fields from the drop-downs. Make sure you select a cluster that is running. Otherwise, you won't be able to select Database and proceed with the ingestion process.

5. Under Table, select New table and enter a name for the new table. Alternatively, use an Existing table.

6. Select Next: Source.

7. Under Source type, the Event Hub type and details are autopopulated based on the Event Hubs Instance that you started from.

8. Under Data Connection, fill in the following fields and select Next: Schema.

   Expand table

   Setting	Suggested value	Field description
   Subscription		The subscription ID where the event hub resource is located.
   Event hub namespace		The name that identifies your namespace.
   Event hub		The event hub you wish to use.
   Data connection name	TestDataConnection	The name that identifies your data connection.
   Consumer group		The consumer group defined in your event hub.
   Compression		The compression type of the event hub messages payload.
   Event system properties	Select relevant properties	The event hub system properties. If there are multiple records per event message, the system properties are added to the first one. When adding system properties, create or update table schema and mapping to include the selected properties.
   Event retrieval start date	Coordinated Universal Time (UTC)	The data connection retrieves existing Event Hubs events created after the Event retrieval start date. Only events retained by Event Hubs's retention period can be retrieved. If the Event retrieval start date isn't specified, the default time is the time at which the data connection is created.

9. If streaming is enabled for the cluster, you can select Streaming ingestion. If streaming isn't enabled for the cluster, set the Data batching latency. For Event Hubs, the recommended batching time is 30 seconds.



10. Select the Data format. For CSV-formatted data, Ignore the first record to ignore the heading row of the file. For JSON-formatted data, select Ignore data format errors to ingest the data in JSON format or leave unselected to ingest the data in multijson format. Select the Nested levels to determine the table column data division.

11. If the data you see in the preview window isn't complete, you might need more data to create a table with all necessary data fields. Use the following commands to fetch new data from your event hub:

    • Discard and fetch new data: discards the data presented and searches for new events.
    • Fetch more data: Searches for more events in addition to the events already found.

    Note

    To see a preview of your data, your event hub must be sending events.

12. Select Next: Summary.

13. In the Continuous ingestion from Event Hub established window, all steps are marked with green check marks when establishment finishes successfully.

• An Azure subscription. Create a Azure account.
• An Azure Data Explorer cluster and database. Create a cluster and database.
• A destination table. Create a table or use an existing table.
• An ingestion mapping for the table.
• An event hub with data for ingestion.

The following example shows an Azure Resource Manager template for adding an Event Hubs data connection. You can edit and deploy the template in the Azure portal by using the form.

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "namespaces_eventhubns_name": {
            "type": "string",
            "defaultValue": "eventhubns",
            "metadata": {
                "description": "Specifies the Event Hubs Namespace name."
            }
        },
        "EventHubs_eventhubdemo_name": {
            "type": "string",
            "defaultValue": "eventhubdemo",
            "metadata": {
                "description": "Specifies the event hub name."
            }
        },
        "consumergroup_default_name": {
            "type": "string",
            "defaultValue": "$Default",
            "metadata": {
                "description": "Specifies the consumer group of the event hub."
            }
        },
        "Clusters_kustocluster_name": {
            "type": "string",
            "defaultValue": "kustocluster",
            "metadata": {
                "description": "Specifies the name of the cluster"
            }
        },
        "databases_kustodb_name": {
            "type": "string",
            "defaultValue": "kustodb",
            "metadata": {
                "description": "Specifies the name of the database"
            }
        },
        "tables_kustotable_name": {
            "type": "string",
            "defaultValue": "kustotable",
            "metadata": {
                "description": "Specifies the name of the table"
            }
        },
        "mapping_kustomapping_name": {
            "type": "string",
            "defaultValue": "kustomapping",
            "metadata": {
                "description": "Specifies the name of the mapping rule"
            }
        },
        "dataformat_type": {
            "type": "string",
            "defaultValue": "csv",
            "metadata": {
                "description": "Specifies the data format"
            }
        },
        "databaseRouting_type": {
            "type": "string",
            "defaultValue": "Single",
            "metadata": {
                "description": "The database routing for the connection. If you set the value to **Single**, the data connection will be routed to a single database in the cluster as specified in the *databaseName* setting. If you set the value to **Multi**, you can override the default target database using the *Database* EventData property."
            }
        },
        "dataconnections_kustodc_name": {
            "type": "string",
            "defaultValue": "kustodc",
            "metadata": {
                "description": "Name of the data connection to create"
            }
        },
        "subscriptionId": {
            "type": "string",
            "defaultValue": "[subscription().subscriptionId]",
            "metadata": {
                "description": "Specifies the subscriptionId of the event hub"
            }
        },
        "resourceGroup": {
            "type": "string",
            "defaultValue": "[resourceGroup().name]",
            "metadata": {
                "description": "Specifies the resourceGroup of the event hub"
            }
        },
        "location": {
            "type": "string",
            "defaultValue": "[resourceGroup().location]",
            "metadata": {
                "description": "Location for all resources."
            }
        }
    },
    "variables": {
    },
    "resources": [{
            "type": "Microsoft.Kusto/Clusters/Databases/DataConnections",
            "apiVersion": "2022-02-01",
            "name": "[concat(parameters('Clusters_kustocluster_name'), '/', parameters('databases_kustodb_name'), '/', parameters('dataconnections_kustodc_name'))]",
            "location": "[parameters('location')]",
            "kind": "EventHub",
            "properties": {
                "managedIdentityResourceId": "[resourceId('Microsoft.Kusto/clusters', parameters('clusters_kustocluster_name'))]",
                "eventHubResourceId": "[resourceId(parameters('subscriptionId'), parameters('resourceGroup'), 'Microsoft.EventHub/namespaces/eventhubs', parameters('namespaces_eventhubns_name'), parameters('EventHubs_eventhubdemo_name'))]",
                "consumerGroup": "[parameters('consumergroup_default_name')]",
                "tableName": "[parameters('tables_kustotable_name')]",
                "mappingRuleName": "[parameters('mapping_kustomapping_name')]",
                "dataFormat": "[parameters('dataformat_type')]",
                "databaseRouting": "[parameters('databaseRouting_type')]"
            }
        }
    ]
}

Remove the data connection through the Azure portal as explained in the portal tab.

To remove the event hub connection from the Azure portal, do the following:

1. Go to your cluster. From the left menu, select Databases. Then, select the database that contains the target table.
2. From the left menu, select Data connections. Then, select the checkbox next to the relevant event hub data connection.
3. From the top menu bar, select Delete.
