Use customer-managed keys in Azure Key Vault for Azure Data Box

Azure Data Box protects the device unlock key (also known as the device password), which is used to lock a device, via an encryption key. By default, this encryption key is a Microsoft managed key. For more control, you can use a customer-managed key.

Using a customer-managed key doesn't affect how data on the device is encrypted. It only affects how the device unlock key is encrypted.

To keep this level of control throughout the order process, use a customer-managed key when you create your order. For more information, see Tutorial: Order Azure Data Box.

This article shows how to enable a customer-managed key for your existing Data Box order in the Azure portal. You'll find out how to change the key vault, key, version, or identity for your current customer-managed key, or switch back to using a Microsoft managed key.

Requirements

The customer-managed key for a Data Box order must meet the following requirements:

• The key must be created and stored in an Azure Key Vault that has Soft delete and Do not purge enabled. For more information, see What is Azure Key Vault?. You can create a key vault and key while creating or updating your order.
• The key must be an RSA key of 2048 size or larger.
• You must enable the Get, UnwrapKey, and WrapKey permissions for the key in Azure Key Vault. The permissions must remain in place for the lifetime of the order. Otherwise, the customer-managed key can't be accessed at the start of the Data Copy phase.

Enable key

To enable a customer-managed key for your existing Data Box order in the Azure portal, follow these steps:

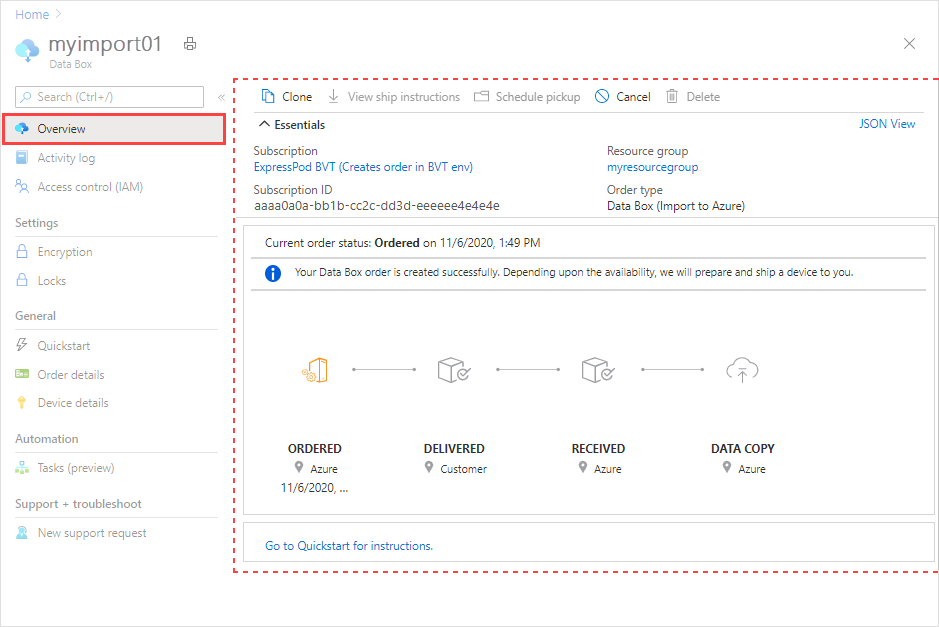

1. Go to the Overview screen for your Data Box order.

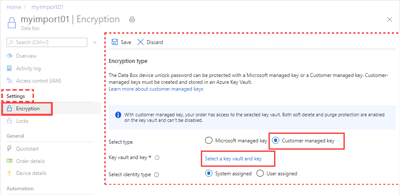

2. Go to Settings > Encryption, and select Customer managed key. Then select Select a key and key vault.



   On the Select key from Azure Key Vault screen, your subscription is automatically populated.

3. For Key vault, you can select an existing key vault from the dropdown list or select Create new and create a new key vault.



   To create a new key vault, enter the subscription, resource group, key vault name, and other info on the Create new key vault screen. In Recovery options, ensure that Soft delete and Purge protection are enabled. Then select Review + Create.



   Review the information for your key vault, and select Create. Wait for a couple minutes for key vault creation to complete.

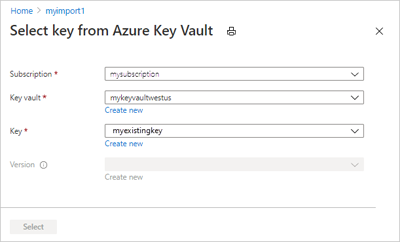

4. On the Select key from Azure Key Vault screen, you can select an existing key from the key vault or create a new one.



   If you want to create a new key, select Create new. You must use an RSA key. The size can be 2048 or greater.



   Enter a name for your new key, accept the other defaults, and select Create. You'll be notified that a key has been created in your key vault.



5. For Version, you can select an existing key version from the drop-down list.



   If you want to generate a new key version, select Create new.



   Choose settings for the new key version, and select Create.



6. When you've selected a key vault, key, and key version, choose Select.



   The Encryption type settings show the key vault and key that you chose.



7. Select the type of identity to use to manage the customer-managed key for this resource. You can use the system assigned identity that was generated during order creation or choose a user-assigned identity.

   A user-assigned identity is an independent resource that you can use to manage access to resources. For more information, see Managed identity types.



   To assign a user identity, select User assigned. Then select Select a user identity, and select the managed identity that you want to use.



   You can't create a new user identity here. To find out how to create one, see Create, list, delete, or assign a role to a user-assigned managed identity using the Azure portal.

   The selected user identity is shown in the Encryption type settings.



8. Select Save to save the updated Encryption type settings.

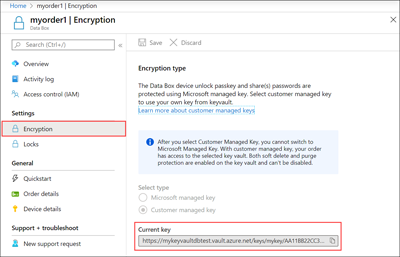

   The key URL is displayed under Encryption type.



Change key

To change the key vault, key, and/or key version for the customer-managed key you're currently using, follow these steps:

1. On the Overview screen for your Data Box order, go to Settings > Encryption, and click Change key.



2. Choose Select a different key vault and key.



3. The Select key from key vault screen shows the subscription but no key vault, key, or key version. You can make any of the following changes:

   • Select a different key from the same key vault. You'll need to select the key vault before selecting the key and version.

   • Select a different key vault and assign a new key.

   • Change the version for the current key.

   When you finish your changes, choose Select.



4. Select Save.



Change identity

To change the identity that's used to manage access to the customer-managed key for this order, follow these steps:

1. On the Overview screen for your completed Data Box order, go to Settings > Encryption.

2. Make either of the following changes:

   • To change to a different user identity, click Select a different user identity. Then select a different identity in the panel on the right side of the screen, and choose Select.

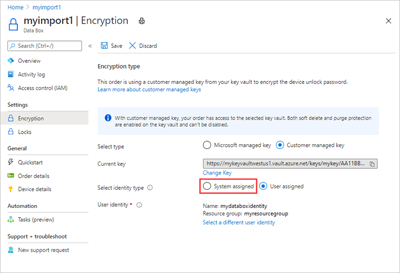

   • To switch to the system-assigned identity generated during order creation, select System assigned by Select identity type.



3. Select Save.



Use Microsoft managed key

To change from using a customer-managed key to the Microsoft managed key for your order, follow these steps:

1. On the Overview screen for your completed Data Box order, go to Settings > Encryption.

2. By Select type, select Microsoft managed key.



3. Select Save.



Troubleshoot errors

If you receive any errors related to your customer-managed key, use the following table to troubleshoot.

Next steps

• What is Azure Key Vault?
• Quickstart: Set and retrieve a secret from Azure Key Vault using the Azure portal
