In this quickstart, you deploy an existing .NET Durable Task SDK sample to Azure Kubernetes Service (AKS), with Durable Task Scheduler as the orchestration backend. Deployment uses Azure Developer CLI (azd) and the document processing sample.
You learn how to:
- Set up and run the Durable Task Scheduler emulator locally.
- Run the .NET client and worker projects in the AKS scenario sample.
- Deploy the sample infrastructure and apps to AKS with
azd up. - Verify orchestration execution in AKS by reviewing pod logs.
Prerequisites
Before you begin:
Install:
Clone the Durable Task Scheduler sample repository.
Sign in to Azure and the Azure Developer CLI:
az login azd auth login
Prepare and run the Durable Task sample locally
From the repository root, go to the AKS scenario sample:
cd samples/scenarios/DocumentProcessingOnAKSStart the Durable Task Scheduler emulator:
docker run --name dts-emulator -d -p 8080:8080 -p 8082:8082 mcr.microsoft.com/dts/dts-emulator:latestThe emulator exposes:
8080for gRPC app connectivity.8082for the scheduler dashboard.
Build the solution:
dotnet build DurableTaskOnAKS.slnIn one terminal, run the worker:
cd Worker dotnet runIn a second terminal, run the client:
cd Client dotnet runConfirm output similar to the following in the client terminal:
Endpoint: http://localhost:8080 | TaskHub: default Submitting 3 documents... Scheduled [...] 'Cloud Migration Strategy' -> Processed 'Cloud Migration Strategy': Sentiment=Positive, Topic=Technology, Priority=Normal Scheduled [...] 'Quarterly Incident Report' -> Processed 'Quarterly Incident Report': Sentiment=Positive, Topic=Technology, Priority=Normal Scheduled [...] 'ML Model Evaluation' -> Processed 'ML Model Evaluation': Sentiment=Positive, Topic=Technology, Priority=Normal Done.(Optional) View orchestration details in the Durable Task Scheduler dashboard at
http://localhost:8082. Click the default task hub, then click the orchestration instance ID to see execution history.
Deploy to AKS with Azure Developer CLI
azd up provisions and deploys the following Azure resources:
| Resource | Purpose |
|---|---|
| AKS cluster | Hosts the client (1 replica) and worker (2 replicas) pods. |
| Azure Container Registry (ACR) | Stores Docker images built server-side via ACR Tasks. |
| Durable Task Scheduler (Consumption SKU) | Managed orchestration backend for state and execution. |
| VNet | Network isolation for AKS. |
| User-assigned managed identity + federated credentials | Workload Identity auth from pods to Durable Task Scheduler. |
From
samples/scenarios/DocumentProcessingOnAKS, run:azd upWhen prompted, provide:
Parameter Description Environment Name Prefix used for your deployment resources. Azure Subscription Azure subscription for deployment. Azure Location Azure region for the resources. Provisioning takes approximately 5-10 minutes.
Verify the AKS deployment with kubectl
Get your resource group and cluster names from the
azdenvironment:azd env get-values | grep -E "RESOURCE_GROUP|AKS_NAME"Get AKS credentials:
az aks get-credentials --resource-group <resource-group-name> --name <aks-cluster-name>Confirm pods are running:
kubectl get podsCheck client logs:
kubectl logs -l app=client --tail=30Check worker logs:
kubectl logs -l app=worker --tail=30
When deployment is working, the client logs show scheduled orchestrations and completed document-processing results.
Verify using the Durable Task Scheduler dashboard
You can also verify orchestration status using the Durable Task Scheduler dashboard in the Azure portal:
- Open the Azure portal and navigate to your Durable Task Scheduler resource.
- Select the task hub, then select Open Dashboard.

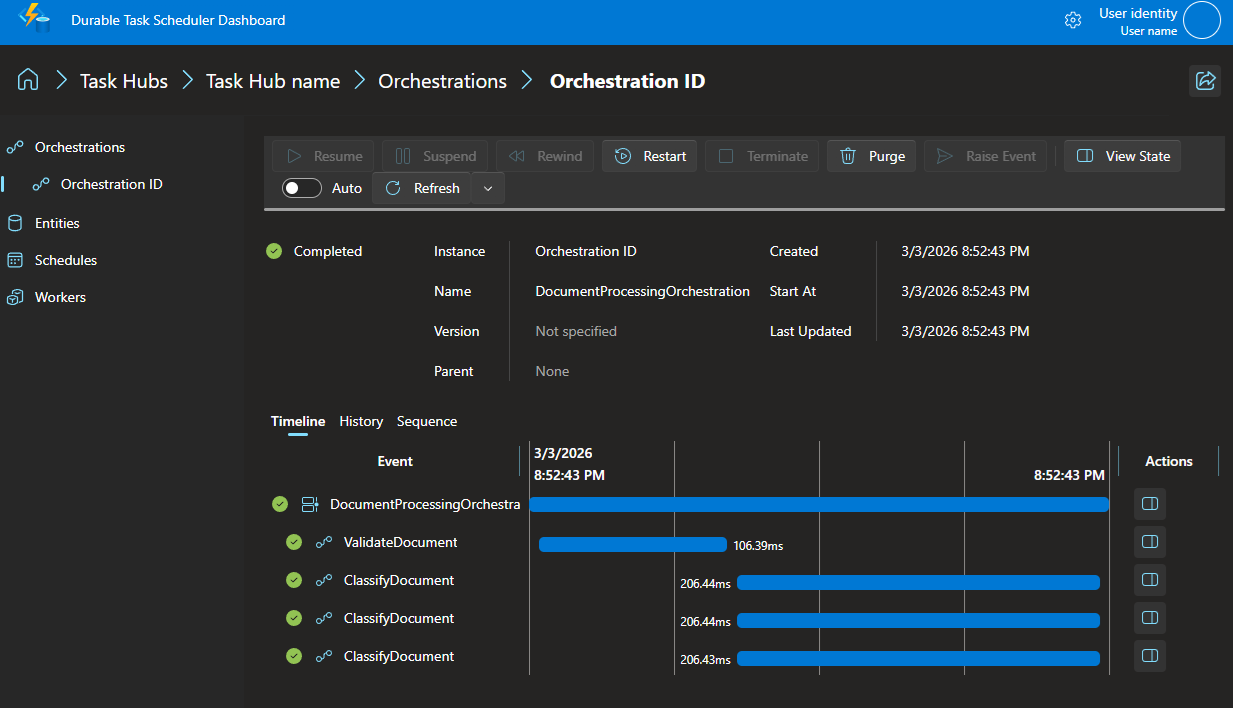

- Find your orchestration instances and click an instance ID to view execution details, including the parallel classification activities.
Understand the code
The sample implements a document-processing pipeline with two Durable Task patterns:
- Activity chaining —
ValidateDocumentmust pass before classification begins. - Fan-out/fan-in — Three
ClassifyDocumentactivities run in parallel (Sentiment, Topic, Priority), and the orchestration awaits all three before assembling the final result.
Client ──▶ DocumentProcessingOrchestration
│
├─ 1. ValidateDocument (activity chaining)
│
├─ 2. ClassifyDocument × 3 (fan-out / fan-in)
│ ├─ Sentiment
│ ├─ Topic
│ └─ Priority
│
└─ 3. Assemble result string ──▶ return to Client
Client app
The client creates a Durable Task client, schedules orchestrations, and waits for completion:
foreach (var doc in docs)
{
string id = await client.ScheduleNewOrchestrationInstanceAsync(
"DocumentProcessingOrchestration", doc);
var meta = await client.WaitForInstanceCompletionAsync(id, getInputsAndOutputs: true);
if (meta.RuntimeStatus == OrchestrationRuntimeStatus.Completed)
Console.WriteLine($" -> {meta.ReadOutputAs<string>()}\n");
}
The sample builds the connection string from environment variables (ENDPOINT, TASKHUB, AZURE_CLIENT_ID), using local emulator defaults when those variables aren't set.
Worker app
The worker registers the orchestration and activities, then connects to Durable Task Scheduler:
builder.Services.AddDurableTaskWorker()
.AddTasks(r =>
{
r.AddOrchestrator<DocumentProcessingOrchestration>();
r.AddActivity<ValidateDocument>();
r.AddActivity<ClassifyDocument>();
})
.UseDurableTaskScheduler(connectionString);
Orchestration flow
The DocumentProcessingOrchestration demonstrates activity chaining and fan-out/fan-in:
bool isValid = await context.CallActivityAsync<bool>(nameof(ValidateDocument), doc);
var tasks = new[]
{
context.CallActivityAsync<ClassificationResult>(nameof(ClassifyDocument), new ClassifyRequest(doc.Id, doc.Content, "Sentiment")),
context.CallActivityAsync<ClassificationResult>(nameof(ClassifyDocument), new ClassifyRequest(doc.Id, doc.Content, "Topic")),
context.CallActivityAsync<ClassificationResult>(nameof(ClassifyDocument), new ClassifyRequest(doc.Id, doc.Content, "Priority")),
};
ClassificationResult[] results = await Task.WhenAll(tasks);
Clean up resources
To avoid charges, delete deployed Azure resources:
azd down
To stop and remove the local emulator:
docker stop dts-emulator
docker rm dts-emulator
