Microsoft Entra External ID deployment architectures with Microsoft Entra
Enterprises can use Microsoft Entra to enable multiple use cases for workforces, partners, and consumers, potentially in combination. In this article, we recommend best practices based on patterns to securely deploy and use Microsoft Entra ID and the following external identity deployment architectures with Microsoft Entra. We include information about each architecture and links to resources.
- Workforce and collaboration-oriented architecture
- Isolated access for business partners
- Consumer-oriented architecture
- Architecture combinations
We define the following personae based on their relationship with your organization.
- Workforce. Your full-time employees, part-time employees, or contractors for your organization.
- Business partners. Organizations that have a business relationship with your enterprise. These organizations can include suppliers, vendors, consultants, and strategic alliances who collaborate with your enterprise to achieve mutual goals.
- Consumers. Individuals such as customers with whom you have a business relationship and who access your applications to purchase or consume your products and services.
- External user. Users that are external to your organization such as business partners and consumers.
This article addresses the following considerations for each architecture.
- Account lifecycle. Ability to define business rules to onboard and offboard user accounts in the environment.
- External identity providers. Ability to handle external users from organizations with their own identity provider (for example, another Microsoft Entra tenant, SAML federation provider), or social identity providers. It also refers to the capability to create accounts in your tenant for users who don't have any identity provider.
- Credential management. Options to manage credentials for users, such as passwords for users who don't have identity providers, or additional factors of authentication.
- Ad-hoc collaboration. Controls to allow or deny with users in the environment (either workforce users or other external users) with external users on documents, reports, and similar user-created content.
- Role-based resource assignment. Ability to grant external users access to resources such as application assignments, group memberships, or SharePoint site memberships based on predefined set of permissions, encapsulated in a role.
- Risk management. Assess and manage security, operational, and compliance risks when you enable access to external users.
Workforce and collaboration-oriented architecture
Workforce and collaboration-oriented architecture enables your workforce to collaborate with business partners from external organizations. It includes controls to protect against unauthorized access to applications.
Typical scenarios include employees initiating collaboration ad-hoc by inviting business partners to share content using productivity tools such as SharePoint, Power BI, Microsoft Teams, or your line of business applications. Guest users can come from external organizations that have their own identity provider. For example, another Microsoft Entra ID tenant or a Security Assertion Markup Language (SAML) federated identity provider.

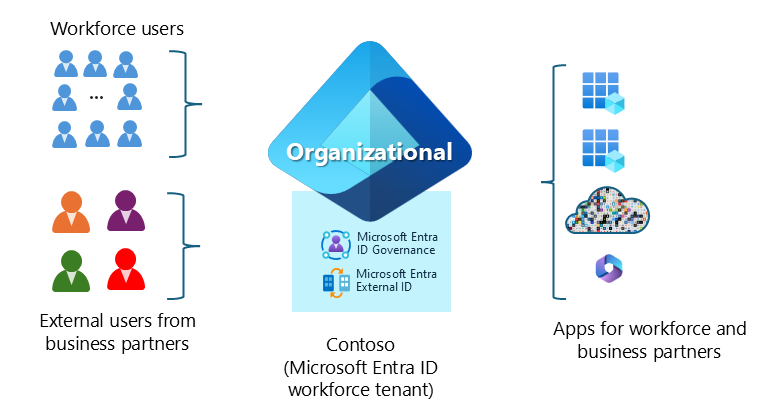

In workforce and collaboration-oriented architecture, the Microsoft Entra ID workforce configuration tenant uses Microsoft Entra Identity Governance and Microsoft Entra External ID to define policies to grant access to enterprise applications and resources. These policies include account and access lifecycle and security controls.
Workforce and collaboration-oriented architecture implementation resources
- Plan a Microsoft Entra B2B collaboration deployment describes governance practices to reduce security risks, meet compliance goals, and ensure right access.
- Govern the employee lifecycle with Microsoft Entra ID Governance explains how Identity Governance can help organizations balance productivity and security.
- Govern access for external users in entitlement management describes settings to govern external user access.
Workforce and collaboration-oriented architecture considerations
Account lifecycle
Users can invite business partners to the tenant in ad-hoc collaboration scenarios. Define custom processes to track and offboard invited external users. Manage guest access with access reviews describes how to ensure that guest users have appropriate access.
Business partners can also be onboarded via Entitlement Management access packages with built-in controls such as approval workflows. User accounts onboarded with Entitlement Management have built-in tracking and offboarding lifecycle after they lose access to access packages.
Administrators can also enable self-service sign-in/sign-up flows for specific applications. Organizations need to define custom processes to track and offboard external users onboarded this way using features such as access reviews or calls to Microsoft Graph.
External identity providers
Workforce and collaboration-oriented architecture supports business partners from organizations that have Microsoft Entra or an SAML / WS-Federation identity provider.
Business partners that have organizational email addresses but don't have identity providers can access your tenant with an email one-time passcode.
If necessary, you can configure your tenant to onboard business partners with Microsoft accounts.
Administrators have granular controls over identity providers.
Credential management
If you require business partner users to perform MFA, you can choose to trust the MFA authentication method claim from the specific business partner organization. Otherwise, enforce these user accounts to register for additional authentication methods for MFA in Microsoft Entra ID.
Microsoft recommends enforcing multifactor authentication for external users. Authentication and Conditional Access for B2B users describes how to create conditional access policies that target guests.
Ad-hoc collaboration
This architecture is optimized for workforce users to interact with business partners using Microsoft collaboration services like Microsoft 365, Microsoft Teams, and Power BI.
Role-based resource assignment
Grant access to business partners with Entitlement Management access packages that have built-in controls such as time-limited application role assignment and separation of duties for specific external organizations.
Risk management
Determine if business partners in your organizational tenant affect compliance scope with applicable regulations. Implement appropriate preventative and detective technical controls.
After they're onboarded, business partners might be able to access application and resources in environments that have broad sets of permissions. To mitigate unintended exposure, implement preventative and detective controls. Consistently apply proper permissions to all environment resources and applications.
There are many methods which can be used to help mitigate risk, depending on the risk analysis outcome:
- To prevent malicious or accidental attempts of enumeration and similar reconnaissance techniques, restrict guest access to properties and memberships of their own directory objects.
- Limit who can invite guests in the tenant. At a minimum, don't allow guests to invite other guests.
- Apply application-specific controls to restrict collaboration such as Microsoft Purview Information Barriers.
- Implement an allowlist approach to scope allowed organizations for external collaboration with capabilities such as cross-tenant access settings and domain allow-listing. Transition to governed collaboration with Microsoft Entra B2B collaboration describes how to secure external access to your resources.
Other considerations
Capabilities that external identities use could add to your monthly charges depending on their activity. The billing model for Microsoft Entra External ID based on monthly active users might affect your decision to implement external identity features.
Isolated access for business partners
The workforce-oriented architecture can be extended when you require your external users to be isolated from your organizational tenant, such that there is a clear boundary for access and visibility between resources intended for internal or external users . This allows for selectively onboarding employee user accounts from your workforce tenant to co-exist with external user accounts, if employees also need to manage or access external facing applications.
In this architecture, you create an additional Microsoft Entra ID workforce-configured tenant as a boundary. It hosts applications and resources, isolated from your organizational tenant, available to external users to meet security, compliance, and similar requirements. You can configure structured access assignment based on predefined business roles. You can use cross-tenant synchronization to onboard the workforce users from the corporate tenant to the additional tenant.

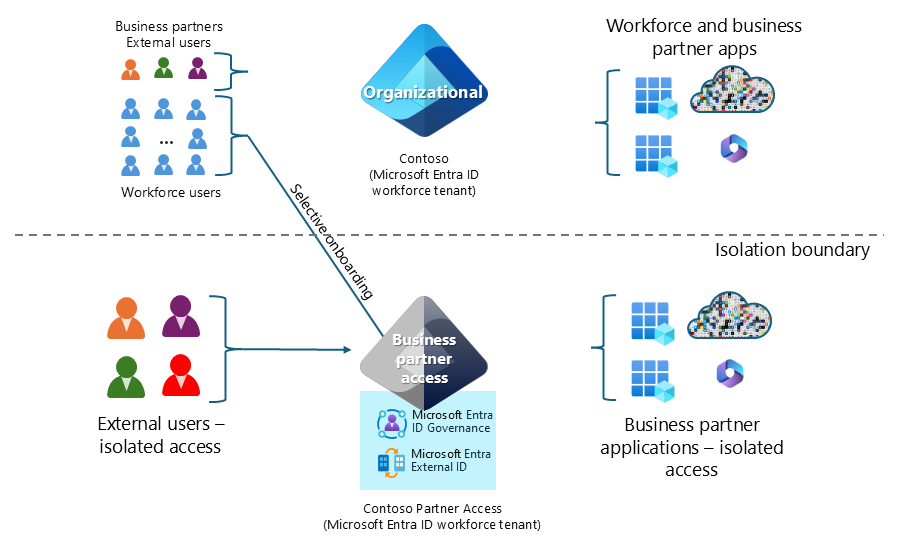

The following diagram illustrates an example of this architecture. Contoso starts a new joint venture where external users and a reduced subset of Contoso users access joint venture applications.
Supply chain management is an example of this architecture in which you grant access to external users from different vendors and a subset of selectively onboarded workforce users to supply chain application and resources.
In both examples, the additional tenant for partner access provides resource isolation, security policies, and management roles.
Configure Microsoft Entra Identity Governance and Microsoft Entra External ID in the additional tenant with stricter controls such as:
- Restrict guest user profiles
- Allowlist organizations and apps for collaboration
- Define guest account lifecycle, time-limit resource assignment, schedule periodic access reviews
- Apply stricter sets of attestations as part of external user onboarding
You can expand this architecture with collaboration tenants to create multiple isolation boundaries based on business requirements (for example, isolate per region, per partner, per compliance jurisdiction).
Isolated access for business partners implementation resources
- Plan a Microsoft Entra B2B collaboration deployment describes governance practices to reduce security risks, meet compliance goals, and ensure right access.
- Govern the employee lifecycle with Microsoft Entra ID Governance explains how Identity Governance can help organizations balance productivity and security.
- Govern access for external users in entitlement management describes settings to govern external user access.
Isolated access for business partners considerations
Account lifecycle
Scoped onboarding of workforce users that are onboarded to additional tenants via cross tenant synchronization. They can be synchronized to Synchronize them to have a member user type with attribute mappings consistent with their user type in the organizational tenant.
Business partners can be onboarded via Entitlement Management access packages with built-in controls such as approval workflows. User accounts onboarded with Entitlement Management have built-in tracking and offboarding lifecycle after they lose access to resources per access package policies.
While this architecture is not optimized for workforce users ad-hoc collaboration in the additional tenant, business partners can be invited by members. Organizations need to define custom processes to track and offboard external users onboarded this way using capabilities such as Access Reviews or calls to Microsoft Graph.
Administrators can also enable self-service sign in/sign up flows for specific applications. Organizations need to define custom processes to track and offboard external users onboarded this way using capabilities such as Access Reviews or calls to Microsoft Graph .
External identity providers
This architecture supports business partners from organizations that have Microsoft Entra or an SAML/WS-Federation identity provider.
Business partners who have organizational email addresses but don't have identity providers can access your tenant with an email one-time passcode.
Business partners can onboard with Microsoft Accounts.
Credential management
If you require users to perform MFA, you can choose to trust the MFA authentication method claim coming from the specific business partner organization. For users that you don't configure as trusted accounts or don't have an identity provider, they can register other authentication methods for multifactor authentication (MFA).
Administrators can choose to trust MFA authentication methods and device states for workforce users coming from the corporate tenant.
Administrators can choose to trust business partner MFA authentication methods from specific organizations.
Create conditional access policies that target guests to enforce multifactor authentication for external users. Authentication and Conditional Access for B2B users describes the authentication flow for external users who access resources in your organization.
Ad-hoc collaboration
Ad-hoc collaboration that workforce users initiate is possible in this architecture. However, it isn't optimized due to user experience friction when switching tenants. Instead, use role-based resource assignment to grant access to user-created content repositories (such as SharePoint sites) based on business roles.
Role-based resource assignment
Grant access to business partners with Entitlement Management access packages that have built-in controls. Example controls include time-limited resource role assignment and separation of duties for specific external organizations.
Risk management
This architecture mitigates the risk of business partners gaining unauthorized access (intentionally or maliciously) to resources in the corporate tenant because of the separate security boundary provided by additional tenants. Have a separate tenant to help contain applicable regulation scope in the corporate tenant.
Implement an allowlist approach to scope allowed organizations for external collaboration with capabilities such as cross-tenant access settings and domain allow-listing. Transition to governed collaboration with Microsoft Entra B2B collaboration describes how to secure external access to your resources.
To prevent malicious or accidental attempts of enumeration and similar reconnaissance techniques, restrict guest access to properties and memberships of their own directory objects.
After they're onboarded, business partners might be able to access application and resources in the environment that have broad set of permissions. To mitigate unintended exposure, implement preventative and detective controls. Consistently apply proper permissions to all environment resources and applications.
Other
Additional tenants in your environment increase operational overhead and overall complexity.
Strive to create as few tenants as possible to meet your business needs. Plan for multitenant organizations in Microsoft 365 if you have workforce users represented as guests in additional tenants which are separate from the organizational tenant.
Capabilities that external identities use could add to your monthly charges depending on their activity.
Consumer-oriented architecture
Consumer-oriented architecture is best suited to serve applications to individual consumers where you might need the following components:
- Highly customized branding on authentication pages including API-based authentication for native apps and custom Domain Name System (DNS) domains.
- User bases that are vast in size (potentially more than a million users).
- Support for self-service sign-up with local email and password or federation with social identity providers such as Microsoft Account
In consumer-oriented architecture, an external configured tenant provides identity services to applications and resources that the applications' consumers use.

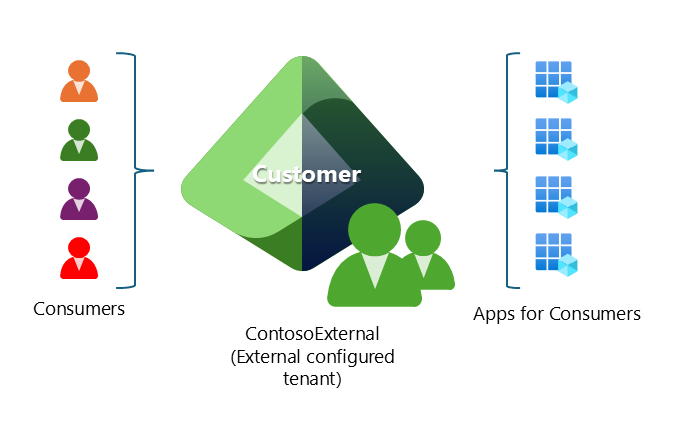

The following diagram illustrates a consumer-oriented architecture example.
Architecture combinations
Your organization's aggregated set of requirements might not fit only one architecture. You might need to use multiple architectures or deploy multiple instances of the architectures described in this article.
For example, a large consulting company might deploy the following architectures:
- Workforce and collaboration-oriented architecture for workforce and external collaborators such as marketing agencies, and consultants.
- Isolated access for business partners for projects such as joint ventures that require need-to-know access and isolation where each joint venture needs to have a separate boundary.
In another example, a large retailer might deploy the following architectures:
- Workforce and collaboration-oriented architecture for workforce and external collaborators such as marketing agencies and consultants.
- Consumer-oriented architecture to enable loyalty programs, ecommerce, and similar consumer-focused capabilities. Retailers that have multiple brands or work in various regions might need separate architecture instances.
Next steps
For additional guidance, review the Microsoft Entra deployment plans.
