Tutorial: Sign-in users to a Python Flask web app by using Microsoft identity platform

This tutorial guides you on securing a Python Flask Web app.

In this tutorial, you'll;

Prerequisites

• A workforce tenant. You can use your Default Directory or set up a new tenant.
• Register a new app in the Microsoft Entra admin center, configured for Accounts in this organizational directory only. Refer to Register an application for more details. Record the following values from the application Overview page for later use:
  • Application (client) ID
  • Directory (tenant) ID
• Add a client secret to your app registration. Do not use client secrets in production apps. Use certificates or federated credentials instead. For more information, see add credentials to your application.

• Python 3+.
• Visual Studio Code or another code editor.

Create a Flask project

1. Create a folder to host your Flask application, such as flask-web-app.

2. Open a console window, and change to the directory to your Flask web app folder using the command

   cd flask-web-app


3. Set up virtual environment

   Depending on your operating system, run the following commands to set up your virtual environment and activate it:

   For windows operating system:

   py -m venv .venv
   .venv\scripts\activate


   For macOS or Linux operating system:

   python3 -m venv .venv
   source .venv/bin/activate


Install app dependencies

To install app dependencies, run the following commands:

pip install flask
pip install python-dotenv
pip install requests
pip install "ms_identity_python[flask] @ git+https://github.com/azure-samples/ms-identity-python@0.9"

The ms_identity_python library that you install automatically installs Microsoft Authentication Library (MSAL) for Python as its dependency. MSAL Python is the library that enables you to authenticate users and manage their access tokens.

After installing the required libraries, update your requirements file by running the following command:

pip freeze > requirements.txt

Add your configurations

1. Create an .env* file in your root folder to safely store your app's configuration. Your .env file should contain the following environment variables:

   CLIENT_ID="<Enter_your_client_id>"
   CLIENT_SECRET="<Enter_your_client_secret>"
   AUTHORITY="https://login.partner.microsoftonline.cn/<Enter_tenant_id>"
   REDIRECT_URI="<Enter_redirect_uri>"


   Replace the placeholders with the following values:

   • Replace <Enter_your_client_id> with the Application (client) ID of the client web app that you registered.
   • Replace <Enter_tenant_id> with the Directory (Tenant) ID where you registered your web app.
   • Replace <Enter_your_client_secret> with the Client secret value for the web app you created. In this tutorial, we use secrets for demonstration purposes. In production, use more secure approaches such as certificates or federated identity credentials.
   • Replace <Enter_redirect_uri> with the redirect URI that you registered earlier. This tutorial sets the redirect URI path to http://localhost:3000/getAToken.

2. Create an app_config.py file to read the environment variables and add other configs that you need.

   import os

   AUTHORITY = os.getenv("AUTHORITY")
   CLIENT_ID = os.getenv("CLIENT_ID")
   CLIENT_SECRET = os.getenv("CLIENT_SECRET")
   REDIRECT_URI = os.getenv("REDIRECT_URI")
   SESSION_TYPE = "filesystem" # Tells the Flask-session extension to store sessions in the filesystem. Don't use in production apps.


Configure app endpoints

At this stage, you create your web app endpoints and add the business logic to your application.

1. Create a file called app.py in your root folder.

2. Import required dependencies at the top of the app.py file.

   import os
   import requests
   from flask import Flask, render_template
   from identity.flask import Auth
   import app_config


3. Initialize your Flask app and configure it to use the session storage type you specified in your app_config.py file.

   app = Flask(__name__)
   app.config.from_object(app_config)


4. Initialize client the app client. A Flask web app is a confidential client. We pass the client secret because confidential clients can safely store it. Under the hood, the identity library calls the ConfidentialClientApplication class of the MSAL library.

   auth = Auth(
       app,
       authority=app.config["AUTHORITY"],
       client_id=app.config["CLIENT_ID"],
       client_credential=app.config["CLIENT_SECRET"],
       redirect_uri=app.config["REDIRECT_URI"]
   )


5. Add the required endpoints to your Flask app. The web app uses the authorization code flow to sign in the user. The ms_identity_python MSAL wrapper library helps with interacting with the MSAL library hence making it easier to add sign in and sign out to your app. We add an index page and protect it using the login_required decorator provided by the ms_identity_python library. The login_required decorator ensures that only authenticated users can access the index page.

   @app.route("/")
   @auth.login_required
   def index(*, context):
       return render_template(
           'index.html',
           user=context['user'],
           title="Flask Web App Sample",
       )


   User is guaranteed to be present because we decorated this view with @login_required.

Create the app templates

Create a folder called templates in your root folder. In the templates folder, create a file called index.html. This is the app's homepage. Add the following code to the index.html file:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>{{ title }}</title>
</head>
<body>
    <h1>{{ title }}</h1>
    <h2>Welcome {{ user.get("name") }}!</h2>

    <img src="https://github.com/Azure-Samples/ms-identity-python-webapp-django/raw/main/static/topology.png" alt="Topology">

    <ul>
    {% if api_endpoint %}
        <!-- If an API endpoint is declared and scopes defined, this link will show. We set this in the call an API tutorial. For this tutorial, we do not define this endpoint. -->
        <li><a href='/call_api'>Call an API</a></li>
    {% endif %}

    <li><a href="{{ url_for('identity.logout') }}">Logout</a></li>
    </ul>

    <hr>
    <footer style="text-align: right">{{ title }}</footer>
</body>
</html>

Run and test the sample web app

1. In your terminal, run the following command:

   python3 -m flask run --debug --host=localhost --port=3000


   You can use the port of your choice. This port should be similar to the port of the redirect URI you registered earlier.

2. Open your browser, then go to http://localhost:3000. You see a sign-in page.

3. Sign in with your Microsoft account by following the steps. You're requested to provide an email address and password to sign in.

4. If there are any scopes needed by the application, a consent screen is presented. The application requests permission to maintain access to data you allow access to and to sign you in. Select Accept. This screen doesn't appear if no scopes are defined.

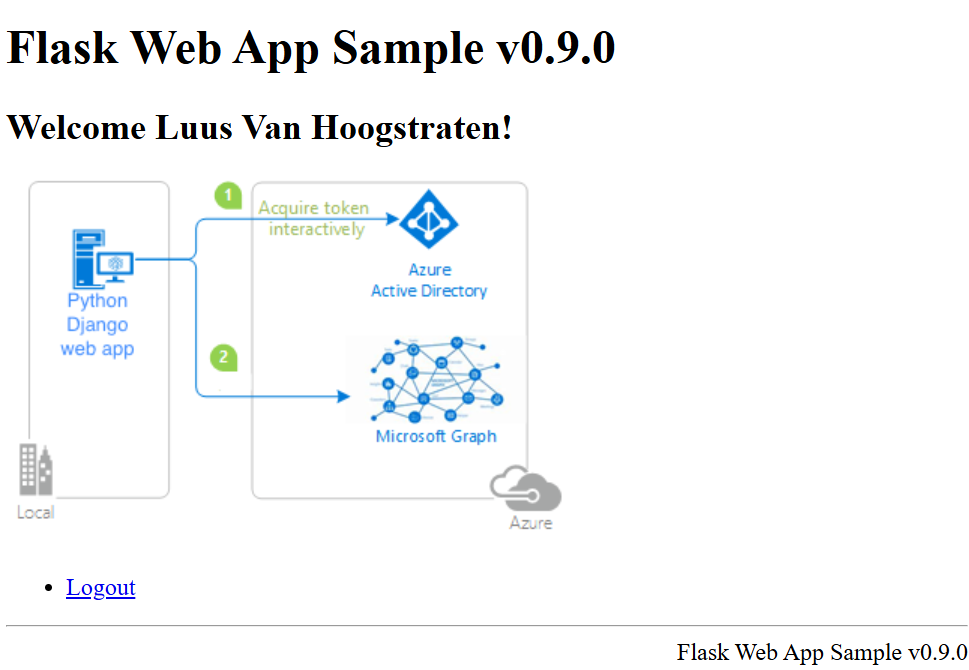

After you sign in or sign up, you're redirected back to the web app. You see a page that looks similar to the following screenshot:

Select Logout to sign out of the app. You're prompted to pick an account to sign out from. Select the account you used to sign in.

Use custom URL domain (Optional)

Workforce tenants don't support custom URL domains.

Reference material

The ms_identity_python abstracts the details of the MSAL library. For more information, see MSAL Python documentation. This reference material helps you understand how you initialize an app and acquire tokens using MSAL Python.

Next step
