Virtual network design considerations and configuration options for Microsoft Entra Domain Services

Microsoft Entra Domain Services provides authentication and management services to other applications and workloads. Network connectivity is a key component. Without correctly configured virtual network resources, applications and workloads can't communicate with and use the features provided by Domain Services. Plan your virtual network requirements to make sure that Domain Services can serve your applications and workloads as needed.

This article outlines design considerations and requirements for an Azure virtual network to support Domain Services.

Azure virtual network design

To provide network connectivity and allow applications and services to authenticate against a Domain Services managed domain, you use an Azure virtual network and subnet. Ideally, the managed domain should be deployed into its own virtual network.

You can include a separate application subnet in the same virtual network to host your management VM or light application workloads. A separate virtual network for larger or complex application workloads, peered to the Domain Services virtual network, is usually the most appropriate design.

Other designs choices are valid, provided you meet the requirements outlined in the following sections for the virtual network and subnet.

As you design the virtual network for Domain Services, the following considerations apply:

• Domain Services must be deployed into the same Azure region as your virtual network.
  • At this time, you can only deploy one managed domain per Microsoft Entra tenant. The managed domain is deployed to single region. Make sure that you create or select a virtual network in a region that supports Domain Services.
• Consider the proximity of other Azure regions and the virtual networks that host your application workloads.
  • To minimize latency, keep your core applications close to, or in the same region as, the virtual network subnet for your managed domain. You can use virtual network peering or virtual private network (VPN) connections between Azure virtual networks. These connection options are discussed in a following section.
• The virtual network can't rely on DNS services other than those services provided by the managed domain.
  • Domain Services provides its own DNS service. The virtual network must be configured to use these DNS service addresses. Name resolution for additional namespaces can be accomplished using conditional forwarders.
  • You can't use custom DNS server settings to direct queries from other DNS servers, including on VMs. Resources in the virtual network must use the DNS service provided by the managed domain.

A managed domain connects to a subnet in an Azure virtual network. Design this subnet for Domain Services with the following considerations:

• A managed domain must be deployed in its own subnet. Using an existing subnet, gateway subnet, or remote gateways settings in the virtual network peering is unsupported.

• A network security group is created during the deployment of a managed domain. This network security group contains the required rules for correct service communication.

  • Don't create or use an existing network security group with your own custom rules.

• A managed domain requires 3-5 IP addresses. Make sure that your subnet IP address range can provide this number of addresses.

  • Restricting the available IP addresses can prevent the managed domain from maintaining two domain controllers.

  Note

  You shouldn't use public IP addresses for virtual networks and their subnets due to the following issues:

  • Scarcity of the IP address: IPv4 public IP addresses are limited, and their demand often exceeds the available supply. Also, there are potentially overlapping IPs with public endpoints.

  • Security risks: Using public IPs for virtual networks exposes your devices directly to the internet, increasing the risk of unauthorized access and potential attacks. Without proper security measures, your devices may become vulnerable to various threats.

  • Complexity: Managing a virtual network with public IPs can be more complex than using private IPs, as it requires dealing with external IP ranges and ensuring proper network segmentation and security.

  It is strongly recommended to use private IP addresses. If you use a public IP, ensure you are the owner/dedicated user of the chosen IPs in the public range you chose.

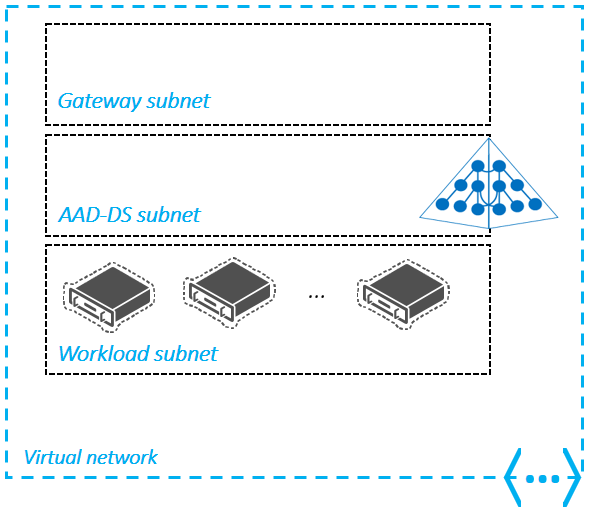

The following example diagram outlines a valid design where the managed domain has its own subnet, there's a gateway subnet for external connectivity, and application workloads are in a connected subnet within the virtual network:

Connections to the Domain Services virtual network

As noted in the previous section, you can only create a managed domain in a single virtual network in Azure, and only one managed domain can be created per Microsoft Entra tenant. Based on this architecture, you may need to connect one or more virtual networks that host your application workloads to your managed domain's virtual network.

You can connect application workloads hosted in other Azure virtual networks using one of the following methods:

• Virtual network peering
• Virtual private networking (VPN)

Virtual network peering

Virtual network peering is a mechanism that connects two virtual networks through the Azure backbone network, allowing resources such as virtual machines (VMs) to communicate with each other directly using private IP addresses. Virtual network peering supports both regional peering, which connects VNets within the same Azure region, and global virtual network peering, which connects VNets across different Azure regions. This flexibility allows you to deploy a managed domain with your application workloads across multiple virtual networks, regardless of their regional locations.

For more information, see Azure virtual network peering overview.

Virtual Private Networking (VPN)

You can connect a virtual network to another virtual network (VNet-to-VNet) in the same way that you can configure a virtual network to an on-premises site location. Both connections use a VPN gateway to create a secure tunnel using IPsec/IKE. This connection model lets you deploy the managed domain into an Azure virtual network and then connect on-premises locations or other clouds.

For more information on using virtual private networking, read Configure a VNet-to-VNet VPN gateway connection by using the Microsoft Entra admin center.

Name resolution when connecting virtual networks

Virtual networks connected to the managed domain's virtual network typically have their own DNS settings. When you connect virtual networks, it doesn't automatically configure name resolution for the connecting virtual network to resolve services provided by the managed domain. Name resolution on the connecting virtual networks must be configured to enable application workloads to locate the managed domain.

You can enable name resolution using conditional DNS forwarders on the DNS server supporting the connecting virtual networks, or by using the same DNS IP addresses from the managed domain's virtual network.

Network resources used by Domain Services

A managed domain creates some networking resources during deployment. These resources are needed for successful operation and management of the managed domain, and shouldn't be manually configured.

Don't lock the networking resources used by Domain Services. If networking resources get locked, they can't be deleted. When domain controllers need to be rebuilt in that case, new networking resources with different IP addresses need to be created.

Azure resource	Description
Network interface card	Domain Services hosts the managed domain on two domain controllers (DCs) that run on Windows Server as Azure VMs. Each VM has a virtual network interface that connects to your virtual network subnet.
Dynamic standard public IP address	Domain Services communicates with the synchronization and management service using a Standard SKU public IP address. For more information about public IP addresses, see IP address types and allocation methods in Azure.
Azure standard load balancer	Domain Services uses a Standard SKU load balancer for network address translation (NAT) and load balancing (when used with secure LDAP). For more information about Azure load balancers, see What is Azure Load Balancer?
Network address translation (NAT) rules	Domain Services creates and uses two Inbound NAT rules on the load balancer for secure PowerShell remoting. If a Standard SKU load balancer is used, it will have an Outbound NAT Rule too. For the Basic SKU load balancer, no Outbound NAT rule is required.
Load balancer rules	When a managed domain is configured for secure LDAP on TCP port 636, three rules are created and used on a load balancer to distribute the traffic.

Network security groups and required ports

A network security group (NSG) contains a list of rules that allow or deny network traffic in an Azure virtual network. When you deploy a managed domain, a network security group is created with a set of rules that let the service provide authentication and management functions. This default network security group is associated with the virtual network subnet your managed domain is deployed into.

The following sections cover network security groups and Inbound and Outbound port requirements.

Inbound connectivity

The following network security group Inbound rules are required for the managed domain to provide authentication and management services. Don't edit or delete these network security group rules for the virtual network subnet for your managed domain.

Source	Source service tag	Source port ranges	Destination	Service	Destination port ranges	Protocol	Action	Required	Purpose
Service tag	AzureActiveDirectoryDomainServices	*	Any	WinRM	5986	TCP	Allow	Yes	Management of your domain.
Service tag	CorpNetSaw	*	Any	RDP	3389	TCP	Allow	Optional	Debugging for support

Note that the CorpNetSaw service tag isn't available by using the Microsoft Entra admin center, and the network security group rule for CorpNetSaw has to be added by using PowerShell.

Domain Services also relies on the Default Security rules AllowVnetInBound and AllowAzureLoadBalancerInBound.

The AllowVnetInBound rule allows all traffic within the VNet which allows the DCs to properly communicate and replicate as well as allow domain join and other domain services to domain members. For more information about required ports for Windows, see Service overview and network port requirements for Windows.

The AllowAzureLoadBalancerInBound rule is also required so that the service can properly communicate over the loadbalancer to manage the DCs. This network security group secures Domain Services and is required for the managed domain to work correctly. Don't delete this network security group. The load balancer won't work correctly without it.

If needed, you can create the required network security group and rules using Azure PowerShell.

Outbound connectivity

For Outbound connectivity, you can either keep AllowVnetOutbound and AllowInternetOutBound or restrict Outbound traffic by using ServiceTags listed in the following table. If you use Log Analytics, add EventHub to outbound destinations.

Make sure no other NSG with higher priority denies the Outbound connectivity. If Outbound connectivity is denied, replication won't work between replica sets.

Outbound port number	Protocol	Source	Destination	Action	Required	Purpose
443	TCP	Any	AzureActiveDirectoryDomainServices	Allow	Yes	Communication with the Microsoft Entra Domain Services management service.
443	TCP	Any	AzureMonitor	Allow	Yes	Monitoring of the virtual machines.
443	TCP	Any	Storage	Allow	Yes	Communication with Azure Storage.
443	TCP	Any	Microsoft Entra ID	Allow	Yes	Communication with Microsoft Entra ID.
443	TCP	Any	GuestAndHybridManagement	Allow	Yes	Automated management of security patches.

Port 5986 - management using PowerShell remoting

• Used to perform management tasks using PowerShell remoting in your managed domain.
• Without access to this port, your managed domain can't be updated, configured, backed-up, or monitored.
• You can restrict inbound access to this port to the AzureActiveDirectoryDomainServices service tag.

Port 3389 - management using remote desktop

• Used for remote desktop connections to domain controllers in your managed domain, this port cannot be changed or encapsulated into another port.
• The default network security group rule uses the CorpNetSaw service tag to further restrict traffic.
  • This service tag permits only secure access workstations on the Microsoft corporate network to use remote desktop to the managed domain.
  • Access is only allowed with business justification, such as for management or troubleshooting scenarios.
• This rule can be set to Deny, and only set to Allow when required. Most management and monitoring tasks are performed using PowerShell remoting. RDP is only used in the rare event that Microsoft needs to connect remotely to your managed domain for advanced troubleshooting.

You can't manually select the CorpNetSaw service tag from the portal if you try to edit this network security group rule. You must use Azure PowerShell or the Azure CLI to manually configure a rule that uses the CorpNetSaw service tag.

For example, you can use the following script to create a rule allowing RDP:

Get-AzNetworkSecurityGroup -Name "nsg-name" -ResourceGroupName "resource-group-name" | Add-AzNetworkSecurityRuleConfig -Name "new-rule-name" -Access "Allow" -Protocol "TCP" -Direction "Inbound" -Priority "priority-number" -SourceAddressPrefix "CorpNetSaw" -SourcePortRange "*" -DestinationPortRange "3389" -DestinationAddressPrefix "*" | Set-AzNetworkSecurityGroup

User-defined routes

User-defined routes aren't created by default, and aren't needed for Domain Services to work correctly. If you're required to use route tables, avoid making any changes to the 0.0.0.0 route. Changes to this route disrupt Domain Services and puts the managed domain in an unsupported state.

You must also route inbound traffic from the IP addresses included in the respective Azure service tags to the managed domain's subnet. For more information on service tags and their associated IP address from, see Azure IP Ranges and Service Tags - Public Cloud.
