Example Azure role assignment conditions for Queue Storage

Article
09/20/2024

This article lists some examples of role assignment conditions for controlling access to Azure Queue Storage resources.

Important

Azure attribute-based access control (Azure ABAC) is generally available (GA) for controlling access to Azure Blob Storage, Azure Data Lake Storage Gen2, and Azure Queues using request, resource, environment, and principal attributes in both the standard and premium storage account performance tiers. Currently, the container metadata resource attribute and the list blob include request attribute are in PREVIEW. For complete feature status information of ABAC for Azure Storage, see Status of condition features in Azure Storage.

See the Supplemental Terms of Use for Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

Prerequisites

For information about the prerequisites to add or edit role assignment conditions, see Conditions prerequisites.

Summary of examples in this article

Use the following table to quickly locate an example that fits your ABAC scenario. The table includes a brief description of the scenario, plus a list of attributes used in the example by source (environment, principal, request and resource).

Example	Environment	Principal	Resource
Peek or clear messages in a named queue			queue name
Allow peek access to messages after a specific date and time	UtcNow		queue name
Allow access to messages in specific queues from a specific subnet	Subnet		queue name
Principal attributes example		ID

Queue names

This section includes examples showing how to restrict access to messages based on queue name.

Example: Peek or clear messages in a named queue

This condition allows users to peek or clear messages in a queue named sample-queue. This condition is useful for sharing specific queue data with other users in a subscription.

Important

For this condition to be effective for a security principal, you must add it to all role assignments for them that include the following actions: Microsoft.Storage/storageAccounts/queueServices/queues/messages/read and Microsoft.Storage/storageAccounts/queueServices/queues/messages/delete.

Diagram of condition showing peek and clear access to named queue.

The condition can be added to a role assignment using either the Azure portal or Azure PowerShell. The portal has two tools for building ABAC conditions - the visual editor and the code editor. You can switch between the two editors in the Azure portal to see your conditions in different views. Switch between the Visual editor tab and the Code editor tabs in this article to view the examples for your preferred portal editor.

Add action

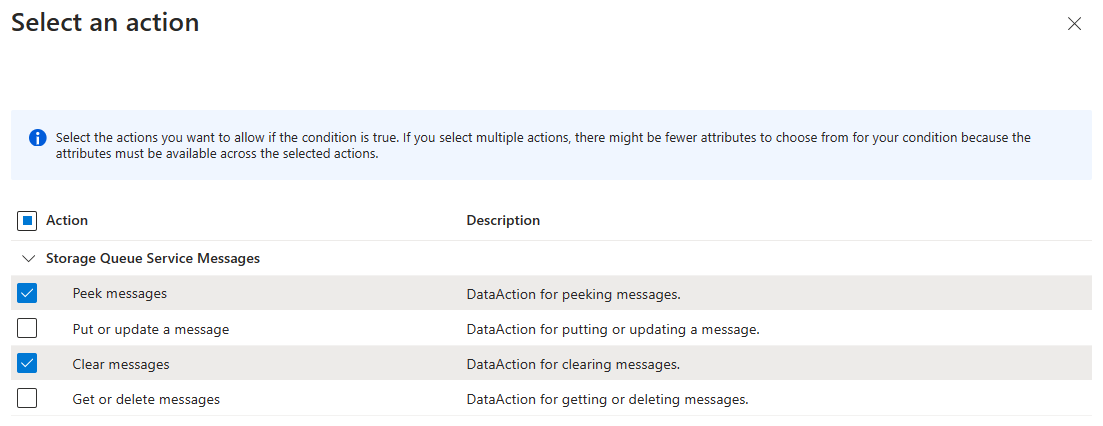

Select Add action, then select Peek messages and Clear messages:

Build expression

Use the values in the following table to build the expression portion of the condition:

Setting	Value
Attribute source	Resource
Attribute	Queue name
Operator	StringEquals
Value	{queueName}

The following image shows the condition after the settings are entered into the Azure portal. You must group expressions to ensure correct evaluation.

To add the condition using the code editor, copy the condition code sample below and paste it into the code editor.

Storage Queue Data Contributor

(
 (
  !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/read'})
  AND
  !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/delete'})
 )
 OR
 (
  @Resource[Microsoft.Storage/storageAccounts/queueServices/queues:name] StringEquals 'sample-queue'
 )
)

After entering your code, switch back to the visual editor to validate it.

Here's how to add this condition using Azure PowerShell.

$condition = "((!(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/delete'}) AND !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/read'})) OR (@Resource[Microsoft.Storage/storageAccounts/queueServices/queues:name] StringEquals 'sample-queue'))"
$testRa = Get-AzRoleAssignment -Scope $scope -RoleDefinitionName $roleDefinitionName -ObjectId $userObjectID
$testRa.Condition = $condition
$testRa.ConditionVersion = "2.0"
Set-AzRoleAssignment -InputObject $testRa -PassThru

Here's how to test this condition.

$bearerCtx = New-AzStorageContext -StorageAccountName $storageAccountName
Get-AzStorageQueue -Name <queueName> -Context $bearerCtx

Environment attributes

This section includes examples showing how to restrict access to queue messages based on the network environment or the current date and time.

Example: Allow peek access to messages after a specific date and time

This condition allows peek access to the queue sample-queue only after 1:00pm on May 1, 2023 Universal Coordinated Time (UTC).

Important

To make this condition effective for principals that have multiple role assignments, you must add this condition to all role assignments that include the following action: Microsoft.Storage/storageAccounts/queueServices/queues/messages/read.

The condition can be added to a role assignment using either the Azure portal or Azure PowerShell. The portal has two tools for building ABAC conditions - the visual editor and the code editor. You can switch between the two editors in the Azure portal to see your conditions in different views. Switch between the Visual editor tab and the Code editor tabs below to view the examples for your preferred portal editor.

Add action

Select Add action, then select Peek messages:

Build expression

Use the values in the following table to build the expression portion of the condition:

Setting	Value
Attribute source	Resource
Attribute	Queue name
Operator	StringEquals
Value	{queue-name}
Logical operator	'AND'
Attribute source	Environment
Attribute	UtcNow
Operator	DateTimeGreaterThan
Value	`2023-05-01T13:00:00.000Z`

The following image shows the condition after the settings are entered into the Azure portal. You must group expressions to ensure correct evaluation.

To add the condition using the code editor, copy the condition code sample below and paste it into the code editor.

Storage Queue Data Reader

(
 (
  !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/read'})
 )
 OR
 (
  @Resource[Microsoft.Storage/storageAccounts/queueServices/queues:name] StringEquals 'sample-queue'
  AND
  @Environment[UtcNow] DateTimeGreaterThan '2023-05-01T13:00:00.0Z'
 )
)

After entering your code, switch back to the visual editor to validate it.

Here's how to add this condition for the Storage Queue Data Reader role using Azure PowerShell.

$subId = "<your subscription id>"
$rgName = "<resource group name>"
$storageAccountName = "<storage account name>"
$roleDefinitionName = "Storage Queue Data Reader"
$userUpn = "<user UPN>"
$userObjectID = (Get-AzADUser -UserPrincipalName $userUpn).Id
$queueName = "sample-queue"
$dateTime = "2023-05-01T13:00:00.000Z"
$scope = "/subscriptions/$subId/resourceGroups/$rgName/providers/Microsoft.Storage/storageAccounts/$storageAccountName"

$condition = `
"( `
 ( `
 !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/read'}) `
 ) `
 OR `
 ( `
  @Resource[Microsoft.Storage/storageAccounts/queueServices/queues:name] StringEquals '$queueName' `
  AND `
  @Environment[UtcNow] DateTimeGreaterThan '$dateTime' `
 ) `
)"

$testRa = Get-AzRoleAssignment -Scope $scope -RoleDefinitionName $roleDefinitionName -ObjectId $userObjectID
$testRa.Condition = $condition
$testRa.ConditionVersion = "2.0"
Set-AzRoleAssignment -InputObject $testRa -PassThru

Example: Allow access to messages in specific queues from a specific subnet

This condition allows put or update access to messages in sample-queue only from subnet default on virtual network sample-vnet.

Important

To make this condition effective for principals that have multiple role assignments, you must add this condition to all role assignments that include any of the following actions: Microsoft.Storage/storageAccounts/queueServices/queues/messages/write.

The condition can be added to a role assignment using either the Azure portal or Azure PowerShell. The portal has two tools for building ABAC conditions - the visual editor and the code editor. You can switch between the two editors in the Azure portal to see your conditions in different views. Switch between the Visual editor tab and the Code editor tabs below to view the examples for your preferred portal editor.

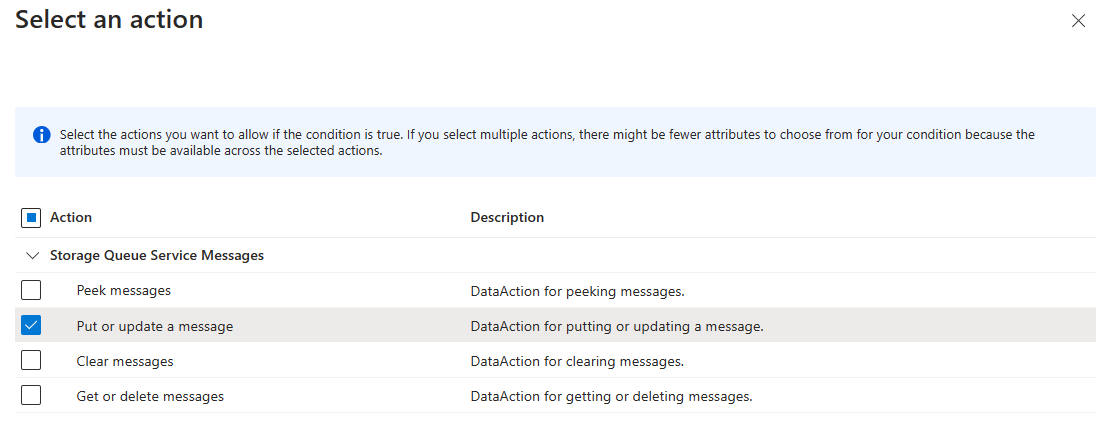

Select Add action, then select Put or update a message:

Build expression

Use the values in the following table to build the expression portion of the condition:

Setting	Value
Attribute source	Resource
Attribute	Queue name
Operator	StringEquals
Value	`container1`
Logical operator	'AND'
Attribute source	Environment
Attribute	Subnet
Operator	StringEqualsIgnoreCase
Value	`/subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.Network/virtualNetworks/sample-vnet/subnets/default`

The following image shows the condition after the settings are entered into the Azure portal. You must group expressions to ensure correct evaluation.

To add the condition using the code editor, copy the condition code sample below and paste it into the code editor.

Storage Queue Data Contributor

(
 (
  !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/write'})
 )
 OR
 (
  @Resource[Microsoft.Storage/storageAccounts/queueServices/queues:name] StringEquals 'sample-queue'
  AND
  @Environment[Microsoft.Network/virtualNetworks/subnets] StringEquals '/subscriptions/<subscription-id>/resourceGroups/<resource-group-name>/providers/Microsoft.Network/virtualNetworks/sample-vnet/subnets/default'
 )
)

After entering your code, switch back to the visual editor to validate it.

Here's how to add this condition for the Storage Queue Data Contributor role using Azure PowerShell.

$subId = "<your subscription id>"
$rgName = "<resource group name>"
$storageAccountName = "<storage account name>"
$roleDefinitionName = "Storage Queue Data Contributor"
$userUpn = "<user UPN>"
$userObjectID = (Get-AzADUser -UserPrincipalName $userUpn).Id
$queueName = "sample-queue"
$vnetName = "sample-vnet"
$subnetName = "default"
$scope = "/subscriptions/$subId/resourceGroups/$rgName/providers/Microsoft.Storage/storageAccounts/$storageAccountName"

$condition = `
"( `
 ( `
  !(ActionMatches{'Microsoft.Storage/storageAccounts/queueServices/queues/messages/write'}) `
 ) `
 OR `
 ( `
  @Resource[Microsoft.Storage/storageAccounts/queueServices/queues:name] StringEquals '$queueName' `
  AND `
  @Environment[Microsoft.Network/virtualNetworks/subnets] StringEqualsIgnoreCase '/subscriptions/$subId/resourceGroups/$rgName/providers/Microsoft.Network/virtualNetworks/$vnetName/subnets/$subnetName' `
 ) `
)"

$testRa = Get-AzRoleAssignment -Scope $scope -RoleDefinitionName $roleDefinitionName -ObjectId $userObjectID
$testRa.Condition = $condition
$testRa.ConditionVersion = "2.0"
Set-AzRoleAssignment -InputObject $testRa -PassThru

Principal attributes

To see a full example of how to use principal attributes to allow access to blob data, see Allow read access to blobs based on tags and custom security attributes.
