Manage session-scoped packages

In addition to pool level packages, you can also specify session-scoped libraries at the beginning of a notebook session. Session-scoped libraries let you specify and use Python, jar, and R packages within a notebook session.

When using session-scoped libraries, it's important to keep the following points in mind:

• When you install session-scoped libraries, only the current notebook has access to the specified libraries.
• These libraries have no impact on other sessions or jobs using the same Spark pool.
• These libraries install on top of the base runtime and pool level libraries, and take the highest precedence.
• Session-scoped libraries don't persist across sessions.

Session-scoped Python packages

Manage session-scoped Python packages through environment.yml file

To specify session-scoped Python packages:

1. Navigate to the selected Spark pool and ensure that you have enabled session-level libraries. You can enable this setting by navigating to the Manage > Apache Spark pool > Packages tab.

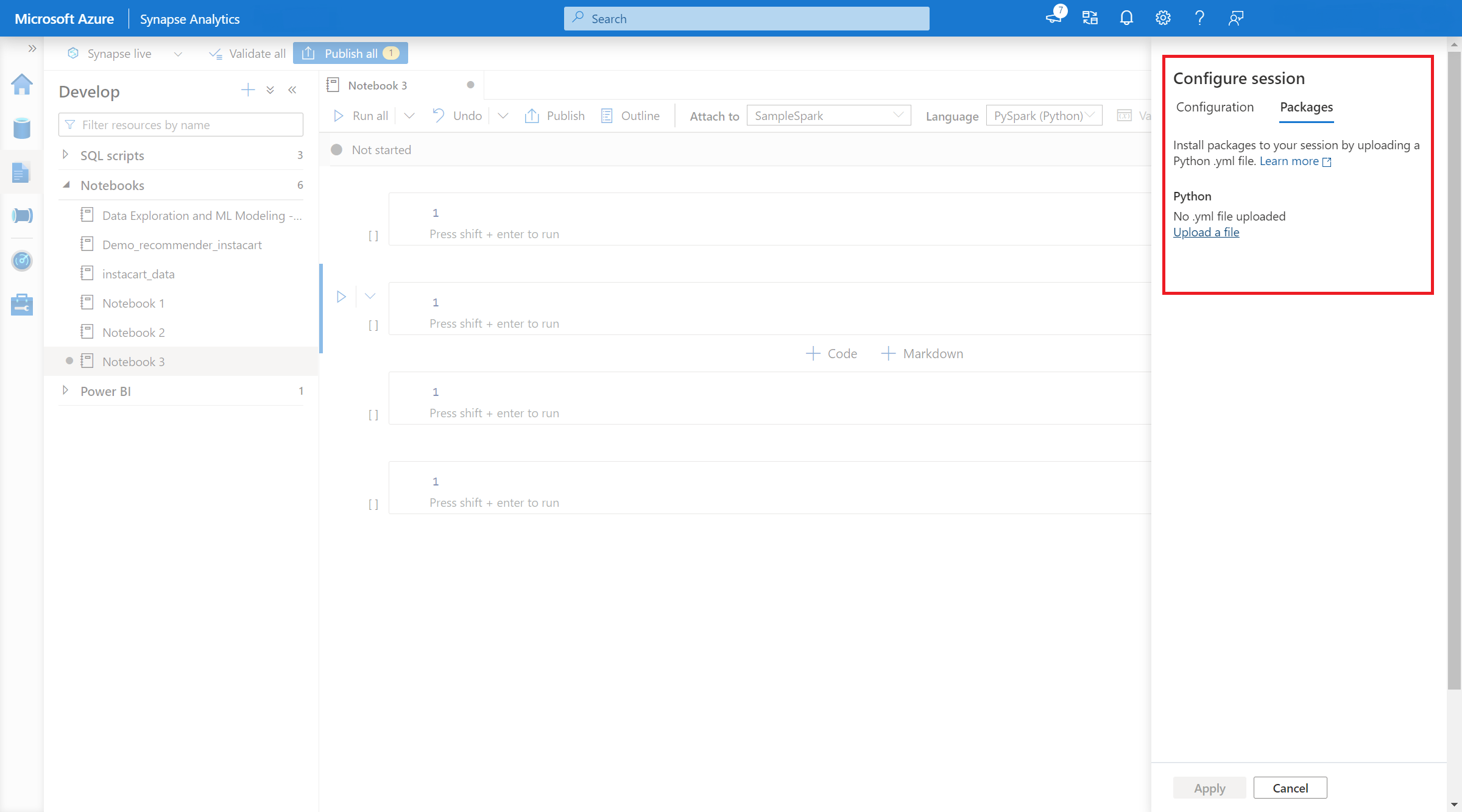

2. Once the setting applies, you can open a notebook and select Configure Session> Packages.
3. Here, you can upload a Conda environment.yml file to install or upgrade packages within a session.The specified libraries are present once the session starts. These libraries will no longer be available after session ends.

Manage session-scoped Python packages through %pip and %conda commands

You can use the popular %pip and %conda commands to install additional third party libraries or your custom libraries during your Apache Spark notebook session. In this section, we use %pip commands to demonstrate several common scenarios.

Install a third party package

You can easily install a Python library from PyPI.

# Install vega_datasets
%pip install altair vega_datasets

To verify the installing result, you can run the following code to visualize vega_datasets

# Create a scatter plot
# Plot Miles per gallon against the horsepower across different region

import altair as alt
from vega_datasets import data

cars = data.cars()
alt.Chart(cars).mark_point().encode(
    x='Horsepower',
    y='Miles_per_Gallon',
    color='Origin',
).interactive()

Install a wheel package from storage account

In order to install library from storage, you need to mount to your storage account by running following commands.

from notebookutils import mssparkutils

mssparkutils.fs.mount(
    "abfss://<<file system>>@<<storage account>.dfs.core.chinacloudapi.cn",
    "/<<path to wheel file>>",
    {"linkedService":"<<storage name>>"}
)

And then, you can use the %pip install command to install the required wheel package

%pip install /<<path to wheel file>>/<<wheel package name>>.whl

Install another version of built-in library

You can use the following command to see what's the built-in version of certain package. We use pandas as an example

%pip show pandas

The result is as following log:

Name: pandas
Version: **1.2.3**
Summary: Powerful data structures for data analysis, time series, and statistics
Home-page: https://pandas.pydata.org
... ...

You can use the following command to switch pandas to another version, let's say 1.2.4

%pip install pandas==1.2.4

Uninstall a session-scoped library

If you want to uninstall a package, which installed on this notebook session, you may refer to following commands. However, you cannot uninstall the built-in packages.

%pip uninstall altair vega_datasets --yes

Using %pip command to install libraries from a requirement.txt file

%pip install -r  /<<path to requirement file>>/requirements.txt

Session-scoped Java or Scala packages

To specify session-scoped Java or Scala packages, you can use the %%configure option:

%%configure -f
{
    "conf": {
        "spark.jars": "abfss://<<file system>>@<<storage account>.dfs.core.chinacloudapi.cn/<<path to JAR file>>",
    }
}

Session-scoped R packages (Preview)

Azure Synapse Analytics pools include many popular R libraries out-of-the-box. You can also install extra third party libraries during your Apache Spark notebook session.

Install a package

You can easily install an R library from CRAN.

# Install a package from CRAN
install.packages(c("nycflights13", "Lahman"))

You can also use CRAN snapshots as the repository to ensure to download the same package version each time.

install.packages("highcharter", repos = "https://cran.microsoft.com/snapshot/2021-07-16/")

Using devtools to install packages

The devtools library simplifies package development to expedite common tasks. This library is installed within the default Azure Synapse Analytics runtime.

You can use devtools to specify a specific version of a library to install. These libraries will be installed across all nodes within the cluster.

# Install a specific version.
install_version("caesar", version = "1.0.0")

Similarly, you can install a library directly from GitHub.

# Install a GitHub library.

install_github("jtilly/matchingR")

Currently, the following devtools functions are supported within Azure Synapse Analytics:

Command	Description
install_github()	Installs an R package from GitHub
install_gitlab()	Installs an R package from GitLab
install_bitbucket()	Installs an R package from BitBucket
install_url()	Installs an R package from an arbitrary URL
install_git()	Installs from an arbitrary git repository
install_local()	Installs from a local file on disk
install_version()	Installs from a specific version on CRAN

View installed libraries

You can query all the libraries installed within your session using the library command.

library()

You can use the packageVersion function to check the version of the library:

packageVersion("caesar")

Remove an R package from a session

You can use the detach function to remove a library from the namespace. These libraries stay on disk until they're loaded again.

# detach a library

detach("package: caesar")

To remove a session-scoped package from a notebook, use the remove.packages() command. This library change has no impact on other sessions on the same cluster. Users can't uninstall or remove built-in libraries of the default Azure Synapse Analytics runtime.

remove.packages("caesar")

Session-scoped R libraries and SparkR

Notebook-scoped libraries are available on SparkR workers.

install.packages("stringr")
library(SparkR)

str_length_function <- function(x) {
  library(stringr)
  str_length(x)
}

docs <- c("Wow, I really like the new light sabers!",
               "That book was excellent.",
               "R is a fantastic language.",
               "The service in this restaurant was miserable.",
               "This is neither positive or negative.")

spark.lapply(docs, str_length_function)

Session-scoped R libraries and SparklyR

With spark_apply() in SparklyR, you can use any R package inside Spark. By default, in sparklyr::spark_apply(), the packages argument sets to FALSE. This copies libraries in the current libPaths to the workers, allowing you to import and use them on workers. For example, you can run the following to generate a caesar-encrypted message with sparklyr::spark_apply():

install.packages("caesar", repos = "https://cran.microsoft.com/snapshot/2021-07-16/")

spark_version <- "3.2"
config <- spark_config()
sc <- spark_connect(master = "yarn", version = spark_version, spark_home = "/opt/spark", config = config)

apply_cases <- function(x) {
  library(caesar)
  caesar("hello world")
}
sdf_len(sc, 5) %>%
  spark_apply(apply_cases, packages=FALSE)

Next steps

• View the default libraries: Apache Spark version support
• Manage the packages outside Synapse Studio portal: Manage packages through Az commands and REST APIs
