Deploy VMs and scale sets to dedicated hosts

Article
05/21/2024

Applies to: ✔️ Linux VMs ✔️ Windows VMs ✔️ Uniform scale sets

This article guides you through how to create an Azure dedicated host to host your virtual machines (VMs) and scale set instances.

Limitations

The sizes and hardware types available for dedicated hosts vary by region. Refer to the host pricing page to learn more.
Not all Azure VM SKUs, regions and availability zones support ultra disks, for more information about this topic, see Azure ultra disks.
Currently dedicated hosts do not support 'ultra disks'.

The fault domain count of the virtual machine scale set can't exceed the fault domain count of the host group.
Users can not select hardware capabilities like accelerated networking when creating a dedicated host.
Users would not be able to create VMs/VMSS with accelerated networking enabled on a dedicated host.

Create a host group

A host group is a resource that represents a collection of dedicated hosts. You create a host group in a region and an availability zone, and add hosts to it. You can use one or both of the following options with your dedicated hosts to ensure high availability:

Span across multiple availability zones. In this case, you're required to have a host group in each of the zones you wish to use.
Span across multiple fault domains, which are mapped to physical racks.

In either case, you need to provide the fault domain count for your host group. If you don't want to span fault domains in your group, use a fault domain count of 1.

You can also decide to use both availability zones and fault domains.

In this example, we'll create a host group using one availability zone and two fault domains.

Open the Azure portal.
Select Create a resource in the upper left corner.
Search for Host group and then select Host Groups from the results.
In the Host Groups page, select Create.
Select the subscription you would like to use, and then select Create new to create a new resource group.
Type myDedicatedHostsRG as the Name and then select OK.
For Host group name, type myHostGroup.
For Location, select (Asia Pacific) China North 3.
For Availability Zone, select 1.
For Fault domain count, select 2.
Select Automatic placement to automatically assign VMs and scale set instances to an available host in this group.
Select Review + create and then wait for validation.
Once you see the Validation passed message, select Create to create the host group.

It should only take a few moments to create the host group.

Not all host SKUs are available in all regions, and availability zones. You can list host availability, and any offer restrictions before you start provisioning dedicated hosts.

az vm list-skus -l chinanorth3  -r hostGroups/hosts  -o table

You can also verify if a VM series supports ultra disks.

subscription="<mySubID>"
# example value is chinanorth3
region="<myLocation>"
# example value is Standard_E64s_v3
vmSize="<myVMSize>"

az vm list-skus --resource-type virtualMachines  --location $region --query "[?name=='$vmSize'].locationInfo[0].zoneDetails[0].Name" --subscription $subscription

In this example, we'll use az vm host group create to create a host group using both availability zones and fault domains.

az vm host group create \
   --name myHostGroup \
   -g myDHResourceGroup \
   --location chinanorth3 \
   -z 3 \
   --platform-fault-domain-count 2

Add the --automatic-placement true parameter to have your VMs and scale set instances automatically placed on hosts, within a host group. For more information, see Manual vs. automatic placement.

Add the --ultra-ssd-enabled true parameter to enable creation of VMs that can support ultra disks.

Other examples

You can also use az vm host group create to create a host group in availability zone 1 (and no fault domains).

az vm host group create \
   --name myAZHostGroup \
   -g myDHResourceGroup \
   --location chinanorth3 \
   -z 1 \
   --platform-fault-domain-count 1

The following code snippet uses az vm host group create to create a host group by using fault domains only (to be used in regions where availability zones aren't supported).

az vm host group create \
   --name myFDHostGroup \
   -g myDHResourceGroup \
   --platform-fault-domain-count 2

The following code snippet uses az vm host group create to create a host group that supports ultra disks and auto placement of VMs enabled.

az vm host group create \
   --name myFDHostGroup \
   -g myDHResourceGroup \
   -z 3 \
   --ultra-ssd-enabled true \
   --platform-fault-domain-count 2 \
   --automatic-placement true

This example uses New-AzHostGroup to create a host group in zone 1, with 2 fault domains.

$rgName = "myDHResourceGroup"
$location = "ChinaNorth3"

New-AzResourceGroup -Location $location -Name $rgName
$hostGroup = New-AzHostGroup `
   -Name myHostGroup `
   -ResourceGroupName $rgName `
   -Location $location `
   -Zone 3 `
   -EnableUltraSSD `
   -PlatformFaultDomain 2 `
   -SupportAutomaticPlacement true

Add the -SupportAutomaticPlacement true parameter to have your VMs and scale set instances automatically placed on hosts, within a host group. For more information about this topic, see Manual vs. automatic placement .

Add the -EnableUltraSSD parameter to enable creation of VMs that can support ultra disks.

Create a dedicated host

Now create a dedicated host in the host group. In addition to a name for the host, you're required to provide the SKU for the host. Host SKU captures the supported VM series and the hardware generation for your dedicated host.

For more information about the host SKUs and pricing, see Azure Dedicated Host pricing.

If you set a fault domain count for your host group, you'll need to specify the fault domain for your host.

Select Create a resource in the upper left corner.
Search for Dedicated host and then select Dedicated hosts from the results.
In the Dedicated Hosts page, select Create.
Select the subscription you would like to use.
Select myDedicatedHostsRG as the Resource group.
In Instance details, type myHost for the Name and select (Asia Pacific) China North 3 for the location.
In Hardware profile, select Standard Esv3 family - Type 3 for the Size family, select myHostGroup for the Host group and then select 1 for the Fault domain. Leave the defaults for the rest of the fields.
Leave the Automatically replace host on failure setting Enabled to automatically service heal the host in case of any host level failure.
When you're done, select Review + create and wait for validation.
Once you see the Validation passed message, select Create to create the host.

Use az vm host create to create a host. If you set a fault domain count for your host group, you'll be asked to specify the fault domain for your host.

az vm host create \
   --host-group myHostGroup \
   -l chinanorth3 \
   --name myHost \
   --sku DSv3-Type3 \
   --platform-fault-domain 1 \
   --auto-replace true \
   -g myDHResourceGroup

In this example, we use New-AzHost to create a host and set the fault domain to 1.

$dHost = New-AzHost `
   -HostGroupName $hostGroup.Name `
   -Location $location -Name myHost `
   -ResourceGroupName $rgName `
   -Sku DSv3-Type3 `
   -AutoReplaceOnFailure True `
   -PlatformFaultDomain 1

Create a VM

Now create a VM on the host.

If you would like to create a VM with ultra disks support, make sure the host group in which the VM will be placed is ultra SSD enabled. Once you've confirmed, create the VM in the same host group. See Deploy an ultra disk for the steps to attach an ultra disk to a VM.

Choose Create a resource in the upper left corner of the Azure portal.
In the search box above the list of Azure Marketplace resources, search for and select the image you want use, then choose Create.
In the Basics tab, under Project details, make sure the correct subscription is selected and then select myDedicatedHostsRG as the Resource group.
Under Instance details, type myVM for the Virtual machine name and choose (Asia Pacific) China North 3 for your Location.
In Availability options select Availability zone, select 1 from the drop-down.
For the size, select Change size. In the list of available sizes, choose one from the Esv3 series, like Standard E2s v3. You may need to clear the filter in order to see all of the available sizes.
Complete the rest of the fields on the Basics tab as needed.

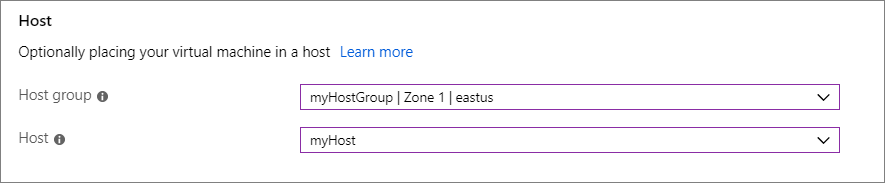

If you want to specify which host to use for your VM, then at the top of the page, select the Advanced tab and in the Host section, select myHostGroup for Host group and myHost for the Host. Otherwise, your VM will automatically be placed on a host with capacity.
Leave the remaining defaults and then select the Review + create button at the bottom of the page.
When you see the message that validation has passed, select Create.

It will take a few minutes for your VM to be deployed.

Create a virtual machine within a dedicated host using az vm create. If you specified an availability zone when creating your host group, you're required to use the same zone when creating the virtual machine. Replace the values like image and host name with your own. If you're creating a Windows VM, remove --generate-ssh-keys to be prompted for a password.

az vm create \
   -n myVM \
   -l chinanorth3 \
   --image myImage \
   --host-group myHostGroup \
   --admin-username azureuser \
   --generate-ssh-keys \
   --size Standard_D4s_v3 \
   -g myDHResourceGroup \
   --zone 1

To place the VM on a specific host, use --host instead of specifying the host group with --host-group.

Warning

If you create a virtual machine on a host which does not have enough resources, the virtual machine will be created in a FAILED state.

Create a new VM on our host using New-AzVM For this example, because our host group is in zone 1, we need to create the VM in zone 1.

New-AzVM `
   -Credential $cred `
   -ResourceGroupName $rgName `
   -Location $location `
   -Name myVM `
   -HostId $dhost.Id `
   -Image myImage `
   -Zone 1 `
   -Size Standard_D4s_v3

Warning

If you create a virtual machine on a host which does not have enough resources, the virtual machine will be created in a FAILED state.

Create a scale set

You can also create a scale set on your host.

Important

Starting November 2023, VM scale sets created using PowerShell and Azure CLI will default to Flexible Orchestration Mode if no orchestration mode is specified. For more information about this change and what actions you should take, go to Breaking Change for VMSS PowerShell/CLI Customers - Microsoft Community Hub

Note

Currently, There is no Host group option in Advanced Tab when we creating a scale set in Microsoft Azure operated by 21Vianet portal.

When you deploy a scale set using az vmss create, you specify the host group using --host-group. In this example, we're deploying a Linux image. To deploy a Windows image, replace the value of --image and remove --generate-ssh-keys to be prompted for a password.

az vmss create \
  --resource-group myResourceGroup \
  --name myScaleSet \
  --image myImage \
  --orchestration-mode uniform \
  --upgrade-policy-mode automatic \
  --admin-username azureuser \
  --host-group myHostGroup \
  --generate-ssh-keys \
  --size Standard_D4s_v3 \
  -g myDHResourceGroup \
  --zone 1

If you want to manually choose which host to deploy the scale set to, add --host and the name of the host.

Deploy a scale-set to the host using New-AzVMSS. When you deploy a scale set, you specify the host group.

New-AzVmss `
  -ResourceGroupName "myResourceGroup" `
  -Location "chinaeast2" `
  -VMScaleSetName "myDHScaleSet" `
  -VirtualNetworkName "myVnet" `
  -SubnetName "mySubnet" `
  -PublicIpAddressName "myPublicIPAddress" `
  -LoadBalancerName "myLoadBalancer" `
  -OrchestrationMode 'Uniform' `
  -UpgradePolicyMode "Automatic"`
  -HostGroupId $hostGroup.Id

If you want to manually choose which host to deploy the scale set to, add --host and the name of the host.

Reassign an existing VM

You can reassign an existing multitenant VM or dedicated host VM to a different dedicated host, but the VM must first be Stop\Deallocated. Before you move a VM to a dedicated host, make sure that the VM configuration is supported:

The VM size must be in the same size family as the dedicated host. For example, if your dedicated host is DSv3, then the VM size could be Standard_D4s_v3, but it couldn't be a Standard_A4_v2.
The VM needs to be located in same region as the dedicated host.
The VM can't be part of a proximity placement group. Remove the VM from the proximity placement group before moving it to a dedicated host. For more information about this topic, see Move a VM out of a proximity placement group.
The VM can't be in an availability set.
If the VM is in an availability zone, it must be the same availability zone as the host group. The availability zone settings for the VM and the host group must match.

Move the VM to a dedicated host using the portal.

Open the page for the VM.
Select Stop to stop\deallocate the VM.
Select Configuration from the left menu.
Select a host group and a host from the drop-down menus.
When you're done, select Save at the top of the page.
After the VM has been added to the host, select Overview from the left menu.
At the top of the page, select Start to restart the VM.

Move the existing VM to a dedicated host using the CLI. The VM must be Stop/Deallocated using az vm deallocate in order to assign it to a dedicated host.

Replace the values with your own information.

az vm deallocate -n myVM -g myResourceGroup
az vm update - n myVM -g myResourceGroup --host myHost
az vm start -n myVM -g myResourceGroup

For automatically placed VMs, only update the host group. For more information about this topic, see Manual vs. automatic placement.

Replace the values with your own information.

az vm deallocate -n myVM -g myResourceGroup
az vm update -n myVM -g myResourceGroup --host-group myHostGroup
az vm start -n myVM -g myResourceGroup

Replace the values of the variables with your own information.

$vmRGName = "movetohost"
$vmName = "myVMtoHost"
$dhRGName = "myDHResourceGroup"
$dhGroupName = "myHostGroup"
$dhName = "myHost"

$myDH = Get-AzHost `
   -HostGroupName $dhGroupName `
   -ResourceGroupName $dhRGName `
   -Name $dhName

$myVM = Get-AzVM `
   -ResourceGroupName $vmRGName `
   -Name $vmName

$myVM.Host = New-Object Microsoft.Azure.Management.Compute.Models.SubResource

$myVM.Host.Id = "$myDH.Id"

Stop-AzVM `
   -ResourceGroupName $vmRGName `
   -Name $vmName -Force

Update-AzVM `
   -ResourceGroupName $vmRGName `
   -VM $myVM -Debug

Start-AzVM `
   -ResourceGroupName $vmRGName `
   -Name $vmName

Move a VM from dedicated host to multitenant infrastructure

You can move a VM that is running on a dedicated host to multitenant infrastructure, but the VM must first be Stop\Deallocated.

Make sure that your subscription has sufficient vCPU quota for the VM in the region where
Your multitenant VM will be scheduled in the same region and zone as the dedicated host

Move a VM from dedicated host to multitenant infrastructure using the portal.

Open the page for the VM.
Select Stop to stop\deallocate the VM.
Select Configuration from the left menu.
Select None under host group drop-down menu.
When you're done, select Save at the top of the page.
After the VM has been reconfigured as a multitenant VM, select Overview from the left menu.
At the top of the page, select Start to restart the VM.

Move a VM from dedicated host to multitenant infrastructure using the CLI. The VM must be Stop/Deallocated using az vm deallocate in order to assign it to reconfigure it as a multitenant VM.

Replace the values with your own information.

az vm deallocate -n myVM -g myResourceGroup
az vm update -n myVM -g myResourceGroup --set host.id=None
az vm start -n myVM -g myResourceGroup

Move a VM from dedicated host to multitenant infrastructure using the PowerShell.

Replace the values of the variables with your own information.

$vmRGName = "moveoffhost"
$vmName = "myDHVM"
$dhRGName = "myDHResourceGroup"
$dhGroupName = "myHostGroup"
$dhName = "myHost"

$myDH = Get-AzHost `
   -HostGroupName $dhGroupName `
   -ResourceGroupName $dhRGName `
   -Name $dhName

$myVM = Get-AzVM `
   -ResourceGroupName $vmRGName `
   -Name $vmName

Stop-AzVM `
   -ResourceGroupName $vmRGName `
   -Name $vmName -Force

Update-AzVM `
   -ResourceGroupName $vmRGName `
   -VM $myVM `
   -HostId ''

Start-AzVM `
   -ResourceGroupName $vmRGName `
   -Name $vmName

Check the status of the host

If you need to know how much capacity is still available on a how, you can check the status.

Search for and select the host.

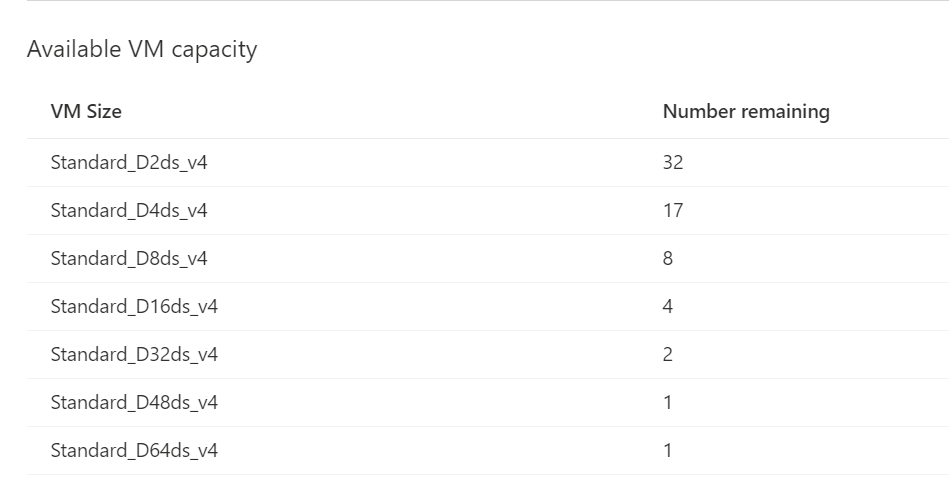

In the Overview page for the host, scroll down to see the list of sizes still available for the host. It should look similar to:

Check the available capacity of the host from the overview page for the host.

You can check the host health status and how many virtual machines you can still deploy to the host using az vm host get-instance-view.

az vm host get-instance-view \
   -g myDHResourceGroup \
   --host-group myHostGroup \
   --name myHost

The output will look similar to the below example:

{
  "autoReplaceOnFailure": true,
  "hostId": "6de80643-0f45-4e94-9a4c-c49d5c777b62",
  "id": "/subscriptions/10101010-1010-1010-1010-101010101010/resourceGroups/myDHResourceGroup/providers/Microsoft.Compute/hostGroups/myHostGroup/hosts/myHost",
  "instanceView": {
    "assetId": "12345678-1234-1234-abcd-abc123456789",
    "availableCapacity": {
      "allocatableVms": [
        {
          "count": 31.0,
          "vmSize": "Standard_D2s_v3"
        },
        {
          "count": 15.0,
          "vmSize": "Standard_D4s_v3"
        },
        {
          "count": 7.0,
          "vmSize": "Standard_D8s_v3"
        },
        {
          "count": 3.0,
          "vmSize": "Standard_D16s_v3"
        },
        {
          "count": 1.0,
          "vmSize": "Standard_D32-8s_v3"
        },
        {
          "count": 1.0,
          "vmSize": "Standard_D32-16s_v3"
        },
        {
          "count": 1.0,
          "vmSize": "Standard_D32s_v3"
        },
        {
          "count": 1.0,
          "vmSize": "Standard_D48s_v3"
        },
        {
          "count": 0.0,
          "vmSize": "Standard_D64-16s_v3"
        },
        {
          "count": 0.0,
          "vmSize": "Standard_D64-32s_v3"
        },
        {
          "count": 0.0,
          "vmSize": "Standard_D64s_v3"
        }
      ]
    },
    "statuses": [
      {
        "code": "ProvisioningState/succeeded",
        "displayStatus": "Provisioning succeeded",
        "level": "Info",
        "message": null,
        "time": "2019-07-24T21:22:40.604754+00:00"
      },
      {
        "code": "HealthState/available",
        "displayStatus": "Host available",
        "level": "Info",
        "message": null,
        "time": null
      }
    ]
  },
  "licenseType": null,
  "location": "chinaeast2",
  "name": "myHost",
  "platformFaultDomain": 1,
  "provisioningState": "Succeeded",
  "provisioningTime": "2019-07-24T21:22:40.604754+00:00",
  "resourceGroup": "myDHResourceGroup",
  "sku": {
    "capacity": null,
    "name": "DSv3-Type1",
    "tier": null
  },
  "tags": null,
  "type": null,
  "virtualMachines": [
    {
      "id": "/subscriptions/10101010-1010-1010-1010-101010101010/resourceGroups/MYDHRESOURCEGROUP/providers/Microsoft.Compute/virtualMachines/MYVM",
      "resourceGroup": "MYDHRESOURCEGROUP"
    }
  ]
}

You can check the host health status and how many virtual machines you can still deploy to the host using Get-AzHost with the -InstanceView parameter.

Get-AzHost `
   -ResourceGroupName $rgName `
   -Name myHost `
   -HostGroupName $hostGroup.Name `
   -InstanceView

The output will look similar to the below example:

ResourceGroupName      : myDHResourceGroup
PlatformFaultDomain    : 1
AutoReplaceOnFailure   : True
HostId                 : 12345678-1234-1234-abcd-abc123456789
ProvisioningTime       : 7/28/2019 5:31:01 PM
ProvisioningState      : Succeeded
InstanceView           :
  AssetId              : abc45678-abcd-1234-abcd-123456789abc
  AvailableCapacity    :
    AllocatableVMs[0]  :
      VmSize           : Standard_D2s_v3
      Count            : 32
    AllocatableVMs[1]  :
      VmSize           : Standard_D4s_v3
      Count            : 16
    AllocatableVMs[2]  :
      VmSize           : Standard_D8s_v3
      Count            : 8
    AllocatableVMs[3]  :
      VmSize           : Standard_D16s_v3
      Count            : 4
    AllocatableVMs[4]  :
      VmSize           : Standard_D32-8s_v3
      Count            : 2
    AllocatableVMs[5]  :
      VmSize           : Standard_D32-16s_v3
      Count            : 2
    AllocatableVMs[6]  :
      VmSize           : Standard_D32s_v3
      Count            : 2
    AllocatableVMs[7]  :
      VmSize           : Standard_D64-16s_v3
      Count            : 1
    AllocatableVMs[8]  :
      VmSize           : Standard_D64-32s_v3
      Count            : 1
    AllocatableVMs[9]  :
      VmSize           : Standard_D64s_v3
      Count            : 1
  Statuses[0]          :
    Code               : ProvisioningState/succeeded
    Level              : Info
    DisplayStatus      : Provisioning succeeded
    Time               : 7/28/2019 5:31:01 PM
  Statuses[1]          :
    Code               : HealthState/available
    Level              : Info
    DisplayStatus      : Host available
Sku                    :
  Name                 : DSv3-Type1
Id                     : /subscriptions/10101010-1010-1010-1010-101010101010/re
sourceGroups/myDHResourceGroup/providers/Microsoft.Compute/hostGroups/myHostGroup/hosts
/myHost
Name                   : myHost
Location               : chinaeast2
Tags                   : {}

Restart a host

Restarting a host does not completely power off the host. When the host restarts, the underlying VMs will also restart. The host will remain on the same underlying physical hardware and both the host ID and asset ID will remain the same after the restart. The host SKU will also remain the same after the restart.

Search for and select the host.
In the top menu bar, select the Restart button.
In the Essentials section of the Host Resource Pane, Host Status will switch to Host undergoing restart during the restart.
Once the restart has completed, the Host Status will return to Host available.

Restart the host using az vm host restart.

az vm host restart \
 --resource-group myResourceGroup \
 --host-group myHostGroup \
 --name myDedicatedHost

To view the status of the restart, you can use the az vm host get-instance-view command. The displayStatus will be set to Host undergoing restart during the restart. Once the restart has completed, the displayStatus will return to Host available.

az vm host get-instance-view --resource-group myResourceGroup --host-group myHostGroup --name myDedicatedHost

Restart the host using the Restart-AzHost command.

Restart-AzHost -ResourceGroupName myResourceGroup -HostGroupName myHostGroup -Name myDedicatedHost

To view the status of the restart, you can use the Get-AzHost commandlet using the InstanceView parameter. The displayStatus will be set to Host undergoing restart during the restart. Once the restart has completed, the displayStatus will return to Host available.

$hostRestartStatus = Get-AzHost -ResourceGroupName myResourceGroup -HostGroupName myHostGroup -Name myDedicatedHost -InstanceView;
$hostRestartStatus.InstanceView.Statuses[1].DisplayStatus;

Resize a host

Moving a host and all associated VMs to newer generation hardware can be done through the host resize feature. Resize simplifies the migration process and avoids having to manually create new hosts and move all VMs individually.

Resize limitations:

Host can only be resized to an ADH within the same VM family. A Dsv3-Type3 host can be resized to Dsv3-Type4 but not to an Esv3-Type4.
You can only resize to newer generation of hardware. A Dsv3-Type3 host can be resized to Dsv3-Type4 but not Dsv3-Type2.
Resizing changes the 'Host Asset ID'. The 'Host ID' remains the same.
The host and all associated VMs become unavailable during the resize operation.

Warning

The resize operation causes the loss of any non-persistent data such as temp disk data. Save all your work to persistent data storage before triggering resize.

Note

If the source host is already running on the latest hardware, 'Size' page would display an empty list. If you're looking for enhanced performance, consider switching to a different VM family.

Search for and select the host.
In the left menu under Settings, select Size.
Once on the size page from the list of SKUs, select the desired SKU to resize to.
Selecting a target size from the list would enable Resize button on the bottom on the page.
Click Resize, host's 'Provisioning State' changes from 'Provisioning Succeeded' to 'Updating'
Once the resizing is complete, the host's 'Provisioning State' reverts to 'Provisioning Succeeded'

First list the sizes that you can resize in case you're unsure which to resize to.

Use az vm host list-resize-options.

az vm host list-resize-options \
 --host-group myHostGroup \
 --host-name myHost \
 --resource-group myResourceGroup

Resize the host using az vm host resize .

az vm host resize \
 --host-group myHostGroup \
 --host-name myHost \
 --resource-group myResourceGroup \
 --sku Dsv3-Type4

When using PowerShell, the resize feature is referred to as a host 'Update'. Use the following commands to update the host:

Update-AzHost
      [-ResourceGroupName] <String>
      [-HostGroupName] <String>
      [-Name] <String>
      [-Sku <String>]
      [-AutoReplaceOnFailure <Boolean>]
      [-LicenseType <DedicatedHostLicenseTypes>]
      [-DefaultProfile <IAzureContextContainer>]
      [-WhatIf]
      [-Confirm]
      [<CommonParameters>]

For more info on Update-AzHost, check out the Update-AzHost reference docs.

Redeploy a host [Preview]

If a VM or the underlying host remains unresponsive after following all the potential troubleshooting steps users can trigger service healing of the host and not wait for the platform to initiate the repair. Redeploying a host will move the host and all associated VMs to a different node of the same SKU. None of the host parameters would change except for the �Host asset ID�, which corresponds to the underlying Node Id.

Warning

Redeploy operation involves service healing hence would result in loss of any non-persistent data such as data stored on ephemeral disks. Save your work before redeploying.

CLI
PowerShell

Redeploying the host using az vm host redeploy.

az vm host redeploy \
 --resource-group myResourceGroup \
 --host-group myHostGroup \
 --name myDedicatedHost

Deleting a host

You're being charged for your dedicated host even when no virtual machines are deployed on the host. You should delete any hosts you're currently not using to save costs.

You can only delete a host when there are no any longer virtual machines using it.

Search for and select the host.
In the left menu, select Instances.
Select and delete each virtual machine.
When all of the VMs have been deleted, go back to the Overview page for the host and select Delete from the top menu.
Once the host has been deleted, open the page for the host group and select Delete host group.

Delete the VMs using az vm delete.

az vm delete -n myVM -g myDHResourceGroup

After deleting the VMs, you can delete the host using az vm host delete.

az vm host delete -g myDHResourceGroup --host-group myHostGroup --name myHost

Once you've deleted all of your hosts, you may delete the host group using az vm host group delete.

az vm host group delete -g myDHResourceGroup --host-group myHostGroup

You can also delete the entire resource group in a single command. The following command will delete all resources created in the group, including all of the VMs, hosts and host groups.

az group delete -n myDHResourceGroup

Delete the VMs using Remove-AzVM.

Remove-AzVM -ResourceGroupName $rgName -Name myVM

After deleting the VMs, you can delete the host using Remove-AzHost.

Remove-AzHost -ResourceGroupName $rgName -Name myHost

Once you've deleted all of your hosts, you may delete the host group using Remove-AzHostGroup.

Remove-AzHost -ResourceGroupName $rgName -Name myHost

You can also delete the entire resource group in a single command using Remove-AzResourceGroup. This following command will delete all resources created in the group, including all of the VMs, hosts and host groups.

Remove-AzResourceGroup -Name $rgName

Next steps

For more information about this topic, see the Dedicated hosts overview.
There's sample template, available at Azure Quickstart Templates, which uses both zones and fault domains for maximum resiliency in a region.

Deploy VMs and scale sets to dedicated hosts

Limitations

Create a host group

Create a dedicated host

Create a VM

Create a scale set

Reassign an existing VM

Move a VM from dedicated host to multitenant infrastructure

Check the status of the host

Restart a host

Resize a host

Redeploy a host [Preview]

Deleting a host

Next steps

Additional resources
