Use the Azure portal to enable end-to-end encryption using encryption at host

  • Article

Applies to: ✔️ Linux VMs ✔️ Windows VMs

When you enable encryption at host, data stored on the VM host is encrypted at rest and flows encrypted to the Storage service. For conceptual information on encryption at host, and other managed disk encryption types, see: Encryption at host - End-to-end encryption for your VM data.

Temporary disks and ephemeral OS disks are encrypted at rest with either customer-managed or platform-managed keys, depending on what you select as the disk encryption type for the OS disk. The OS and data disk caches are encrypted at rest with either customer-managed or platform-managed keys, depending on what you select as the disk encryption type. For example, if a disk is encrypted with customer-managed keys, then the cache for the disk is encrypted with customer-managed keys, and if a disk is encrypted with platform-managed keys then the cache for the disk is encrypted with platform-managed keys.

Restrictions

  • Supported for 4k sector size Ultra Disks and Premium SSD v2.
  • Only supported on 512e sector size Ultra Disks and Premium SSD v2 if they were created after 5/13/2023.
    • For disks created before this date, snapshot your disk and create a new disk using the snapshot.
  • Can't be enabled on virtual machines (VMs) or virtual machine scale sets that currently or ever had Azure Disk Encryption enabled.
  • Azure Disk Encryption can't be enabled on disks that have encryption at host enabled.
  • The encryption can be enabled on existing virtual machine scale sets. However, only new VMs created after enabling the encryption are automatically encrypted.
  • Existing VMs must be deallocated and reallocated in order to be encrypted.

Supported VM sizes

Legacy VM Sizes aren't supported. You can find the list of supported VM sizes by either using the Azure PowerShell module or Azure CLI.

Prerequisites

You must enable the feature for your subscription before you can use encryption at host for either your VM or Virtual Machine Scale Set. Use the following steps to enable the feature for your subscription:

  1. Execute the following command to register the feature for your subscription

    Register-AzProviderFeature -FeatureName "EncryptionAtHost" -ProviderNamespace "Microsoft.Compute"

  2. Confirm that the registration state is Registered (registration might take a few minutes) using the following command before trying out the feature.

    Get-AzProviderFeature -FeatureName "EncryptionAtHost" -ProviderNamespace "Microsoft.Compute"

Sign in to the Azure portal using the provided link.

Important

You must use the provided link to access the Azure portal. Encryption at host is not currently visible in the Microsoft Azure operated by 21Vianet portal without using the link.

Deploy a VM with platform-managed keys

  1. Sign in to the Azure portal.

  2. Search for Virtual Machines and select + Create to create a VM.

  3. Select an appropriate region and a supported VM size.

  4. Fill in the other values on the Basic pane as you like, and then proceed to the Disks pane.

  5. On the Disks pane, select Encryption at host.

  6. Make the remaining selections as you like.

    Screenshot of the virtual machine creation disks pane, encryption at host highlighted.

  7. For the rest of the VM deployment process, make selections that fit your environment, and complete the deployment.

You've now deployed a VM with encryption at host enabled, and the cache for the disk is encrypted using platform-managed keys.

Deploy a VM with customer-managed keys

Alternatively, you can use customer-managed keys to encrypt your disk caches.

Create an Azure Key Vault and disk encryption set

Once the feature is enabled, you need to set up an Azure Key Vault and a disk encryption set, if you haven't already.

Setting up customer-managed keys for your disks requires you to create resources in a particular order, if you're doing it for the first time. First, you'll need to create and set up an Azure Key Vault.

Set up your Azure Key Vault

  1. Sign into the Azure portal.

  2. Search for and select Key Vaults.

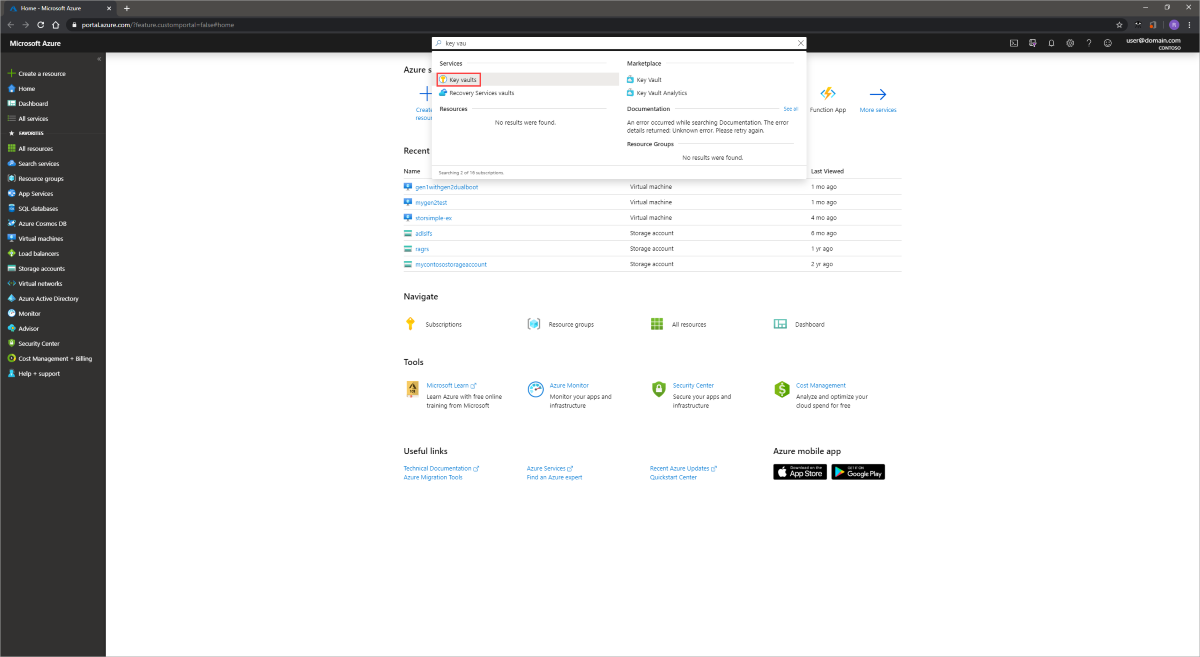

    Screenshot of the Azure portal with the search dialog box expanded.

    Important

    Your disk encryption set, VM, disks, and snapshots must all be in the same region and subscription for deployment to succeed. Azure Key Vaults may be used from a different subscription but must be in the same region and tenant as your disk encryption set.

  3. Select +Create to create a new Key Vault.

  4. Create a new resource group.

  5. Enter a key vault name, select a region, and select a pricing tier.

    Note

    When creating the Key Vault instance, you must enable soft delete and purge protection. Soft delete ensures that the Key Vault holds a deleted key for a given retention period (90 day default). Purge protection ensures that a deleted key cannot be permanently deleted until the retention period lapses. These settings protect you from losing data due to accidental deletion. These settings are mandatory when using a Key Vault for encrypting managed disks.

  6. Select Review + Create, verify your choices, then select Create.

    Screenshot of the Azure Key Vault creation experience, showing the particular values you create.

  7. Once your key vault finishes deploying, select it.

  8. Select Keys under Objects.

  9. Select Generate/Import.

    Screenshot of the Key Vault resource settings pane, shows the generate/import button inside settings.

  10. Leave both Key Type set to RSA and RSA Key Size set to 2048.

  11. Fill in the remaining selections as you like and then select Create.

    Screenshot of the create a key pane that appears once generate/import button is selected.

Add an Azure RBAC role

Now that you've created the Azure key vault and a key, you must add an Azure RBAC role, so you can use your Azure key vault with your disk encryption set.

  1. Select Access control (IAM) and add a role.
  2. Add either the Key Vault Administrator, Owner, or Contributor roles.

Set up your disk encryption set

  1. Search for Disk Encryption Sets and select it.

  2. On the Disk Encryption Sets pane, select +Create.

  3. Select your resource group, name your encryption set, and select the same region as your key vault.

  4. For Encryption type, select Encryption at-rest with a customer-managed key.

    Note

    Once you create a disk encryption set with a particular encryption type, it cannot be changed. If you want to use a different encryption type, you must create a new disk encryption set.

  5. Make sure Select Azure key vault and key is selected.

  6. Select the key vault and key you created previously, and the version.

  7. If you want to enable automatic rotation of customer managed keys, select Auto key rotation.

  8. Select Review + Create and then Create.

    Screenshot of the disk encryption creation pane. Showing the subscription, resource group, disk encryption set name, region, and key vault + key selector.

  9. Navigate to the disk encryption set once it's deployed, and select the displayed alert.

    Screenshot of user selecting the 'To associate a disk, image, or snapshot with this disk encryption set, you must grant permissions to the key vault' alert.

  10. This will grant your key vault permissions to the disk encryption set.

    Screenshot of confirmation that permissions have been granted.

Deploy a VM

Now that you have setup an Azure Key Vault and disk encryption set, you can deploy a VM and it uses encryption at host.

  1. Sign in to the Azure portal.
  2. Search for Virtual Machines and select + Create to create a VM.
  3. Create a new virtual machine, select an appropriate region and a supported VM size.
  4. Fill in the other values on the Basic pane as you like, then proceed to the Disks pane.
  5. On the Disks pane, select Encryption at-rest for customer-managed key for Encryption type and select your disk encryption set.
  6. Select Encryption at host.
  7. Make the remaining selections as you like.
  1. For the rest of the VM deployment process, make selections that fit your environment, and complete the deployment.

You've now deployed a VM with encryption at host enabled using customer-managed keys.

Disable host based encryption

Deallocate your VM first, encryption at host can't be disabled unless your VM is deallocated.

  1. On your VM, select Disks and then select Additional settings.

    Screenshot of the Disks pane on a VM, Additional Settings is highlighted.

  2. Select No for Encryption at host then select Save.
