Project Flash - Use Azure Monitor to monitor Azure Virtual Machine availability

  • Article

Azure Monitor is one solution offered by Flash. Flash is the internal name for a project dedicated to building a robust, reliable, and rapid mechanism for customers to monitor virtual machine (VM) health.

This article covers the use of the Azure Monitor VM availability metric to monitor Azure Virtual Machine availability. For a general overview of Flash solutions, see the Flash overview.

For documentation specific to the other solutions offered by Flash, choose from the following articles:

Azure monitor - VM availability metric

Currently in public preview. The VM availability metric is well-suited for tracking trends, aggregating platform metrics (such as CPU and disk usage), and configuring precise threshold-based alerts. Customers can utilize this out-of-the-box VM availability metric in Azure Monitor. This metric displays the trend of VM availability over time, so users can:

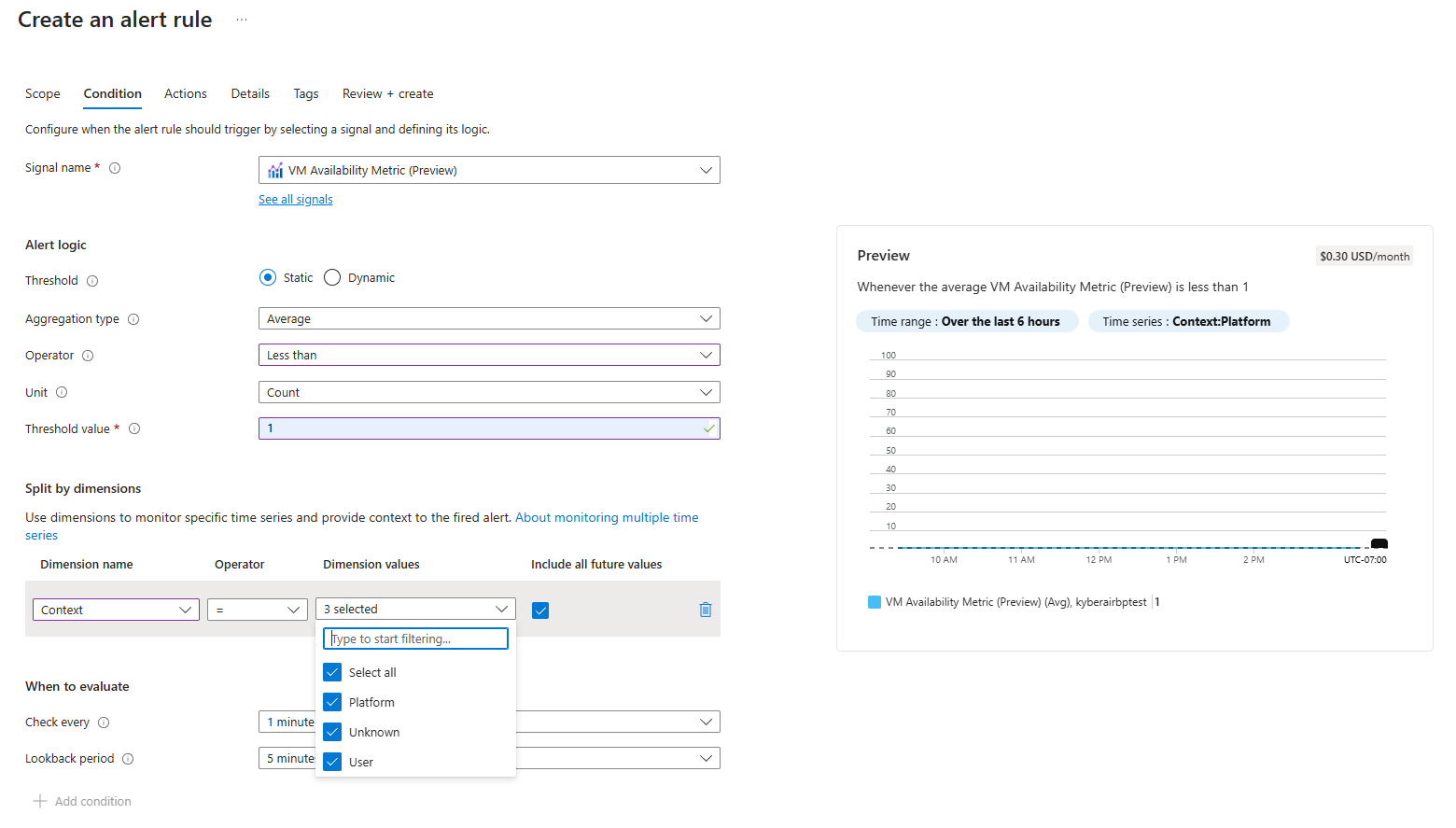

  • Set up threshold-based metric alerts on dipping VM availability to quickly trigger appropriate mitigation actions.
  • Correlate the VM availability metric with existing platform metrics like memory, network, or disk for deeper insights into concerning changes that impact the overall performance of workloads.
  • Easily interact with and chart metric data during any relevant time window on Metrics Explorer, for quick and easy debugging.

Get started

Users can either consume the metric programmatically via the Azure Monitor REST API or directly from the Azure portal. The following steps highlight metric consumption from the Azure portal.

Once on the Azure portal, navigate to the VM overview blade. The new metric is displayed as VM Availability (Preview), along with other platform metrics under the Monitoring tab.

Screenshot of virtual machine availability metric on a virtual machine's overview page on the Azure portal.

To navigate to the metrics explorer for further analysis, select the VM availability metric chart on the overview page.

Screenshot of the newly added VM availability Metric on Metrics Explorer on Azure portal.

For a description of the metric's display values, see VM availability metric.

Next steps

To learn more about the solutions offered, proceed to corresponding solution article:

For a general overview of how to monitor Azure Virtual Machines, see Monitor Azure virtual machines and the Monitoring Azure virtual machines reference.
