Accelerated Networking overview

This article describes the benefits, constraints, and supported configurations of Accelerated Networking. Accelerated Networking enables single root I/O virtualization (SR-IOV) on supported virtual machine (VM) types, greatly improving networking performance. This high-performance data path bypasses the host, which reduces latency, jitter, and CPU utilization for the most demanding network workloads.

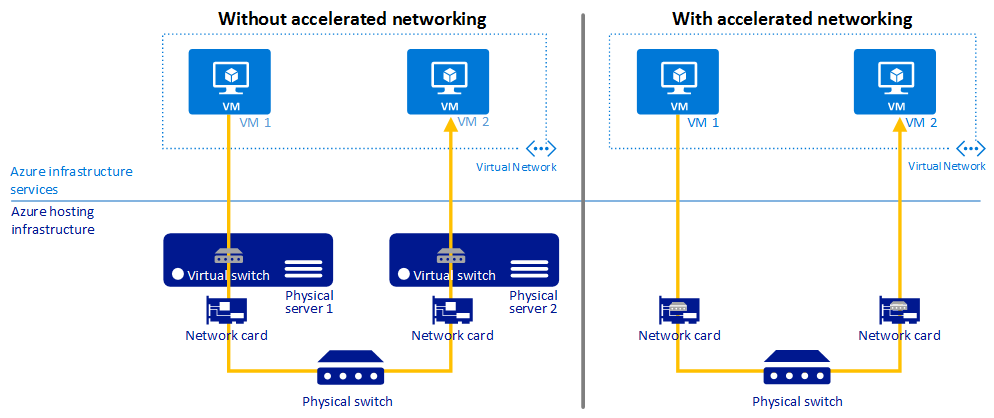

The following diagram illustrates how two VMs communicate with and without Accelerated Networking.

Without Accelerated Networking, all networking traffic in and out of the VM traverses the host and the virtual switch. The virtual switch provides all policy enforcement to network traffic. Policies include network security groups, access control lists, isolation, and other network virtualized services.

With Accelerated Networking, network traffic that arrives at the VM's network interface (NIC) is forwarded directly to the VM. Accelerated Networking offloads all network policies that the virtual switch applied, and it applies them in hardware. Because hardware applies policies, the NIC can forward network traffic directly to the VM. The NIC bypasses the host and the virtual switch, while it maintains all the policies that it applied in the host.

Benefits

Accelerated Networking has the following benefits:

• Lower latency and higher packets per second. Removing the virtual switch from the data path eliminates the time that packets spend in the host for policy processing. It also increases the number of packets that the VM can process.

• Reduced jitter. Processing time for virtual switches depends on the amount of policy to apply and the workload of the CPU that does the processing. Offloading policy enforcement to the hardware removes that variability by delivering packets directly to the VM. Offloading also removes the host-to-VM communication, all software interrupts, and all context switches.

• Decreased CPU utilization. Bypassing the virtual switch in the host leads to less CPU utilization for processing network traffic.

Limitations and constraints

• The benefits of Accelerated Networking apply only to the VM that enables it.

• For best results, enable Accelerated Networking on at least two VMs in the same Azure virtual network. This feature has minimal effect on latency when you communicate across virtual networks or connect on-premises.

• You can't enable Accelerated Networking on a running VM. You can enable Accelerated Networking on a supported VM only when the VM is stopped and deallocated.

• You can't deploy virtual machines (classic) with Accelerated Networking through Azure Resource Manager.

• The Azure platform does not update the Mellanox NIC drivers in the VM. For VMs running Linux and FreeBSD, customers are encouraged to stay current with the latest kernel updates offered by the distribution. For VMs running Windows, customers should apply updated drivers from the Nvidia support page if any issues are later encountered with the driver delivered with the Marketplace image or applied to a custom image.

Supported regions

Accelerated Networking is available in all regions.

Supported operating systems

The following versions of Windows support Accelerated Networking:

• Windows Server 2022
• Windows Server 2019 Standard/Datacenter
• Windows Server 2016 Standard/Datacenter
• Windows Server 2012 R2 Standard/Datacenter
• Windows 10 version 21H2 or later, including Windows 10 Enterprise multisession
• Windows 11, including Windows 11 Enterprise multisession

The following Linux and FreeBSD distributions from Azure Marketplace support Accelerated Networking out of the box:

• Ubuntu 14.04 with the linux-azure kernel
• Ubuntu 16.04 or later
• SLES12 SP3 or later
• CentOS 7.4 or later
• Debian "Stretch" with backports kernel
• Debian "Buster" or later
• FreeBSD 10.4, 11.1, 12.0, or later

Supported VM instances

Most general-purpose and compute-optimized VM instance sizes with two or more vCPUs support Accelerated Networking. On instances that support hyperthreading, VM instances with four or more vCPUs support Accelerated Networking.

To check whether a VM size supports Accelerated Networking, see Sizes for virtual machines in Azure.

You can directly query the list of VM SKUs that support Accelerated Networking by using the Azure CLI az vm list-skus command:

az vm list-skus \
  --location chinanorth2 \
  --all true \
  --resource-type virtualMachines \
  --query '[].{size:size, name:name, acceleratedNetworkingEnabled: capabilities[?name==`AcceleratedNetworkingEnabled`].value | [0]}' \
  --output table

Custom VM images

If you use a custom image that supports Accelerated Networking, make sure you meet the following requirements.

Device and driver support

Any custom image supporting Accelerated Networking must include drivers that enable Single Root I/O Virtualization for the network interface cards (NIC) which are used on Azure platforms. This hardware list includes NVIDIA ConnectX-3, ConnectX-4 Lx, ConnectX-5 and the Azure Network Adapter (MANA).

Dynamic binding and revocation of virtual function

Accelerated Networking requires guest OS images to properly handle the virtual function being removed or added dynamically. Scenarios such as host maintenance or live migration will result in dynamic revocation of the virtual function and restoration after the maintenance event. Additionally, applications must ensure that they bind to the synthetic device and not the virtual function in order to maintain network connectivity during these events.

For more information about application binding requirements, see How Accelerated Networking works in Linux and FreeBSD VMs.

Configure drivers to be unmanaged

Accelerated Networking requires network configurations that mark the NVIDIA drivers as unmanaged devices. Images with cloud-init version 19.4 or later have networking correctly configured to support Accelerated Networking during provisioning. We strongly advise that you don't run competing network interface software (such as ifupdown and networkd) on custom images, and that you don't run dhcpclient directly on multiple interfaces.

sudo cat <<EOF > /etc/udev/rules.d/68-azure-sriov-nm-unmanaged.rules
# Accelerated Networking on Azure exposes a new SRIOV interface to the VM.
# This interface is transparentlybonded to the synthetic interface,
# so NetworkManager should just ignore any SRIOV interfaces.
SUBSYSTEM=="net", DRIVERS=="hv_pci", ACTION!="remove", ENV{NM_UNMANAGED}="1"
EOF

sudo mkdir -p /etc/systemd/network
sudo cat > /etc/systemd/network/99-azure-unmanaged-devices.network <<EOF
# Ignore SR-IOV interface on Azure, since it's transparently bonded
# to the synthetic interface
[Match]
Driver=mlx4_en mlx5_en mlx4_core mlx5_core
[Link]
Unmanaged=yes
EOF

sudo mkdir -p /etc/systemd/network
sudo cat > /etc/systemd/network/99-azure-unmanaged-devices.network <<EOF
# Ignore SR-IOV interface on Azure, since it's transparently bonded
# to the synthetic interface
[Match]
Driver=mlx4_en mlx5_en mlx4_core mlx5_core
[Link]
Unmanaged=yes
EOF

Network traffic uses the Accelerated Networking data path

For NVIDIA drivers: Verify that the packets are flowing over the VF interface

• Linux documentation
• Windows documentation

For MANA driver: Verify that the traffic is flowing through MANA

• Linux documentation
• Windows documentation
