SMB Azure 文件共享

若要使用 Azure 门户查看或更改 SMB 安全设置，请执行以下步骤：

1. 登录到 Azure 门户并搜索 存储帐户。 选择要查看或更改 SMB 安全设置的存储帐户。

2. 在服务菜单中，选择 “数据存储>文件共享”。

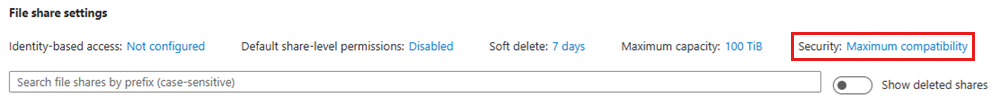

3. 在“文件共享设置”下选择与“安全性”关联的值。

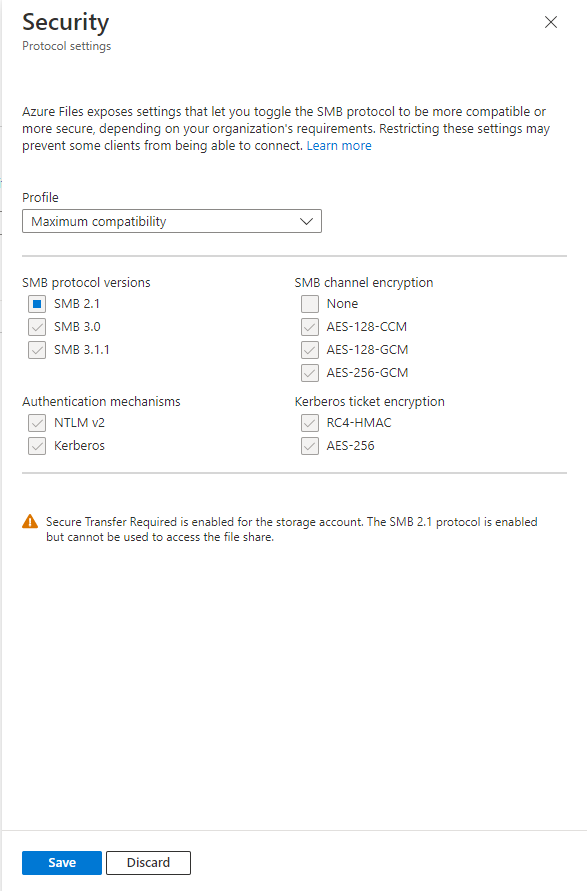

4. 在“配置文件”下，选择“最大兼容性”、“最大安全性”或“自定义”。 选择“自定义”可让你为 SMB 协议版本、SMB 通道加密、身份验证机制和 Kerberos 票证加密创建自定义配置文件。

   重要

   选择 “最大安全性 ”或使用自定义设置可能会导致某些客户端无法连接。 例如，从 Windows Server 2022 和 Windows 11 开始，引入了 AES-256-GCM 作为 SMB 通道加密的一种选项。 这意味着不支持 AES-256-GCM 的旧客户端无法连接。 如果仅选择 AES-256-GCM，则需要告知Windows Server 2022和Windows 11客户端仅使用 AES-256-GCM，方法是在每个客户端上以管理员身份打开 PowerShell 终端，并运行 Set-SmbClientConfiguration -EncryptionCiphers "AES_256_GCM" -Confirm:$false。



输入所需的安全设置后，选择“ 保存”。

要获取 SMB 协议设置，请使用 Get-AzStorageFileServiceProperty cmdlet。 将 <resource-group> 和 <storage-account> 替换为适用于你的环境的值。 如果将任何 SMB 安全设置设为 null，例如禁用 SMB 通道加密时，请参阅脚本中关于如何注释掉某些行的说明。

$resourceGroupName = "<resource-group>"
$storageAccountName = "<storage-account>"

# Get reference to storage account
$storageAccount = Get-AzStorageAccount `
    -ResourceGroupName $resourceGroupName `
    -StorageAccountName $storageAccountName

# If you've never changed any SMB security settings, the values for the SMB security
# settings returned by Azure Files will be null. Null returned values should be interpreted
# as "default settings are in effect". To make this more user-friendly, the following
# PowerShell commands replace null values with the human-readable default values.
# If you've deliberately set any of your SMB security settings to null, for example by
# disabling SMB channel encryption, comment out the following four lines to avoid
# changing the security settings back to defaults.
$smbProtocolVersions = "SMB2.1", "SMB3.0", "SMB3.1.1"
$smbAuthenticationMethods = "NTLMv2", "Kerberos"
$smbKerberosTicketEncryption = "RC4-HMAC", "AES-256"
$smbChannelEncryption = "AES-128-CCM", "AES-128-GCM", "AES-256-GCM"

# Gets the current values of the SMB security settings
Get-AzStorageFileServiceProperty -StorageAccount $storageAccount | `
    Select-Object -Property `
        ResourceGroupName, `
        StorageAccountName, `
        @{
            Name = "SmbProtocolVersions";
            Expression = {
                if ($null -eq $_.ProtocolSettings.Smb.Versions) {
                    [String]::Join(", ", $smbProtocolVersions)
                } else {
                    [String]::Join(", ", $_.ProtocolSettings.Smb.Versions)
                }
            }
        },
        @{
            Name = "SmbChannelEncryption";
            Expression = {
                if ($null -eq $_.ProtocolSettings.Smb.ChannelEncryption) {
                    [String]::Join(", ", $smbChannelEncryption)
                } else {
                    [String]::Join(", ", $_.ProtocolSettings.Smb.ChannelEncryption)
                }
            }
        },
        @{
            Name = "SmbAuthenticationMethods";
            Expression = {
                if ($null -eq $_.ProtocolSettings.Smb.AuthenticationMethods) {
                    [String]::Join(", ", $smbAuthenticationMethods)
                } else {
                    [String]::Join(", ", $_.ProtocolSettings.Smb.AuthenticationMethods)
                }
            }
        },
        @{
            Name = "SmbKerberosTicketEncryption";
            Expression = {
                if ($null -eq $_.ProtocolSettings.Smb.KerberosTicketEncryption) {
                    [String]::Join(", ", $smbKerberosTicketEncryption)
                } else {
                    [String]::Join(", ", $_.ProtocolSettings.Smb.KerberosTicketEncryption)
                }
            }
        }

根据组织的安全性、性能和兼容性要求，你可能需要修改 SMB 协议设置。 以下 PowerShell 命令将 SMB 文件共享限制为仅使用最安全的选项。

Update-AzStorageFileServiceProperty `
    -ResourceGroupName $resourceGroupName `
    -StorageAccountName $storageAccountName `
    -SmbAuthenticationMethod "Kerberos" `
    -SmbChannelEncryption "AES-256-GCM" `
    -SmbKerberosTicketEncryption "AES-256" `
    -SmbProtocolVersion "SMB3.1.1"

若要获取 SMB 安全设置的状态，请使用 az storage account file-service-properties show 命令。 在运行这些 Bash 命令之前，请将 <resource-group> 和 <storage-account> 替换为适用于您的环境的相应值。 如果故意将任何 SMB 安全设置设置为 null，例如禁用 SMB 通道加密，请参阅脚本中的说明，了解如何注释掉某些行。

RESOURCE_GROUP_NAME="<resource-group>"
STORAGE_ACCOUNT_NAME="<storage-account>"

# If you've never changed any SMB security settings, the values for the SMB security
# settings returned by Azure Files will be null. Null returned values should be interpreted
# as "default settings are in effect". To make this more user-friendly, the commands in the
# following two sections replace null values with the human-readable default values.
# If you've deliberately set any of your SMB security settings to null, for example by
# disabling SMB channel encryption, comment out the following two sections before
# running the script to avoid changing the security settings back to defaults.

# Values to be replaced
REPLACESMBPROTOCOLVERSION="\"smbProtocolVersions\": null"
REPLACESMBCHANNELENCRYPTION="\"smbChannelEncryption\": null"
REPLACESMBAUTHENTICATIONMETHODS="\"smbAuthenticationMethods\": null"
REPLACESMBKERBEROSTICKETENCRYPTION="\"smbKerberosTicketEncryption\": null"

# Replacement values for null parameters. If you copy this into your own
# scripts, you will need to ensure that you keep these variables up-to-date with any new
# options we may add to these parameters in the future.
DEFAULTSMBPROTOCOLVERSIONS="\"smbProtocolVersions\": \"SMB2.1;SMB3.0;SMB3.1.1\""
DEFAULTSMBCHANNELENCRYPTION="\"smbChannelEncryption\": \"AES-128-CCM;AES-128-GCM;AES-256-GCM\""
DEFAULTSMBAUTHENTICATIONMETHODS="\"smbAuthenticationMethods\": \"NTLMv2;Kerberos\""
DEFAULTSMBKERBEROSTICKETENCRYPTION="\"smbKerberosTicketEncryption\": \"RC4-HMAC;AES-256\""

# Build JMESPath query string
QUERY="{"
QUERY="${QUERY}smbProtocolVersions: protocolSettings.smb.versions,"
QUERY="${QUERY}smbChannelEncryption: protocolSettings.smb.channelEncryption,"
QUERY="${QUERY}smbAuthenticationMethods: protocolSettings.smb.authenticationMethods,"
QUERY="${QUERY}smbKerberosTicketEncryption: protocolSettings.smb.kerberosTicketEncryption"
QUERY="${QUERY}}"

# Get protocol settings from the Azure Files FileService object
PROTOCOLSETTINGS=$(az storage account file-service-properties show \
    --resource-group $RESOURCE_GROUP_NAME \
    --account-name $STORAGE_ACCOUNT_NAME \
    --query "${QUERY}")

# Replace returned values if null with default values
PROTOCOLSETTINGS="${protocolSettings/$REPLACESMBPROTOCOLVERSION/$DEFAULTSMBPROTOCOLVERSIONS}"
PROTOCOLSETTINGS="${protocolSettings/$REPLACESMBCHANNELENCRYPTION/$DEFAULTSMBCHANNELENCRYPTION}"
PROTOCOLSETTINGS="${protocolSettings/$REPLACESMBAUTHENTICATIONMETHODS/$DEFAULTSMBAUTHENTICATIONMETHODS}"
PROTOCOLSETTINGS="${protocolSettings/$REPLACESMBKERBEROSTICKETENCRYPTION/$DEFAULTSMBKERBEROSTICKETENCRYPTION}"

# Print returned settings
echo $PROTOCOLSETTINGS

根据组织的安全性、性能和兼容性要求，你可能需要修改 SMB 协议设置。 以下 Azure CLI 命令将 SMB 文件共享限制为仅使用最安全的选项。

az storage account file-service-properties update \
    --resource-group $RESOURCE_GROUP_NAME \
    --account-name $STORAGE_ACCOUNT_NAME \
    --versions "SMB3.1.1" \
    --channel-encryption "AES-256-GCM" \
    --auth-methods "Kerberos" \
    --kerb-ticket-encryption "AES-256"
