Troubleshoot Kubernetes deployment to Azure Stack Hub

This article reviews how to troubleshoot your Kubernetes cluster. To begin troubleshooting, review the elements required for the deployment. You might need to collect the deployment logs from Azure Stack Hub or the Linux VMs that host Kubernetes. To retrieve logs from an administrative endpoint, contact your Azure Stack Hub admin.

Before you troubleshoot your cluster, review the Azure Stack Hub Kubernetes cluster deployment process. The deployment uses an Azure Resource Manager solution template to create the VMs and install the AKS-Engine for your cluster.

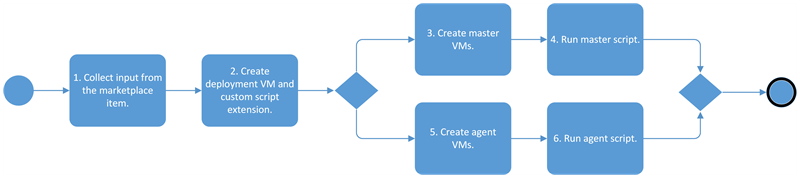

The following diagram shows the general process for deploying the cluster.

1. Collect input parameters from the marketplace item.

   Enter the values you need to set up the Kubernetes cluster, including:

   • User name: The user name for the Linux virtual machines (VMs) that are part of the Kubernetes cluster and DVM.
   • SSH public key: The key that's used for the authorization of all Linux machines that were created as part of the Kubernetes cluster and DVM.
   • Service principal: The ID that's used by the Kubernetes Azure cloud provider. The client ID identified as the application ID when you created your service principal.
   • Client secret: The key you created when you created your service principal.

2. Create the deployment VM and custom script extension.

   • Create the deployment Linux VM by using the marketplace Linux image Ubuntu Server 16.04-LTS.
   • Download and run the custom script extension from the marketplace. The script is Custom Script for Linux 2.0.
   • Run the DVM custom script. The script does the following tasks:
     1. Gets the gallery endpoint from the Azure Resource Manager metadata endpoint.
     2. Gets the active directory resource ID from the Azure Resource Manager metadata endpoint.
     3. Loads the API model for the AKS engine.
     4. Deploys the AKS engine to the Kubernetes cluster and saves the Azure Stack Hub cloud profile to /etc/kubernetes/azurestackcloud.json.

3. Create the master VMs.

4. Download and run custom script extensions.

5. Run the master script.

   The script does the following tasks:

   • Installs etcd, Docker, and Kubernetes resources such as kubelet. etcd is a distributed key value store that provides a way to store data across a cluster of machines. Docker supports bare-bones operating system-level virtualizations known as containers. Kubelet is the node agent that runs on each Kubernetes node.
   • Sets up the etcd service.
   • Sets up the kubelet service.
   • Starts kubelet. This task involves the following steps:
     1. Starts the API service.
     2. Starts the controller service.
     3. Starts the scheduler service.

6. Create agent VMs.

7. Download and run the custom script extension.

8. Run the agent script. The agent custom script does the following tasks:

   • Installs etcd.
   • Sets up the kubelet service.
   • Joins the Kubernetes cluster.

You can collect and review deployment logs on the VMs that support your Kubernetes cluster. Talk to your Azure Stack Hub administrator to verify the version of Azure Stack Hub that you need to use, and to get logs from Azure Stack Hub that are related to your deployment.

1. Review the error code returned by the ARM deployment in your Deployments pane in the resource group where you deployed the cluster. The descriptions for the error codes are in the Troubleshooting article in AKS engine GitHub repository. If you can't resolve the issue with the error description, continue with these steps.
2. Review the deployment status and retrieve the logs from the control plane node in your Kubernetes cluster.
3. Check that you're using the latest version of Azure Stack Hub. If you're unsure which version you're using, contact your Azure Stack Hub administrator.
4. Review your VM creation files. You might have had the following issues:
   • The public key might be invalid. Review the key that you created.
   • VM creation might have triggered an internal error or triggered a creation error. A number of factors can cause errors, including capacity limitations for your Azure Stack Hub subscription.
   • Make sure that the fully qualified domain name (FQDN) for the VM begins with a duplicate prefix.
5. If the VM is OK, then evaluate the DVM. If the DVM has an error message:
   • The public key might be invalid. Review the key that you created.
   • Contact your Azure Stack Hub administrator to retrieve the logs for Azure Stack Hub by using the privileged endpoints. For more information, see Azure Stack Hub diagnostics tools.
6. If you have a question about your deployment, you can post it or see if someone has already answered the question in the Azure Stack Hub forum.

When you deploy your Kubernetes cluster, you can review the deployment status to check for any issues.

1. Open the Azure Stack Hub portal https://portal.local.azurestack.external.

2. Select Resource groups, and then select the name of the resource group that you used when deploying the Kubernetes cluster.

3. Select Deployments, and then select the Deployment name.



4. Consult the troubleshoot window. Each deployed resource provides the following information:

   Expand table

   Property	Description
   Resource	The name of the resource.
   Type	The resource provider and the type of resource.
   Status	The status of the item.
   TimeStamp	The UTC timestamp of the time.
   Operation details	The operation details such as the resource provider that was involved in the operation, the resource endpoint, and the name of the resource.

   Each item has a status icon of green or red.

If the Azure Stack Hub portal doesn't provide enough information for you to troubleshoot or overcome a deployment failure, the next step is to dig into the cluster logs. To manually retrieve the deployment logs, you typically need to connect to one of the cluster's master VMs. A simpler alternative approach would be to download and run the following Bash script provided by the Azure Stack Hub team. This script connects to the DVM and cluster's VMs, collects relevant system and cluster logs, and downloads them back to your workstation.

You need a Bash prompt on the machine you use to manage Azure Stack Hub. On a Windows machine, you can get a Bash prompt by installing Git for Windows. Once installed, look for Git Bash in your start menu.

Follow these steps to collect and download the cluster logs:

1. Open a Bash prompt. From a Windows machine, open Git Bash or run: C:\Program Files\Git\git-bash.exe.

2. Download the log collector script by running the following commands in your Bash prompt:

   mkdir -p $HOME/kuberneteslogs
   cd $HOME/kuberneteslogs
   curl -O https://raw.githubusercontent.com/msazurestackworkloads/azurestack-gallery/master/diagnosis/getkuberneteslogs.sh
   chmod 744 getkuberneteslogs.sh


3. Look for the information required by the script and run it:

   Expand table

   Parameter	Description	Example
   -d, --vmd-host	The public IP or the fully qualified domain name (FQDN) of the DVM. The VM name starts with vmd-.	IP: 192.168.102.38 DNS: vmd-myk8s.local.cloudapp.azurestack.external
   -h, --help	Print command usage.
   -i, --identity-file	Path to the RSA private key file passed to the marketplace item when creating the Kubernetes cluster. Needed to remote in to the Kubernetes nodes.	C:\data\id_rsa.pem (Putty) ~/.ssh/id_rsa (SSH)
   -m, --master-host	The public IP or the fully qualified domain name (FQDN) of a Kubernetes control plane node. The VM name starts with k8s-master-.	IP: 192.168.102.37 FQDN: k8s-12345.local.cloudapp.azurestack.external
   -u, --user	The user name passed to the marketplace item when creating the Kubernetes cluster. Needed to remote in to the Kubernetes nodes.	azureuser (default value)

   When you add your parameter values, your command might look something like this example:

   ./getkuberneteslogs.sh --identity-file "C:\id_rsa.pem" --user azureuser --vmd-host 192.168.102.37


4. After a few minutes, the script will output the collected logs to a directory named KubernetesLogs_{{time-stamp}}. There you'll find a directory for each VM that belongs to the cluster.

   The log collector script will also look for errors in the log files and include troubleshooting steps if it finds a known issue. Make sure you're running the latest version of the script to increase chances of finding known issues.
