Azure Firewall monitoring data reference

This article contains all the monitoring reference information for this service.

See Monitor Azure Firewall for details on the data you can collect for Azure Firewall and how to use it.

Metrics

This section lists all the automatically collected platform metrics for this service. These metrics are also part of the global list of all platform metrics supported in Azure Monitor.

For information on metric retention, see Azure Monitor Metrics overview.

Supported metrics for Microsoft.Network/azureFirewalls

The following table lists the metrics available for the Microsoft.Network/azureFirewalls resource type.

Table headings

• Metric - The metric display name as it appears in the Azure portal.
• Name in Rest API - Metric name as referred to in the REST API.
• Unit - Unit of measure.
• Aggregation - The default aggregation type. Valid values: Average, Minimum, Maximum, Total, Count.
• Dimensions - Dimensions available for the metric.
• Time Grains - Intervals at which the metric is sampled. For example, PT1M indicates that the metric is sampled every minute, PT30M every 30 minutes, PT1H every hour, and so on.
• DS Export- Whether the metric is exportable to Azure Monitor Logs via Diagnostic Settings. For information on exporting metrics, see Create diagnostic settings in Azure Monitor.

Observed capacity

The Observed Capacity metric is the primary tool for understanding how your firewall is scaling in practice.

Best practices for using Observed Capacity

• Validate your prescaling setup: Confirm that your firewall consistently maintains the minCapacity you defined.
• Track real-time scaling behavior: Use the Avg aggregation to see real-time capacity units.
• Forecast future needs: Combine historical Observed Capacity with traffic trends (for example, monthly spikes or seasonal events) to refine your capacity planning.
• Set proactive alerts: Configure Azure Monitor alerts on Observed Capacity thresholds (for example, alert when scaling exceeds 80% of maxCapacity).
• Correlate with performance metrics: Pair Observed Capacity with Throughput, Latency Probe, and SNAT Port Utilization to diagnose whether scaling keeps up with demand.

Firewall health state

In the preceding table, the Firewall health state metric has two dimensions:

• Status: Possible values are Healthy, Degraded, Unhealthy.
• Reason: Indicates the reason for the corresponding status of the firewall.

If SNAT ports are used more than 95%, they're considered exhausted and the health is 50% with status=Degraded and reason=SNAT port. The firewall keeps processing traffic and existing connections aren't affected. However, new connections might not be established intermittently.

If SNAT ports are used less than 95%, then firewall is considered healthy and health is shown as 100%.

If no SNAT ports usage is reported, health is shown as 0%.

SNAT port utilization

For the SNAT port utilization metric, when you add more public IP addresses to your firewall, more SNAT ports are available, reducing the SNAT ports utilization. Additionally, when the firewall scales out for different reasons (for example, CPU or throughput) more SNAT ports also become available.

Effectively, a given percentage of SNAT ports utilization might go down without you adding any public IP addresses, just because the service scaled out. You can directly control the number of public IP addresses available to increase the ports available on your firewall. But, you can't directly control firewall scaling.

If your firewall is running into SNAT port exhaustion, you should add at least five public IP addresses. This increases the number of SNAT ports available. For more information, see Azure Firewall features.

AZFW Latency Probe

The AZFW Latency Probe metric measures the overall or average latency of Azure Firewall in milliseconds. Administrators can use this metric for the following purposes:

• Diagnose whether Azure Firewall causes latency in the network
• Monitor and alert for latency or performance issues, so IT teams can proactively engage
• Identify various factors that can cause high latency in Azure Firewall, such as high CPU utilization, high throughput, or networking issues

What the AZFW Latency Probe metric measures

• Measures: The latency of Azure Firewall within the Azure platform
• Doesn't measure: End-to-end latency for the entire network path. The metric reflects the performance within the firewall rather than the latency Azure Firewall introduces into the network
• Error reporting: If the latency metric isn't functioning correctly, it reports a value of 0 in the metrics dashboard, indicating a probe failure or interruption

Factors that impact latency

Several factors can affect firewall latency:

• High CPU utilization
• High throughput or traffic load
• Networking issues within the Azure platform

Latency probes: From ICMP to TCP

The latency probe currently uses Azure's Ping Mesh technology, which is based on ICMP (Internet Control Message Protocol). ICMP is suitable for quick health checks, such as ping requests, but it might not accurately represent real-world application traffic, which typically relies on TCP. However, ICMP probes prioritize differently across the Azure platform, which can result in variation across SKUs. To reduce these discrepancies, Azure Firewall plans to transition to TCP-based probes.

Important considerations:

• Latency spikes: With ICMP probes, intermittent spikes are normal and part of the host network's standard behavior. Don't misinterpret these spikes as firewall issues unless they persist.
• Average latency: On average, Azure Firewall latency ranges from 1 ms to 10 ms, depending on the Firewall SKU and deployment size.

Best practices for monitoring latency

• Set a baseline: Establish a latency baseline under light traffic conditions for accurate comparisons during normal or peak usage.

  Note

  When establishing your baseline, expect occasional metric spikes due to recent infrastructure changes. These temporary spikes are normal and result from metric reporting adjustments, not actual issues. Only submit a support request if spikes persist over time.

• Monitor for patterns: Expect occasional latency spikes as part of normal operations. If high latency persists beyond these normal variations, it may indicate a deeper issue requiring investigation.

• Recommended latency threshold: A recommended guideline is that latency should not exceed 3x the baseline. If this threshold is crossed, further investigation is recommended.

• Check the rule limit: Ensure that the network rules are within the 20K rule limit. Exceeding this limit can affect performance.

• New application onboarding: Check for any newly onboarded applications that could be adding significant load or causing latency issues.

• Support request: If you observe continuous latency degradation that does not align with expected behavior, consider filing a support ticket for further assistance.



Metric dimensions

For information about what metric dimensions are, see Multi-dimensional metrics.

This service has the following dimensions associated with its metrics.

• Protocol
• Reason
• Status

Resource logs

This section lists the types of resource logs you can collect for this service. The section pulls from the list of all resource logs category types supported in Azure Monitor.

Supported resource logs for Microsoft.Network/azureFirewalls

DNS Flow Trace Logs

The DNS Flow Trace logs provide deeper visibility into DNS activity, helping administrators troubleshoot resolution issues and verify traffic behavior.

Previously, DNS Proxy logging was limited to:

• AZFWDNSQuery - the initial client query
• AZFWInternalFqdnResolutionFailure - FQDN resolution failures

With the DNS flow trace logs, administrators can trace the complete DNS resolution flow from the client query through Azure Firewall as a DNS proxy, to the external DNS server, and back to the client.

DNS resolution stages

The logs capture the following stages:

1. Client query: The initial DNS query sent by the client
2. Forwarder query: Azure Firewall forwarding the query to an external DNS server (if not cached)
3. Forwarder response: The DNS server's response to Azure Firewall
4. Client response: The final resolved response from Azure Firewall back to the client

The following diagram shows a high-level visual representation of the DNS query flow:

These logs provide valuable insights, such as:

• The DNS server queried
• Resolved IP addresses
• Whether the Azure Firewall cache was used

Enabling DNS Flow Trace Logs

Before setting up DNS Flow Trace Logs, you must first enable the feature using Azure PowerShell.

Enable logs (prerequisite)

Run the following commands in Azure PowerShell, replacing placeholders with your values:

Set-AzContext -SubscriptionName <SubscriptionName>
$firewall = Get-AzFirewall -ResourceGroupName <ResourceGroupName> -Name <FirewallName>
$firewall.EnableDnstapLogging = $true
Set-AzFirewall -AzureFirewall $firewall

Disable logs (optional)

To disable the logs, use the same previous Azure PowerShell command and set the value to False:

Set-AzContext -SubscriptionName <SubscriptionName>
$firewall = Get-AzFirewall -ResourceGroupName <ResourceGroupName> -Name <FirewallName>
$firewall.EnableDnstapLogging = $false
Set-AzFirewall -AzureFirewall $firewall

Configure DNS proxy and DNS flow trace logs

Use the following steps to configure DNS proxy and enable DNS flow trace logs:

1. Enable DNS proxy:

   1. Navigate to Azure Firewall DNS settings and enable DNS Proxy.
   2. Configure a custom DNS server or use the default Azure DNS.
   3. Navigate to Virtual Network DNS settings and set the Firewall's private IP as the primary DNS server.

2. Enable DNS flow trace logs:

   1. Navigate to Azure Firewall in the Azure portal.
   2. Select Diagnostic settings under Monitoring.
   3. Choose an existing diagnostic setting or create a new one.
   4. Under the Log section, select DNS Flow Trace Logs.
   5. Choose your desired destination (Log Analytics, Event Hub, or Storage Account).
   6. Save the settings.

3. Test the configuration:

   1. Generate DNS queries from clients and verify the logs in the chosen destination.

Understand the logs

Each log entry corresponds to a specific stage in the DNS resolution process. The following table describes the log types and key fields:

The above fields are only a subset of the available fields in each log entry.

Key notes:

• If the DNS cache is used, only Client Query and Client Response entries are generated.
• Logs include standard metadata such as timestamps, source/destination IPs, protocols, and DNS message content.
• To avoid excessive log volume in environments with many short-lived queries, enable additional DNS Proxy logs only when deeper DNS troubleshooting is required.

Top flows

The top flows log is known in the industry as fat flow log and in the preceding table as Azure Firewall Fat Flow Log. The top flows log shows the top connections that contribute to the highest throughput through the firewall.

The flow rate is defined as the data transmission rate in megabits per second units. It's a measure of the amount of digital data that can be transmitted over a network in a period of time through the firewall. The Top Flows protocol runs periodically every three minutes. The minimum threshold to be considered a Top Flow is 1 Mbps.

Enable Top flows logs

Use the following Azure PowerShell commands to enable Top flows logs:

Set-AzContext -SubscriptionName <SubscriptionName>
$firewall = Get-AzFirewall -ResourceGroupName <ResourceGroupName> -Name <FirewallName>
$firewall.EnableFatFlowLogging = $true
Set-AzFirewall -AzureFirewall $firewall

Disable Top flows logs

To disable the logs, use the same Azure PowerShell command and set the value to False. For example:

Set-AzContext -SubscriptionName <SubscriptionName>
$firewall = Get-AzFirewall -ResourceGroupName <ResourceGroupName> -Name <FirewallName>
$firewall.EnableFatFlowLogging = $false
Set-AzFirewall -AzureFirewall $firewall

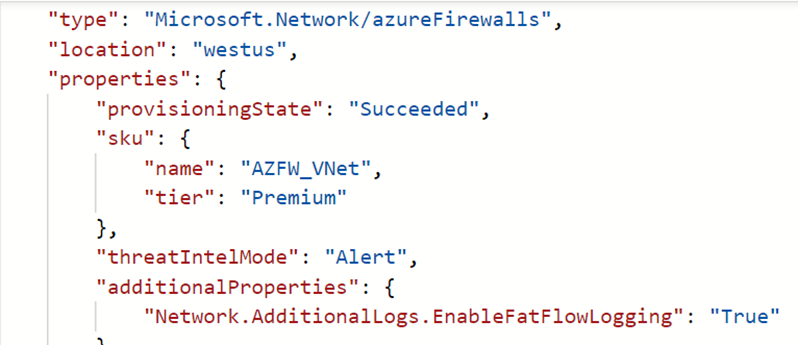

Verify the configuration

There are multiple ways to verify the update was successful. Navigate to the firewall Overview and select JSON view on the top right corner. Here's an example:

To create a diagnostic setting and enable Resource Specific Table, see Create diagnostic settings in Azure Monitor.

Flow trace

The firewall logs show traffic through the firewall in the first attempt of a TCP connection, known as the SYN packet. However, such an entry doesn't show the full journey of the packet in the TCP handshake. As a result, it's difficult to troubleshoot if a packet is dropped or asymmetric routing occurred. The Azure Firewall Flow Trace Log addresses this concern.

Flow trace properties

The following properties can be added:

• SYN-ACK: ACK flag that indicates acknowledgment of SYN packet.

• FIN: Finished flag of the original packet flow. No more data is transmitted in the TCP flow.

• FIN-ACK: ACK flag that indicates acknowledgment of FIN packet.

• RST: The Reset flag indicates the original sender doesn't receive more data.

• INVALID (flows): Indicates packet can't be identified or doesn't have any state.

  For example:

  • A TCP packet lands on a Virtual Machine Scale Sets instance, which doesn't have any prior history for this packet
  • Bad CheckSum packets
  • Connection Tracking table entry is full and new connections can't be accepted
  • Overly delayed ACK packets

Enable Flow trace logs

Use the following Azure PowerShell commands to enable Flow trace logs. Alternatively, navigate in the portal and search for Enable TCP Connection Logging:

Connect-AzAccount -Environment AzureChinaCloud
Select-AzSubscription -Subscription <subscription_id> or <subscription_name>
Register-AzProviderFeature -FeatureName AFWEnableTcpConnectionLogging -ProviderNamespace Microsoft.Network
Register-AzResourceProvider -ProviderNamespace Microsoft.Network

It can take several minutes for this change to take effect. Once the feature is registered, consider performing an update on Azure Firewall for the change to take effect immediately.

Check registration status

To check the status of the AzResourceProvider registration, run the following Azure PowerShell command:

Get-AzProviderFeature -FeatureName "AFWEnableTcpConnectionLogging" -ProviderNamespace "Microsoft.Network"

Disable Flow trace logs

To disable the log, use the following Azure PowerShell commands:

Connect-AzAccount -Environment AzureChinaCloud
Select-AzSubscription -Subscription <subscription_id> or <subscription_name>
$firewall = Get-AzFirewall -ResourceGroupName <ResourceGroupName> -Name <FirewallName>
$firewall.EnableTcpConnectionLogging = $false
Set-AzFirewall -AzureFirewall $firewall

To create a diagnostic setting and enable Resource Specific Table, see Create diagnostic settings in Azure Monitor.

Azure Monitor Logs tables

This section lists the Azure Monitor Logs tables relevant to this service, which are available for query by Log Analytics using Kusto queries. The tables contain resource log data and possibly more depending on what is collected and routed to them.

Azure Firewall Microsoft.Network/azureFirewalls

• AZFWNetworkRule
• AZFWFatFlow
• AZFWFlowTrace
• AZFWApplicationRule
• AZFWThreatIntel
• AZFWNatRule
• AZFWIdpsSignature
• AZFWDnsQuery
• AZFWInternalFqdnResolutionFailure
• AZFWNetworkRuleAggregation
• AZFWApplicationRuleAggregation
• AZFWNatRuleAggregation
• AzureActivity
• AzureMetrics
• AzureDiagnostics

Activity log

The linked table lists the operations that may be recorded in the activity log for this service. This is a subset of all the possible resource provider operations in the activity log.

For more information on the schema of activity log entries, see Activity Log schema.

• Networking resource provider operations
