Migration to Azure Logic Apps Stage 3 - Conversion: Generate workflows

Applies to: Azure Logic Apps (Standard)

The migration process for integration projects can stall when complex source artifacts are difficult to transform into deployable resources in Azure Logic Apps (Standard). In the Conversion stage, the Azure Logic Apps Migration Agent in Visual Studio Code uses the approved planning results to create and run an ordered conversion task plan. This process creates artifacts that include Standard workflow definitions, connection configurations, and supporting files.

This article describes how the Azure Logic Apps Migration Agent creates conversion tasks that map the source integration artifacts to ready-to-deploy Standard logic app project resources and how the agent runs these tasks to produce ready-to-deploy-and-run project artifacts.

Conversion stage actions

In the Azure Logic Apps Migration Agent, after you finish the Plan Logic App Design activity, the Create Conversion Tasks activity becomes available. When you select the Create Conversion Tasks activity, the @migration-converter GitHub Copilot agent creates the conversion tasks necessary to generate the target logic app project artifacts.

After you review these tasks and select the Execute Conversion Tasks activity, the @migration-converter GitHub Copilot agent processes the required tasks in dependency order. The optional Cloud Deployment & Testing task isn't included in this action and requires separate approval.

1: Generate logic app project artifacts

The @migration-converter agent generates the outputs described in the following sections.

Project scaffold structure

The @migration-converter agent first creates a Visual Studio Code workspace and a Standard logic app project under the out folder. Later conversion tasks add one or more workflow definitions, connections, artifacts, and a .NET Functions project when the approved plan requires them:

out/
└── <workspace-name>/
    ├── <workspace-name>.code-workspace
    ├── <logic-app-name>/
    │   ├── host.json
    │   ├── local.settings.json
    │   ├── connections.json                 # Added when connectors are configured
    │   ├── <workflow-name>/
    │   │   └── workflow.json
    │   ├── Artifacts/                       # Added only when required
    │   └── lib/custom/                      # Added when local functions are built
    └── Functions/                           # Added only when local functions are required

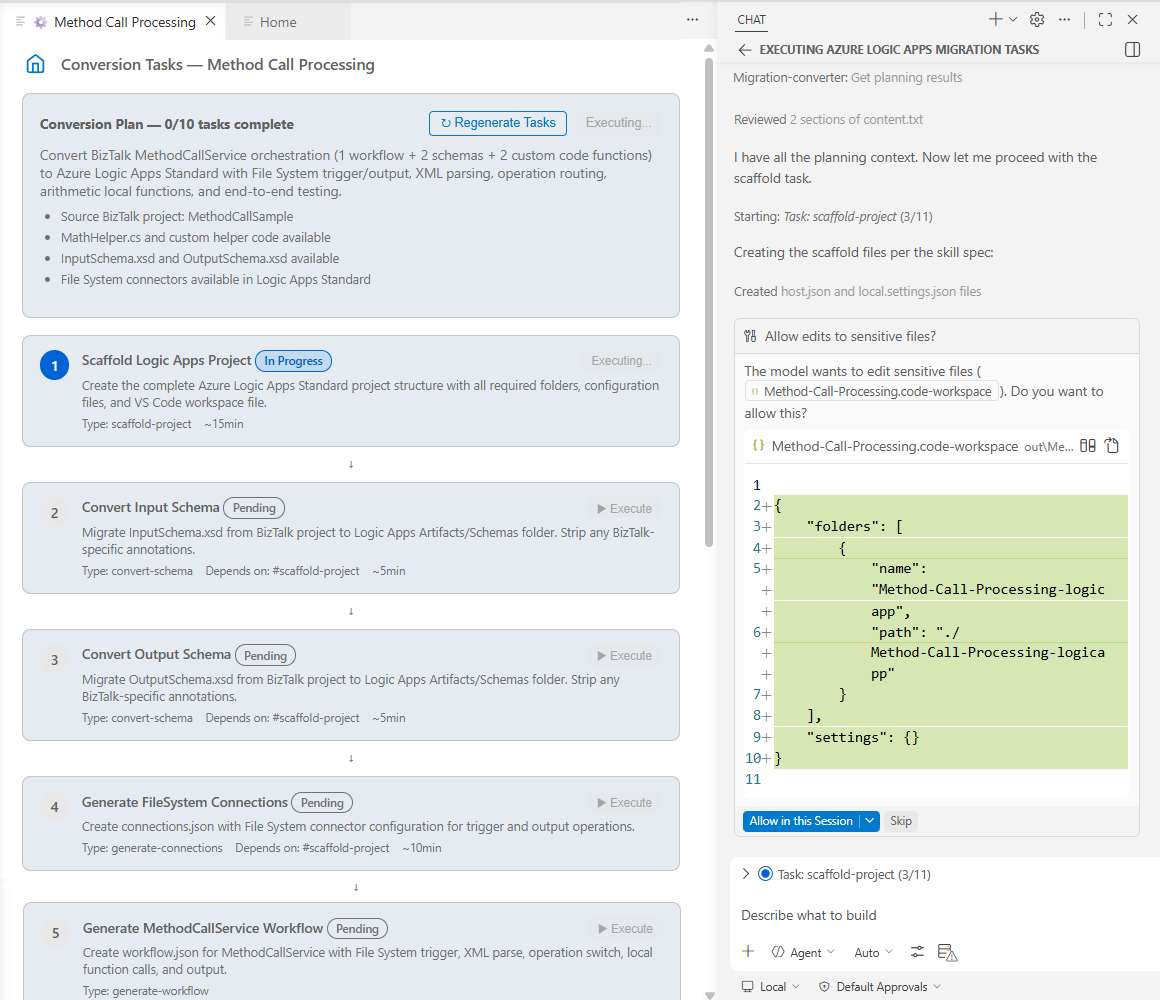

The following example shows the @migration-converter agent creating the project scaffold structure and files:

Workflow definition file

For each workflow in the approved plan, the @migration-converter agent generates a workflow.json file that contains the following workflow operations:

Operation	Description
Trigger	Each workflow always starts with a single trigger, which is the workflow's entry point. The agent maps this trigger from the receive ports or listeners in the source.
Action	Each workflow has one or more actions that perform tasks. The agent maps these actions from the orchestration shapes, flow processors, or activities in the source.
Conditions or loops	Actions that perform control flow logic, such as If, For each, and Until. The agent translates these actions from decision shapes and loops in the source.
Scopes	Actions with `run-after` configurations that you can use to set up error handling.

Connection configurations

The @migration-converter agent generates a connections.json file, which stores the necessary configurations for connector operations in your workflows.

The following table describes the high-level connector groups:

Connector group	Description and examples
Built-in	Connectors with operations that run in the same process as the Azure Logic Apps (Standard) runtime. For example, these connectors include Request, File System, HTTP, Azure Blob Storage, Service Bus, SQL Server, AS2, EDIFACT, X12, and others. For more information, see: - Built-in connectors in Azure Logic Apps - Azure Logic Apps (Standard) built-in connectors reference
Shared or "managed"	Connectors with operations that run in multitenant Azure. For example, these connectors include Salesforce, SAP, Office 365 Outlook, Power BI, SharePoint, and more. Azure Logic Apps supports 1,400+ shared connectors for Microsoft, Azure, and other platforms in the cloud, on-premises, and hybrid environments. For more information, see Managed or shared connectors in Azure Logic Apps.
Custom	Connectors from other publishers or your organization that you create for custom APIs or other services. For more information, see Create custom built-in connectors for Standard workflows.

For more information, What are connectors in Azure Logic Apps.

.NET local functions

If you have source platform components that don't have a direct connector equivalent in Azure Logic Apps (Standard), the @migration-converter agent can create a separate .NET Functions project and build local functions into the logic app project's lib/custom folder. This behavior commonly happens in scenarios where you have the following:

Custom data transformation logic
Complex parsing or validation rules
Calls to on-premises systems through custom protocols
Business rules evaluation

2. Check output completeness and quality

The @migration-converter agent uses the no-stubs-code-generation skill, which requires generated output to contain no stub implementations, placeholder code, or TODO comments. This requirement doesn't replace manual review or runtime testing.

The skill applies the following standards to generated files:

Standard	Description
No stubs or placeholder code	All generated code is complete and functional.
Valid JSON	All `workflow.json` and `connections.json` files are valid and conform to the Azure Logic Apps schema.
Correct references	Workflow actions reference the correct connections and parameters.
Error handling	Workflows include the appropriate error handling scopes.

To prepare the generated output for the Validation stage where you locally run the workflows for testing, make sure that you manually inspect the workflow definitions, connections, and any generated .NET local functions for inaccuracies.

Important

As a best practice, always review any AI generated outputs before you use them. Such outputs might include incorrect information.

For more information, see Quickstart: Migrate an integration project using the Azure Logic Apps Migration Agent.

Next steps

Migration agent stage 4 - Validation: Test workflows
