Connect to and manage Azure Databricks Unity Catalog in Microsoft Purview

This article outlines how to register Azure Databricks, and how to authenticate and interact with Azure Databricks Unity Catalog in Microsoft Purview. For more information about Microsoft Purview, read the introductory article.

Supported capabilities

Metadata Extraction	Full Scan	Incremental Scan	Scoped Scan	Classification	Labeling	Access Policy	Lineage	Data Sharing	Live view
Yes	Yes	No	Yes	Yes	No	No	Yes	No	No

When scanning Azure Databricks Unity Catalog, Microsoft Purview supports:

• Extracting technical metadata including:
  • Metastore
  • Catalogs
  • Schemas
  • Tables including the columns
  • Views including the columns
• Fetching lineage on assets relationships between tables, views, columns during notebook runs.

When setting up scan, you can choose to scan the entire Unity Catalog, or scope the scan to a subset of catalogs.

Known limitations

• When object is deleted from the data source, currently the subsequent scan won't automatically remove the corresponding asset in Microsoft Purview.

Prerequisites

• You must have an Azure account with an active subscription. Create an account.

• You must have an active Microsoft Purview account.

• You need an Azure Key Vault, and to grant Microsoft Purview permissions to access secrets.

• You need Data Source Administrator and Data Reader permissions to register a source and manage it in the Microsoft Purview governance portal. For more information about permissions, see Access control in Microsoft Purview.

• To scan Azure Databricks Unity Catalog, Microsoft Purview connects to a SQL Warehouse in your workspace, and uses Personal Access Token for authentication. You need to have an Azure Databricks workspace that is Unity Catalog enabled and attached to the metastore you want to scan. In your Azure Databricks workspace:

  • Generate a personal access token, and store it as a secret in Azure Key Vault.

    • For all the objects that you want to bring into Microsoft Purview, the user needs to have at least SELECT privilege on tables/views, USE CATALOG on the object’s catalog, and USE SCHEMA on the object’s schema.

    • In order to scan all the objects in a Unity Catalog metastore, use a user with metastore admin role. Learn more from Manage privileges in Unity Catalog and Unity Catalog privileges and securable objects.

    • For classification, user also needs to have SELECT privilege on the tables/views to retrieve sample data.

• To fetch lineage from Azure Databricks using Microsoft Purview, the following prerequisites must be in place:

  • Enable the system schema: The system schema system.access must be enabled in your Unity Catalog. This is required because lineage information is stored in system tables, and enabling this schema allows access to those tables. Learn more about monitoring usage with system tables.

  • User privileges: The user account used for scanning needs to have SELECT privileges on the following system tables:

    • system.access.table_lineage

    • system.access.column_lineage

    These permissions are required because lineage data is read directly from the system tables, and without the necessary access, Microsoft Purview cannot retrieve the lineage information.

Register

This section describes how to register an Azure Databricks workspace in Microsoft Purview by using the Microsoft Purview governance portal.

1. Go to your Microsoft Purview account.

2. Select Data Map on the left pane.

3. Select Register.

4. In Register sources, select Azure Databricks > Continue.

5. On the Register sources (Azure Databricks) screen, do the following:

   1. For Name, enter a name that Microsoft Purview will list as the data source.

   2. For Azure subscription and Databricks workspace name, select the subscription and workspace that you want to scan from the dropdown. The Databricks workspace URL is automatically populated.

   3. Select a collection from the list.



6. Select Finish.

Scan

Use the following steps to scan Azure Databricks to automatically identify assets. For more information about scanning in general, see Scans and ingestion in Microsoft Purview.

1. Go to Sources.

2. Select the registered Azure Databricks.

3. Select + New scan.

4. Provide the following details:

   1. Name: Enter a name for the scan.

   2. Extraction method: Indicate to extract metadata from Hive Metastore or Unity Catalog. Select Unity Catalog.

   3. Connect via integration runtime: Choose the default Azure integration runtime, Managed VNet IR, or a Kubernetes supported self-hosted integration runtime you created.

   4. Credential: Select the credential to connect to your data source. Make sure to:

      • Select Access Token Authentication while creating a credential.
      • Provide secret name of the personal access token that you created in Prerequisites in the appropriate box.

      For more information, see Credentials for source authentication in Microsoft Purview.

   5. HTTP path: Specify the Databricks SQL Warehouse’s HTTP path that Microsoft Purview will connect to and perform the scan, e.g. /sql/1.0/endpoints/xxxxxxxxxxxxxxxx. You can find it in Azure Databricks workspace -> SQL Warehouses -> your warehouse -> Connection details -> HTTP path.

   6. Lineage extraction: Toggle lineage extraction to On to fetch lineage of the scanned assets.

5. Select Test connection to validate the settings.



6. Select Continue.

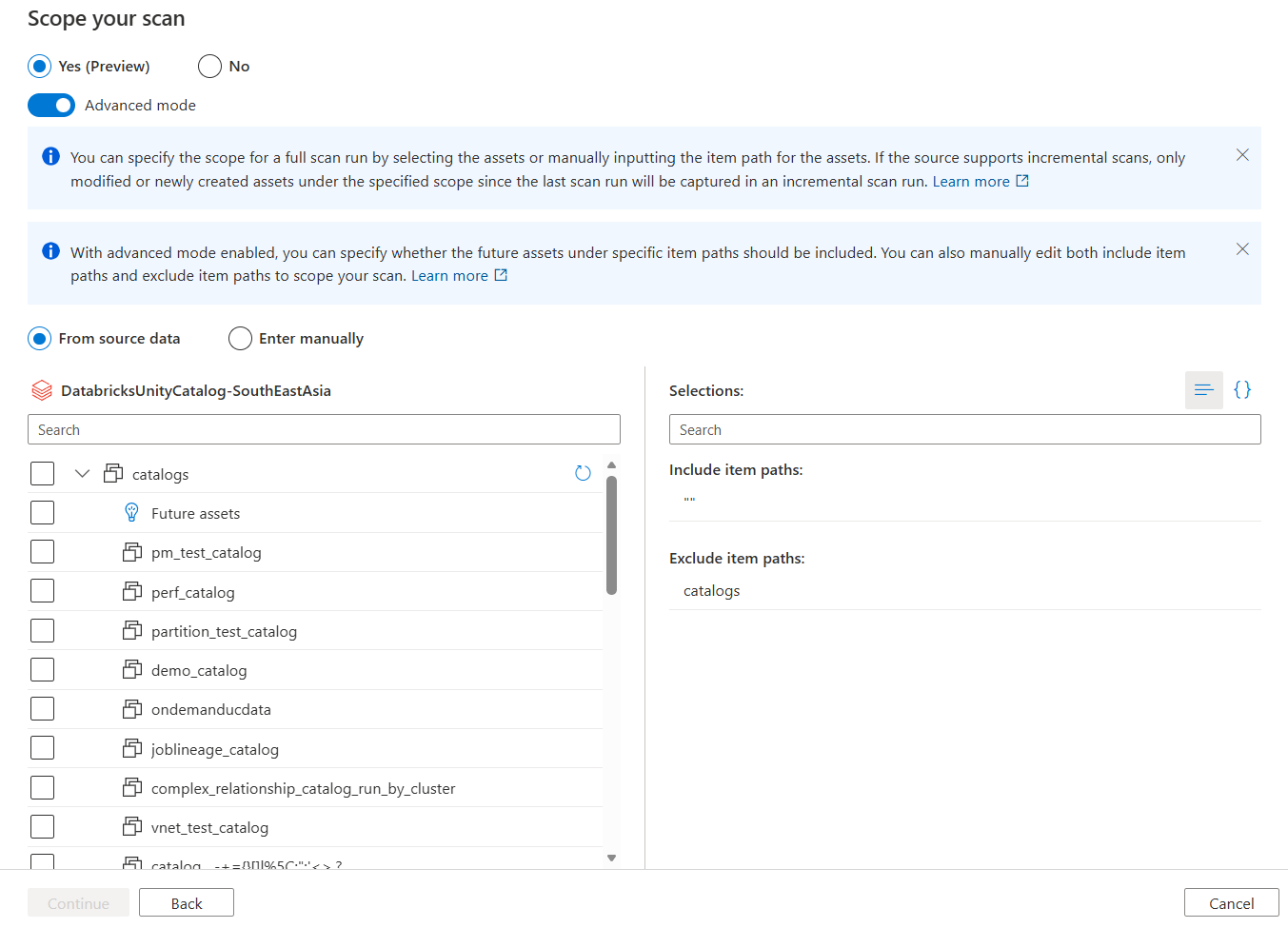

7. In Scope your scan page, select the catalog(s) you want to scan.



8. Select a scan rule set for classification. You can choose between the system default, existing custom rule sets, or create a new rule set inline. Check the Classification article to learn more.

9. For Scan trigger, choose whether to set up a schedule or run the scan once.

10. Review your scan and select Save and Run.

Once the scan successfully completes, see how to browse and search assets.

View your scans and scan runs

To view existing scans:

1. Go to the Microsoft Purview portal. On the left pane, select Data map.
2. Select the data source. You can view a list of existing scans on that data source under Recent scans, or you can view all scans on the Scans tab.
3. Select the scan that has results you want to view. The pane shows you all the previous scan runs, along with the status and metrics for each scan run.
4. Select the run ID to check the scan run details.

Manage your scans

To edit, cancel, or delete a scan:

1. Go to the Microsoft Purview portal. On the left pane, select Data Map.

2. Select the data source. You can view a list of existing scans on that data source under Recent scans, or you can view all scans on the Scans tab.

3. Select the scan that you want to manage. You can then:

   • Edit the scan by selecting Edit scan.
   • Cancel an in-progress scan by selecting Cancel scan run.
   • Delete your scan by selecting Delete scan.

Browse and search assets

After scanning your Azure Databricks, you can browse data catalog or search data catalog to view the asset details and lineage.

When browsing by source types, you see two entries for Azure Databricks Unity Catalog and Azure Databricks respectively. The former contains the Unity Catalog artifacts including the metastore and its catalogs/schemas/tables/views, while the latter contains the workspace artifacts.

From the Azure Databricks workspace asset, you can find the associated Unity Catalog under Properties tab, reversed applies too.

Lineage

When browsing a particular Azure Databricks asset, you can see the notebooks that have captured lineage.

Go to the asset -> lineage tab, you can see the lineage on the Azure Databricks Notebook asset or table/view asset when applicable.

Refer to the supported capabilities section on the supported Databricks Unity Catalog lineage scenarios. For more information about lineage in general, see data lineage and lineage user guide.

Frequently asked questions (FAQ)

Is column level lineage from Unity Catalog captured by Microsoft Purview?

Microsoft Purview can capture lineage at both the Unity Catalog table/view level and the column level.

I just ran my notebook, but Microsoft Purview didn't fetch the lineage. What’s happening?

There may be a slight delay (a few minutes) for Databricks to update the lineage information in its system tables after your notebook execution. Microsoft Purview will be able to fetch the lineage once the system tables are updated.

Next steps

Now that you've registered your source, use the following guides to learn more about Microsoft Purview and your data:

• Search the data catalog
• Data Estate Insights in Microsoft Purview
