A BGP community is a tag that you attach to a route so that downstream routers, network virtual appliances (NVAs), SD-WAN controllers, and on-premises networks can make routing decisions based on route metadata rather than on prefixes or AS path alone. Common uses include traffic engineering, route classification, route filtering, WAN policy enforcement, and SD-WAN route selection.
This article shows you how to use route maps for Azure Route Server to add a BGP community to matched routes by using the Azure portal. For an overview of route maps, see About route maps for Azure Route Server.
Prerequisites
- An Azure account with an active subscription. Create an account for trial.
- An Azure Route Server deployed in a virtual network, with at least one BGP peering to an NVA, an ExpressRoute gateway connection, or a VPN gateway connection. For the full list of prerequisites, see Configure route maps: Prerequisites.
- Verify that routes are learned through Azure Route Server before you configure a route map. Use the Effective Routes view on your route server to confirm the routes.
Considerations
Review the following considerations before you tag routes with BGP communities:

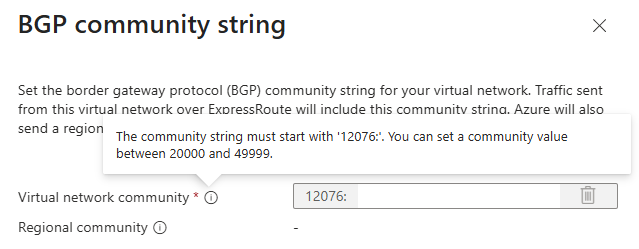

- Route maps add communities to routes that Route Server exchanges with its peers. This feature is separate from the custom BGP community that you can set on a virtual network for ExpressRoute private peering. For that feature, see Configure custom BGP communities for Azure ExpressRoute private peering.
- BGP communities are treated as a set. Unlike AS path prepending, the order in which you add communities doesn't matter.
- Standard BGP communities are typically transitive unless a routing policy removes them. The receiving network decides whether to preserve, modify, or strip the community.
For the complete list of route maps limitations, see About route maps: Considerations and limitations.
Understand the scenario
In this scenario, a workload subnet uses the prefix 10.0.0.0/16 and Azure Route Server uses ASN 65515. You create a route map that matches the workload prefix and adds the BGP community 3356:70 before the route is advertised to downstream peers. The route remains reachable and carries the community value, which downstream peers can use for policy decisions such as preferring the route, adjusting local preference, or triggering an SD-WAN routing policy.
The following table shows the route attributes before and after the route map is applied:
| Prefix | AS path | Communities | |
|---|---|---|---|
| Before the route map | 10.0.0.0/16 | 65515 | None |
| After the route map | 10.0.0.0/16 | 65515 | 3356:70 |

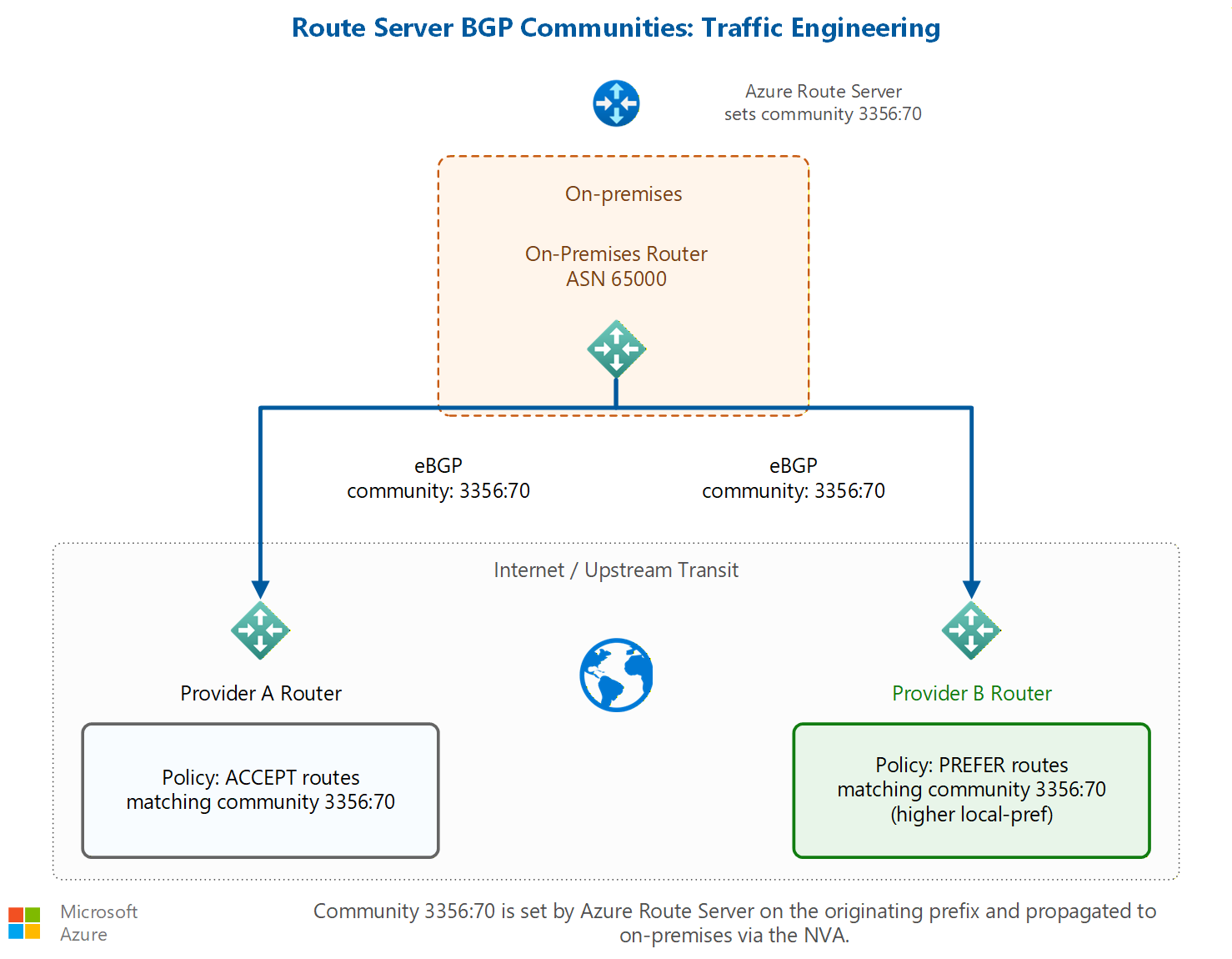

The community travels with the route, so networks beyond your NVA can act on it. In the following diagram, two upstream providers receive the same tagged route and apply different policies to it:
Configure the route map
Configure a route map rule that matches the workload prefix and adds the BGP community.
In the Azure portal, go to your Azure Route Server resource.
In the left menu under Routing, select Route Maps.
On Route Maps, select + Add Route-map.
On Create Route-map, enter a Name for the route map, and then select + Add rule.

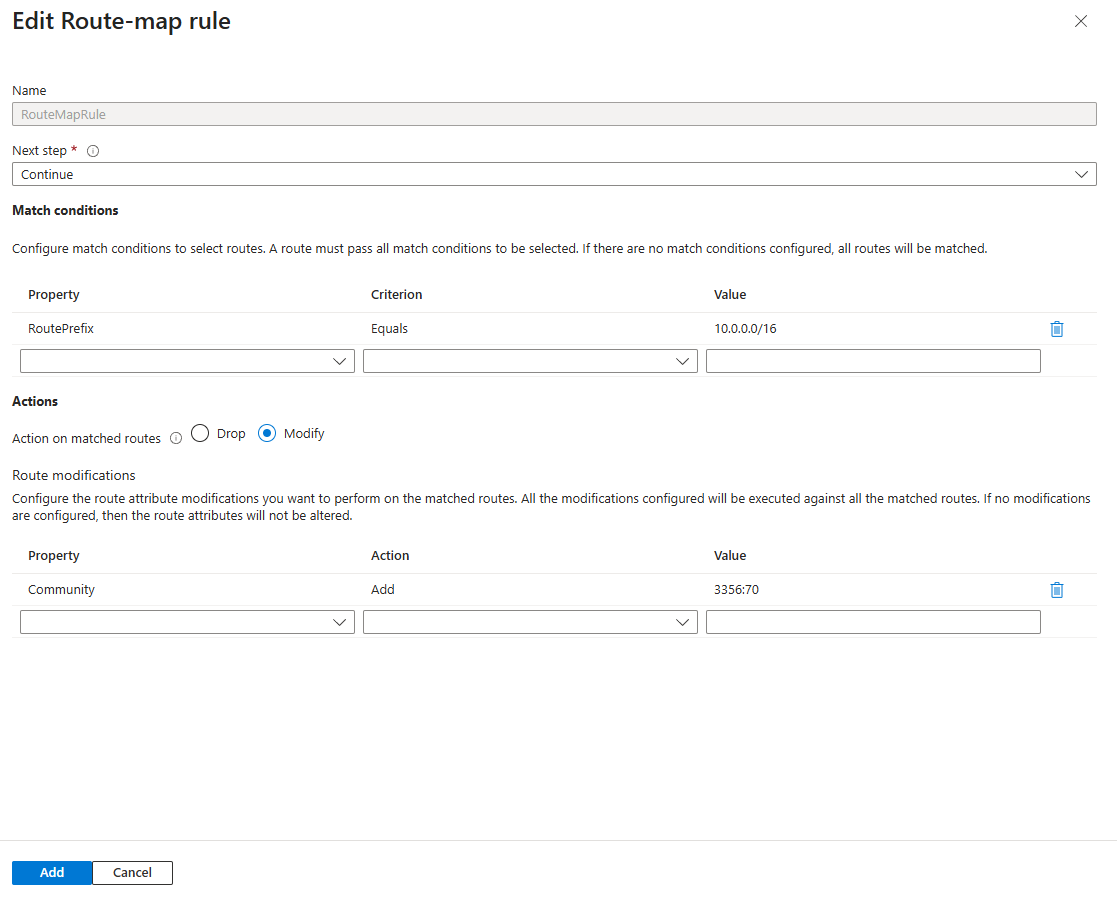

On Create Route-map rule, enter a Name for the rule, and configure the following settings:
Next step: Select Continue if later rules in the route map should also process matched routes. Select Terminate if this rule is the last rule that should act on matched routes.
Match condition
Property Criterion Value RoutePrefix Equals 10.0.0.0/16 Action on matched routes: Select Modify.
Route modifications
Property Action Value Community Add 3356:70 To add multiple communities, enter comma-separated values. Downstream devices evaluate all communities attached to the route.
Select Add to save the rule to the route map.
On Create Route-map, select Save to save the route map and its rules.
It takes a few minutes to save. After the save completes, the Provisioning state shows Succeeded.
Note
The first time you create a route map on an Azure Route Server, the route server undergoes a one-time upgrade that can take up to 30 minutes.
Apply and verify the route map
Apply the route map to the outbound direction of the BGP peering or gateway connection that advertises the workload route. For steps, see Apply a route map to BGP peerings and gateway connections.
Under Routing, select Route Maps, and then open Connections Dashboard. Select the connection and the outbound direction to confirm that the community is added as expected.
Verify the community on the receiving device. Because communities are carried in the route advertisement, you can check the advertised route on a remote or on-premises BGP peer, and the community attribute appears on the route.
Example: classify routes per spoke virtual network
You can use different BGP communities to classify routes from different spoke virtual networks, and then let downstream networks apply policy based on the tag. To tag routes per spoke, create a route map for each spoke and apply it to that spoke's virtual network connection. For the association model, see Apply route maps to an NVA in a spoke virtual network. For example, tag routes from each spoke with a community that identifies its purpose or environment:
| Community | Meaning |
|---|---|
| 3356:70 | Preferred Azure route |
| 65000:100 | Production |
| 65000:200 | Development |
| 65000:300 | Disaster recovery |
Downstream routers and NVAs can then prefer routes, adjust local preference, advertise routes to specific locations, block route propagation, or trigger SD-WAN routing policies based on the community value.
Frequently asked questions
Can I add multiple communities to a route?
Yes. You can attach multiple communities to a route, and downstream devices evaluate them. Communities are treated as a set, so their order doesn't matter.
Can I change the AS path and the community on the same route?
Yes. A single route map rule can make multiple changes to a matched route.
Can I tag only selected routes?
Yes. Use match conditions such as a route prefix to selectively tag routes.
How can downstream routers use communities?
Downstream routers can use communities to prefer routes, increase or decrease local preference, advertise routes to specific locations, block route propagation, or trigger SD-WAN routing policies.
How is community tagging verified?
Check the route on the receiving BGP peer, including a remote or on-premises device, and verify that the community attribute appears on the advertised route. You can also use Connections Dashboard on the Route Maps page of the route server.
Clean up resources
If you created the route map only to test this scenario, remove it when you're done:
- Remove the route map from each connection where you applied it. Set Outbound Route-map to None for the connection, and then select Save. For steps, see Remove a route map from a connection.
- If no other connection uses the route map, delete it. For steps, see Modify or remove a route map.
