Configure network endpoints for accessing Azure file shares

Azure Files provides two main types of endpoints for accessing Azure file shares:

Public endpoints, which have a public IP address and you can access from anywhere in the world.
Private endpoints, which exist within a virtual network and have a private IP address from within the address space of that virtual network.

This article focuses on how to configure a private endpoint for accessing the Azure file share directly. Much of this article also applies to how Azure File Sync interoperates with public and private endpoints for the storage account. For more information about networking considerations for Azure File Sync, see configure Azure File Sync proxy and firewall settings.

Before reading this guide, review Azure Files networking considerations.

Prerequisites

This article assumes that you already created an Azure subscription. If you don't already have a subscription, create a trial account.
You'll need an Azure file share that you want to connect to. To learn how to create an Azure file share, see Create a classic file share.
If you intend to use Azure PowerShell, install the latest version.
If you intend to use the Azure CLI, install the latest version.

Create and configure endpoints

You can configure your endpoints to restrict network access to your storage account and file shares. To restrict access to a virtual network, use one of the following approaches:

Create one or more private endpoints and restrict all access to the public endpoint (recommended). This approach ensures that only traffic originating from within the desired virtual networks can access the Azure file shares. See Private Link cost.

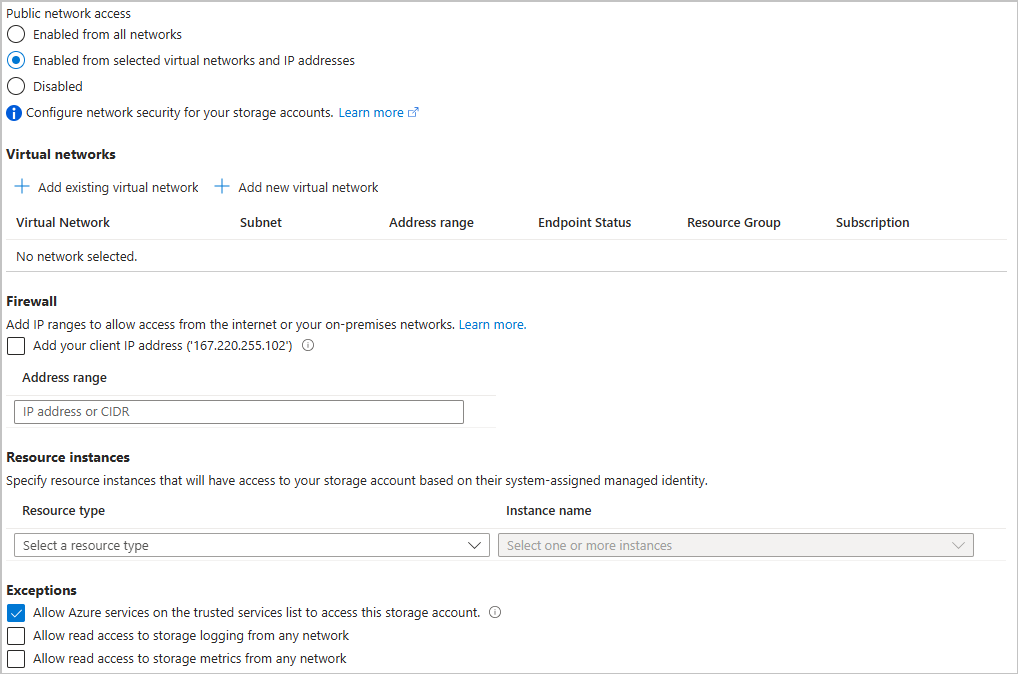

Restrict the public endpoint to one or more virtual networks. This approach uses a capability of the virtual network called service endpoints. When you restrict the traffic to a storage account through a service endpoint, you're accessing the storage account or file share through the public IP address, but access is only possible from the locations you specify in your configuration.

Create a private endpoint

When you create a private endpoint for your file shares, you deploy the following Azure resources:

A private endpoint: An Azure resource that represents the private endpoint. You can think of this resource as a connector between a target resource and a network interface.
A network interface (NIC): The network interface that maintains a private IP address within the specified virtual network and subnet. This resource is the same as the one you deploy when you deploy a virtual machine (VM). However, instead of assigning it to a VM, the private endpoint owns it.
A private Domain Name System (DNS) zone: If you didn't previously deploy a private endpoint for this virtual network, a new private DNS zone is deployed for your virtual network. A DNS record is also created in this DNS zone. If you already deployed a private endpoint in this virtual network, a new record is added to the existing DNS zone. Deploying a DNS zone is optional. However, it's highly recommended, and required if you're mounting your Azure file shares with an AD service principal or using the FileREST API.

Go to the resource group where you want to create a private endpoint. Select + Create and search for Private Endpoint. Select the private endpoint resource, and then select Create.

The wizard has multiple pages to complete.

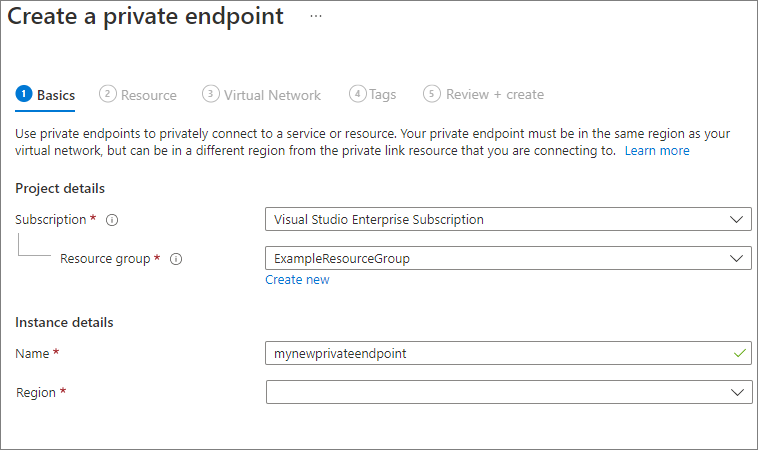

In the Basics page, select the subscription, resource group, name, network interface name, and region for your private endpoint. You must create the private endpoint in the same region as the virtual network you want to create the private endpoint in. Then select Next: Resource.

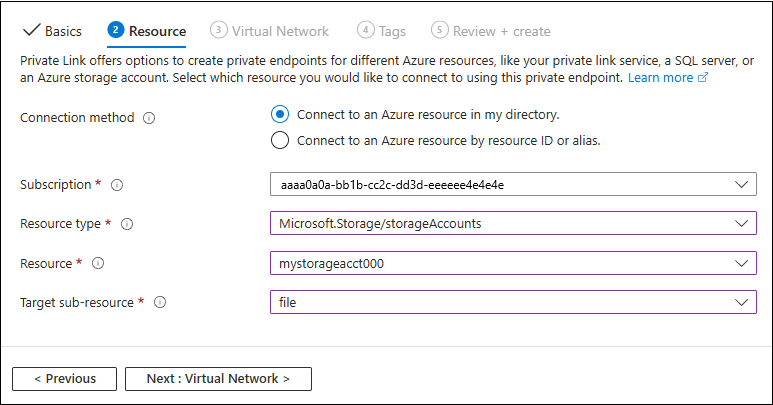

On the Resource page, select Microsoft.Storage/storageAccounts from the drop-down menu for Resource type. For Resource, select the specific storage account you want to connect to. For Target sub-resource, select file. Then select Next: Virtual Network.

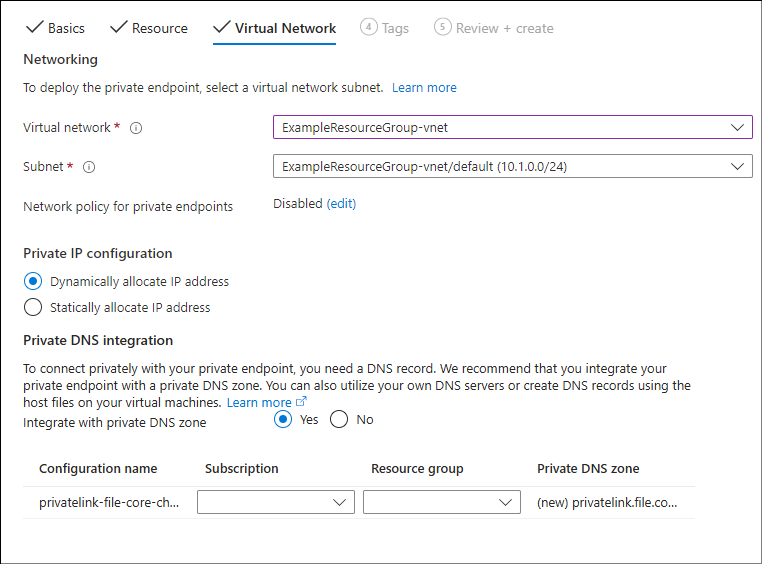

The Virtual Network page allows you to select the specific virtual network and subnet you want to add your private endpoint to. Select dynamic or static IP address allocation for the new private endpoint. If you select static, you also need to provide a name and a private IP address.

The DNS page contains the information for integrating your private endpoint with a private DNS zone. Make sure the subscription and resource group are correct, and then select Next: Tags.

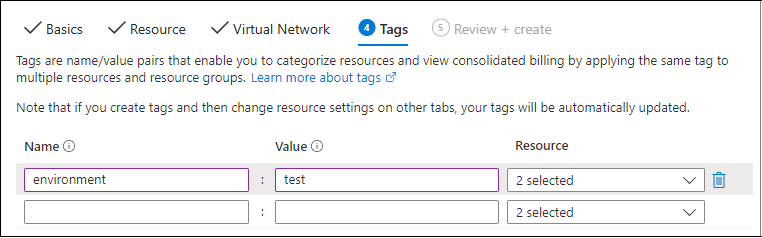

You can optionally apply tags to categorize your resources, such as applying the name Environment and the value Test to all testing resources. Enter name/value pairs if desired, and then select Next: Review + create.

Select Create to create the private endpoint.

To create a private endpoint, first get a reference to your storage account or your file share and the virtual network subnet where you want to add the private endpoint. Replace the placeholder values in the following code with your own values.

Get a reference to the storage account:

$storageAccountResourceGroupName = "<storage-account-resource-group-name>"
$storageAccountName = "<storage-account-name>"

$storageAccount = Get-AzStorageAccount `
        -ResourceGroupName $storageAccountResourceGroupName `
        -Name $storageAccountName `
        -ErrorAction SilentlyContinue

if ($null -eq $storageAccount) {
    $errorMessage = "Storage account $storageAccountName not found "
    $errorMessage += "in resource group $storageAccountResourceGroupName."
    Write-Error -Message $errorMessage -ErrorAction Stop
}

# Set common variables for private endpoint creation
$resourceGroupName = $storageAccountResourceGroupName
$privateLinkResourceId = $storageAccount.Id
$groupId = "file"
$dnsRecordName = $storageAccountName

Get references to the virtual network and subnet:

 $virtualNetworkResourceGroupName = "<vnet-resource-group-name>"
 $virtualNetworkName = "<vnet-name>"
 $subnetName = "<vnet-subnet-name>"

 # Get virtual network reference, and throw error if it doesn't exist
 $virtualNetwork = Get-AzVirtualNetwork `
         -ResourceGroupName $virtualNetworkResourceGroupName `
         -Name $virtualNetworkName `
         -ErrorAction SilentlyContinue

 if ($null -eq $virtualNetwork) {
     $errorMessage = "Virtual network $virtualNetworkName not found "
     $errorMessage += "in resource group $virtualNetworkResourceGroupName."
     Write-Error -Message $errorMessage -ErrorAction Stop
 }

 # Get reference to virtual network subnet, and throw error if it doesn't exist
 $subnet = $virtualNetwork | `
     Select-Object -ExpandProperty Subnets | `
     Where-Object { $_.Name -eq $subnetName }

 if ($null -eq $subnet) {
     Write-Error `
             -Message "Subnet $subnetName not found in virtual network $virtualNetworkName." `
             -ErrorAction Stop
 }

To create a private endpoint, you must create a private link service connection. The private link service connection is an input to the creation of the private endpoint.

 # Disable private endpoint network policies
 $subnet.PrivateEndpointNetworkPolicies = "Disabled"
 $virtualNetwork = $virtualNetwork | `
     Set-AzVirtualNetwork -ErrorAction Stop

 # Create a private link service connection.
 $privateEndpointConnection = New-AzPrivateLinkServiceConnection `
         -Name "$dnsRecordName-Connection" `
         -PrivateLinkServiceId $privateLinkResourceId `
         -GroupId $groupId `
         -ErrorAction Stop

 # Create a new private endpoint.
 $privateEndpoint = New-AzPrivateEndpoint `
         -ResourceGroupName $resourceGroupName `
         -Name "$dnsRecordName-PrivateEndpoint" `
         -Location $virtualNetwork.Location `
         -Subnet $subnet `
         -PrivateLinkServiceConnection $privateEndpointConnection `
         -ErrorAction Stop

If you create an Azure private DNS zone, the original host name resolves to the private IP inside of the virtual network. Although optional from the perspective of creating a private endpoint, it's explicitly required for mounting the Azure file share directly using an Active Directory (AD) user principal or accessing through the REST API.

 # Get the host name suffix (core.chinacloudapi.cn for Azure China cloud).
 # This is done like this so this script will seamlessly work for non-public Azure.
 $hostNameSuffix = Get-AzContext | `
     Select-Object -ExpandProperty Environment | `
     Select-Object -ExpandProperty StorageEndpointSuffix

 # For Azure China cloud, this will generate the following DNS suffix:
 # privatelink.file.core.chinacloudapi.cn.
 $dnsZoneName = "privatelink.file.$hostNameSuffix"

 # Find a DNS zone matching desired name attached to this virtual network.
 $dnsZone = Get-AzPrivateDnsZone | `
     Where-Object { $_.Name -eq $dnsZoneName } | `
     Where-Object {
         $privateDnsLink = Get-AzPrivateDnsVirtualNetworkLink `
                 -ResourceGroupName $_.ResourceGroupName `
                 -ZoneName $_.Name `
                 -ErrorAction SilentlyContinue

         $privateDnsLink.VirtualNetworkId -eq $virtualNetwork.Id
     }

 if ($null -eq $dnsZone) {
     # No matching DNS zone attached to virtual network, so create new one.
     $dnsZone = New-AzPrivateDnsZone `
             -ResourceGroupName $virtualNetworkResourceGroupName `
             -Name $dnsZoneName `
             -ErrorAction Stop

     $privateDnsLink = New-AzPrivateDnsVirtualNetworkLink `
             -ResourceGroupName $virtualNetworkResourceGroupName `
             -ZoneName $dnsZoneName `
             -Name "$virtualNetworkName-DnsLink" `
             -VirtualNetworkId $virtualNetwork.Id `
             -ErrorAction Stop
 }

Now that you have a reference to the private DNS zone, you must create a record.

 $privateEndpointIP = $privateEndpoint | `
     Select-Object -ExpandProperty NetworkInterfaces | `
     Select-Object @{
         Name = "NetworkInterfaces";
         Expression = { Get-AzNetworkInterface -ResourceId $_.Id }
     } | `
     Select-Object -ExpandProperty NetworkInterfaces | `
     Select-Object -ExpandProperty IpConfigurations | `
     Select-Object -ExpandProperty PrivateIpAddress

 $privateDnsRecordConfig = New-AzPrivateDnsRecordConfig `
         -IPv4Address $privateEndpointIP

 New-AzPrivateDnsRecordSet `
         -ResourceGroupName $virtualNetworkResourceGroupName `
         -Name $dnsRecordName `
         -RecordType A `
         -ZoneName $dnsZoneName `
         -Ttl 600 `
         -PrivateDnsRecords $privateDnsRecordConfig `
         -ErrorAction Stop | `
     Out-Null

To create a private endpoint, first get a reference to your storage account or file share, plus the virtual network subnet where you want to add the private endpoint. Replace the placeholder values in the following steps with your own values.

storageAccountResourceGroupName="<storage-account-resource-group-name>"
storageAccountName="<storage-account-name>"

# Get storage account ID
privateLinkResourceId=$(az storage account show \
        --resource-group $storageAccountResourceGroupName \
        --name $storageAccountName \
        --query "id" --output tsv)

# Set common variables for private endpoint creation
resourceGroupName=$storageAccountResourceGroupName
groupId="file"
dnsRecordName=$storageAccountName

Get references to the virtual network and subnet:

virtualNetworkResourceGroupName="<vnet-resource-group-name>"
virtualNetworkName="<vnet-name>"
subnetName="<vnet-subnet-name>"

virtualNetwork=$(az network vnet show \
        --resource-group $virtualNetworkResourceGroupName \
        --name $virtualNetworkName \
        --query "id" --output tsv)

subnet=$(az network vnet subnet show \
        --resource-group $virtualNetworkResourceGroupName \
        --vnet-name $virtualNetworkName \
        --name $subnetName \
        --query "id" --output tsv)

To create a private endpoint, ensure the subnet's private endpoint network policy is disabled, and then create the private endpoint with az network private-endpoint create.

# Disable private endpoint network policies
az network vnet subnet update \
        --ids $subnet \
        --disable-private-endpoint-network-policies \
        --output none

# Get virtual network location
region=$(az network vnet show \
        --ids $virtualNetwork \
        --query "location" --output tsv)

# Create a private endpoint
privateEndpoint=$(az network private-endpoint create \
        --resource-group $resourceGroupName \
        --name "$dnsRecordName-PrivateEndpoint" \
        --location $region \
        --subnet $subnet \
        --private-connection-resource-id $privateLinkResourceId \
        --group-id $groupId \
        --connection-name "$dnsRecordName-Connection" \
        --query "id" --output tsv)

If you create an Azure private DNS zone, the original host name resolves to the private IP inside the virtual network. Although optional from the perspective of creating a private endpoint, it's required for mounting the Azure file share by using an AD user principal or accessing through the FileREST API.

# Get the desired storage account suffix (core.chinacloudapi.cn for Azure China cloud).
# This is done so the script will work for non-public Azure clouds.
storageAccountSuffix=$(az cloud show \
        --query "suffixes.storageEndpoint" --output tsv)

# For Azure China cloud, this generates the DNS suffix:
# privatelink.file.core.chinacloudapi.cn.
dnsZoneName="privatelink.file.$storageAccountSuffix"

# Find a DNS zone matching the desired name attached to this virtual network.
possibleDnsZones=$(az network private-dns zone list \
        --query "[?name == '$dnsZoneName'].id" \
        --output tsv)

dnsZone=""
for possibleDnsZone in $possibleDnsZones
do
    possibleResourceGroupName=$(az resource show \
            --ids $possibleDnsZone \
            --query "resourceGroup" --output tsv)

    link=$(az network private-dns link vnet list \
            --resource-group $possibleResourceGroupName \
            --zone-name $dnsZoneName \
            --query "[?virtualNetwork.id == '$virtualNetwork'].id" \
            --output tsv)

    if [ -n "$link" ]
    then
        dnsZoneResourceGroup=$possibleResourceGroupName
        dnsZone=$possibleDnsZone
        break
    fi
done

if [ -z "$dnsZone" ]
then
    # No matching DNS zone attached to the virtual network, so create a new one.
    dnsZone=$(az network private-dns zone create \
            --resource-group $virtualNetworkResourceGroupName \
            --name $dnsZoneName \
            --query "id" --output tsv)

    az network private-dns link vnet create \
            --resource-group $virtualNetworkResourceGroupName \
            --zone-name $dnsZoneName \
            --name "$virtualNetworkName-DnsLink" \
            --virtual-network $virtualNetwork \
            --registration-enabled false \
            --output none

    dnsZoneResourceGroup=$virtualNetworkResourceGroupName
fi

Now that you have a reference to the private DNS zone, create an A record.

privateEndpointNIC=$(az network private-endpoint show \
        --ids $privateEndpoint \
        --query "networkInterfaces[0].id" --output tsv)

privateEndpointIP=$(az network nic show \
        --ids $privateEndpointNIC \
        --query "ipConfigurations[0].privateIPAddress" --output tsv)

az network private-dns record-set a create \
        --resource-group $dnsZoneResourceGroup \
        --zone-name $dnsZoneName \
        --name $dnsRecordName \
        --output none

az network private-dns record-set a add-record \
        --resource-group $dnsZoneResourceGroup \
        --zone-name $dnsZoneName \
        --record-set-name $dnsRecordName \
        --ipv4-address $privateEndpointIP \
        --output none

Verify connectivity

If you have a VM inside your virtual network, or you configured DNS forwarding as described in Configuring DNS forwarding for Azure Files, you can test that your private endpoint is set up correctly. Run the following commands from PowerShell, the command line, or the terminal (works for Windows, Linux, or macOS).

Replace <storage-account-name> with the appropriate storage account name:

nslookup <storage-account-name>.file.core.chinacloudapi.cn

If successful, you see output similar to the following, where 192.168.0.5 is the private IP address of the private endpoint in your virtual network (output shown for Windows).

Server:  UnKnown
Address:  10.2.4.4

Non-authoritative answer:
Name:    storageaccount.privatelink.file.core.chinacloudapi.cn
Address:  192.168.0.5
Aliases:  storageaccount.file.core.chinacloudapi.cn

 $storageAccountHostName = [System.Uri]::new($storageAccount.PrimaryEndpoints.file) | `
     Select-Object -ExpandProperty Host

 Resolve-DnsName -Name $storageAccountHostName

If successful, you see output similar to the following, where 192.168.0.5 is the private IP address of the private endpoint in your virtual network.

Name                             Type   TTL   Section    NameHost
----                             ----   ---   -------    --------
storageaccount.file.core.chinacloudapi.cn CNAME  60    Answer     storageaccount.privatelink.file.core.chinacloudapi.cn

Name       : storageaccount.privatelink.file.core.chinacloudapi.cn
QueryType  : A
TTL        : 600
Section    : Answer
IP4Address : 192.168.0.5

httpEndpoint=$(az storage account show \
        --resource-group $storageAccountResourceGroupName \
        --name $storageAccountName \
        --query "primaryEndpoints.file" --output tsv)

hostName=$(echo $httpEndpoint | cut -c7-$(expr length $httpEndpoint) | tr -d "/")
nslookup $hostName

If successful, you see output similar to the following, where 192.168.0.5 is the private IP address of the private endpoint in your virtual network. You should still use the original host name (storageaccount.file.core.chinacloudapi.cn) to mount your file share instead of the privatelink path.

Server:         127.0.0.53
Address:        127.0.0.53#53

Non-authoritative answer:
storageaccount.file.core.chinacloudapi.cn      canonical name = storageaccount.privatelink.file.core.chinacloudapi.cn.
Name:   storageaccount.privatelink.file.core.chinacloudapi.cn
Address: 192.168.0.5

Restrict public endpoint access

To limit public endpoint access, first disable general access to the public endpoint. Disabling access to the public endpoint doesn't affect private endpoints. After you disable the public endpoint, select specific networks or IP addresses that can continue to access it. In general, most firewall policies for a storage account restrict networking access to one or more virtual networks.

Disable access to the public endpoint

When you disable public network access, you restrict inbound access while allowing outbound access. You can still access the storage account through its private endpoints. Otherwise, requests to the storage account's public endpoint are rejected, unless they're from a specifically allowed source.

To disable public network access, follow these steps:

Go to the storage account where you want to restrict all inbound access to the public endpoint.
From the service menu, under Security + networking, select Networking.
Under Public network access, select Disable.
Select Save.

The following PowerShell command denies all traffic to the storage account's public endpoint. Set the -Bypass parameter to AzureServices to allow trusted first-party services such as Azure File Sync to access the storage account through the public endpoint.

# This assumes $storageAccount is still defined from the beginning of this guide.
$storageAccount | Update-AzStorageAccountNetworkRuleSet `
        -DefaultAction Deny `
        -Bypass AzureServices `
        -WarningAction SilentlyContinue `
        -ErrorAction Stop | `
    Out-Null

The following CLI command blocks all traffic to the storage account's public endpoint. Set the --bypass parameter to AzureServices to allow trusted first-party services such as Azure File Sync to access the storage account through the public endpoint.

# This assumes $storageAccountResourceGroupName and $storageAccountName
# are still defined from the beginning of this guide.
az storage account update \
    --resource-group $storageAccountResourceGroupName \
    --name $storageAccountName \
    --bypass "AzureServices" \
    --default-action "Deny" \
    --output none

Restrict access to the public endpoint to specific networks

When you restrict access to the public endpoint to specific networks, you allow requests to the public endpoint from within specified virtual networks or IP addresses. This restriction works by using a capability called service endpoints. You can use service endpoints with or without private endpoints.

Fllow these steps to restrict the public endpoint to specific networks.

Go to the storage account where you want to restrict the public endpoint to specific networks.
From the service menu, under Security + networking, select Networking.
Under Public network access scope, select Enabled from selected virtual networks and IP addresses. This selection reveals a number of settings for controlling the restriction of the public endpoint.
Under Virtual networks, select Add a virtual network > Add existing virtual network to select the virtual network that should be allowed to access the storage account through the public endpoint. Select a virtual network and a subnet for that virtual network, and then select Enable. If you want to create a new virtual network for this purpose, select Add a virtual network > Add new virtual network, provide the details, and then select Create.
Under IPv4 Addresses, specify any public internet IP addresses that you want to be able to access the storage account.
Select the Allow trusted Microsoft services to access this resource checkbox to allow trusted first-party Microsoft services such as Azure File Sync to access the storage account.
Select Save.

Restrict access to the storage account's public endpoint to specific virtual networks by using service endpoints. First, collect information about the storage account and virtual network. Replace the placeholder values in the following steps with your own values.

$storageAccountResourceGroupName = "<storage-account-resource-group>"
$storageAccountName = "<storage-account-name>"
$restrictToVirtualNetworkResourceGroupName = "<vnet-resource-group-name>"
$restrictToVirtualNetworkName = "<vnet-name>"
$subnetName = "<subnet-name>"

$storageAccount = Get-AzStorageAccount `
        -ResourceGroupName $storageAccountResourceGroupName `
        -Name $storageAccountName `
        -ErrorAction Stop

$virtualNetwork = Get-AzVirtualNetwork `
        -ResourceGroupName $restrictToVirtualNetworkResourceGroupName `
        -Name $restrictToVirtualNetworkName `
        -ErrorAction Stop

$subnet = $virtualNetwork | `
    Select-Object -ExpandProperty Subnets | `
    Where-Object { $_.Name -eq $subnetName }

if ($null -eq $subnet) {
    Write-Error `
            -Message "Subnet $subnetName not found in virtual network $restrictToVirtualNetworkName." `
            -ErrorAction Stop
}

To allow traffic from the virtual network, the Azure network fabric must expose the Microsoft.Storage service endpoint to the virtual network's subnet. The following PowerShell commands add the Microsoft.Storage service endpoint to the subnet if it's not already there.

$serviceEndpoints = $subnet | `
    Select-Object -ExpandProperty ServiceEndpoints | `
    Select-Object -ExpandProperty Service

if ($serviceEndpoints -notcontains "Microsoft.Storage") {
    if ($null -eq $serviceEndpoints) {
        $serviceEndpoints = @("Microsoft.Storage")
    } elseif ($serviceEndpoints -is [string]) {
        $serviceEndpoints = @($serviceEndpoints, "Microsoft.Storage")
    } else {
        $serviceEndpoints += "Microsoft.Storage"
    }

    $virtualNetwork = $virtualNetwork | Set-AzVirtualNetworkSubnetConfig `
            -Name $subnetName `
            -AddressPrefix $subnet.AddressPrefix `
            -ServiceEndpoint $serviceEndpoints `
            -WarningAction SilentlyContinue `
            -ErrorAction Stop | `
        Set-AzVirtualNetwork `
            -ErrorAction Stop
}

The final step in restricting traffic to the storage account is to create a networking rule and add it to the storage account's network rule set.

$networkRule = $storageAccount | Add-AzStorageAccountNetworkRule `
    -VirtualNetworkResourceId $subnet.Id `
    -ErrorAction Stop

$storageAccount | Update-AzStorageAccountNetworkRuleSet `
        -DefaultAction Deny `
        -Bypass AzureServices `
        -VirtualNetworkRule $networkRule `
        -WarningAction SilentlyContinue `
        -ErrorAction Stop | `
    Out-Null

storageAccountResourceGroupName="<storage-account-resource-group>"
storageAccountName="<storage-account-name>"
restrictToVirtualNetworkResourceGroupName="<vnet-resource-group-name>"
restrictToVirtualNetworkName="<vnet-name>"
subnetName="<subnet-name>"

storageAccount=$(az storage account show \
        --resource-group $storageAccountResourceGroupName \
        --name $storageAccountName \
        --query "id" --output tsv)

virtualNetwork=$(az network vnet show \
        --resource-group $restrictToVirtualNetworkResourceGroupName \
        --name $restrictToVirtualNetworkName \
        --query "id" --output tsv)

subnet=$(az network vnet subnet show \
        --resource-group $restrictToVirtualNetworkResourceGroupName \
        --vnet-name $restrictToVirtualNetworkName \
        --name $subnetName \
        --query "id" --output tsv)

To allow traffic from the virtual network, the Azure network fabric must expose the Microsoft.Storage service endpoint to the virtual network's subnet. The following CLI commands add the Microsoft.Storage service endpoint to the subnet if it's not already there.

serviceEndpoints=$(az network vnet subnet show \
        --resource-group $restrictToVirtualNetworkResourceGroupName \
        --vnet-name $restrictToVirtualNetworkName \
        --name $subnetName \
        --query "serviceEndpoints[].service" \
        --output tsv)

foundStorageServiceEndpoint=false
for serviceEndpoint in $serviceEndpoints
do
    if [ $serviceEndpoint = "Microsoft.Storage" ]
    then
        foundStorageServiceEndpoint=true
    fi
done

if [ $foundStorageServiceEndpoint = false ]
then
    serviceEndpointList=""

    for serviceEndpoint in $serviceEndpoints
    do
        serviceEndpointList+=$serviceEndpoint
        serviceEndpointList+=" "
    done

    serviceEndpointList+="Microsoft.Storage"

    az network vnet subnet update \
            --ids $subnet \
            --service-endpoints $serviceEndpointList \
            --output none
fi
