Lakehouse reference architectures (download)

This article covers architectural guidance for the lakehouse in terms of data source, ingestion, transformation, querying and processing, serving, analysis, and storage.

Each reference architecture has a downloadable PDF in 11 x 17 (A3) format.

While the lakehouse on Databricks is an open platform that integrates with a large ecosystem of partner tools, the reference architectures focus only on Azure services and the Databricks lakehouse. The cloud provider services shown are selected to illustrate the concepts and are not exhaustive.

Download: Reference architecture for the Azure Databricks lakehouse

The Azure reference architecture shows the following Azure-specific services for ingesting, storage, serving, and analysis:

• Azure Synapse and SQL Server as source systems for Lakehouse Federation
• Azure IoT Hub and Azure Event Hubs for streaming ingest
• Azure Data Factory for batch ingest
• Azure Data Lake Storage Gen 2 (ADLS) as the object storage for data and AI assets
• Azure SQL DB and Azure Cosmos DB as operational databases
• Azure Purview as the enterprise catalog to which UC exports schema and lineage information
• Power BI as the BI tool

Organization of the reference architectures

The reference architecture is structured along the swim lanes Source, Ingest, Transform, Query/Process, Serve, Analysis, and Storage:

• Source

  There are three ways to integrate external data into the Data Intelligence Platform:

  • ETL: The platform enables integration with systems that provide semi-structured and unstructured data (such as sensors, IoT devices, media, files, and logs), as well as structured data from relational databases or business applications.
  • Lakehouse Federation: SQL sources, such as relational databases, can be integrated into the lakehouse and Unity Catalog without ETL. In this case, the source system data is governed by Unity Catalog, and queries are pushed down to the source system.
  • Catalog Federation: Hive Metastore catalogs can also be integrated into Unity Catalog through catalog federation, allowing Unity Catalog to control the tables stored in Hive Metastore.

• Ingest

  Ingest data into the lakehouse via batch or streaming:

  • Files delivered to cloud storage can be loaded directly using the Databricks Auto Loader.

  • For batch ingestion of data from enterprise applications into Delta Lake, the Databricks lakehouse relies on partner ingest tools with specific adapters for these systems of record.

  • Streaming events can be ingested directly from event streaming systems such as Kafka using Databricks Structured Streaming. Streaming sources can be sensors, IoT, or change data capture processes.

• Storage

  • Data is typically stored in the cloud storage system where the ETL pipelines use the medallion architecture to store data in a curated way as Delta files/tables or Iceberg tables.

• Transform and Query / process

  • The Databricks lakehouse uses its engines Apache Spark and Photon for all transformations and queries.

  • DLT is a declarative framework for simplifying and optimizing reliable, maintainable, and testable data processing pipelines.

  • Powered by Apache Spark and Photon, the Databricks Data Intelligence Platform supports both types of workloads: SQL queries via SQL warehouses, and SQL, Python and Scala workloads via workspace clusters.

  • For data science (ML Modeling and Gen AI), the Databricks AI and Machine Learning platform provides specialized ML runtimes for AutoML and for coding ML jobs. All data science and MLOps workflows are best supported by MLflow.

• Serving

  For data warehousing (DWH) and BI use cases, the Databricks lakehouse provides Databricks SQL, the data warehouse powered by SQL warehouses.

  • For machine learning, Mosaic AI Model Serving is a scalable, real-time, enterprise-grade model serving capability hosted in the Databricks control plane.

  • Operational databases: External systems, such as operational databases, can be used to store and deliver final data products to user applications.

  • Collaboration: Business partners get secure access to the data they need through Delta Sharing. Based on Delta Sharing, the Databricks Marketplace is an open forum for exchanging data products.

• Analysis

  • The Data Intelligence Platform also offers dashboards to build data visualizations and share insights.

• Integrate

  • The Databricks platform integrates with standard identity providers for user management and single sign on (SSO).
  • External AI services like HuggingFace can be used directly from within the Databricks Intelligence Platform.

  • External orchestrators can either use the comprehensive REST API or dedicated connectors to external orchestration tools like Apache Airflow.

  • Unity Catalog is used for all data & AI governance in the Databricks Intelligence Platform and can integrate other databases into its governance through Lakehouse Federation.

    Additionally, Unity Catalog can be integrated into other enterprise catalogs, e.g. Purview. Contact the enterprise catalog vendor for details.

Common capabilities for all workloads

In addition, the Databricks lakehouse comes with management capabilities that support all workloads:

• Data and AI governance

  The central data and AI governance system in the Databricks Data Intelligence Platform is Unity Catalog. Unity Catalog provides a single place to manage data access policies that apply across all workspaces and supports all assets created or used in the lakehouse, such as tables, volumes, features (feature store), and models (model registry). Unity Catalog can also be used to capture runtime data lineage across queries run on Databricks.

• Automation & Orchestration

  Databricks Jobs orchestrate data processing, machine learning, and analytics pipelines on the Databricks Data Intelligence Platform. DLT allow you to build reliable and maintainable ETL pipelines with declarative syntax. The platform also supports CI/CD and MLOps

High-level use cases for the Data Intelligence Platform on Azure

Built-in ingestion from SaaS and databases with Lakeflow Connect

Download: Lakeflow Connect reference architecture for Azure Databricks.

Batch ingestion and ETL

Download: Batch ETL reference architecture for Azure Databricks

Ingestion tools use source-specific adapters to read data from the source and then either store it in the cloud storage from where Auto Loader can read it, or call Databricks directly (for example, with partner ingestion tools integrated into the Databricks lakehouse). To load the data, the Databricks ETL and processing engine runs the queries via DLT. Single or multitask workflows can be orchestrated by Databricks Jobs and governed by Unity Catalog (access control, audit, lineage, and so on). To provide access to specific golden tables for low-latency operational systems, export the tables to an operational database such as an RDBMS or key-value store at the end of the ETL pipeline.

Streaming and change data capture (CDC)

Download: Spark structured streaming architecture for Azure Databricks

The Databricks ETL engine uses Spark Structured Streaming to read from event queues such as Apache Kafka or Azure Event Hub. The downstream steps follow the approach of the Batch use case above.

Real-time change data capture (CDC) typically uses an event queue to store the extracted events. From there, the use case follows the streaming use case.

If CDC is done in batch where the extracted records are stored in cloud storage first, then Databricks Autoloader can read them and the use case follows Batch ETL.

Machine learning and AI (traditional)

Download: Machine learning and AI reference architecture for Azure Databricks

For machine learning, the Databricks Data Intelligence Platform provides Mosaic AI, which comes with state-of-the-art machine and deep learning libraries. It provides capabilities such as Feature Store and Model Registry (both integrated into Unity Catalog), low-code features with AutoML, and MLflow integration into the data science lifecycle.

All data science-related assets (tables, features, and models) are governed by Unity Catalog and data scientists can use Databricks Jobs to orchestrate their jobs.

For deploying models in a scalable and enterprise-grade way, use the MLOps capabilities to publish the models in model serving.

AI Agent applications (Gen AI)

Download: Gen AI application reference architecture for Azure Databricks

For deploying models in a scalable and enterprise-grade way, use the MLOps capabilities to publish the models in model serving.

BI and SQL analytics

Download: BI and SQL analytics reference architecture for Azure Databricks

For BI use cases, business analysts can use dashboards, the Databricks SQL editor or BI tools such as Tableau or Power BI. In all cases, the engine is Databricks SQL (serverless or non-serverless), and Unity Catalog provides data discovery, exploration, and access control.

Lakehouse federation

Download: Lakehouse federation reference architecture for Azure Databricks

Lakehouse Federation allows external data SQL databases (such as MySQL, Postgres, SQL Server, or Azure Synapse) to be integrated with Databricks.

All workloads (AI, DWH, and BI) can benefit from this without the need to ETL the data into object storage first. The external source catalog is mapped into the Unity catalog and fine-grained access control can be applied to access via the Databricks platform.

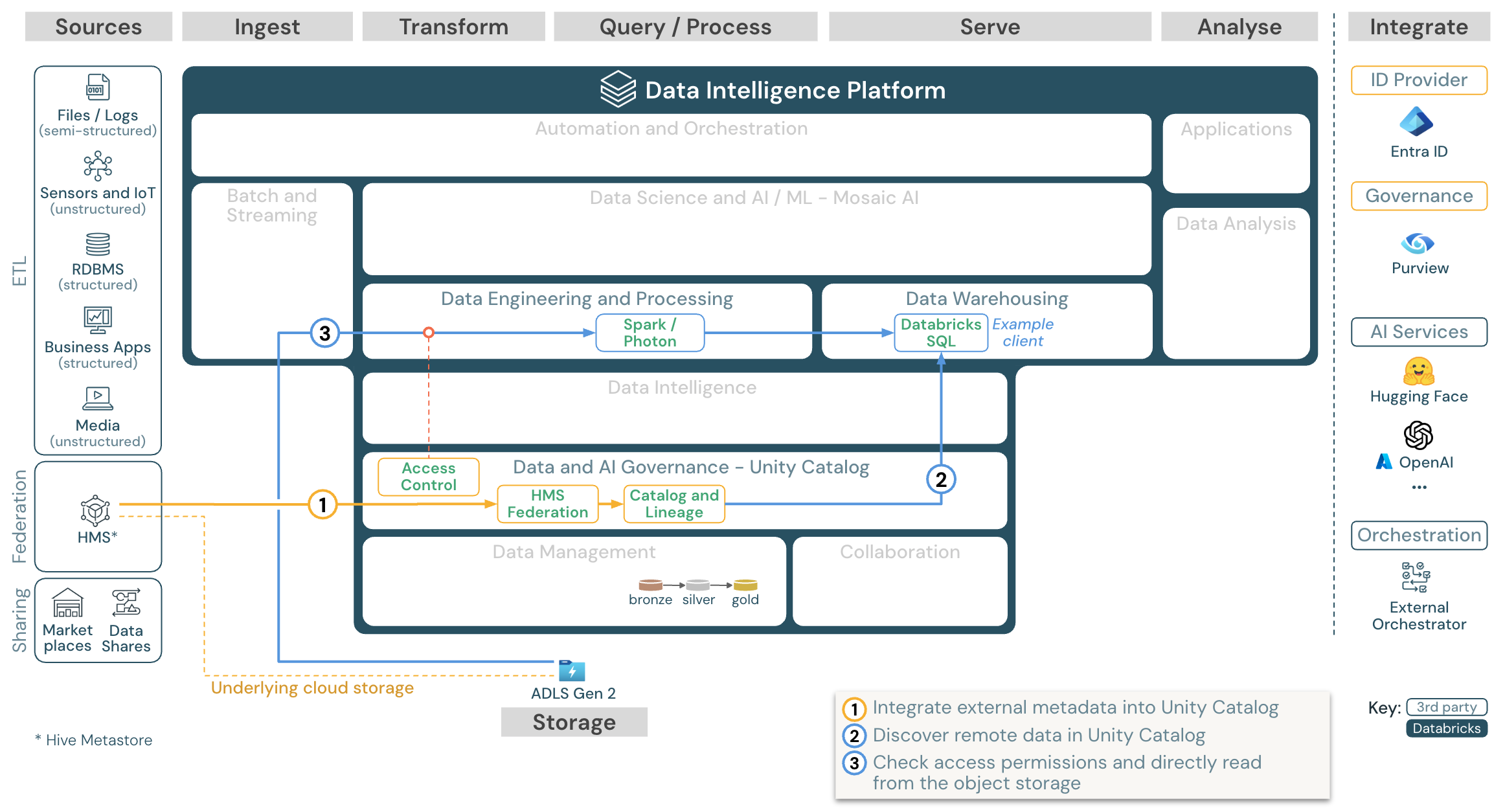

Catalog federation

Download: Catalog federation reference architecture for Azure Databricks

Catalog federation allows external Hive Metastores (such as MySQL, Postgres, SQL Server, or Azure Synapse) to be integrated with Databricks.

All workloads (AI, DWH, and BI) can benefit from this without the need to ETL the data into object storage first. The external source catalog is added to Unity Catalog where fine-grained access control is applied via the Databricks platform.

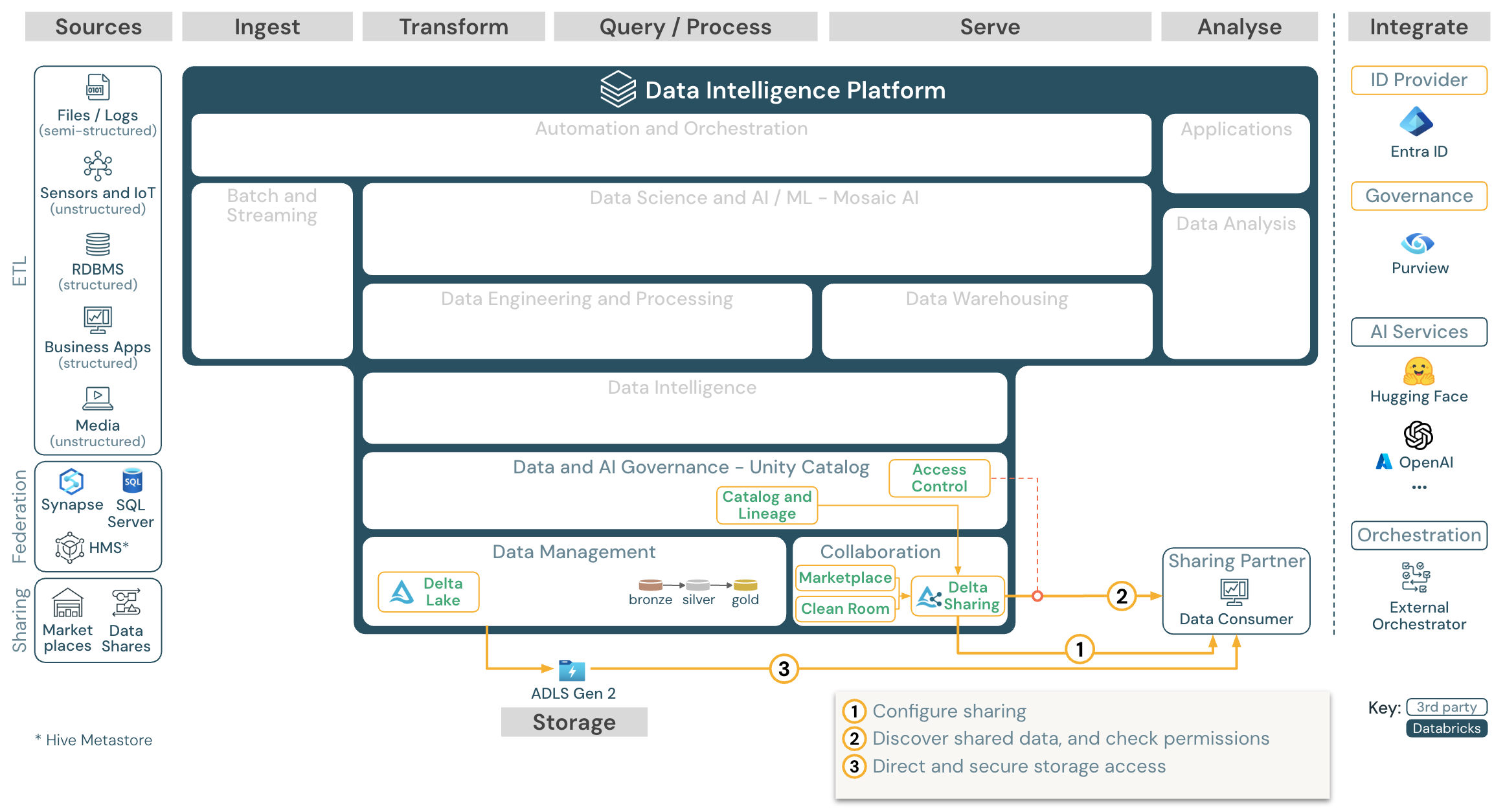

Share Data with 3rd party tools

Download: Share data with 3rd-party tools reference architecture for Azure Databricks

Enterprise-grade data sharing with 3rd parties is provided by Delta Sharing. It enables direct access to data in the object store secured by Unity Catalog.

Consume shared data from Databricks

Download: Consume shared data from Databricks reference architecture for Azure Databricks

The Delta Sharing Databricks-to-Databricks protocol allows to share data securely with any Databricks user, regardless of account or cloud host, as long as that user has access to a workspace enabled for Unity Catalog.
