快速入门:创建具有多个公共 IP 地址的 Azure 防火墙 - ARM 模板Quickstart: Create an Azure Firewall with multiple public IP addresses - ARM template

在本快速入门中,使用 Azure 资源管理器模板(ARM 模板)部署具有多个公共 IP 地址的 Azure 防火墙。In this quickstart, you use an Azure Resource Manager template (ARM template) to deploy an Azure Firewall with multiple public IP addresses. 部署的防火墙具有 NAT 规则收集规则,这些规则允许通过 RDP 连接与两个 Windows Server 2019 虚拟机进行连接。The deployed firewall has NAT rule collection rules that allow RDP connections to two Windows Server 2019 virtual machines.

ARM 模板是定义项目基础结构和配置的 JavaScript 对象表示法 (JSON) 文件。An ARM template is a JavaScript Object Notation (JSON) file that defines the infrastructure and configuration for your project. 该模板使用声明性语法,使你可以声明要部署的内容,而不需要编写一系列编程命令来进行创建。The template uses declarative syntax, which lets you state what you intend to deploy without having to write the sequence of programming commands to create it.

若要详细了解具有多个公共 IP 地址的 Azure 防火墙,请参阅使用 Azure PowerShell 部署具有多个公共 IP 地址的 Azure 防火墙For more information about Azure Firewall with multiple public IP addresses, see Deploy an Azure Firewall with multiple public IP addresses using Azure PowerShell.

如果你的环境满足先决条件,并且你熟悉如何使用 ARM 模板,请选择“部署到 Azure”按钮。If your environment meets the prerequisites and you're familiar with using ARM templates, select the Deploy to Azure button. Azure 门户中会打开模板。The template will open in the Azure portal.

部署到 Azure Deploy to Azure

先决条件Prerequisites

查看模板Review the template

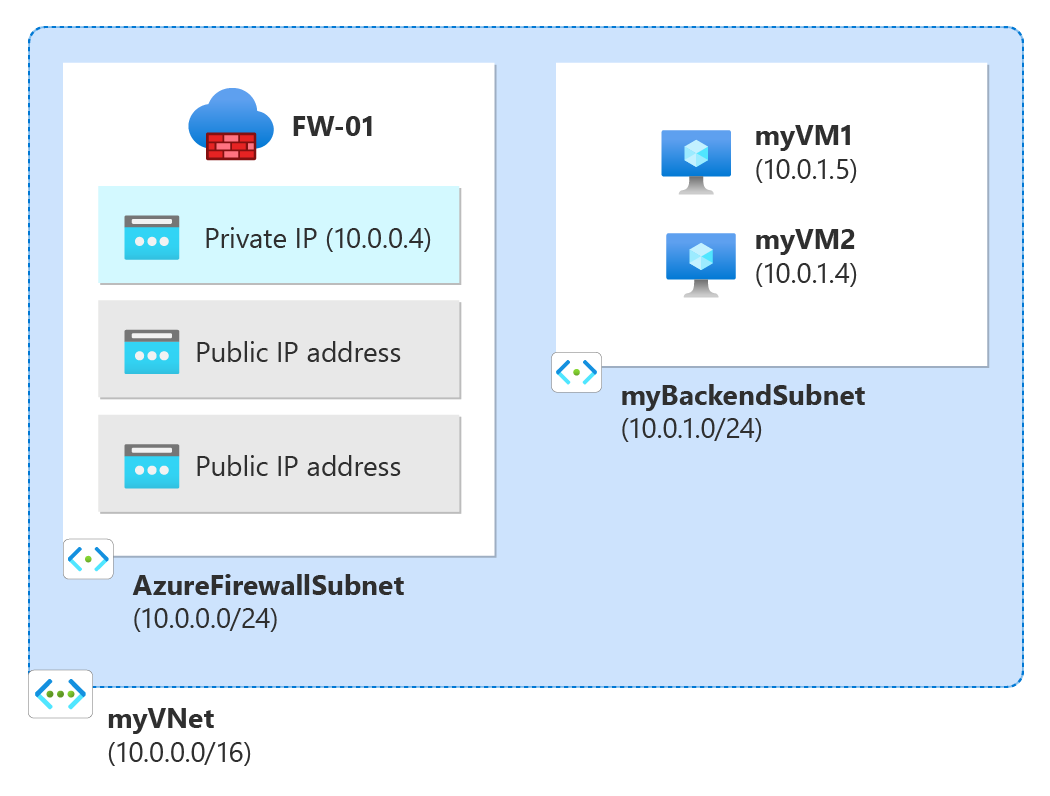

此模板创建具有两个公共 IP 地址的 Azure 防火墙,以及用于支持 Azure 防火墙的必要资源。This template creates an Azure Firewall with two public IP addresses, along with the necessary resources to support the Azure Firewall.

本快速入门中使用的模板来自 Azure 快速启动模板The template used in this quickstart is from Azure Quickstart Templates.

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "adminUsername": {
            "type": "String",
            "metadata": {
                "description": "Admin username for the backend servers"
            }
        },
        "adminPassword": {
            "type": "SecureString",
            "metadata": {
                "description": "Password for the admin account on the backend servers"
            }
        },
        "location": {
            "defaultValue": "[resourceGroup().location]",
            "type": "String",
            "metadata": {
                "description": "Location for all resources."
            }
        },
        "vmSize": {
            "defaultValue": "Standard_B2ms",
            "type": "String",
            "metadata": {
                "description": "Size of the virtual machine."
            }
        }
    },
    "variables": {
        "virtualMachines_myVM_name": "myVM",
        "virtualNetworks_myVNet_name": "myVNet",
        "net_interface": "net-int",
        "ipconfig_name": "ipconfig",
        "publicIPAddress": "public_ip",
        "nsg_name": "vm-nsg",
        "firewall_name": "FW-01",
        "vnet_prefix": "10.0.0.0/16",
        "fw_subnet_prefix": "10.0.0.0/24",
        "backend_subnet_prefix": "10.0.1.0/24",
        "azureFirewallSubnetId": "[resourceId('Microsoft.Network/virtualNetworks/subnets',variables('virtualNetworks_myVNet_name'), 'AzureFirewallSubnet')]",
        "azureFirewallSubnetJSON": "[json(format('{{\"id\": \"{0}\"}}', variables('azureFirewallSubnetId')))]",
        "copy": [
            {
                "name": "azureFirewallIpConfigurations",
                "count": 2,
                "input": {
                    "name": "[concat('IpConf', copyIndex('azureFirewallIpConfigurations',1))]",
                    "properties": {
                        "subnet": "[if(equals(copyIndex('azureFirewallIpConfigurations',1), 1), variables('azureFirewallSubnetJSON'), json('null'))]",
                        "publicIPAddress": {
                            "id": "[resourceId('Microsoft.Network/publicIPAddresses', concat(variables('publicIPAddress'), copyIndex('azureFirewallIpConfigurations',1)))]"
                        }
                    }
                }
            }
        ]
    },
    "resources": [
        {
            "type": "Microsoft.Network/networkSecurityGroups",
            "apiVersion": "2019-11-01",
            "name": "[concat(variables('nsg_name'), copyIndex(1))]",
            "location": "[parameters('location')]",
            "copy": {
                "name": "nsg-loop",
                "count": 2
            },
            "properties": {
                "securityRules": [
                    {
                        "name": "RDP",
                        "properties": {
                            "protocol": "TCP",
                            "sourcePortRange": "*",
                            "destinationPortRange": "3389",
                            "sourceAddressPrefix": "*",
                            "destinationAddressPrefix": "*",
                            "access": "Allow",
                            "priority": 300,
                            "direction": "Inbound"
                        }
                    }
                ]
            }

        },
        {
            "type": "Microsoft.Network/publicIPAddresses",
            "apiVersion": "2019-11-01",
            "name": "[concat(variables('publicIPAddress'), copyIndex(1))]",
            "location": "[parameters('location')]",
            "sku": {
                "name": "Standard"
            },
            "copy": {
                "name": "publicip-loop",
                "count": 2
            },
            "properties": {
                "publicIPAddressVersion": "IPv4",
                "publicIPAllocationMethod": "Static",
                "idleTimeoutInMinutes": 4
            }

        },
        {
            "type": "Microsoft.Network/virtualNetworks",
            "apiVersion": "2019-11-01",
            "name": "[variables('virtualNetworks_myVNet_name')]",
            "location": "[parameters('location')]",
            "dependsOn": [
                "[resourceId('Microsoft.Network/routeTables', 'rt-01')]"
            ],
            "properties": {
                "addressSpace": {
                    "addressPrefixes": [
                        "[variables('vnet_prefix')]"
                    ]
                },
                "subnets": [
                    {
                        "name": "myBackendSubnet",
                        "properties": {
                            "addressPrefix": "[variables('backend_subnet_prefix')]",
                            "routeTable": {
                                "id": "[resourceId('Microsoft.Network/routeTables', 'rt-01')]"
                            },
                            "privateEndpointNetworkPolicies": "Enabled",
                            "privateLinkServiceNetworkPolicies": "Enabled"
                        }
                    }
                ],
                "enableDdosProtection": false,
                "enableVmProtection": false
            }
        },
        {
            "type": "Microsoft.Network/virtualNetworks/subnets",
            "apiVersion": "2019-11-01",
            "name": "[concat(variables('virtualNetworks_myVNet_name'), '/AzureFirewallSubnet')]",
            "dependsOn": [
                "[resourceId('Microsoft.Network/virtualNetworks', variables('virtualNetworks_myVNet_name'))]"
            ],
            "properties": {
                "addressPrefix": "[variables('fw_subnet_prefix')]",
                "privateEndpointNetworkPolicies": "Enabled",
                "privateLinkServiceNetworkPolicies": "Enabled"
            }
        },
        {
            "type": "Microsoft.Compute/virtualMachines",
            "apiVersion": "2019-07-01",
            "name": "[concat(variables('virtualMachines_myVM_name'), copyIndex(1))]",
            "location": "[parameters('location')]",
            "dependsOn": [
                "[resourceId('Microsoft.Network/networkInterfaces', concat(variables('net_interface'), copyIndex(1)))]"
            ],
            "copy": {
                "name": "vm-loop",
                "count": 2
            },
            "properties": {
                "hardwareProfile": {
                    "vmSize": "[parameters('vmSize')]"
                },
                "storageProfile": {
                    "imageReference": {
                        "publisher": "MicrosoftWindowsServer",
                        "offer": "WindowsServer",
                        "sku": "2019-Datacenter",
                        "version": "latest"
                    },
                    "osDisk": {
                        "osType": "Windows",
                        "createOption": "FromImage",
                        "caching": "ReadWrite",
                        "managedDisk": {
                            "storageAccountType": "StandardSSD_LRS"
                        },
                        "diskSizeGB": 127
                    }
                },
                "osProfile": {
                    "computerName": "[concat(variables('virtualMachines_myVM_name'), copyIndex(1))]",
                    "adminUsername": "[parameters('adminUsername')]",
                    "adminPassword": "[parameters('adminPassword')]",
                    "windowsConfiguration": {
                        "provisionVMAgent": true,
                        "enableAutomaticUpdates": true
                    },
                    "allowExtensionOperations": true
                },
                "networkProfile": {
                    "networkInterfaces": [
                        {
                            "id": "[resourceId('Microsoft.Network/networkInterfaces', concat(variables('net_interface'), copyIndex(1)))]"
                        }
                    ]
                }
            }

        },
        {
            "type": "Microsoft.Network/networkInterfaces",
            "apiVersion": "2019-11-01",
            "name": "[concat(variables('net_interface'), copyIndex(1))]",
            "location": "[parameters('location')]",
            "dependsOn": [
                "[resourceId('Microsoft.Network/virtualNetworks', variables('virtualNetworks_myVNet_name'))]",
                "[resourceId('Microsoft.Network/networkSecurityGroups', concat(variables('nsg_name'), copyIndex(1)))]"
            ],
            "copy": {
                "name": "int-loop",
                "count": 2
            },
            "properties": {
                "ipConfigurations": [
                    {
                        "name": "[concat(variables('ipconfig_name'), copyIndex(1))]",
                        "properties": {
                            "subnet": {
                                "id": "[resourceId('Microsoft.Network/virtualNetworks/subnets', variables('virtualNetworks_myVNet_name'), 'myBackendSubnet')]"
                            },
                            "primary": true
                        }
                    }
                ],
                "enableAcceleratedNetworking": false,
                "enableIPForwarding": false,
                "networkSecurityGroup": {
                    "id": "[resourceId('Microsoft.Network/networkSecurityGroups', concat(variables('nsg_name'), copyIndex(1)))]"
                }
            }
        },
        {
            "type": "Microsoft.Network/azureFirewalls",
            "apiVersion": "2019-11-01",
            "name": "[variables('firewall_name')]",
            "location": "[parameters('location')]",
            "dependsOn": [
                "[resourceId('Microsoft.Network/publicIPAddresses', concat(variables('publicIPAddress'), 1))]",
                "[resourceId('Microsoft.Network/publicIPAddresses', concat(variables('publicIPAddress'), 2))]",
                "[resourceId('Microsoft.Network/virtualNetworks/subnets', variables('virtualNetworks_myVNet_name'), 'AzureFirewallSubnet')]"

            ],
            "properties": {
                "sku": {
                    "name": "AZFW_VNet",
                    "tier": "Standard"
                },
                "threatIntelMode": "Alert",
                "ipConfigurations": "[variables('azureFirewallIpConfigurations')]",
                "applicationRuleCollections": [
                    {
                        "name": "web",
                        "properties": {
                            "priority": 100,
                            "action": {
                                "type": "Allow"
                            },
                            "rules": [
                                {
                                    "name": "wan-address",
                                    "protocols": [
                                        {
                                            "protocolType": "Http",
                                            "port": 80
                                        },
                                        {
                                            "protocolType": "Https",
                                            "port": 443
                                        }
                                    ],
                                    "targetFqdns": [
                                        "getmywanip.com"
                                    ],
                                    "sourceAddresses": [
                                        "*"
                                    ]
                                },
                                {
                                    "name": "google",
                                    "protocols": [
                                        {
                                            "protocolType": "Http",
                                            "port": 80
                                        },
                                        {
                                            "protocolType": "Https",
                                            "port": 443
                                        }
                                    ],
                                    "targetFqdns": [
                                        "www.google.com"
                                    ],
                                    "sourceAddresses": [
                                        "10.0.1.0/24"
                                    ]
                                },
                                {
                                    "name": "wupdate",
                                    "protocols": [
                                        {
                                            "protocolType": "Http",
                                            "port": 80
                                        },
                                        {
                                            "protocolType": "Https",
                                            "port": 443
                                        }
                                    ],
                                    "fqdnTags": [
                                        "WindowsUpdate"
                                    ],
                                    "sourceAddresses": [
                                        "*"
                                    ]
                                }
                            ]
                        }
                    }
                ],
                "natRuleCollections": [
                    {
                        "name": "Coll-01",
                        "properties": {
                            "priority": 100,
                            "action": {
                                "type": "Dnat"
                            },
                            "rules": [
                                {
                                    "name": "rdp-01",
                                    "protocols": [
                                        "TCP"
                                    ],
                                    "translatedAddress": "10.0.1.4",
                                    "translatedPort": "3389",
                                    "sourceAddresses": [
                                        "*"
                                    ],
                                    "destinationAddresses": [ "[reference(resourceId('Microsoft.Network/publicIPAddresses/', concat(variables('publicIPAddress'), 1))).ipAddress]" ],
                                    "destinationPorts": [
                                        "3389"
                                    ]
                                },
                                {
                                    "name": "rdp-02",
                                    "protocols": [
                                        "TCP"
                                    ],
                                    "translatedAddress": "10.0.1.5",
                                    "translatedPort": "3389",
                                    "sourceAddresses": [
                                        "*"
                                    ],
                                    "destinationAddresses": [ "[reference(resourceId('Microsoft.Network/publicIPAddresses/', concat(variables('publicIPAddress'), 2))).ipAddress]" ],
                                    "destinationPorts": [
                                        "3389"
                                    ]
                                }
                            ]
                        }
                    }
                ]
            }
        },
        {
            "type": "Microsoft.Network/routeTables",
            "apiVersion": "2019-11-01",
            "name": "rt-01",
            "location": "[parameters('location')]",
            "properties": {
                "disableBgpRoutePropagation": false,
                "routes": [
                    {
                        "name": "fw",
                        "properties": {
                            "addressPrefix": "0.0.0.0/0",
                            "nextHopType": "VirtualAppliance",
                            "nextHopIpAddress": "10.0.0.4"
                        }
                    }
                ]
            }
        }

    ]
}

模板中定义了多个 Azure 资源:Multiple Azure resources are defined in the template:

  • Microsoft.Network/publicIPAddressesMicrosoft.Network/publicIPAddresses
  • Microsoft.Network/networkSecurityGroupsMicrosoft.Network/networkSecurityGroups
  • Microsoft.Network/virtualNetworksMicrosoft.Network/virtualNetworks
  • Microsoft.Compute/virtualMachines Microsoft.Compute/virtualMachines
  • Microsoft.Network/networkInterfacesMicrosoft.Network/networkInterfaces
  • Microsoft.Storage/storageAccountsMicrosoft.Storage/storageAccounts
  • Microsoft.Network/azureFirewallsMicrosoft.Network/azureFirewalls
  • Microsoft.Network/routeTablesMicrosoft.Network/routeTables

部署模板Deploy the template

将 ARM 模板部署到 Azure:Deploy the ARM template to Azure:

  1. 选择“部署到 Azure”,登录到 Azure 并打开模板。Select Deploy to Azure to sign in to Azure and open the template. 该模板将创建 Azure 防火墙、网络基础结构和两个虚拟机。The template creates an Azure Firewall, the network infrastructure, and two virtual machines.

    部署到 Azure Deploy to Azure

  2. 在门户中的“创建具有多个公共 IP 地址的 Azure 防火墙”页上,键入或选择以下值:In the portal, on the Create an Azure Firewall with multiple IP public addresses page, type or select the following values:

    • 订阅:从现有订阅中选择Subscription: Select from existing subscriptions
    • 资源组:从现有资源组中选择,或者选择“新建”,然后选择“确定”。 Resource group: Select from existing resource groups or select Create new, and select OK.
    • 位置:选择一个位置Location: Select a location
    • 管理员用户名:键入管理员用户帐户的用户名Admin Username: Type username for the administrator user account
    • 管理员密码:键入管理员密码或密钥Admin Password: Type an administrator password or key
  3. 选择“我同意上述条款和条件”,然后选择“购买” 。Select I agree to the terms and conditions stated above and then select Purchase. 部署可能需要 10 分钟或更长时间才能完成。The deployment can take 10 minutes or longer to complete.

验证部署Validate the deployment

在 Azure 门户中,查看已部署的资源。In the Azure portal, review the deployed resources. 记下防火墙公共 IP 地址。Note the firewall public IP addresses.

使用“远程桌面连接”连接到防火墙公共 IP 地址。Use Remote Desktop Connection to connect to the firewall public IP addresses. 成功的连接演示了允许连接到后端服务器的防火墙 NAT 规则。Successful connections demonstrates firewall NAT rules that allow the connection to the backend servers.

清理资源Clean up resources

如果不再需要为防火墙创建的资源,请删除资源组。When you no longer need the resources that you created with the firewall, delete the resource group. 这会删除该防火墙和所有相关资源。This removes the firewall and all the related resources.

若要删除资源组,请调用 Remove-AzResourceGroup cmdlet:To delete the resource group, call the Remove-AzResourceGroup cmdlet:

Remove-AzResourceGroup -Name "<your resource group name>"
